Description
The Eagle 200 1HP Commercial Swing Gate Operator delivers powerful, reliable gate control for high-traffic sites. Designed for gates up to 20 feet long and 1,000 pounds, it pairs industrial strength performance with modern Wi‑Fi control for smarter perimeter access.

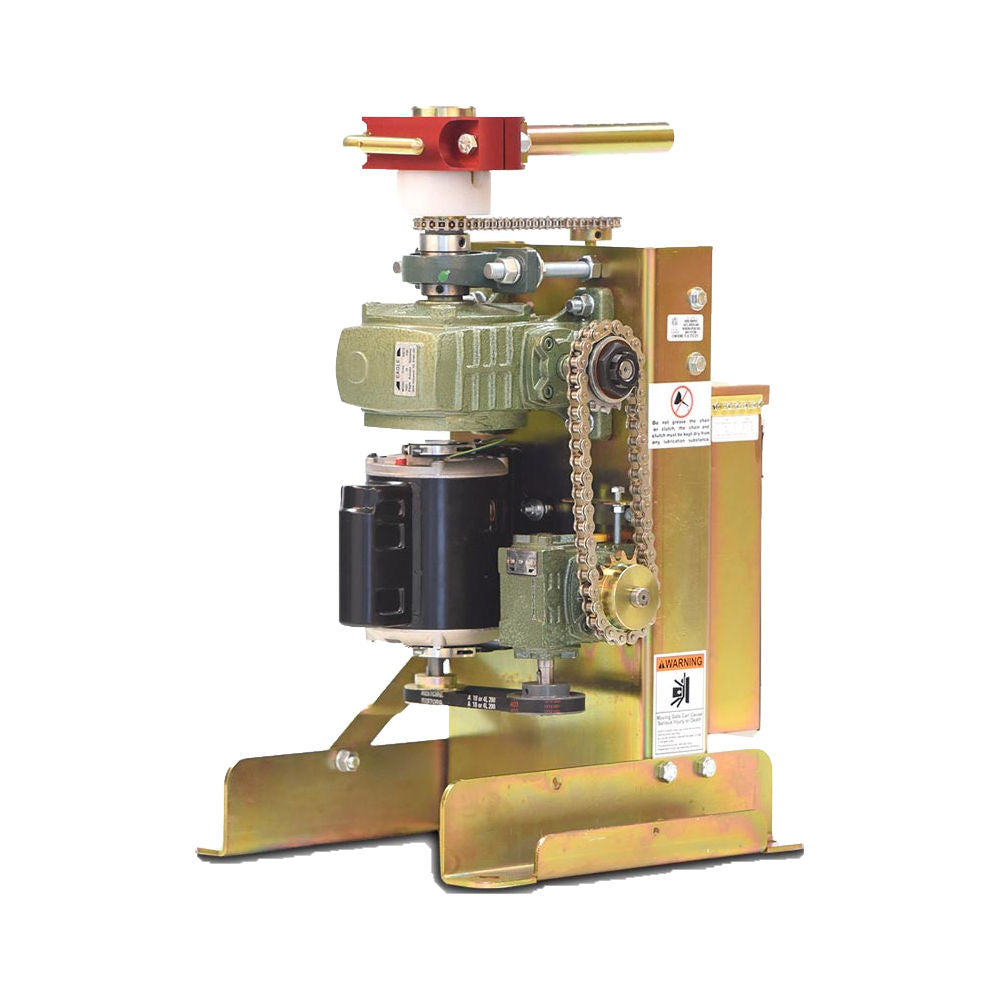

- 1 HP continuous-duty motor: Robust torque and steady operation for heavy gates (115VAC, 60Hz, 11A).
- Dual-stage gear reduction: Size 60 and 40 gears to maximize torque delivery and gate stability.
- Diamond Control Board: Advanced programmability, built-in diagnostics, and plug-in loop detector slots for flexible control.
- EG360 monitored photo eye: UL325 Type B1 safety compliance with reliable obstruction detection.
- EG380 Wi‑Fi opener: Smartphone-based remote control, real-time alerts, and wireless access for convenient management.

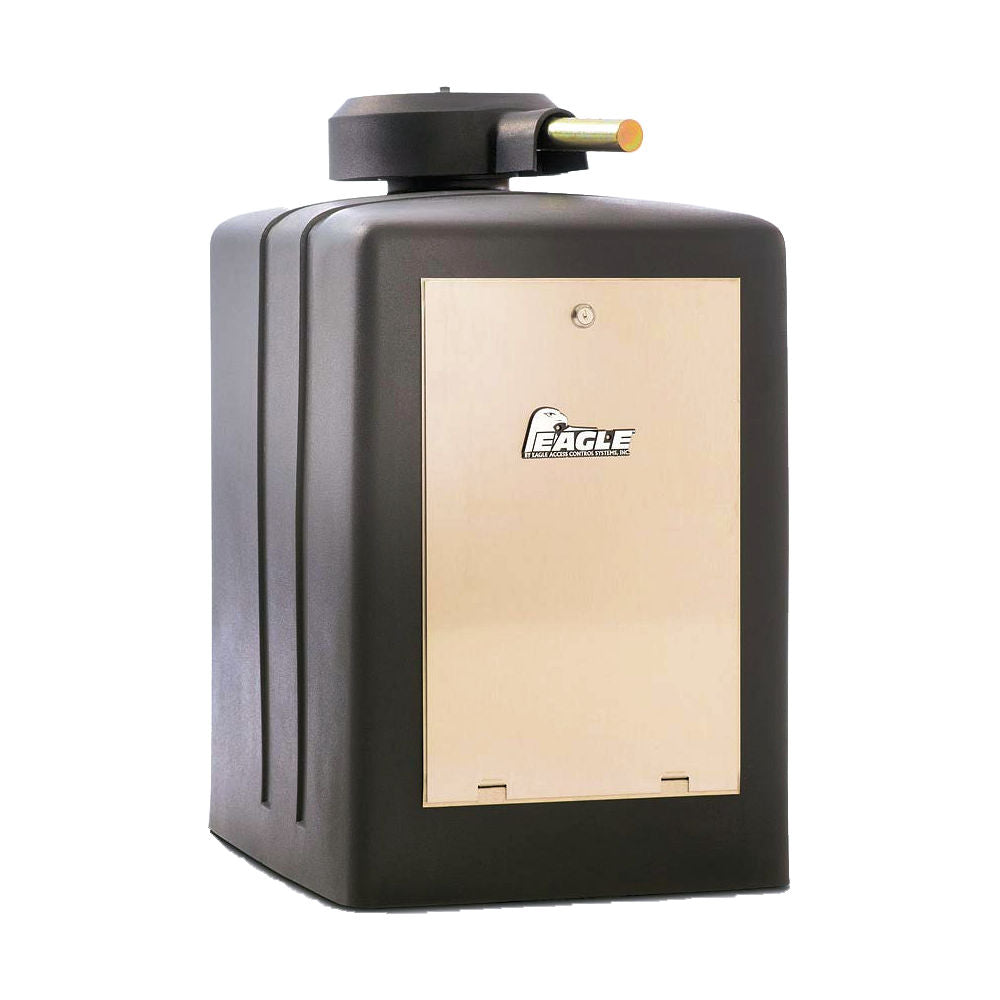

- Weather-resistant construction: UV-resistant HDPE all-weather cover with built-in surge protection for long-term reliability.
- Stop-reverse safety: Automatically reverses when an obstruction is detected to protect people and equipment.

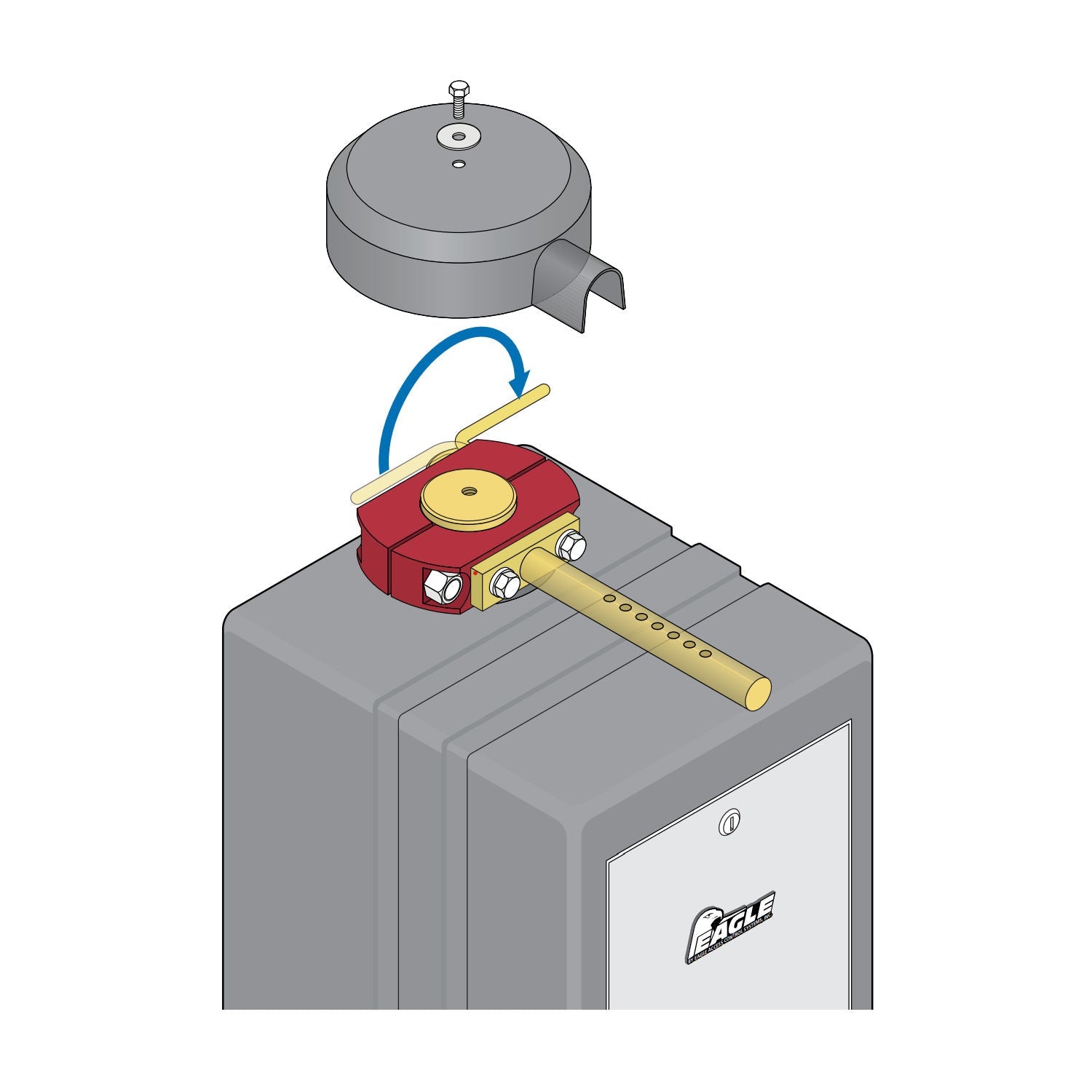

- Quick-release manual operation: Easy manual gate operation during power failures or maintenance.
- No-weld swing arm: Simplifies installation and ensures smooth gate motion with minimal fabrication.
- Safety and compliance: UL325 and UL991 ETL listed for trustworthy safety standards.
- Included accessories: EG360 monitored photo eye and EG380 Wi‑Fi smart opener included.
- Unit Specs: Motor 1 HP continuous-duty; Power 115VAC, 60Hz, 11A; Max gate length 20 ft; Max weight 1,000 lbs; Drive chain #50 nickel-plated; Gear reducer Dual-stage (60/40); Cycle time 18 seconds (0°–90°); Chassis 3/16" zinc-plated steel; Cover UV-resistant HDPE; Auto-close timer 1–60 seconds; Safety listings UL325/UL991 ETL; Warranty 5-year commercial / 7-year residential.
The Eagle 200 is built to handle consistent commercial use while keeping maintenance straightforward. Its combination of heavy-duty performance, smart safety features, and Wi‑Fi connectivity translates to safer operation, faster door cycles, and remote monitoring that helps you manage access more efficiently. With American-built construction and thoughtful design elements like a quick-release handwheel and weather protection, this operator is well-suited for demanding perimeter access in commercial and industrial environments.
