Description

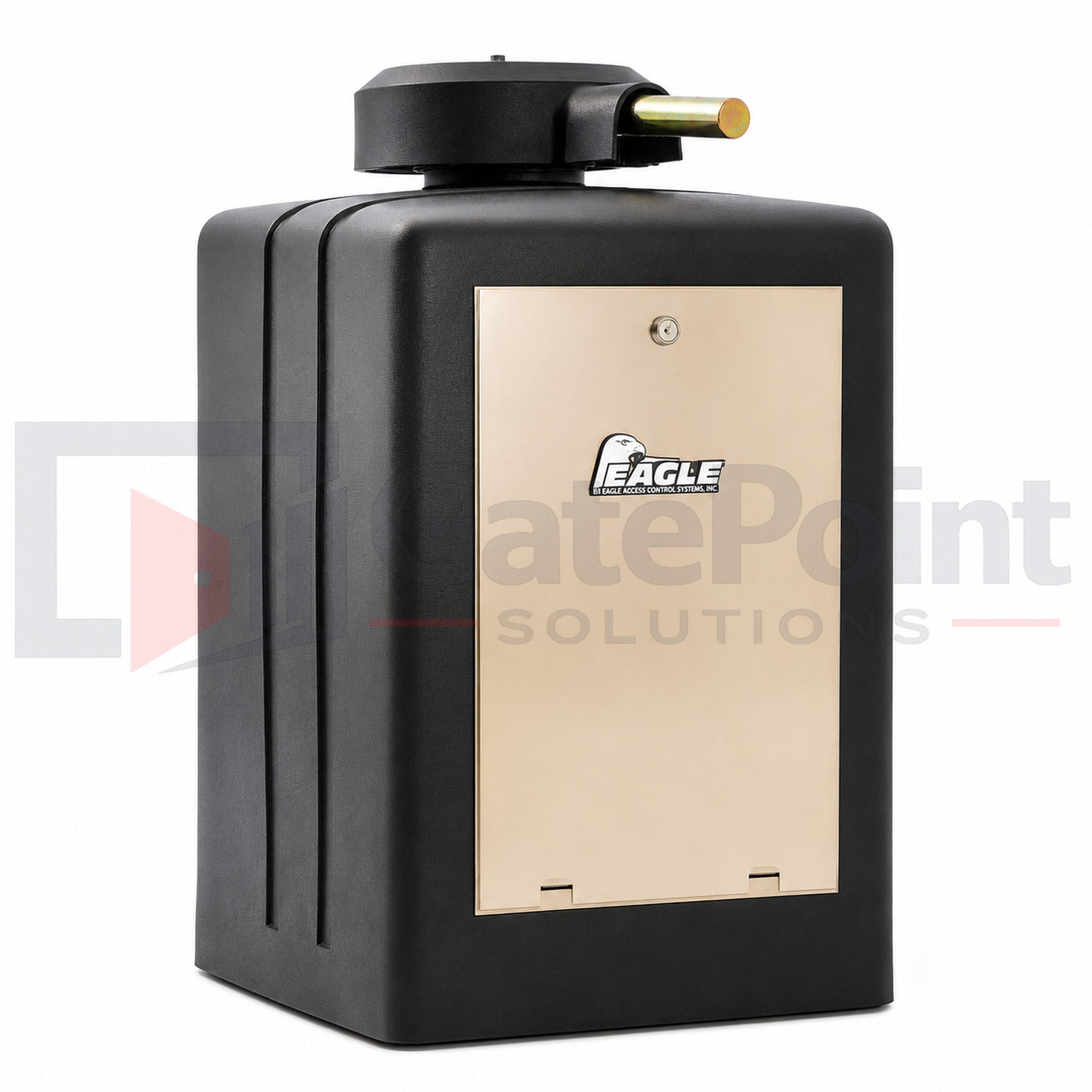

The Eagle 200 1 HP Commercial Swing Gate Operator is a heavy-duty continuous-duty gate automation system engineered for demanding commercial and industrial applications. Featuring a powerful 1 HP continuous-duty AC motor, this operator is designed to automate swing gates up to 24 feet long and 1,000 pounds, making it an excellent solution for high-traffic entrances that require dependable performance and long-term reliability.

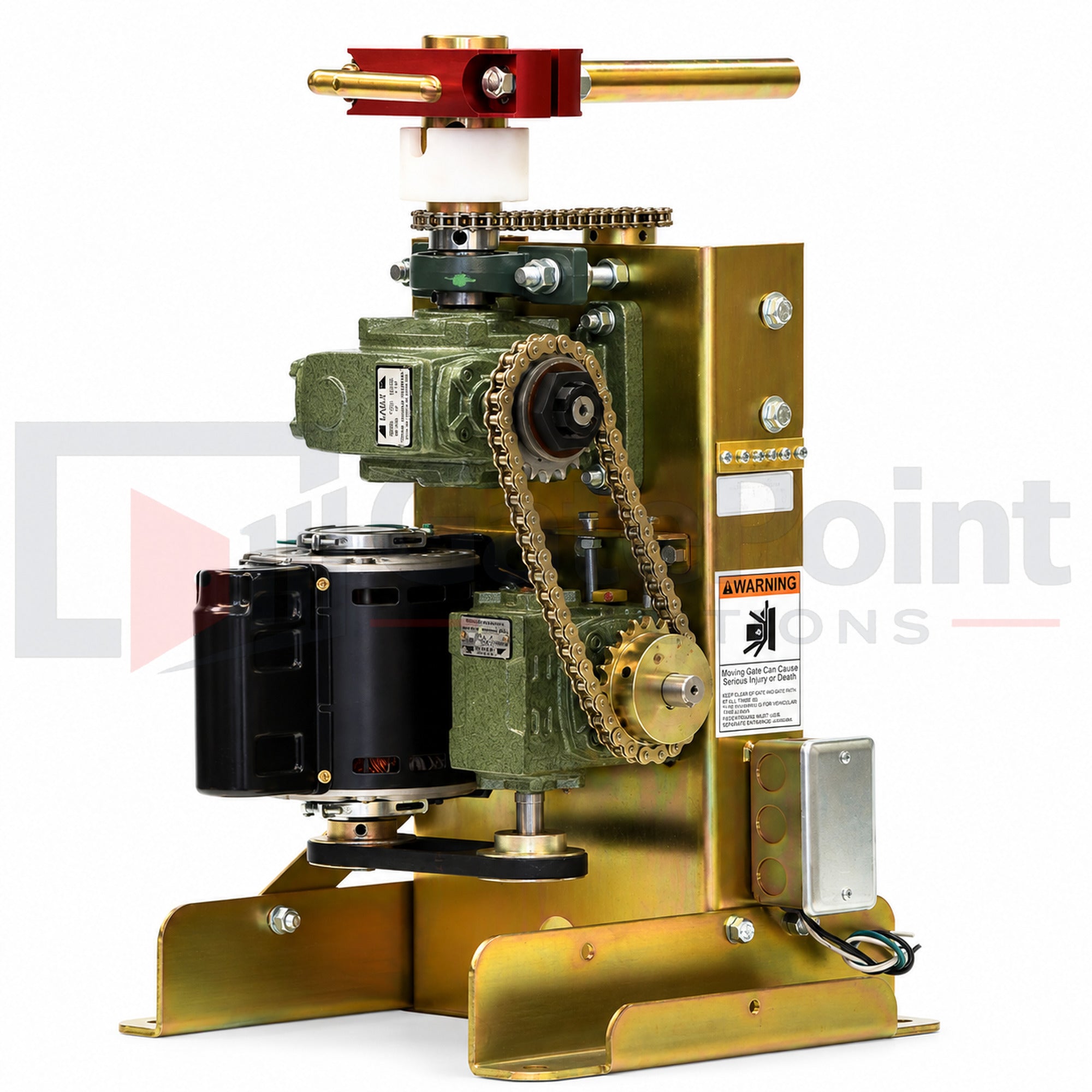

Built with Eagle's commercial-grade drive system, the Eagle 200 1 HP includes a heavy-duty #50 nickel-plated drive chain, commercial gear reducers, UV-resistant HDPE housing, zinc-plated steel chassis, and a quick-release manual disconnect for operation during power outages. Advanced control features include open/close delay, stop-reverse protection, one-pass (anti-tailgate) operation, partial open mode, adjustable auto-close timer, motor brake, magnetic lock output, auxiliary power outputs, and compatibility with optional battery backup systems.
The Eagle 200 1 HP is ETL Listed and complies with UL 325 and UL 991 safety standards. Backed by a 5-Year Commercial Warranty and 7-Year Limited Residential Warranty, it is ideal for commercial facilities, industrial properties, apartment complexes, HOAs, and large private estates requiring high-capacity swing gate automation.
Key Features
- Commercial swing gate operator
- Powerful 1 HP continuous-duty AC motor
- Supports gates up to 24 ft.
- Maximum gate weight 1,000 lbs.
- Heavy-duty commercial drive system
- Continuous-duty operation
- Open/Close Delay
- One-Pass (No Tailgate) operation
- Partial Open mode
- Stop-Reverse safety
- Adjustable Auto-Close Timer (1–60 seconds)
- Motor brake
- 24VDC magnetic lock output
- 24VAC auxiliary power output
- Auxiliary 120VAC convenience outlet
- Heavy-duty #50 nickel-plated drive chain
- Commercial gear reducer
- No-weld swing arm assembly
- UV-resistant HDPE enclosure
- Zinc-plated steel chassis
- Chrome Series receiver compatible
- Optional battery backup available
- Quick-release manual disconnect
- ETL Listed
- UL 325 & UL 991 Compliant
- 5-Year Commercial Warranty
- 7-Year Residential Limited Warranty
Ideal Applications
- Commercial properties
- Industrial facilities
- Manufacturing plants
- Distribution centers
- Apartment complexes
- HOA entrances
- Government facilities
- Large private estates
Specifications
- Manufacturer: Eagle Access Control Systems
- Model: Eagle 200 1 HP
- Operator Type: Commercial Swing Gate Operator
- Motor: 1 HP Continuous Duty AC
- Voltage: 115 VAC, 60 Hz
- Current Draw: 10.5 Amps
- Maximum Gate Length: 24 ft.
- Maximum Gate Weight: 1,000 lbs.
- Opening Speed: Approximately 18 seconds (90°)
- Duty Cycle: Continuous Duty
- Operating Classes: I, II, III & IV
- Compliance: UL 325, UL 991, ETL Listed
- Warranty:
- 5-Year Commercial Limited
- 7-Year Limited (Residential Installations)
What's Included
- Eagle 200 1 HP Commercial Swing Gate Operator
- Commercial Control Board
- Swing Arm Hardware
- Manual Release System
- Installation Manual
Remotes, battery backup, batteries, photo eyes, loop detectors, keypads, safety devices, and additional access control accessories may be sold separately.
