Description
The Eagle 1000 FSC is a rugged, continuous-duty slide gate operator designed for residential and light commercial gates up to 27 feet or 600 pounds. The Fail Secure (FSC) variant adds power-outage security, requiring a crank to open while preventing manual push without the crank.
- Power & duty: 1/2 HP continuous-duty AC motor, 115 VAC @ 60 Hz, 5.7 A for dependable, all-day performance.
- Gate capacity: Supports gates up to 27 ft in length and 600 lbs for reliable operation in daily use.
- Fail Secure (FSC) operation: In a power outage, you open with a crank; the gate cannot be opened manually without the crank, enhancing security.
- Control board: The installer-friendly control board features 2-Wire Master/Slave with Global Inputs, Open/Close Delay, One Pass (No Tailgate), Motor Brake, and more.
- Chain & drive system: Includes 20 ft of nickel-plated #41 chain with a no-weld chain kit for quick, clean installation.

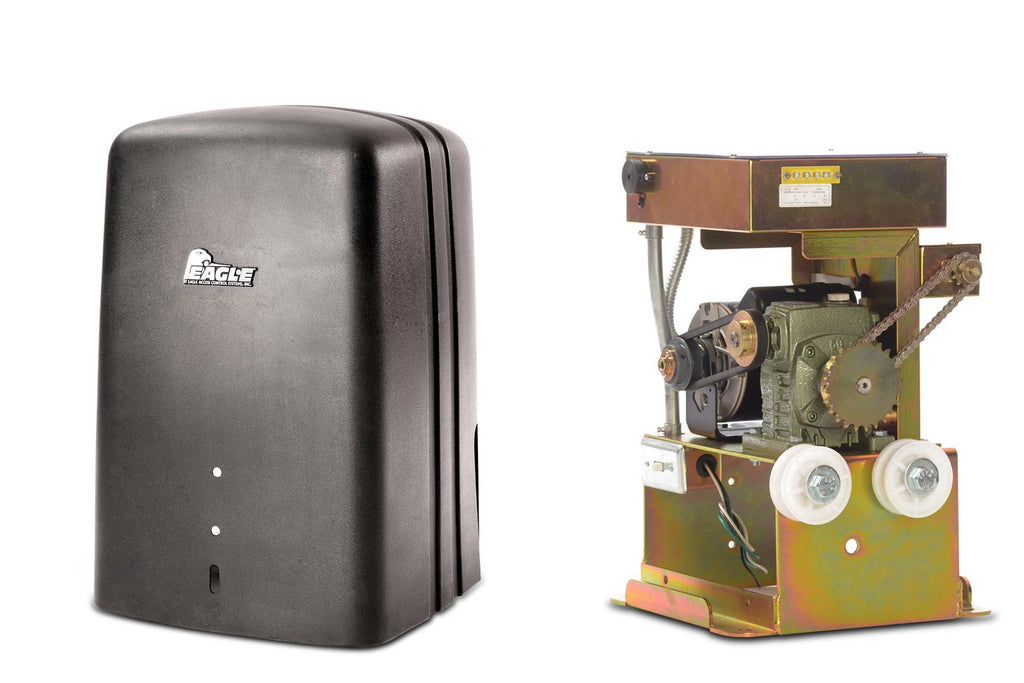

- Durable construction: 3/16" zinc-plated steel chassis, UHMW silent idler wheels, and an all-weather UV-resistant HDPE cover for outdoor reliability.
- Safety & connectivity: 24 VDC output for MAG lock, 24 VAC auxiliary power output, audible alarm, and pre-wired receiver terminal for easy integration.
- Variants & compatibility: Also offered in FSF (Fail-Safe) and FR (Foot Release) configurations; maximum gate and weight remain 27′ and 600 lbs for all variants.
- Compliance & warranty: UL 325 and UL 991, ETL Listed with a 5-year limited warranty (Residential).
- Optional battery backup: Power I Battery Backup provides 40–80 cycles during a power outage to keep access uninterrupted.
- Unit specs: Travel rate 12 inches per second; Dimensions 22" h × 15" w × 13 1/2" d; Shipping weight 80–104 lbs depending on model; includes 20' chain and 1/2 HP motor.
The Eagle 1000 FSC delivers dependable, safe gate automation for homes and light-commercial entrances. It reduces manual effort, speeds up entry, and ensures controlled access even during power interruptions. With robust materials, UL and ETL listings, and installer-friendly features, this operator is built to perform year after year while keeping security at the forefront. Optional battery backup and multiple mode configurations tailor the system to your specific access needs, making it a practical upgrade for driveways, small businesses, and gated properties alike. Installation instructions are available in Spanish, supporting a smooth setup for diverse install environments.
