Description

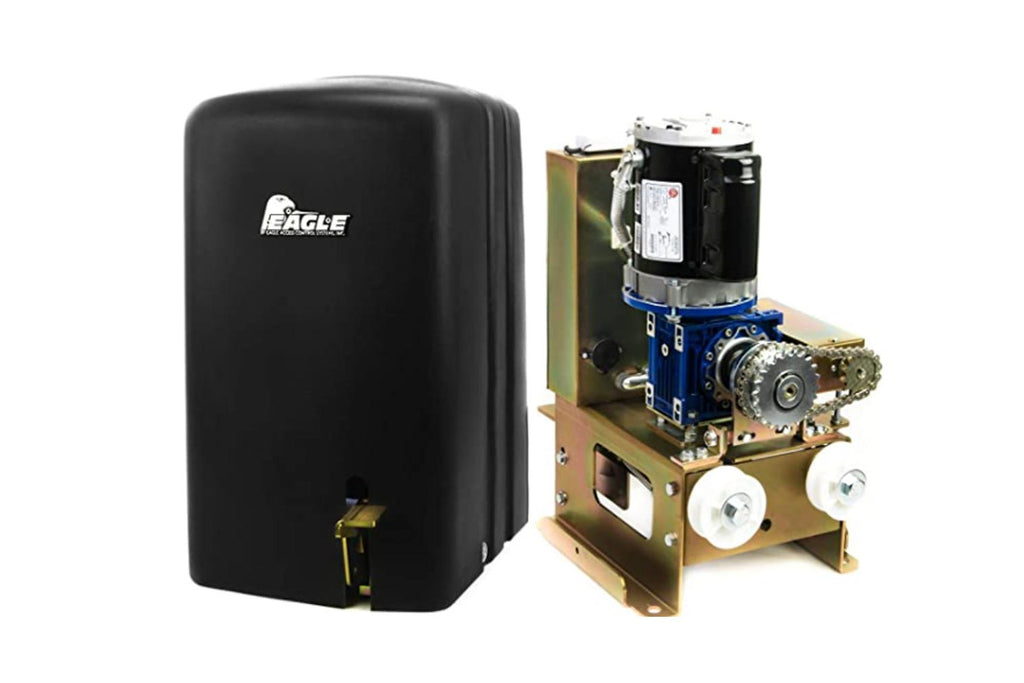

The Eagle1000-FR Slide Gate Operator is a reliable residential/light commercial solution designed to automate gates up to 27 feet long and 600 pounds. Its foot-release option ensures access during power outages, making it a practical choice for homes and small businesses that demand dependable, easy-to-install gate control.
- Gate capacity: Supports gates up to 27 ft in length and 600 lb, ideal for most residential driveways and light commercial entrances.
- Foot Release (FR) option: Step on a pedal to push the gate open when power is out, providing-controlled access during outages.
- Installation-friendly chain drive: Includes 20 ft of nickel-plated #41 chain with a no-weld chain kit for quicker, simpler installation.
- Motor and power: 1/2 HP continuous-duty AC motor, 115 VAC @ 60 Hz, drawing 5.7 A for reliable operation.
- Safety and compliance: UL 325 and UL 991 compliant and ETL listed for industry-standard safety and performance.
- Controls and wiring: 2-Wire Master/Slave with Global Inputs, pre-wired receiver terminal, and flexible control options with auto-close and delay features.
- Operational features: Partial Open, Stop-Reverse, configurable Auto-Close timer (1–60 sec), and Fail-Safe/Fail-Secure/Foot Release configurations with a no-pinch swing arm for safer operation.
- Electrical outputs: 24 VDC output for a mag lock and 24 VAC auxiliary power to support additional accessories.
- Durable enclosure: All-weather/UV-resistant HDPE cover over a 3/16" zinc-plated steel chassis for long-lasting performance in varied climates.
- Unit Specs: Power: 1/2 HP continuous-duty AC; Voltage: 115 VAC / 60 Hz; Current: ~5.7 A; Travel: 12" per second; Max gate: 27' / 600 lb; Dimensions: 22" H x 15" W x 13.5" D; Weight: 104 lbs (FR variant); Chain: 20' #41 nickel-plated; Certifications: UL 325, UL 991, ETL Listed; Optional Battery Backup: Power I supports 40–80 cycles.
- Warranty: 5-year limited warranty for residential use, ensuring dependable performance over time.
- Optional battery backup: Power I Battery Backup is available to provide 40–80 cycles during outages to maintain access.
- Model variants and compatibility: Available in Eagle-1000-FSF (Fail-Safe) and Eagle-1000-FSC (Fail-Secure) configurations to meet different access control requirements.
- Pre-wired convenience: Pre-wired receiver terminal simplifies wiring and accelerates installation, helping you get gate access up and running quickly.
The Eagle 1000-FR delivers practical, tested performance for daily gate access. Its foot-release capability adds resilience during power outages, while the no-pinch design and robust weatherproof enclosure enhance safety and durability. With precise travel control, flexible timing features, and compatibility with mag locks and auxiliary power, it’s a thoughtful choice for homeowners and small businesses seeking a dependable gate operator that’s easy to install and easy to maintain.
