Description
The Eagle 100 1/2 HP Swing Gate Operator is a heavy-duty AC-powered gate operator engineered for residential and light commercial properties requiring dependable performance, advanced controls, and continuous-duty operation. Designed for gates up to 18 feet long and 600 pounds, the Eagle 100 combines commercial-grade durability with installer-friendly programming for long-term reliability.
Powered by a continuous-duty 1/2 HP AC motor, the Eagle 100 features Eagle's advanced Diamond Control Board with programmable open/close delay, partial open function, stop/reverse protection, adjustable auto-close timer, motor brake, and integrated outputs for magnetic locks and auxiliary devices. A quick-release manual disconnect allows gate operation during power outages, while the weather-resistant housing and zinc-plated steel chassis are built to withstand demanding outdoor environments.
The Eagle 100 is ETL Listed, UL 325 and UL 991 compliant, and backed by a 5-Year Residential Limited Warranty, making it an excellent choice for homeowners, gated communities, farms, ranches, and light commercial facilities.
Key Features
- Residential & light commercial swing gate operator
- Continuous-duty 1/2 HP AC motor
- Supports gates up to 18 ft. long
- Maximum gate weight of 600 lbs.
- Diamond Control Board
- Rated for continuous-duty operation
- Quick-release manual disconnect
- Open/Close Delay programming
- Partial Open function
- Adjustable Auto-Close Timer (1–60 seconds)
- Stop-Reverse safety operation
- Motor brake
- 24VDC magnetic lock output
- 24VAC auxiliary power output
- Auxiliary 120VAC convenience outlet
- Heavy-duty #50 nickel-plated drive chain
- Zinc-plated steel chassis

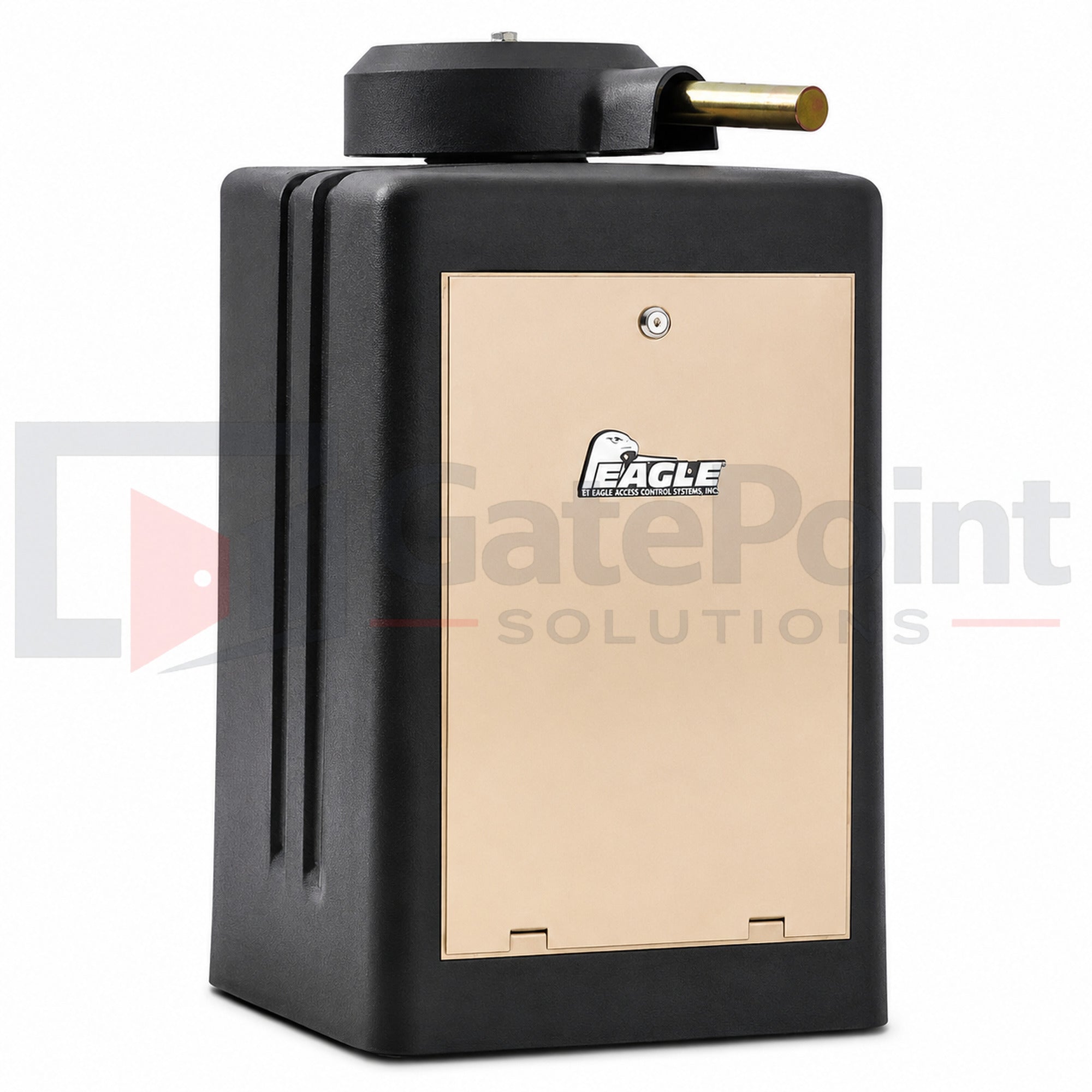

- UV-resistant all-weather housing
- ETL Listed
- UL 325 & UL 991 Compliant
- Optional battery backup available
- Chrome Series receiver compatible
- 5-Year Residential Limited Warranty
Ideal Applications
- Residential driveway gates
- Estate entrances
- Ranches and farms
- HOA communities
- Light commercial properties
- Private road entrances
Specifications
- Manufacturer: Eagle Access Control Systems
- Model: Eagle 100
- Operator Type: Swing Gate Operator
- Motor: 1/2 HP Continuous Duty AC
- Voltage: 115 VAC, 60 Hz
- Current Draw: 5.7 Amps
- Maximum Gate Length: 18 ft.
- Maximum Gate Weight: 600 lbs.
- Opening Speed: Approximately 18 seconds (90°)
- Duty Cycle: Continuous Duty
- Operating Classes: I, II, III & IV
- Compliance: UL 325, UL 991, ETL Listed
- Warranty: 5-Year Residential Limited Warranty
What's Included
- Eagle 100 Swing Gate Operator
- Diamond Control Board
- Swing Arm Hardware
- Manual Release System
- Installation Manual
Transmitters, photo eyes, battery backup, batteries, keypads, loop detectors, and additional access control accessories may be sold separately.
