Description

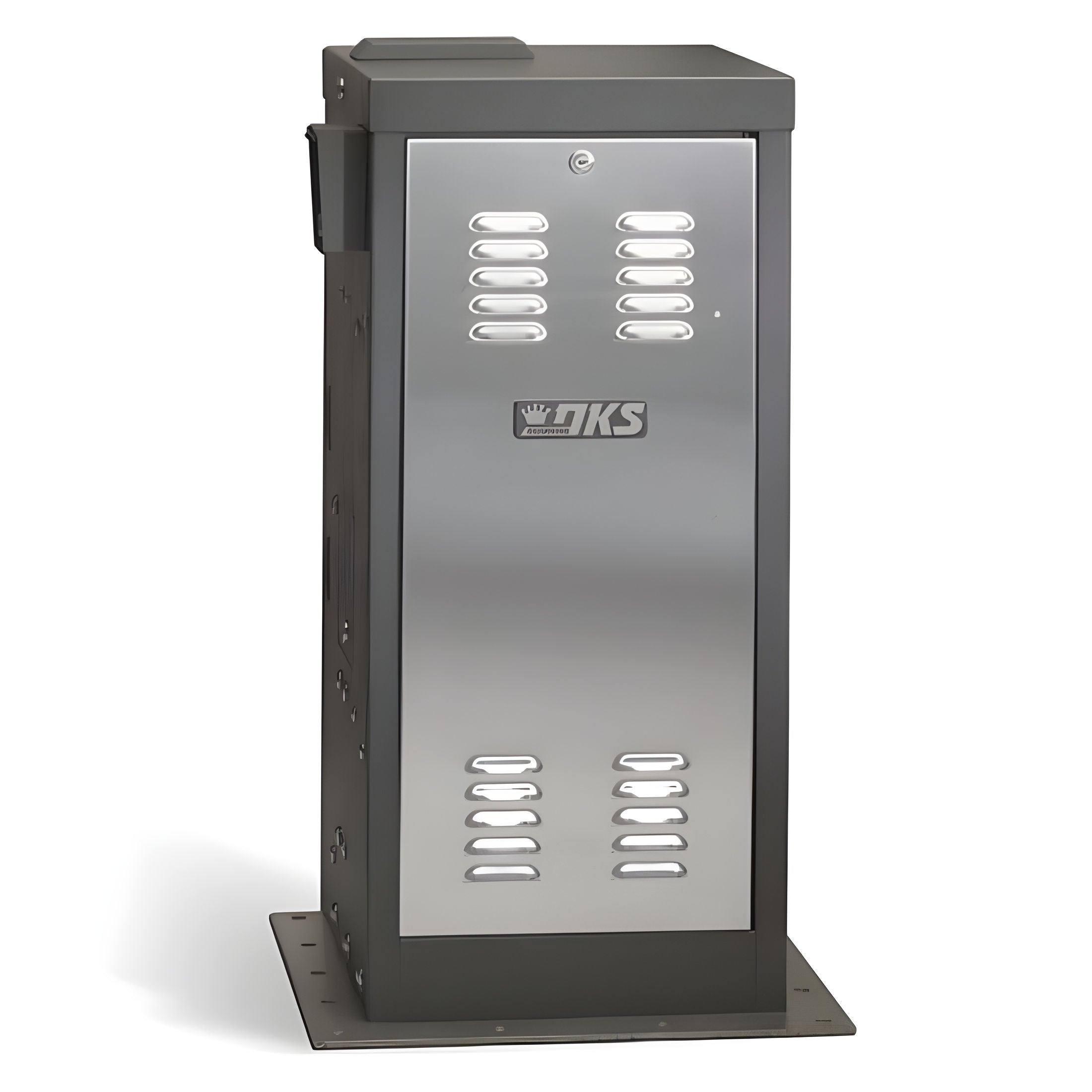

The DoorKing 9240 Series is the most powerful operator in the 9200 Maximum Security Series lineup, engineered for extremely large and heavy slide gates used in high-security environments. Designed exclusively for Class III and Class IV restricted-access applications, the 9240 combines a heavy-duty 3 HP continuous-duty motor, massive gate handling capacity, fail-secure operation, and adjustable variable-speed controls to deliver dependable performance for critical infrastructure and secure industrial facilities.
Capable of operating gates weighing up to 8,000 pounds and spanning up to 100 feet in length, the 9240 is built for facilities where perimeter security, durability, and reliability are mission-critical.
Performance & Application
The DoorKing 9240 is specifically designed for the largest and most demanding slide gate applications. Utilizing a robust 30:1 oil-bath gear reduction system, a 3 HP industrial motor, and heavy-duty #80 drive chain, the operator delivers exceptional torque and smooth gate movement even under extreme operating conditions.
The adjustable solid-state speed controller allows operation from approximately 0.3 to 2 feet per second, while integrated slow-start and slow-stop functionality reduces stress on gate structures and mechanical components. The included heavy-duty mounting pedestal provides the structural support necessary for operating oversized gates in military, utility, transportation, and industrial environments.
Advanced anti-tailgating controls, selectable loop functions, direct-drive limit switches, Gate Tracker™ monitoring capabilities, and fail-secure operation make the 9240 one of the most capable high-security gate operators available.
Key Features
- 3 HP continuous-duty industrial motor
- Maximum-security vehicular slide gate operator
- Supports gates up to 8,000 lbs.
- Supports gates up to 100 ft. long
- Adjustable speed control from approximately 0.3 to 2 ft./sec.
- Heavy-duty 30:1 oil-bath gear reduction
- Heavy-duty #80 drive chain system
- Included heavy-duty mounting pedestal
- Fail-secure operation
- Electrical interlock protection
- Adjustable partial-open feature
- Anti-tailgating functionality
- Slow-start and slow-stop operation
- Solid-state motor control
- Direct-drive limit switches
- Gate Tracker™ reporting capability
- Built-in power switch
- Built-in reset switch
- Plug-in loop detector ports
- Two 115 VAC convenience outlets
- Heavy-gauge steel housing
- Stainless steel access door
- ETL Listed
- UL 325 compliant when properly installed
- 5-Year limited manufacturer warranty
Ideal Applications
The DoorKing 9240 Series is ideal for:
- Military installations
- Government facilities
- Utility substations
- Water treatment plants
- Power generation facilities
- Ports and shipping terminals
- Airports
- Rail facilities
- Critical infrastructure sites
- Industrial manufacturing plants
- Secure distribution centers
- Correctional facilities
- Data centers
- Large industrial campuses
Specifications
Mechanical
Operator Type:
- Maximum Security Vehicular Slide Gate Operator
Motor:
- 3 HP Continuous-Duty
Gear Reduction:
- 30:1 Oil-Bath Gear Drive
Chain Type:
- #80 Heavy-Duty Chain
Speed Range:
- 0.3 – 2 Ft./Second Adjustable
Housing:
- 10 Gauge Steel
- Charcoal Gray Finish
- Stainless Steel Access Door
Mounting:
- Heavy-Duty Pedestal Included
Gate Capacity
Maximum Gate Weight:
- 8,000 Pounds
Maximum Gate Length:
- 100 Feet
Minimum Gate Length:
- 25 Feet
Electrical
Voltage Options:
- 208 VAC Three Phase
- 230 VAC Three Phase
- 460 VAC Three Phase
Horsepower:
- 3 HP
Power Outlets:
- 2
Loop Detector Ports:
- 2
Environmental
Operating Temperature:
- 10°F to 140°F (-12°C to 62°C)
Optional Thermostatically Controlled Heater Available
Dimensions
Overall Height:
- 47"
Operator Width:
- 20"
Operator Depth:
- 18"
Pedestal Width:
- 31.25"
Pedestal Height:
- 12"
Pedestal Depth:
- 16.25"
Shipping Weight:
- Approximately 225 lbs.
Available 9240 Models
9240-380
DoorKing 9240-380 3 HP 208V Three-Phase Maximum Security Heavy-Duty Slide Gate Operator
Designed for large industrial and government facilities utilizing 208V three-phase power and requiring maximum gate capacity.
9240-385
DoorKing 9240-385 3 HP 230V Three-Phase Maximum Security Heavy-Duty Slide Gate Operator
The most common configuration for critical infrastructure and industrial facilities requiring operation of gates up to 8,000 pounds.
9240-390
DoorKing 9240-390 3 HP 460V Three-Phase Maximum Security Heavy-Duty Slide Gate Operator
Ideal for large industrial campuses and utility sites utilizing 460V three-phase electrical service.
What's Included
- DoorKing 9240 Series Slide Gate Operator
- Heavy-Duty Mounting Pedestal
- #80 Drive Chain
- Chain Brackets
- Integrated Variable-Speed Drive System
- Advanced Control Board
- Gate Tracker™ Reporting Capability
- Installation Hardware
- Product Documentation
