Description

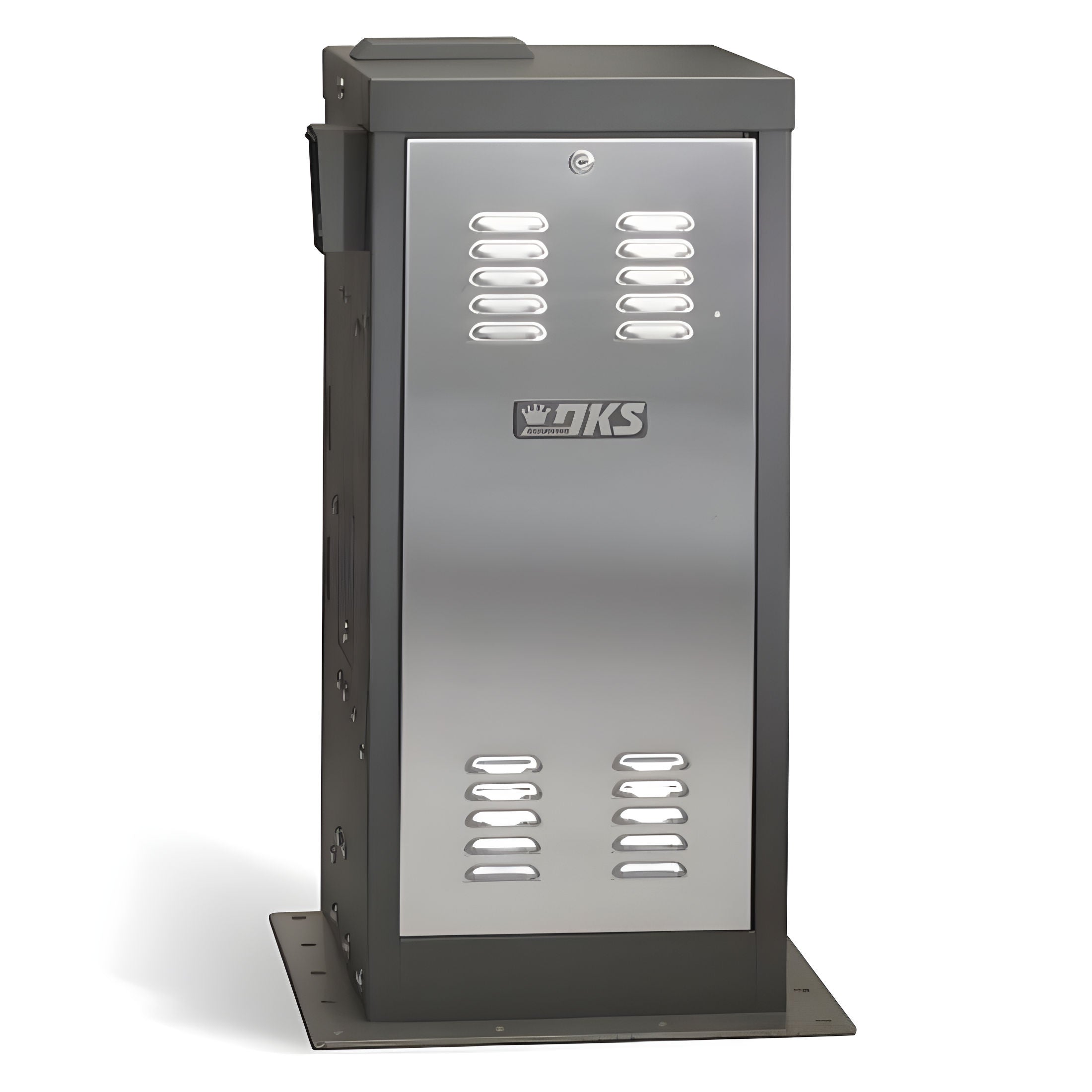

The DoorKing 9235 Series is a high-speed maximum-security slide gate operator engineered for facilities that require both enhanced perimeter security and faster gate cycling. Designed specifically for Class III and Class IV restricted-access applications, the 9235 combines a powerful 3 HP continuous-duty motor with adjustable variable-speed operation capable of reaching up to 4 feet per second, making it one of the fastest operators in the DoorKing Maximum Security lineup.
Built for government facilities, military installations, utilities, transportation hubs, industrial plants, and critical infrastructure environments, the 9235 provides reliable operation for large vehicular slide gates while maintaining the security, durability, and control demanded by high-security sites.
Performance & Application
The DoorKing 9235 is ideal for facilities where security cannot be compromised, but traffic flow and gate throughput are equally important. Unlike standard heavy-duty operators that prioritize only pulling power, the 9235 delivers both substantial gate capacity and increased operating speed.
Powered by a 3 HP continuous-duty motor and heavy-duty 10:1 oil-bath gear reduction system, the operator can move gates weighing up to 3,000 pounds at adjustable speeds ranging from approximately 0.3 to 4 feet per second. This allows facilities to reduce wait times, improve vehicle processing efficiency, and maintain strict access control requirements.
Advanced anti-tailgating functions, adjustable partial-open settings, fail-secure operation, direct-drive limit switches, Gate Tracker™ reporting capabilities, and solid-state speed controls make the 9235 a complete solution for high-security vehicular access points.
Key Features
- 3 HP continuous-duty industrial motor
- High-speed maximum security slide gate operator
- Supports gates up to 3,000 lbs.
- Supports gates up to 100 ft. long
- Adjustable speed from approximately 0.3 to 4 ft./sec.
- Heavy-duty 10:1 oil-bath gear reduction
- Fail-secure operation
- Electrical interlock protection
- Adjustable partial-open feature
- Anti-tailgating functionality
- Slow-start and slow-stop operation
- Solid-state motor control system
- Direct-drive limit switches
- Gate Tracker™ monitoring output
- Plug-in loop detector ports
- Selectable stop/reverse loop functions
- Built-in power switch
- Built-in reset switch
- Two 115 VAC convenience outlets
- Heavy-duty pedestal included
- G90 galvanized steel housing
- Stainless steel access door
- ETL Listed
- UL 325 compliant when properly installed
- 5-Year limited manufacturer warranty
Ideal Applications
The DoorKing 9235 Series is ideal for:
- Military facilities
- Government installations
- Utility substations
- Transportation facilities
- Airports
- Ports and shipping terminals
- Industrial manufacturing plants
- Distribution centers
- Correctional institutions
- Secure commercial facilities
- Critical infrastructure sites
- Data centers
- High-traffic secure entrances
Specifications
Mechanical
Operator Type:
- Maximum Security Vehicular Slide Gate Operator
Motor:
- 3 HP Continuous-Duty
Gear Reduction:
- 10:1 Oil-Bath Gear Drive
Chain Type:
- #60 Chain
Speed Range:
- 0.3 – 4 Ft./Second Adjustable
Housing:
- G90 Galvanized Steel
- Charcoal Gray Finish
- Stainless Steel Access Door
Mounting:
- Heavy-Duty Pedestal Included
Gate Capacity
Maximum Gate Weight:
- 3,000 Pounds
Maximum Gate Length:
- 100 Feet
Minimum Gate Length:
- 30 Feet
Electrical
Voltage Options:
- 208 VAC Three Phase
- 230 VAC Three Phase
- 460 VAC Three Phase
Horsepower:
- 3 HP
Power Outlets:
- 2
Loop Detector Ports:
- 2
Environmental
Operating Temperature:
- 10°F to 140°F (-12°C to 62°C)
Optional Thermostatically Controlled Heater Available
Dimensions
Overall Height:
- 47"
Operator Width:
- 20"
Operator Depth:
- 18"
Pedestal Width:
- 31.25"
Pedestal Height:
- 12"
Pedestal Depth:
- 16.25"
Shipping Weight:
- Approximately 225 lbs.
Available 9235 Models
9235-380
DoorKing 9235-380 3 HP 208V Three-Phase High-Speed Maximum Security Slide Gate Operator
Designed for facilities utilizing 208V three-phase power and requiring high-speed operation with maximum security functionality.
9235-385
DoorKing 9235-385 3 HP 230V Three-Phase High-Speed Maximum Security Slide Gate Operator
Provides the ideal balance of gate capacity, security, and rapid operation for industrial and government facilities using 230V three-phase power.
9235-390
DoorKing 9235-390 3 HP 460V Three-Phase High-Speed Maximum Security Slide Gate Operator
Engineered for large industrial facilities and critical infrastructure sites utilizing 460V three-phase electrical service.
What's Included
- DoorKing 9235 Series Slide Gate Operator
- Heavy-Duty Mounting Pedestal
- Integrated Variable-Speed Drive System
- #60 Drive Chain
- Chain Brackets
- Integrated Control Board
- Gate Tracker™ Reporting Capability
- Mounting Hardware
- Installation Documentation
