Description

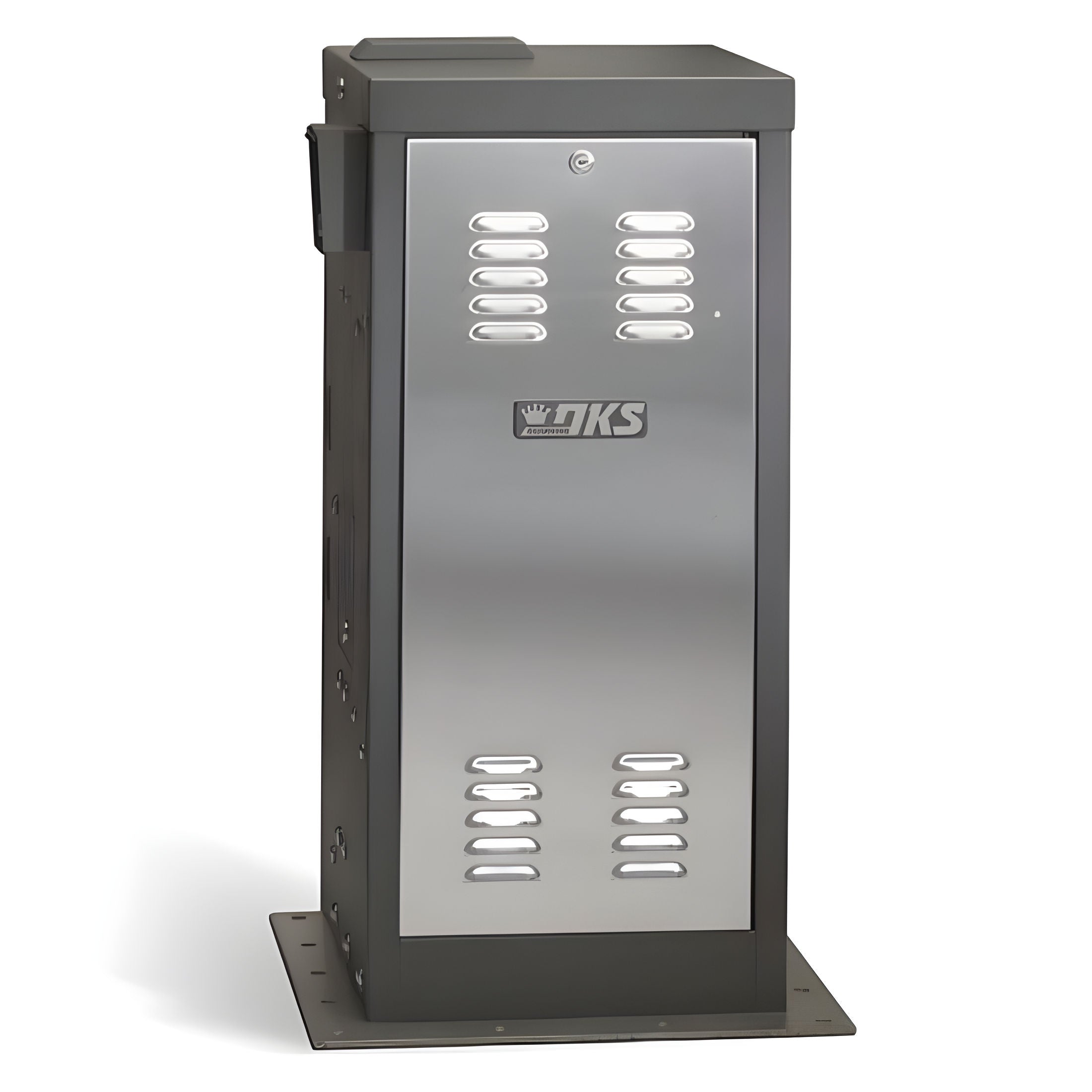

The DoorKing 9230 Series is the most powerful operator in the 9200 Maximum Security Series lineup, engineered for the largest and heaviest slide gates used in high-security industrial, government, military, transportation, utility, and critical infrastructure applications. Designed exclusively for Class III and Class IV restricted-access environments, the 9230 combines a heavy-duty 3 HP continuous-duty motor with adjustable variable-speed operation, fail-secure functionality, and industry-leading reliability.
Built around a rugged oil-bath gear reduction system and advanced solid-state control platform, the 9230 Series is capable of operating gates weighing up to 5,000 pounds while providing adjustable speeds from approximately 0.3 to 2 feet per second. The result is smooth, controlled movement for large perimeter security gates while maintaining maximum access control and operational safety.
Performance & Application
The DoorKing 9230 is designed for facilities where gate size, weight, and security requirements exceed the capabilities of traditional commercial gate operators. Large industrial slide gates protecting military installations, utility substations, ports, transportation facilities, correctional institutions, and secure government sites demand an operator capable of handling significant gate loads while maintaining precise control and dependable operation.
Powered by a 3 HP continuous-duty motor and heavy-duty 30:1 gear reduction running in a continuous oil bath, the 9230 provides exceptional torque for demanding applications. The adjustable solid-state speed control allows installers to fine-tune gate travel speed based on site requirements, helping optimize both security and throughput.
Advanced features including anti-tailgating functionality, adjustable partial-open settings, slow-start and slow-stop operation, fail-secure performance, direct-drive limit switches, and Gate Tracker™ monitoring capabilities make the 9230 a complete solution for high-security access control environments.
Key Features
- 3 HP continuous-duty industrial motor
- Maximum security vehicular slide gate operator
- Supports gates up to 5,000 lbs.
- Supports gates up to 100 ft. long
- User-adjustable variable speed control
- Adjustable speed from approximately 0.3 to 2 ft./sec.
- Heavy-duty 30:1 oil-bath gear reduction
- Fail-secure operation
- Electrical interlock protection
- Adjustable partial-open feature
- Anti-tailgating functionality
- Slow-start and slow-stop operation
- Solid-state motor control system
- Power boost start circuit
- Direct-drive limit switches
- Gate Tracker™ reporting output
- Plug-in loop detector ports
- Selectable stop/reverse loop functions
- Built-in power switch
- Built-in reset switch
- Two 115 VAC convenience outlets
- Heavy-duty pedestal mounting system
- G90 galvanized steel housing
- Stainless steel access door
- ETL Listed
- UL 325 compliant when properly installed
- 5-Year limited manufacturer warranty
Ideal Applications
The DoorKing 9230 Series is ideal for:
- Military installations
- Government facilities
- Utility substations
- Water treatment facilities
- Power generation plants
- Transportation terminals
- Airports
- Ports and shipping facilities
- Correctional institutions
- Data centers
- Industrial manufacturing plants
- Large distribution centers
- Critical infrastructure sites
- Secure logistics facilities
Specifications
Mechanical
Operator Type: Maximum Security Vehicular Slide Gate Operator
Motor: 3 HP Continuous-Duty
Gear Reduction: 30:1 Oil-Bath Gear Drive
Chain Type: #60 Chain
Speed Range:
- 0.3 – 2 Ft./Second Adjustable
Housing:
- G90 Galvanized Steel
- Charcoal Gray Finish
- Stainless Steel Access Door
Mounting:
- Heavy-Duty Pedestal Mount
Gate Capacity
Maximum Gate Weight:
- 5,000 Pounds
Maximum Gate Length:
- 100 Feet
Minimum Gate Length:
- 20 Feet
Electrical
Voltage Options:
- 208 VAC Three Phase
- 230 VAC Three Phase
- 460 VAC Three Phase
Horsepower:
- 3 HP
Power Outlets:
- 2
Loop Detector Ports:
- 2
Environmental
Operating Temperature:
- 10°F to 140°F (-12°C to 62°C)
Optional Thermostatically Controlled Heater Available
Dimensions
Operator Dimensions:
- Width: 20"
- Height: 35.5"
- Depth: 18"
Pedestal Dimensions:
- Width: 31.25"
- Height: 12"
- Depth: 16.25"
Overall Height with Pedestal:
- 47"
Shipping Weight:
- Approximately 225 lbs.
Available 9230 Models
9230-380
DoorKing 9230-380 3 HP 208V Three-Phase Maximum Security Variable-Speed Slide Gate Operator
Designed for facilities utilizing 208V three-phase power where maximum security and heavy gate performance are required.
9230-385
DoorKing 9230-385 3 HP 230V Three-Phase Maximum Security Variable-Speed Slide Gate Operator
Ideal for industrial and government installations requiring a 230V three-phase operator capable of moving gates up to 5,000 pounds.
9230-390
DoorKing 9230-390 3 HP 460V Three-Phase Maximum Security Variable-Speed Slide Gate Operator
Engineered for large industrial and utility facilities utilizing 460V three-phase power systems and demanding maximum-duty performance.
What's Included
- DoorKing 9230 Series Slide Gate Operator
- Heavy-Duty Mounting Pedestal
- Integrated Variable-Speed Control System
- #60 Drive Chain
- Chain Brackets
- Integrated Control Board
- Gate Tracker™ Reporting Capability
- Mounting Hardware
- Installation Documentation
