Description

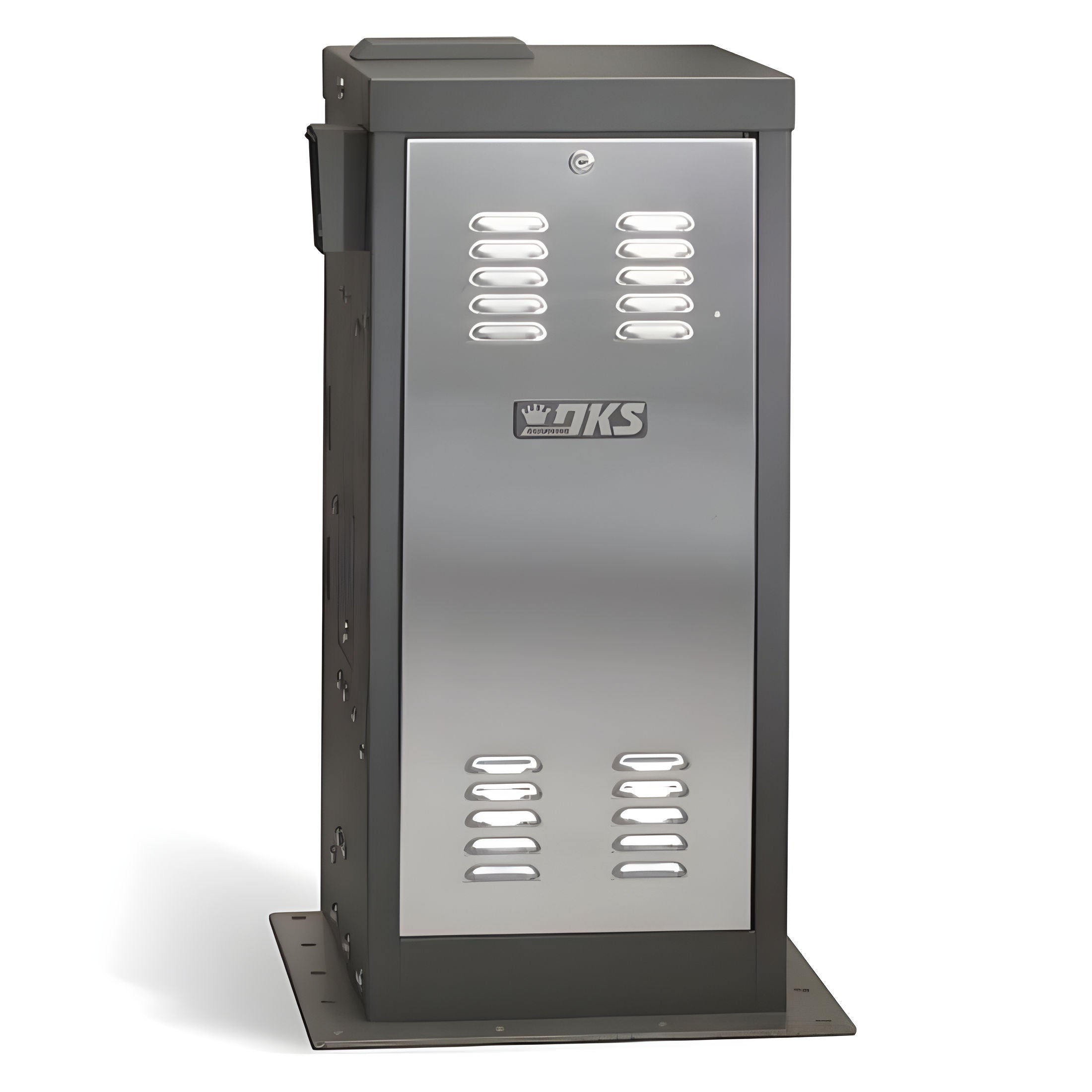

The DoorKing 9220 Series is a heavy-duty maximum security vehicular slide gate operator designed for Class III and Class IV applications requiring enhanced security, variable speed control, and dependable continuous-duty performance. Built for industrial facilities, utility sites, transportation infrastructure, government properties, military installations, and other restricted-access environments, the 9220 Series delivers advanced control features while maintaining the rugged durability DoorKing is known for.
Powered by a 2 HP continuous-duty motor and a heavy-duty 30:1 oil-bath gear reduction system, the 9220 provides user-adjustable gate speeds from approximately 0.3 to 2 feet per second. This flexibility allows installers to optimize performance for large, heavy slide gates while maintaining smooth operation, slow-start/slow-stop functionality, and enhanced access control capabilities.
Performance & Application
The 9220 Series was engineered for facilities where gate security, controlled access, and operational flexibility are critical. Unlike fixed-speed operators, the 9220 features an adjustable solid-state motor drive that allows the installer to tailor gate speed to the application. This makes it ideal for facilities handling both standard vehicle traffic and oversized commercial vehicles.
Capable of operating slide gates up to 100 feet long and weighing up to 2,000 pounds, the operator provides smooth and reliable performance through its variable-speed drive system and continuous-duty motor design. Advanced security features such as anti-tailgating functionality, adjustable partial-open positions, selectable stop/reverse loop functions, fail-secure operation, and direct-drive limit switches help maintain controlled access in sensitive environments.
The 9220 is also equipped with Gate Tracker™ reporting output, allowing integration with DoorKing access control systems for enhanced system monitoring and management.
Key Features
- 2 HP continuous-duty industrial motor
- Maximum security slide gate operator
- User-adjustable gate speed control
- Adjustable speed from approximately 0.3 to 2 feet per second
- Supports gates up to 100 ft. long
- Supports gates up to 2,000 lbs.
- Heavy-duty oil-bath gear reduction system
- Fail-secure operation
- Electrical interlock system
- Adjustable partial-open position
- Anti-tailgating feature
- Slow-start and slow-stop functionality
- Power boost start circuit
- Solid-state motor control system
- Direct-drive limit switches
- Gate Tracker™ reporting output
- Plug-in loop detector ports
- Selectable stop/reverse loop functions
- Built-in power switch
- Built-in reset switch
- Two 115 VAC convenience outlets
- Pad or pedestal mounting options
- Heavy-duty galvanized steel housing
- Stainless steel access door
- ETL Listed
- UL 325 compliant when properly installed
- 5-Year limited manufacturer warranty
Ideal Applications
The DoorKing 9220 Series is ideal for:
- Government facilities
- Military bases
- Utility substations
- Water treatment facilities
- Transportation terminals
- Ports and shipping facilities
- Industrial manufacturing plants
- Distribution centers
- Data centers
- Critical infrastructure sites
- High-security commercial properties
- Restricted-access industrial campuses
Specifications
Mechanical
Operator Type: Maximum Security Vehicular Slide Gate Operator
Motor: 2 HP Continuous-Duty
Gear Reduction: 30:1 Oil-Bath Gear Drive
Operation: Fail-Secure
Speed Range: Approximately 0.3 – 2 Ft./Second
Mounting: Pad Mount or Optional Heavy-Duty Pedestal
Chain: #60 Chain Included
Housing: G90 Galvanized Steel
Access Door: Stainless Steel
Gate Capacity
Maximum Gate Weight: 2,000 Pounds
Maximum Gate Length: 100 Feet
Minimum Gate Length: 20 Feet
Electrical
Voltage Options:
- 208 VAC Three Phase
- 230 VAC Three Phase
- 460 VAC Three Phase
Horsepower: 2 HP
Power Outlets: 2
Loop Detector Ports: 2
Environmental
Operating Temperature:
- 10°F to 140°F (-12°C to 62°C)
Optional Thermostatically Controlled Heater Available
Dimensions
Operator Dimensions:
- Width: 20"
- Height: 35.5"
- Depth: 18"
Shipping Weight:
- Approximately 225 lbs.
Mounting Options:
- Pad Mount
- Optional Heavy-Duty Pedestal Mount
Available 9220 Models
9220-380
DoorKing 9220-380 2 HP 208V Three-Phase Maximum Security Variable-Speed Slide Gate Operator
Designed for 208V three-phase installations requiring adjustable speed control, fail-secure operation, and support for gates up to 2,000 pounds and 100 feet in length.
9220-385
DoorKing 9220-385 2 HP 230V Three-Phase Maximum Security Variable-Speed Slide Gate Operator
Ideal for 230V three-phase facilities requiring heavy-duty performance, advanced access control features, and adjustable gate speeds from 0.3 to 2 feet per second.
9220-390
DoorKing 9220-390 2 HP 460V Three-Phase Maximum Security Variable-Speed Slide Gate Operator
Engineered for industrial and utility facilities utilizing 460V three-phase power where maximum reliability and security are required.
What's Included
- DoorKing 9220 Series Slide Gate Operator
- Integrated Variable-Speed Control System
- #60 Gate Chain
- Chain Brackets
- Integrated Control Board
- Gate Tracker™ Reporting Capability
- Mounting Hardware
- Installation Documentation
