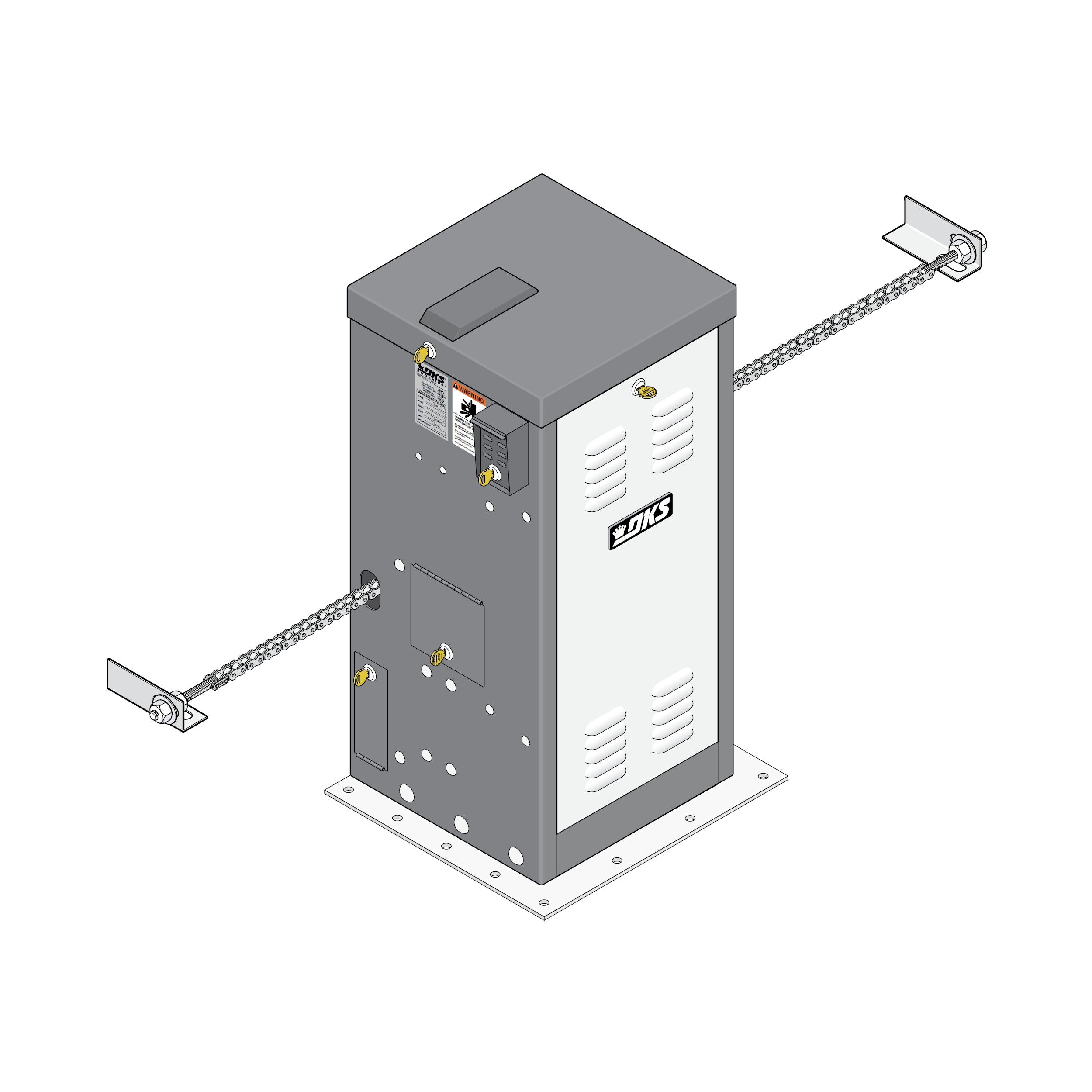

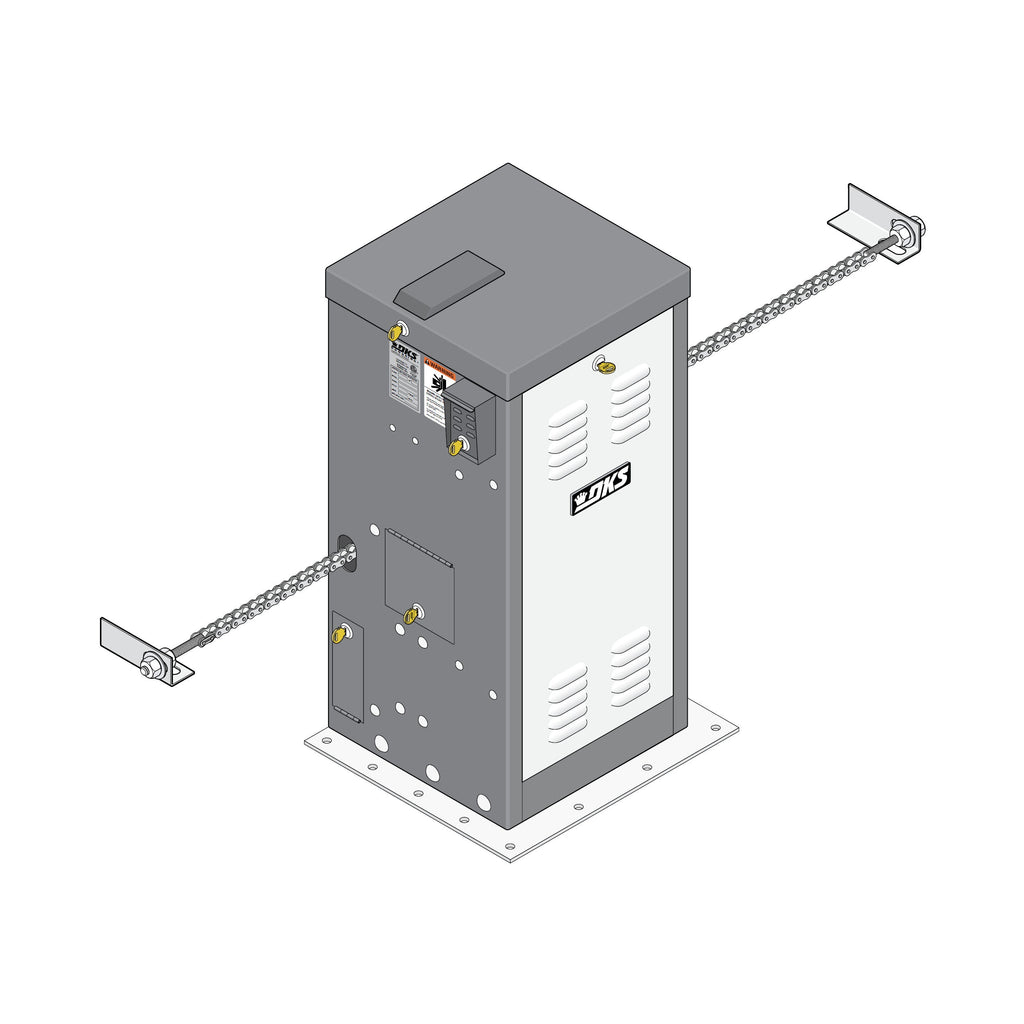

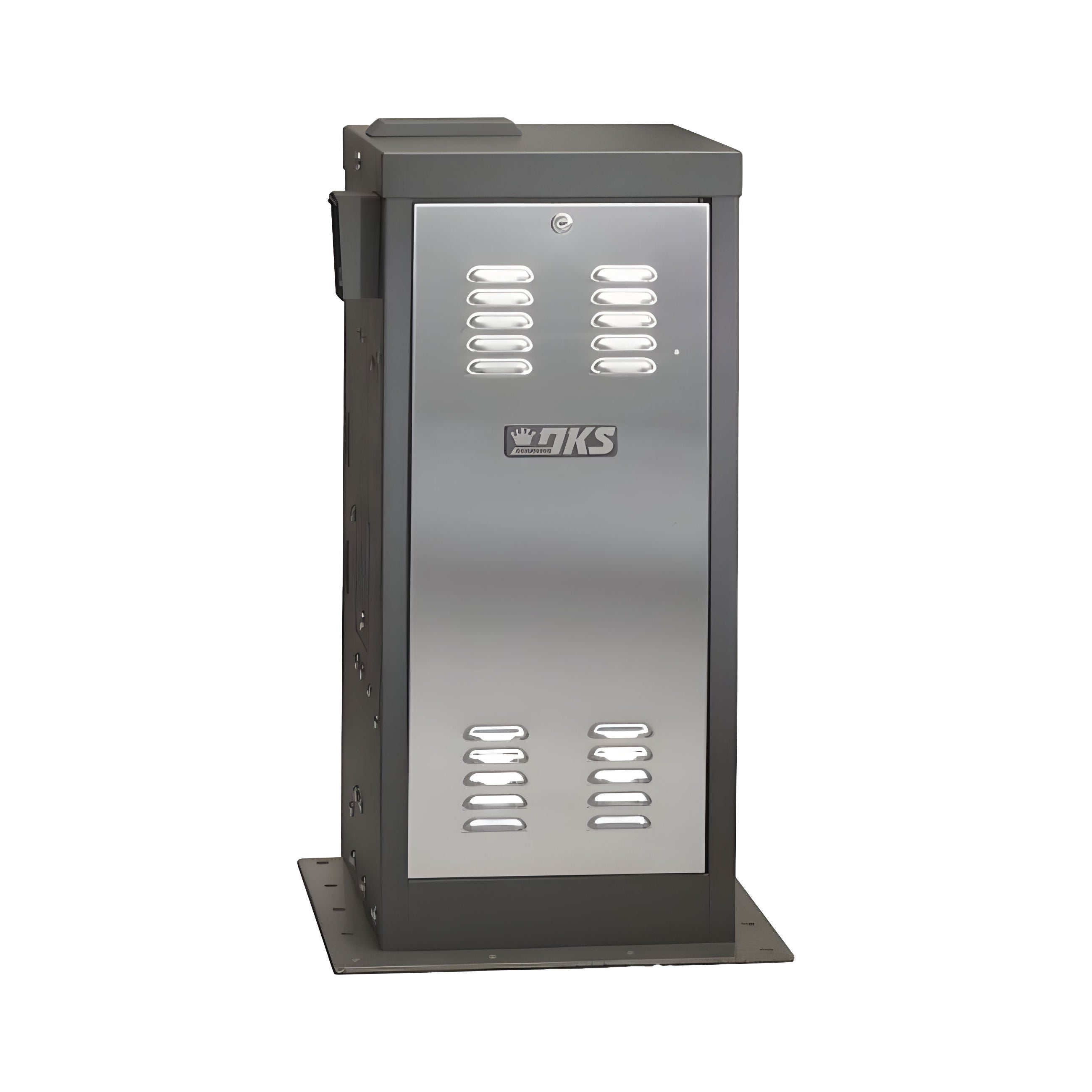

Description
The DoorKing 9210 Series is a heavy-duty maximum security slide gate operator engineered for Class III and Class IV applications where controlled access, perimeter security, and long-term reliability are critical. Designed for government facilities, military installations, utility sites, industrial campuses, transportation facilities, and other restricted-access environments, the 9210 combines rugged construction, continuous-duty performance, and fail-secure operation in a versatile slide gate platform.
Built around a powerful 1 HP continuous-duty motor and a heavy-duty oil-bath gear reduction system, the 9210 Series is capable of operating large slide gates up to 100 feet in length and up to 3,000 pounds depending on chain configuration. The operator is designed to mount at the front, center, or rear of the gate, simplifying installation while providing the flexibility required for high-security facilities.
Performance & Application
The 9210 Series was developed specifically for limited-access and restricted-access facilities where gate security is more important than public accessibility. Unlike residential and commercial operators, the 9210 incorporates fail-secure operation, ensuring the gate remains secured during power loss conditions while still allowing authorized manual operation using the included crank system.
Powered by a 1 HP continuous-duty motor, the operator utilizes a 40:1 oil-bath gear reduction system for smooth, dependable operation. Fixed gate speed is approximately 10–12 inches per second (about 1 foot per second), providing controlled gate movement for high-security sites. Depending on the chain configuration selected, the operator can support gates weighing up to 2,000 pounds with #50 chain or up to 3,000 pounds with #60 chain while accommodating gate lengths up to 100 feet.
Advanced operating features include anti-tailgating functionality, adjustable partial-open positioning, programmable operating modes, plug-in loop detector compatibility, direct-drive limit switches, and Gate Tracker™ reporting capability for integration with DoorKing access control systems.
Key Features
- 1 HP continuous-duty industrial motor
- Designed for Class III and Class IV applications
- Maximum security slide gate operator
- Supports gates up to 100 ft. long
- Supports gates up to 3,000 lbs. with #60 chain
- Supports gates up to 2,000 lbs. with #50 chain
- Fixed speed approximately 10–12 in./sec.
- Heavy-duty oil-bath gear reduction system
- Fail-secure operation
- Manual crank release included
- Anti-tailgating functionality
- Adjustable partial-open feature
- Adjustable mid-stop programming
- Direct-drive limit switches
- Solid-state motor control system
- Gate Tracker™ reporting output
- Plug-in loop detector ports
- Built-in reset switch
- Built-in power switch
- Two convenience outlets
- Programmable operating modes
- Pad mount or pedestal mount installation
- Heavy-duty galvanized steel housing
- Stainless steel access door
- ETL Listed
- UL 325 compliant when installed with required monitored entrapment protection devices
- 5-Year limited manufacturer warranty
Ideal Applications
The DoorKing 9210 Series is ideal for:
- Government facilities
- Military installations
- Utility substations
- Power generation sites
- Water treatment facilities
- Transportation facilities
- Industrial manufacturing plants
- Distribution centers
- Port and shipping terminals
- Correctional facilities
- Data centers
- High-security corporate campuses
- Restricted-access commercial properties
Specifications
Mechanical
Model Series: DoorKing 9210
Operator Type: Maximum Security Vehicular Slide Gate Operator
Motor: 1 HP Continuous-Duty
Gear Reduction: 40:1 Oil-Bath Gear Drive
Operation: Fail-Secure
Speed: Approximately 10–12 Inches Per Second
Mounting: Pad Mount or Optional Pedestal Mount
Housing: G90 Galvanized Steel
Access Door: Stainless Steel
Chain Options: #50 or #60 Chain Included
Gate Capacity
Maximum Gate Length: 100 Feet
Maximum Gate Weight (#50 Chain): 2,000 Pounds
Maximum Gate Weight (#60 Chain): 3,000 Pounds
Minimum Gate Length: 10 Feet
Electrical
Input Voltage Options:
- 115 VAC Single Phase
- 208 VAC Single Phase
- 230 VAC Single Phase
- 208 VAC Three Phase
- 230 VAC Three Phase
- 460 VAC Three Phase
Power Outlets: 2
Loop Detector Ports: 2
Environmental
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Optional Thermostatically Controlled Heater Available
Dimensions
Operator Dimensions:
- Width: 20"
- Height: 35.5"
- Depth: 18"
Shipping Weight:
- Approximately 225 lbs.
Available 9210 Models
9210-380
1 HP • 115 VAC Single Phase • #50 Chain
9210-381
1 HP • 115 VAC Single Phase • #60 Chain
9210-382
1 HP • 208 VAC Single Phase • #50 Chain
9210-383
1 HP • 208 VAC Single Phase • #60 Chain
9210-384
1 HP • 230 VAC Single Phase • #50 Chain
9210-385
1 HP • 230 VAC Single Phase • #60 Chain
9210-386
1 HP • 208 VAC Three Phase • #50 Chain
9210-387
1 HP • 208 VAC Three Phase • #60 Chain
9210-388
1 HP • 230 VAC Three Phase • #50 Chain
9210-389
1 HP • 230 VAC Three Phase • #60 Chain
9210-390
1 HP • 460 VAC Three Phase • #50 Chain
9210-391
1 HP • 460 VAC Three Phase • #60 Chain
What's Included
- DoorKing 9210 Series Slide Gate Operator
- Integrated Control System
- Fail-Secure Manual Crank Assembly
- Chain Brackets
- 20 Feet of Gate Chain
- Mounting Hardware
- Installation Documentation
