Description

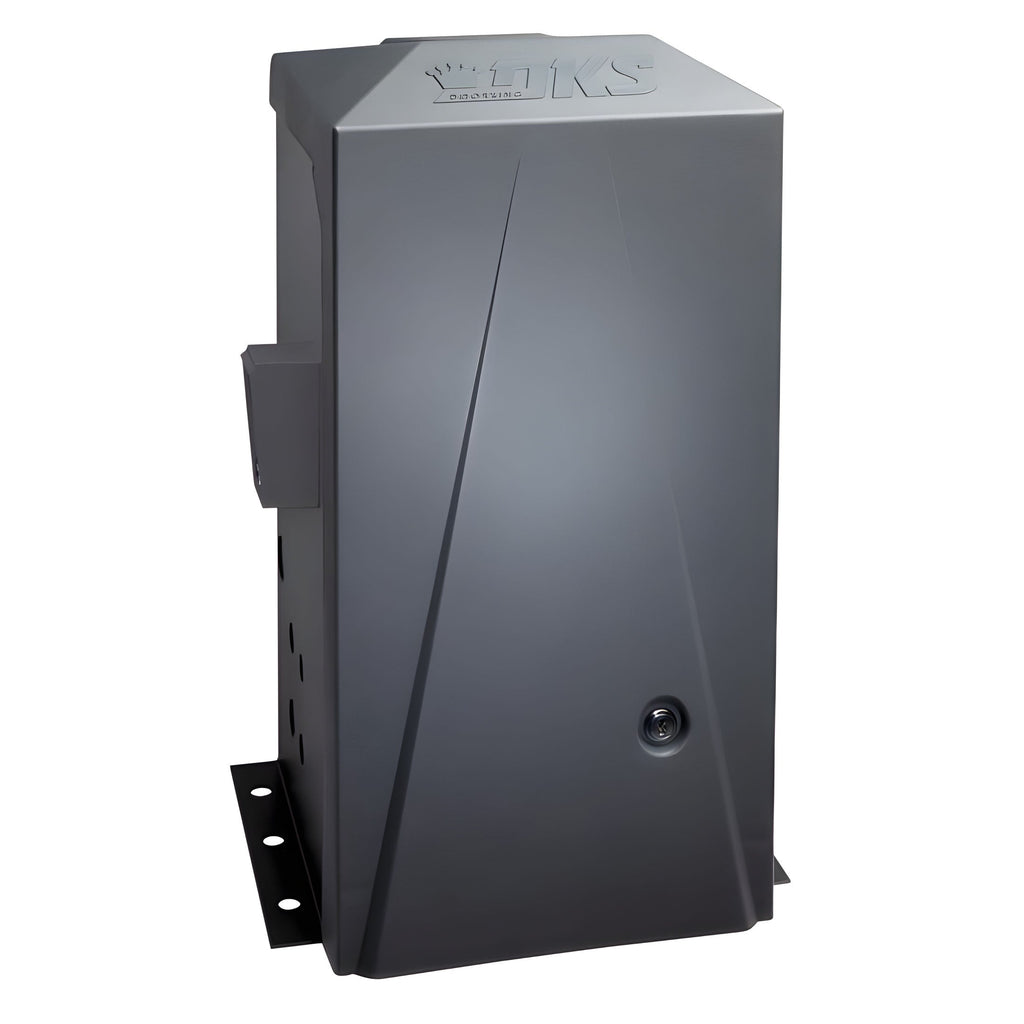

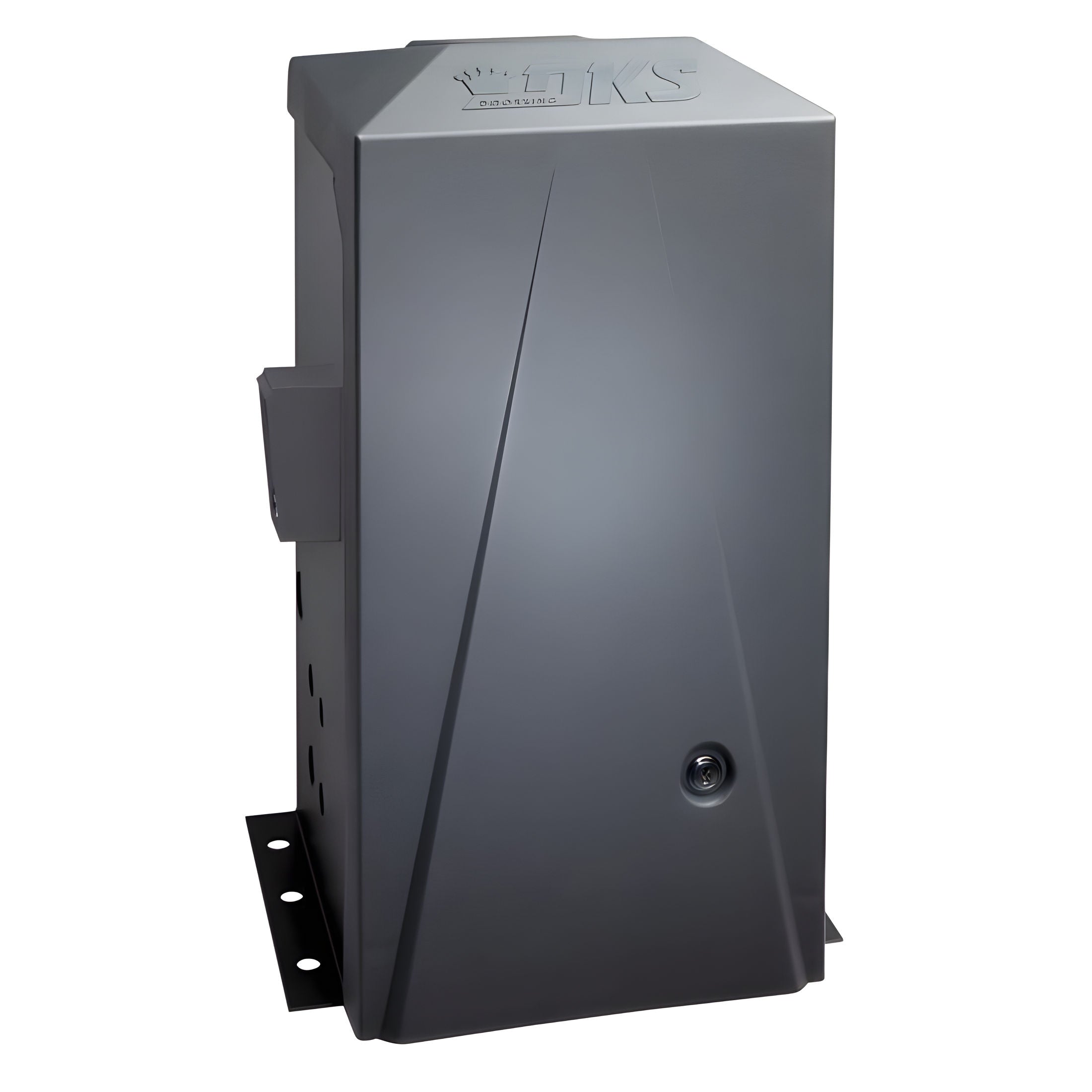

The DoorKing 9150-386 is a reliable slide gate operator designed for residential, commercial, and light industrial vehicular access control applications. Combining proven DoorKing performance with a corrosion-resistant polypropylene enclosure, the 9150-386 provides dependable gate automation for properties requiring long-term durability and consistent operation in a variety of environmental conditions.
Powered by a continuous-duty 1/2 HP AC motor, the 9150-386 is engineered to automate slide gates up to 30 feet in length and weighing up to 1,000 pounds. Self-adjusting electronic magnetic limits eliminate the maintenance requirements associated with traditional mechanical limit switches while ensuring accurate gate positioning and smooth operation throughout the life of the system.
The 9150-386 incorporates advanced access control and traffic management features including anti-tailgating functionality, a partial-open feature for controlled vehicle access, and Gate Tracker™ reporting output for integration with compatible DoorKing access control systems. Built-in convenience outlets and plug-in loop detector compatibility provide flexibility for future system expansion and accessory integration.
Designed for dependable performance in demanding environments, the operator combines a rugged galvanized steel chassis with a durable polypropylene cover that resists corrosion, UV exposure, and harsh weather conditions. The 9150-386 is UL 325 compliant, ETL listed, and approved for Class I, II, III, and IV applications when installed with appropriate monitored entrapment protection devices.
Key Features
• Continuous-duty 1/2 HP AC motor
• Supports slide gates up to 30 ft. in length
• Rated for gates up to 1,000 lbs.
• Corrosion-resistant polypropylene cover
• Self-adjusting electronic magnetic limits require no routine adjustment
• Anti-tailgating feature enhances site security
• Partial-open function improves vehicle traffic flow
• Gate Tracker™ reporting output for compatible DoorKing systems
• Plug-in loop detector compatibility
• Built-in power and reset switches
• Convenient accessory power outlets
• Easy-access internal components simplify maintenance
• Multiple mounting configurations available
• Fail-safe operation during entrapment conditions
• UL 325 compliant and ETL listed
Ideal Applications
• Residential gated entrances
• HOA and gated communities
• Apartment and condominium complexes
• Commercial office properties
• Self-storage facilities
• Light industrial facilities
• Parking facilities
• Coastal and corrosive environments
• Mixed-use developments
Specifications
Model: 9150-386
Product Type: Vehicular Slide Gate Operator
Motor: 1/2 HP Continuous-Duty AC Motor
Cover Type: Polypropylene
Maximum Gate Length: 30 ft.
Maximum Gate Weight: 1,000 lbs.
Speed: Approximately 10 in./sec.
Input Voltage: 115VAC, 208VAC, 230VAC, 460VAC
Chain Included: 20 ft. of #40 Roller Chain
Primary Reduction: Single Cog Belt
Gate Tracker™ Output: Yes
Partial Open Function: Yes
Anti-Tailgating Feature: Yes
Loop Detector Compatible: Yes
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 15.25 in. W × 24.50 in. H × 16.75 in. D
Approximate Shipping Weight: 125–185 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9150-386 Slide Gate Operator
• Polypropylene Housing
• 20 ft. #40 Roller Chain
• Chain Brackets and Mounting Hardware
• Installation Documentation
