Description

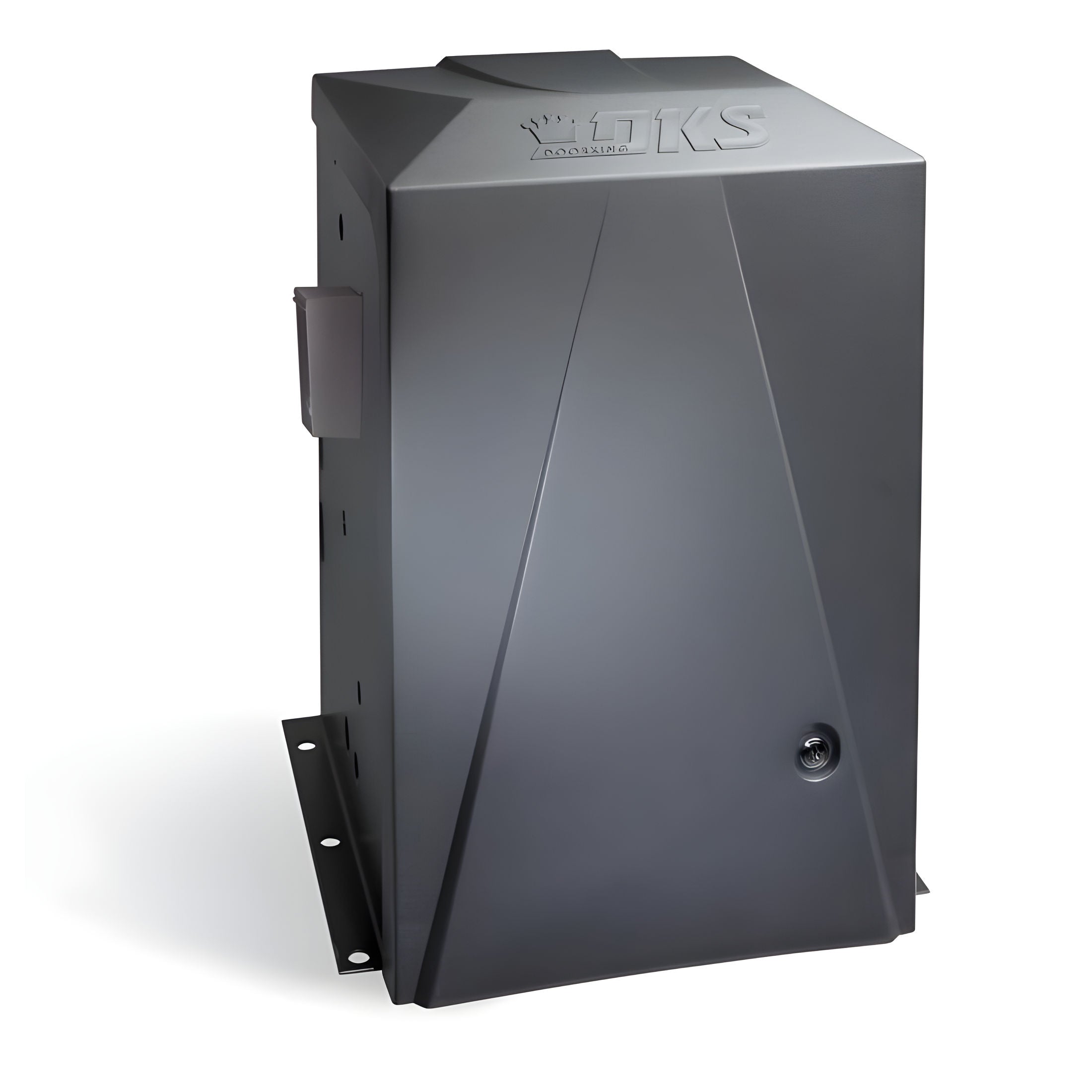

The DoorKing 9150-385 is a high-capacity commercial and industrial slide gate operator engineered for demanding vehicular access control applications. Designed for industrial facilities, distribution centers, self-storage properties, apartment communities, commercial sites, and high-traffic gated entrances, the 9150-385 delivers reliable continuous-duty performance while incorporating advanced safety and traffic management features.
Powered by a continuous-duty 1 HP AC motor, the 9150-385 is capable of automating slide gates up to 45 feet in length and weighing up to 1,500 pounds. Self-adjusting electronic magnetic limits eliminate the maintenance associated with traditional mechanical limit switches while providing precise gate positioning and dependable operation. The operator's corrosion-resistant polypropylene housing makes it particularly well suited for installations in harsh environments where long-term durability is critical.
The 9150-385 includes advanced access control and traffic management capabilities such as anti-tailgating functionality, a partial-open feature for controlled vehicle access, and Gate Tracker™ reporting output for integration with compatible DoorKing access control systems. Built-in convenience outlets and plug-in loop detector compatibility provide flexibility for system expansion and accessory integration.
Designed for years of dependable service, the 9150-385 combines a rugged galvanized steel chassis with a durable polypropylene cover that resists corrosion, UV exposure, and harsh environmental conditions. The operator is UL 325 compliant, ETL listed, and approved for Class I, II, III, and IV applications when installed with appropriate monitored entrapment protection devices.
Key Features
• Continuous-duty 1 HP AC motor for high-cycle operation
• Supports slide gates up to 45 ft. in length
• Rated for gates up to 1,500 lbs.
• Corrosion-resistant polypropylene cover
• Self-adjusting electronic magnetic limits require no routine adjustment
• Anti-tailgating feature enhances property security
• Partial-open function improves vehicle traffic management
• Gate Tracker™ reporting output for compatible DoorKing systems
• Plug-in loop detector compatibility
• Built-in power and reset switches
• Convenient accessory power outlets
• Easy-access internal components simplify maintenance
• Multiple mounting configurations available
• Fail-safe operation during entrapment conditions
• UL 325 compliant and ETL listed
Ideal Applications
• Industrial facilities and manufacturing plants
• Warehouses and distribution centers
• Commercial properties and office complexes
• Self-storage facilities
• Apartment communities
• Parking facilities
• Gated communities
• Coastal or corrosive environments
• High-traffic vehicular entrances
Specifications
Model: 9150-385
Product Type: Vehicular Slide Gate Operator
Motor: 1 HP Continuous-Duty AC Motor
Cover Type: Polypropylene
Maximum Gate Length: 45 ft.
Maximum Gate Weight: 1,500 lbs.
Speed: Approximately 10 in./sec.
Input Voltage: 115VAC, 208VAC, 230VAC, 460VAC
Chain Included: 20 ft. of #40 Roller Chain
Primary Reduction: Single Cog Belt
Gate Tracker™ Output: Yes
Partial Open Function: Yes
Anti-Tailgating Feature: Yes
Loop Detector Compatible: Yes
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 15.25 in. W × 24.50 in. H × 16.75 in. D
Approximate Shipping Weight: 125–185 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9150-385 Slide Gate Operator
• Polypropylene Housing
• 20 ft. #40 Roller Chain
• Chain Brackets and Mounting Hardware
• Installation Documentation
