Description

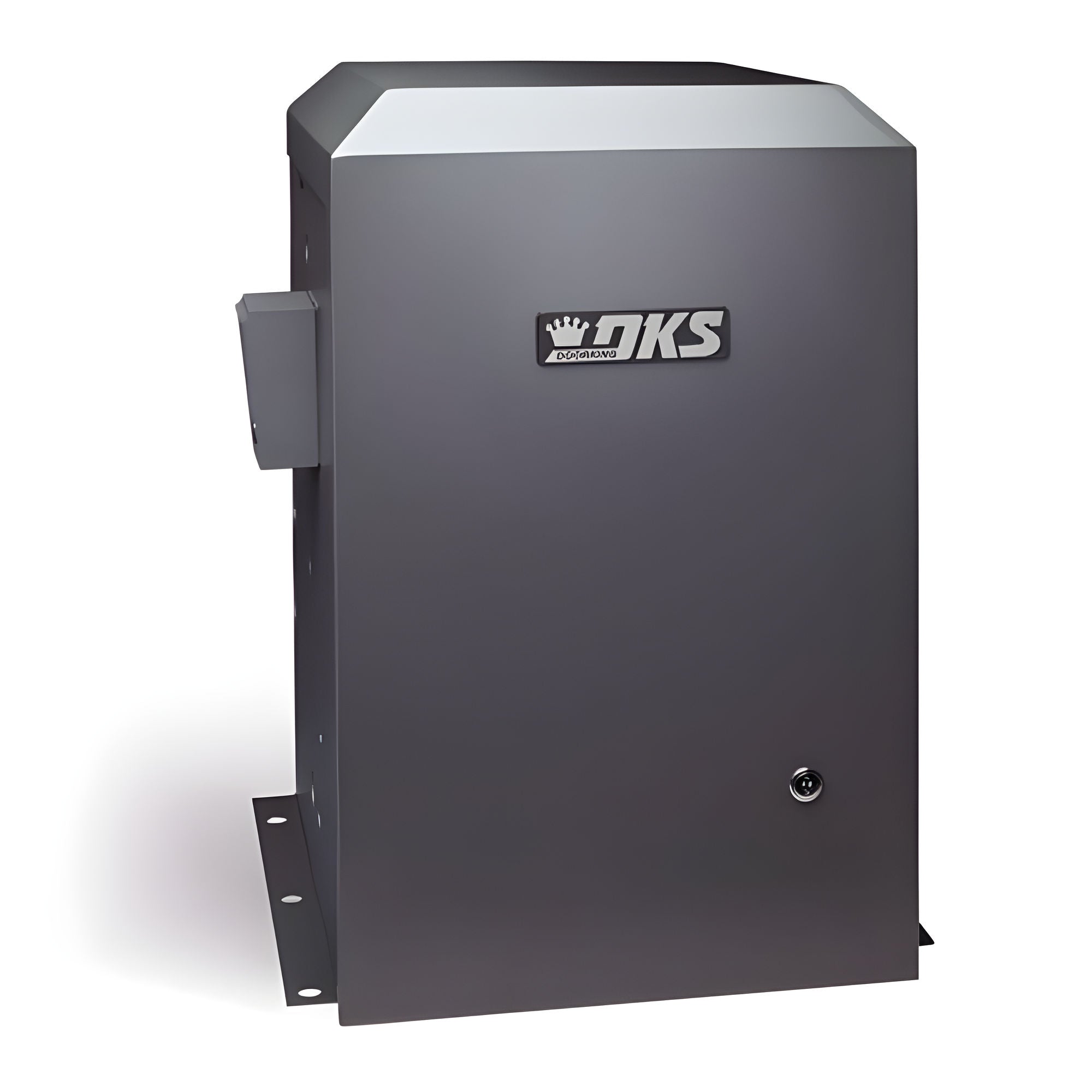

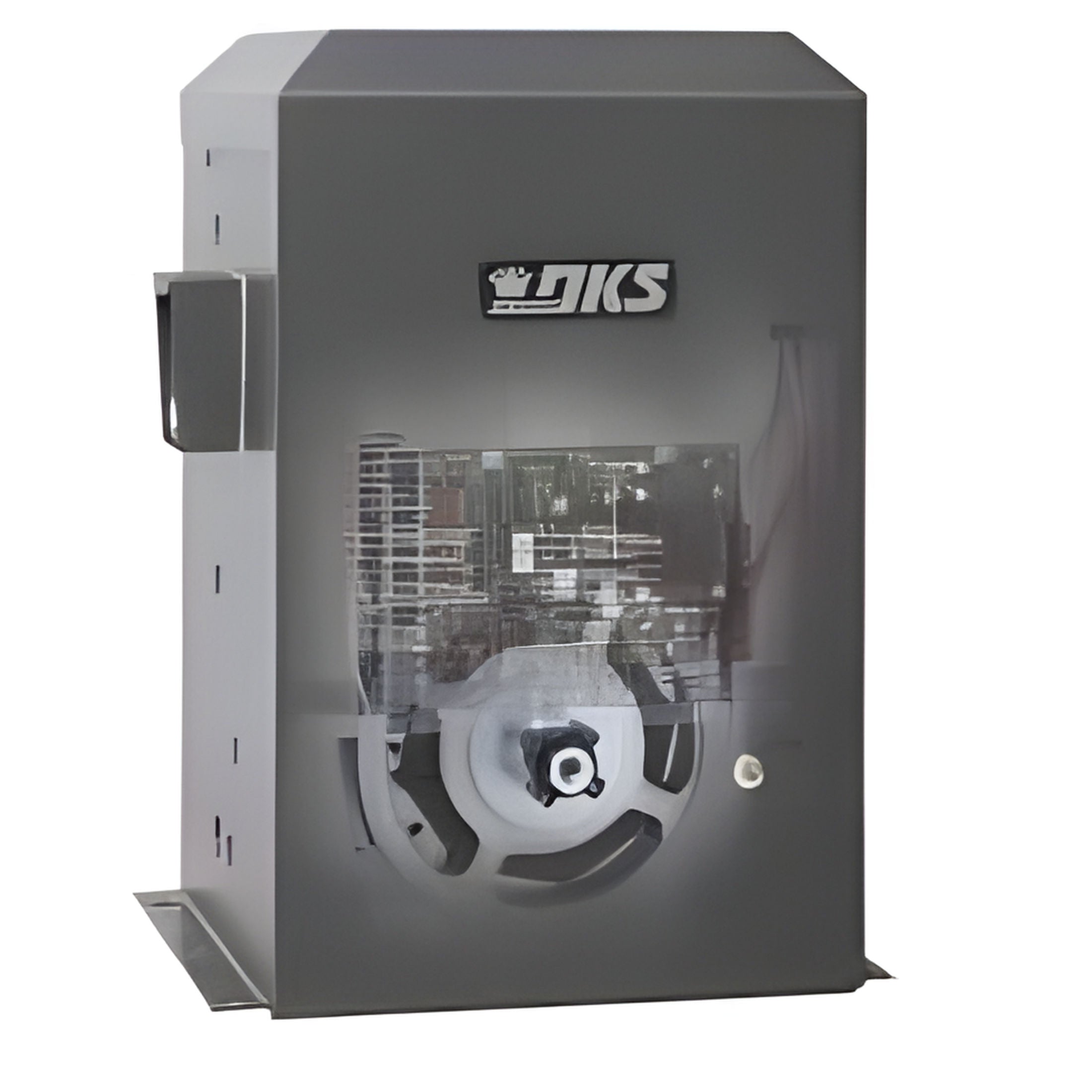

The DoorKing 9150-384 is a versatile slide gate operator designed for residential, commercial, and light industrial vehicular access control applications. Engineered to provide dependable continuous-duty performance, the 9150-384 combines proven DoorKing reliability with a rugged metal enclosure, advanced safety functionality, and flexible installation options for a wide range of perimeter security environments.
Powered by a continuous-duty 1/2 HP AC motor, the 9150-384 is designed to automate slide gates up to 30 feet in length and weighing up to 1,000 pounds. Self-adjusting electronic magnetic limits eliminate the maintenance requirements associated with traditional mechanical limit switches while ensuring consistent gate positioning and reliable operation. The operator's compact design and multiple mounting options make it suitable for both new installations and replacement projects.
The 9150-384 incorporates advanced traffic management and access control features including anti-tailgating functionality, a partial-open feature for controlled vehicle access, and Gate Tracker™ reporting output for integration with compatible DoorKing access control systems. Built-in convenience outlets and plug-in loop detector compatibility provide additional flexibility for system expansion and accessory integration.
Constructed with a galvanized steel frame and durable metal housing, the 9150-384 is built to withstand demanding outdoor environments while providing long-term reliability. The operator is UL 325 compliant, ETL listed, and approved for Class I, II, III, and IV applications when installed with appropriate monitored entrapment protection devices.
Key Features
• Continuous-duty 1/2 HP AC motor
• Supports slide gates up to 30 ft. in length
• Rated for gates up to 1,000 lbs.
• Durable metal cover for enhanced protection and durability
• Self-adjusting electronic magnetic limits require no routine adjustment
• Anti-tailgating feature improves site security
• Partial-open function supports controlled vehicle access
• Gate Tracker™ reporting output for compatible DoorKing systems
• Plug-in loop detector compatibility
• Built-in power and reset switches
• Convenient accessory power outlets
• Easy-access internal components simplify maintenance
• Multiple mounting configurations available
• Fail-safe operation during entrapment conditions
• UL 325 compliant and ETL listed
Ideal Applications
• Residential gated entrances
• Gated communities and HOA properties
• Apartment and condominium complexes
• Commercial office properties
• Self-storage facilities
• Light industrial facilities
• Parking facilities
• Mixed-use developments
Specifications
Model: 9150-384
Product Type: Vehicular Slide Gate Operator
Motor: 1/2 HP Continuous-Duty AC Motor
Cover Type: Metal
Maximum Gate Length: 30 ft.
Maximum Gate Weight: 1,000 lbs.
Speed: Approximately 10 in./sec.
Input Voltage: 115VAC, 208VAC, 230VAC, 460VAC
Chain Included: 20 ft. of #40 Roller Chain
Primary Reduction: Single Cog Belt
Gate Tracker™ Output: Yes
Partial Open Function: Yes
Anti-Tailgating Feature: Yes
Loop Detector Compatible: Yes
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 15.25 in. W × 24.50 in. H × 16.75 in. D
Approximate Shipping Weight: 125–185 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9150-384 Slide Gate Operator
• Metal Housing
• 20 ft. #40 Roller Chain
• Chain Brackets and Mounting Hardware
• Installation Documentation
