Description

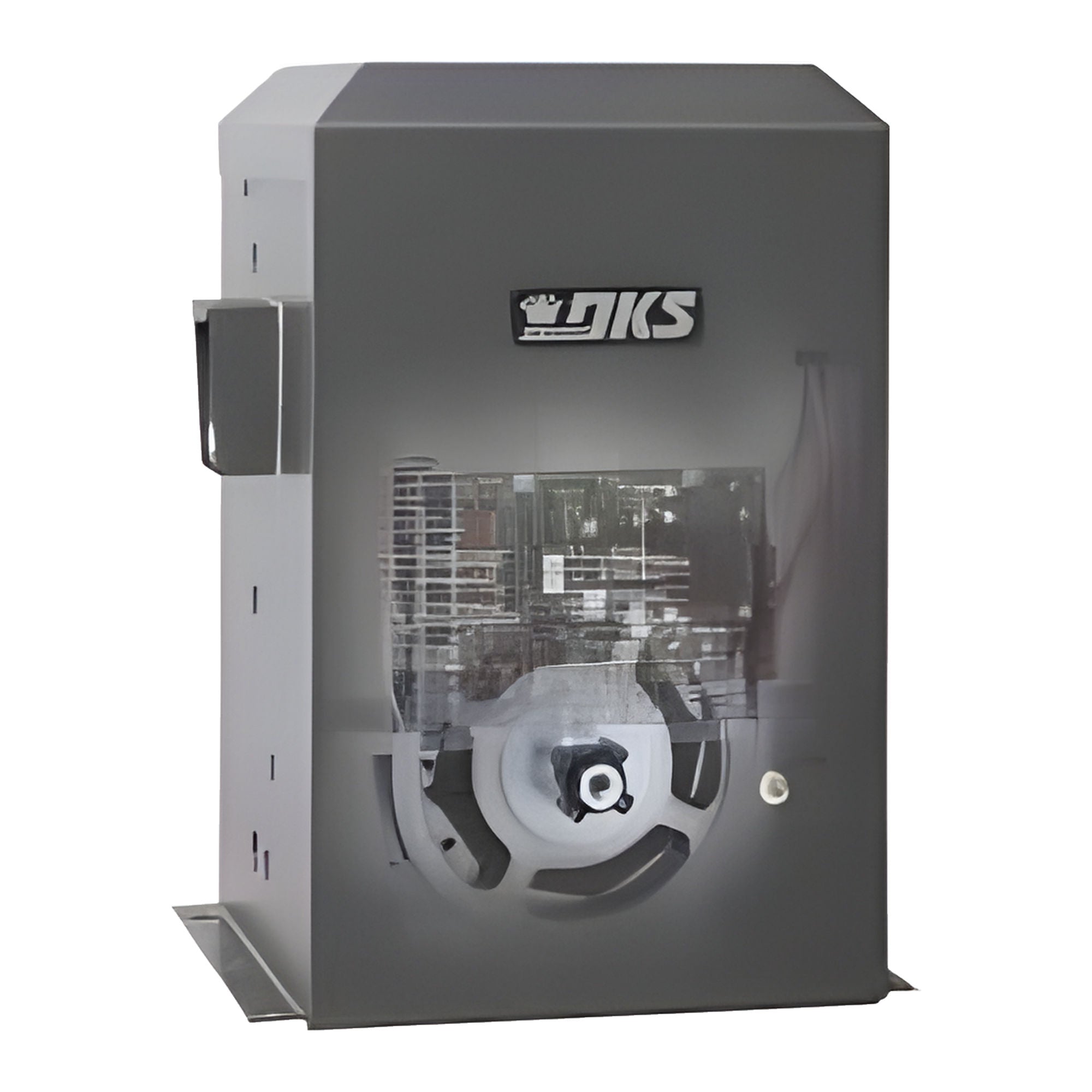

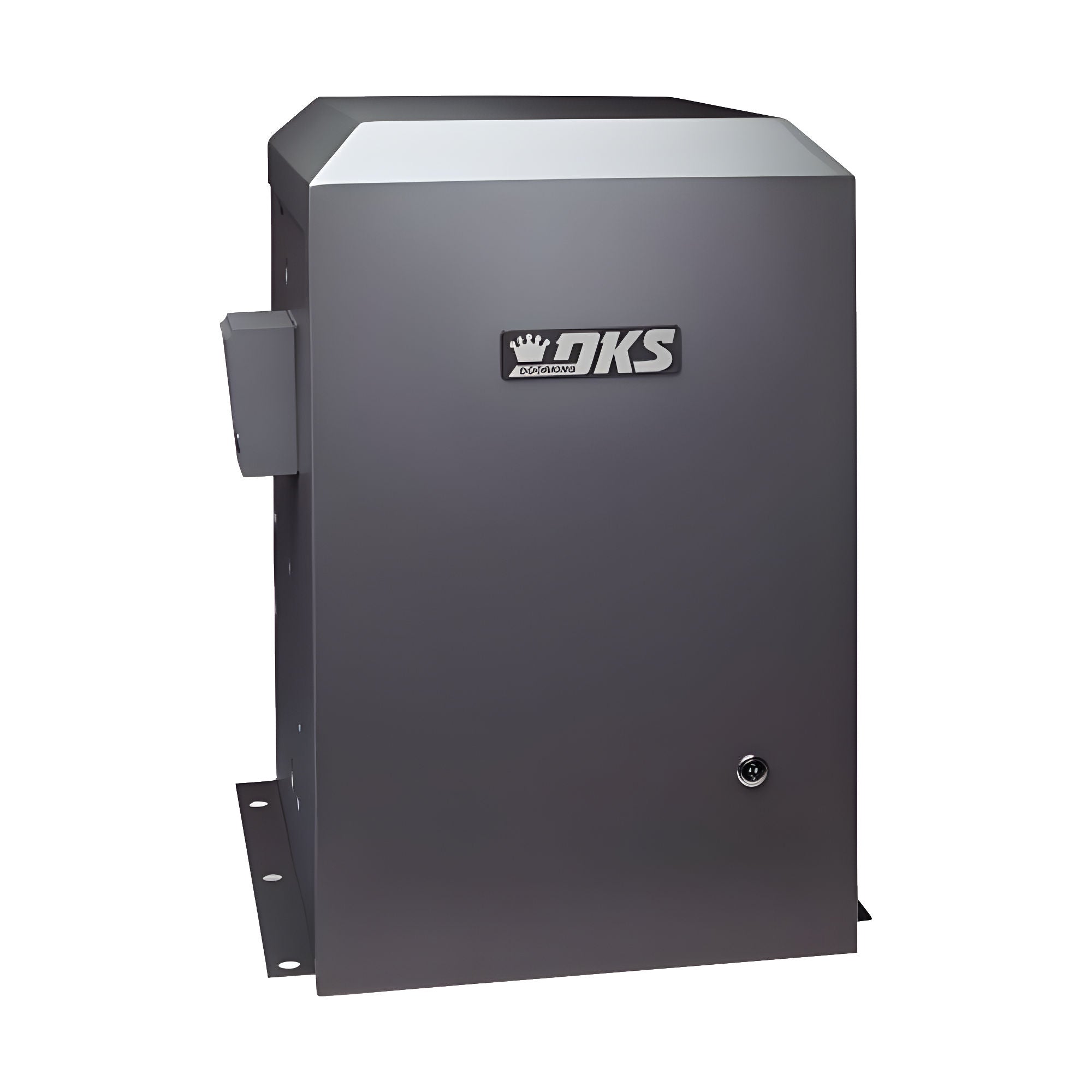

The DoorKing 9150-380 is a heavy-duty commercial and industrial slide gate operator engineered for demanding vehicular access control applications. Designed for gated communities, apartment complexes, self-storage facilities, industrial properties, commercial sites, and parking facilities, the 9150-380 delivers dependable continuous-duty performance while incorporating advanced safety and traffic management features.
Powered by a continuous-duty 1 HP AC motor, the 9150-380 is designed to automate slide gates up to 45 feet in length and weighing up to 1,500 pounds. Self-adjusting electronic magnetic limits eliminate the maintenance and wear associated with traditional mechanical limit switches, while advanced control functions provide reliable gate positioning and smooth operation.
The operator features anti-tailgating functionality to improve site security, a partial-open feature for efficient vehicle traffic management, and Gate Tracker™ reporting output for integration with compatible DoorKing access control systems. Built-in convenience outlets, plug-in loop detector compatibility, and easy-access service components simplify installation, maintenance, and system expansion.
Constructed with a rugged galvanized steel frame and durable metal housing, the 9150-380 is built to withstand demanding commercial and industrial environments. The operator is UL 325 compliant, ETL listed, and approved for Class I, II, III, and IV applications when installed with appropriate monitored entrapment protection devices.
Key Features
• Continuous-duty 1 HP AC motor for high-cycle operation
• Supports slide gates up to 45 ft. in length
• Rated for gates up to 1,500 lbs.
• Durable metal cover for commercial and industrial environments
• Self-adjusting electronic magnetic limits require no routine adjustment
• Anti-tailgating feature enhances property security
• Partial-open function improves traffic flow and vehicle access
• Gate Tracker™ reporting output for compatible DoorKing access control systems
• Plug-in loop detector compatibility
• Built-in power and reset switches
• Convenient accessory power outlets
• Fail-safe operation during entrapment conditions
• Easy access to internal mechanical components for service and maintenance
• UL 325 compliant and ETL listed
Ideal Applications
• Industrial facilities and manufacturing plants
• Commercial properties and office complexes
• Apartment communities and multi-family housing
• Self-storage facilities
• Parking facilities
• Distribution centers and warehouses
• Gated communities
• High-traffic vehicular entrances
Specifications
Model: 9150-380
Product Type: Vehicular Slide Gate Operator
Motor: 1 HP Continuous-Duty AC Motor
Cover Type: Metal
Maximum Gate Length: 45 ft.
Maximum Gate Weight: 1,500 lbs.
Speed: Approximately 10 in./sec.
Input Voltage: 115VAC, 208VAC, 230VAC, 460VAC
Chain Included: 20 ft. of #40 Roller Chain
Primary Reduction: Single Cog Belt
Gate Tracker™ Output: Yes
Partial Open Function: Yes
Anti-Tailgating Feature: Yes
Loop Detector Compatible: Yes
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 15.25 in. W × 24.50 in. H × 16.75 in. D
Approximate Shipping Weight: 125–185 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9150-380 Slide Gate Operator
• Metal Housing
• 20 ft. #40 Roller Chain
• Chain Brackets and Hardware
• Installation Documentation
