Description

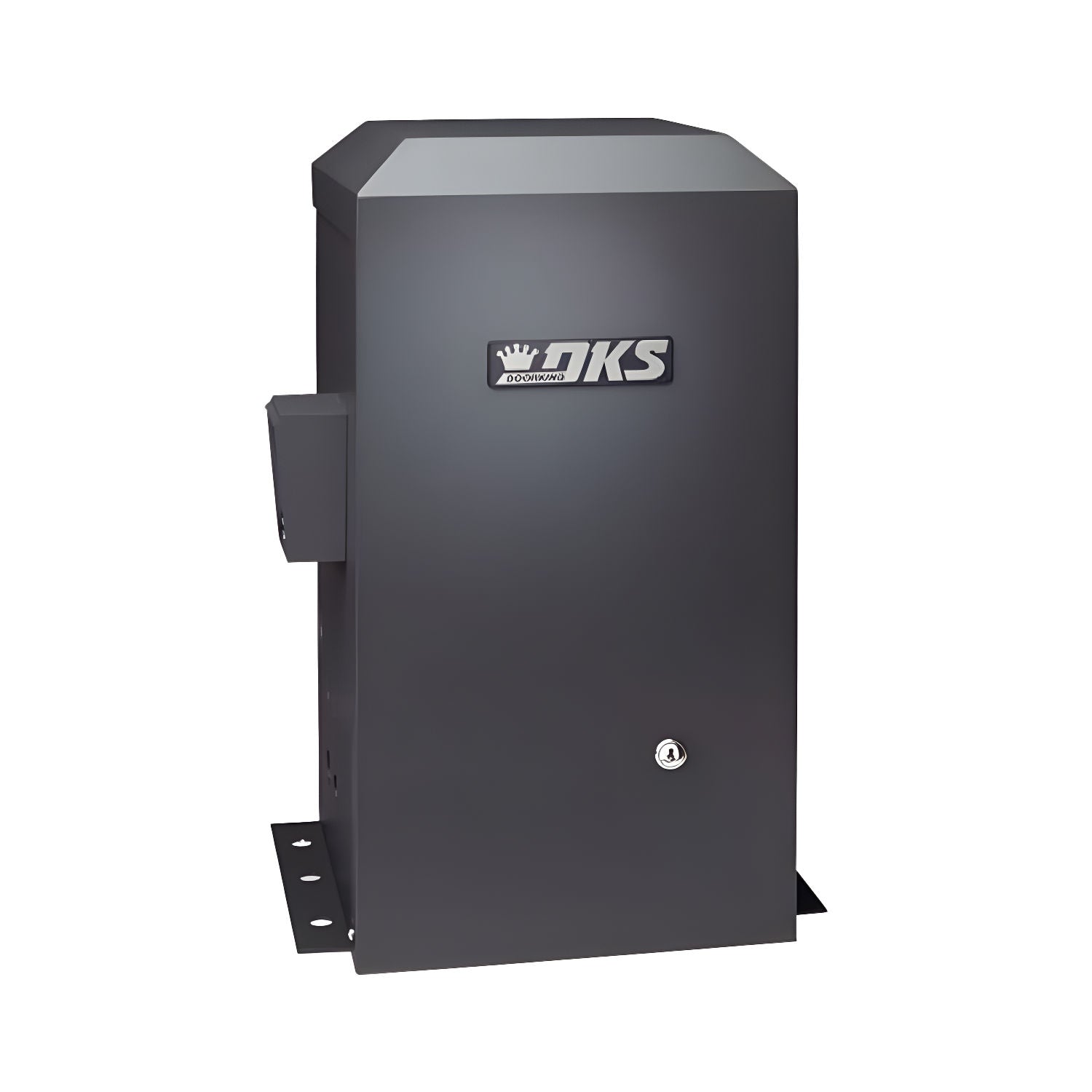

The DoorKing 9100-380 is a dependable slide gate operator designed for residential, commercial, and light-duty vehicular access control applications. Combining continuous-duty performance, advanced safety features, and a rugged metal enclosure, the 9100-380 provides reliable gate automation for gated communities, apartment complexes, commercial properties, self-storage facilities, and residential entrances.
Powered by a continuous-duty 1/2 HP AC motor, the 9100-380 is capable of automating slide gates up to 30 feet in length and weighing up to 1,000 pounds. Automatic self-adjusting electronic limits eliminate the maintenance associated with traditional mechanical limit switches while providing consistent gate positioning and dependable operation.
The operator incorporates advanced safety and traffic management features including anti-tailgating functionality, partial-open operation for controlled vehicle access, and fail-safe release capability that allows gate operation during power interruptions. Gate Tracker™ reporting output provides integration with compatible DoorKing access control systems, while plug-in loop detector ports simplify system expansion and vehicle detection integration.
Constructed with a galvanized steel frame and durable metal housing, the 9100-380 is designed to withstand demanding outdoor environments while providing long-term reliability. The operator is ETL listed, compliant with UL 325 and UL 991 standards, and approved for Class I, II, III, and IV applications when installed with appropriate monitored entrapment protection devices.
Key Features
• Continuous-duty 1/2 HP AC motor
• Supports slide gates up to 30 ft. long
• Supports gates up to 1,000 lbs.
• Rugged metal cover construction
• Self-adjusting electronic magnetic limits
• Partial-open feature for controlled traffic flow
• Anti-tailgating functionality
• Gate Tracker™ reporting output
• Plug-in loop detector compatibility
• Built-in power and reset switches
• Two accessory convenience outlets
• Fail-safe release system
• Easy-access service design
• UL 325 and UL 991 compliant
• ETL listed
Ideal Applications
• Residential gated entrances
• HOA communities
• Apartment complexes
• Commercial properties
• Self-storage facilities
• Mixed-use developments
• Parking facilities
• Light industrial sites
Specifications
Model: 9100-380
Product Type: Vehicular Slide Gate Operator
Motor: 1/2 HP Continuous-Duty AC Motor
Cover Type: Metal
Maximum Gate Length: 30 ft.
Maximum Gate Weight: 1,000 lbs.
Speed: Approximately 10 in./sec.
Input Voltage: 115VAC
Primary Reduction: Single Cog Belt
Chain Included: 20 ft. of #40 Roller Chain
Gate Tracker™ Output: Yes
Partial Open Function: Yes
Anti-Tailgating Feature: Yes
Fail-Safe Release: Standard
Loop Detector Compatible: Yes
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 12.00 in. W × 24.00 in. H × 11.50 in. D
Approximate Shipping Weight: 70 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9100-380 Slide Gate Operator
• Metal Housing
• 20 ft. #40 Roller Chain
• Chain Brackets and Hardware
• Installation Documentation
