Description

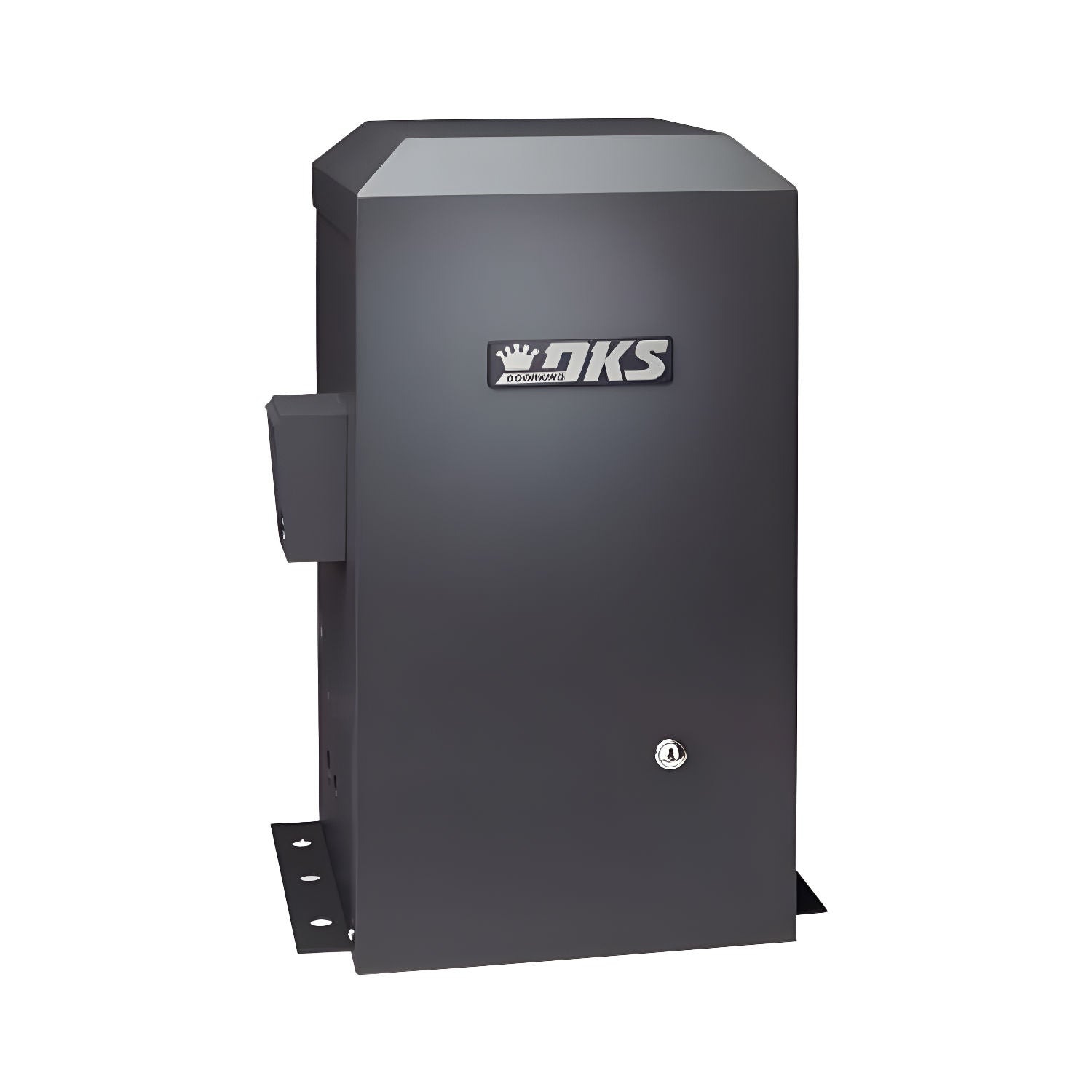

The DoorKing 9050-380 is a residential slide gate operator designed to provide reliable, quiet, and secure gate automation for homes, private driveways, and small residential communities. Featuring a durable galvanized steel chassis and rugged metal cover, the 9050-380 delivers long-lasting performance while protecting internal components from weather, impact, and everyday wear.
Built around a 1/2 HP limited-duty AC motor and a self-adjusting magnetic limit system, this operator eliminates many of the maintenance concerns associated with traditional mechanical limit switches. The result is dependable operation, simplified installation, and years of trouble-free service for residential gate systems.
Performance & Application
The 9050-380 is engineered specifically for residential vehicular slide gates up to 20 feet in length and 700 pounds. Its high-speed belt-driven design opens gates at approximately 10 inches per second, providing fast and efficient property access while maintaining smooth, quiet operation.
Designed with installer flexibility in mind, the operator can be mounted at the front, center, or rear of the gate and supports both pad-mount and post-mount installations. The integrated control system includes programmable operating modes, plug-in loop detector ports, adjustable auto-close timing, and built-in convenience outlets for accessory transformers.
Advanced safety features include magnetic self-adjusting limits, monitored entrapment protection compatibility, automatic reverse functionality, and optional fail-safe release operation. The operator's simple design allows easy access to mechanical components for servicing and maintenance.
Key Features
• 115 VAC residential slide gate operator
• Durable metal cover construction
• Heavy-duty galvanized steel frame
• Self-adjusting magnetic limit system
• 1/2 HP limited-duty AC motor
• Supports gates up to 20 ft. long
• Supports gates up to 700 lbs.
• Belt-driven operation for quiet performance
• Approximate gate speed of 10 in./sec.
• Built-in On/Off power switch
• Built-in alarm reset switch
• Adjustable auto-close timer
• Plug-in loop detector ports
• Selectable stop/reverse loop functions
• Two convenience outlets for accessories
• Pad mount or post mount installation
• Optional fail-safe release kit available
• Gate Tracker™ reporting capability
• ETL Listed
• UL 325 and UL 991 compliant
Ideal Applications
• Residential driveways
• Private homes
• Estate entrances
• Ranch properties
• Small gated communities
• Residential access control systems
• Single-family residences
• Private roadway entrances
Specifications
Model: 9050-380
Operator Type: Residential Slide Gate Operator
Motor: 1/2 HP Limited-Duty AC Motor
Input Voltage: 115 VAC, 60 Hz
Current Draw: 5.4 Amps
Maximum Gate Length: 20 ft.
Maximum Gate Weight: 700 lbs.
Gate Speed: Approximately 10 in./sec.
Drive System: Single Cog Belt Drive
Class of Operation: Class I
Frame Construction: G90 Galvanized Steel
Cover Type: Metal Cover
Operating Temperature: 10°F to 140°F
Compliance: UL 325 and UL 991
Certification: ETL Listed
Dimensions: 12"W x 24"H x 11.5"D
Shipping Weight: Approximately 70 lbs.
What's Included

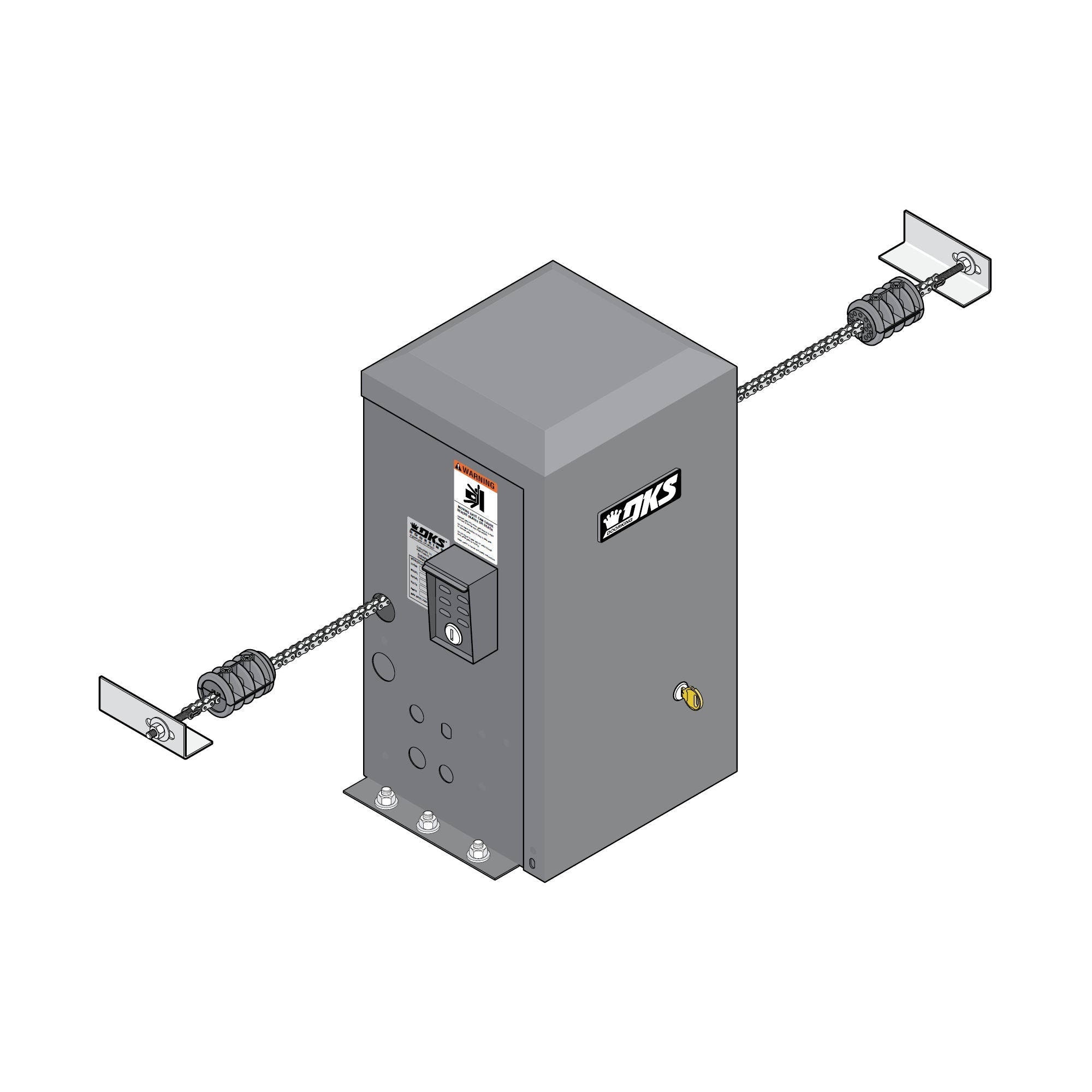

• DoorKing 9050-380 Slide Gate Operator
• Metal Protective Cover
• Integrated Control Board
• 20 Ft. #40 Roller Chain
• Chain Brackets and Hardware
• Installation Documentation
