Description

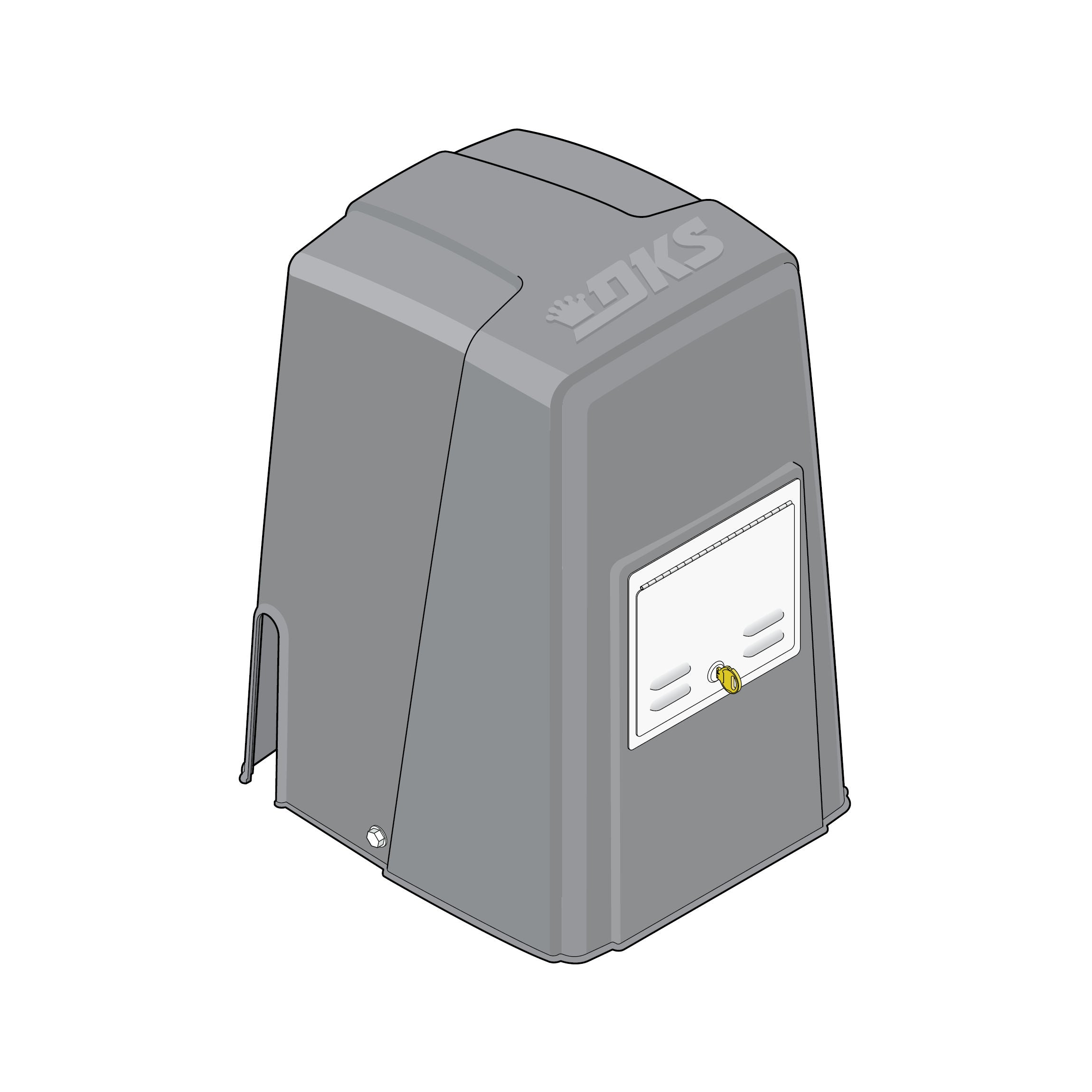

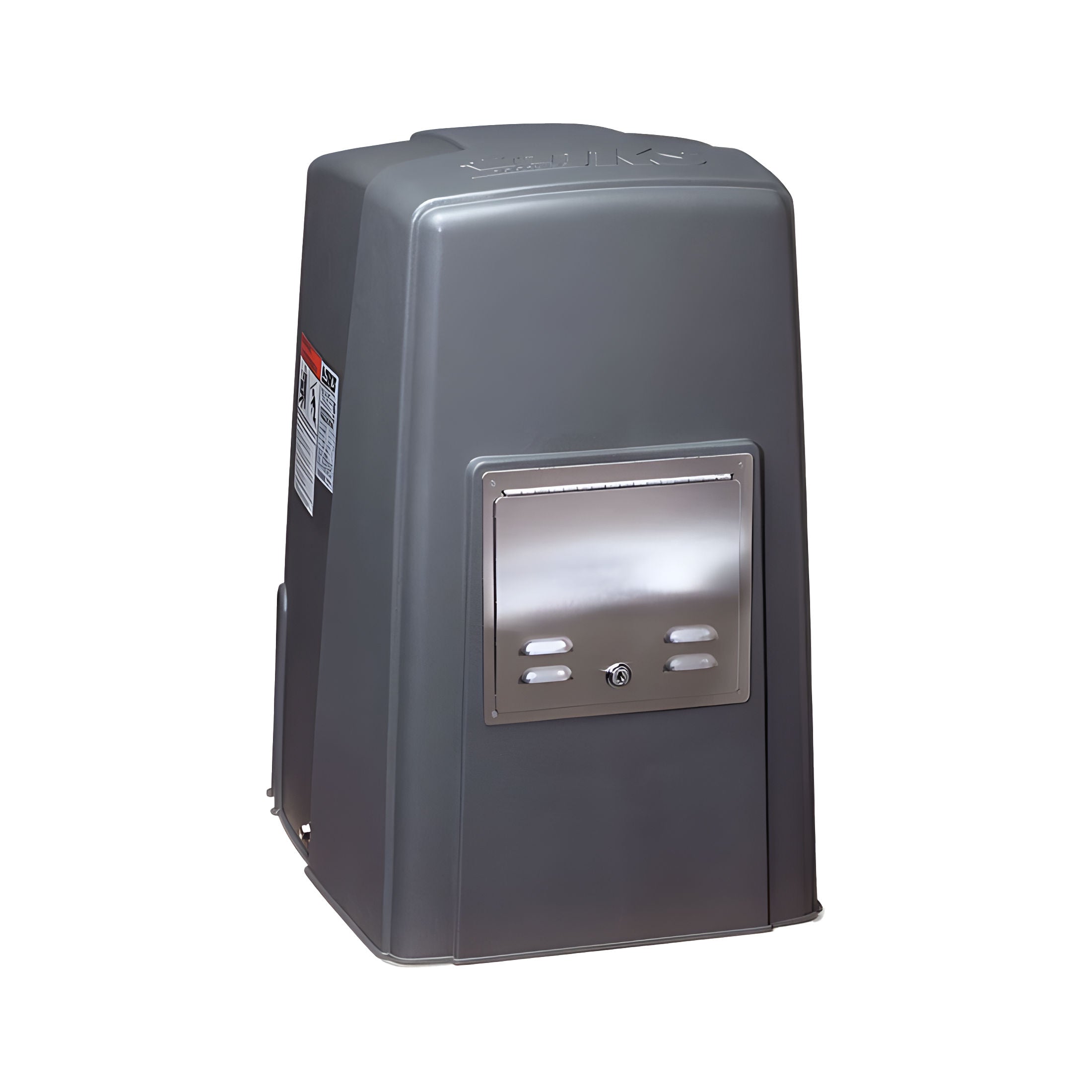

The DoorKing 9024-381 is a 24VDC slide gate operator specifically engineered for solar-powered and off-grid gate automation applications. Designed for residential, commercial, and light industrial properties, this operator combines a powerful 1/2 HP Quadra Drive DC motor with integrated battery backup technology to provide dependable operation where AC power is unavailable or unreliable.
Built to operate from a 24VDC power source, the 9024-381 is ideal for remote entrances, ranches, farms, gated communities, and commercial facilities seeking energy-efficient gate automation. With support for optional solar charging systems and extended battery capacity, this model delivers reliable performance while minimizing power consumption and operating costs.
Performance & Application

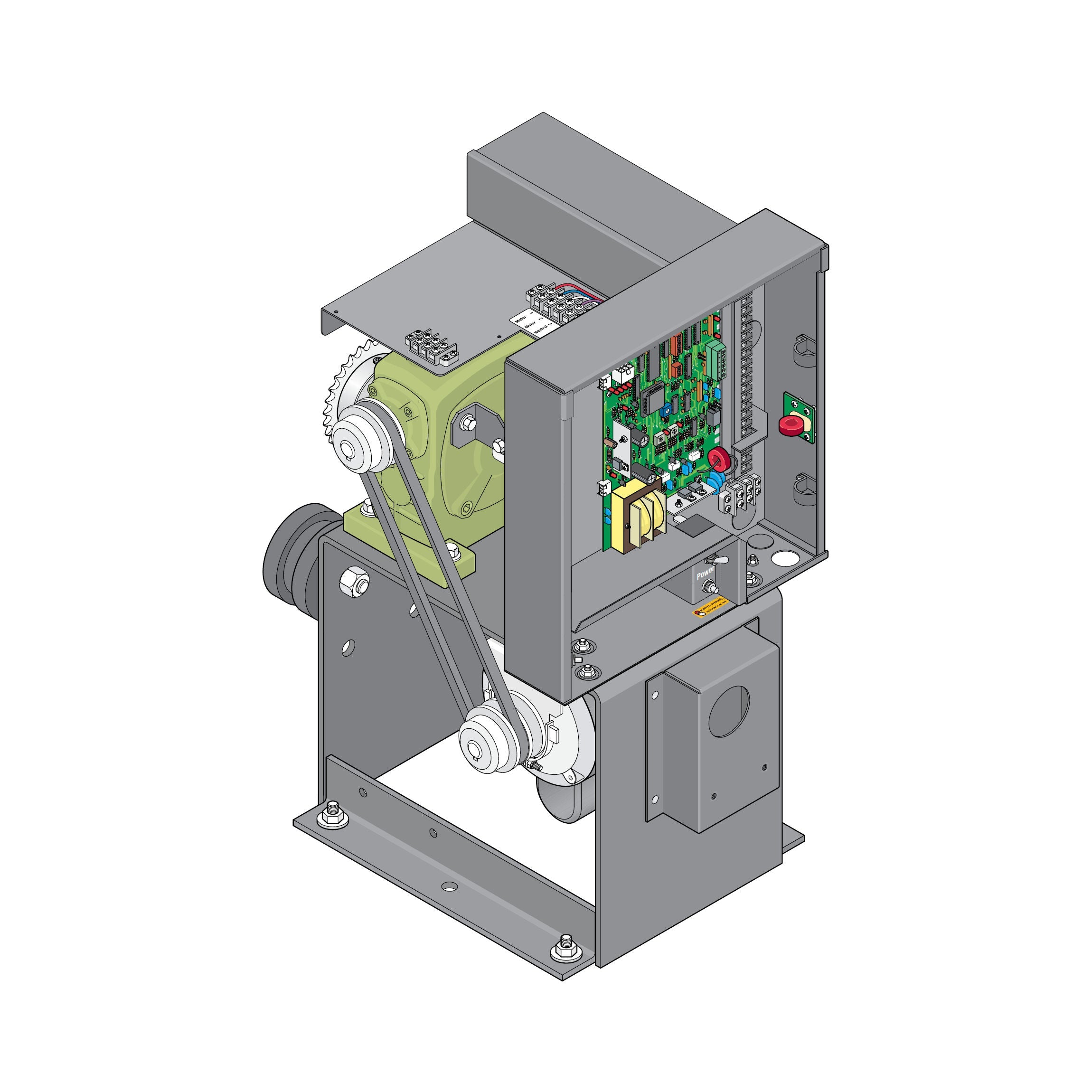

The 9024-381 utilizes DoorKing's advanced Quadra Drive DC motor system and heavy-duty 30:1 oil-bath gearbox to provide smooth, quiet, and efficient gate operation. Unlike traditional AC-powered operators, the 24VDC design is optimized for battery-powered and solar-charged installations, making it one of DoorKing's most versatile solutions for remote access control applications.
Capable of automating slide gates up to 40 feet in length and 1,000 pounds, the operator delivers approximately 1 foot per second travel speed while maintaining excellent efficiency. Integrated battery management circuitry protects batteries from excessive discharge while maximizing operating cycles and system longevity.
Advanced control features include anti-tailgating functions, adjustable auto-close timers, selectable loop detector inputs, Gate Tracker™ reporting capabilities, and compatibility with DoorKing access control systems. The operator can be paired with optional solar kits, larger battery banks, and various access control devices to create a complete off-grid automated gate solution.
Key Features
• 24VDC slide gate operator
• Solar-ready design for off-grid installations
• Ideal for solar-powered gate systems
• Powerful 1/2 HP Quadra Drive DC motor
• Integrated battery-powered operation
• Supports optional solar charging systems
• Supports gates up to 40 feet long
• Supports gates up to 1,000 lbs.
• Heavy-duty 30:1 oil-bath gearbox
• Approximate gate speed of 1 ft. per second
• Low power consumption design
• Anti-tailgating functionality
• Adjustable auto-close timer (1–30 seconds)
• Adjustable chain-driven limit nuts
• Selectable loop/reverse inputs
• Battery protection circuitry
• DC power shut-off switch
• Gate Tracker™ reporting output
• Plug-in loop detector compatibility
• Corrosion-resistant steel frame construction
• ETL Listed
• UL 325 and UL 991 compliant
Ideal Applications
• Solar-powered gate systems
• Remote property entrances
• Ranch and farm gates
• Rural driveways
• Private estates
• Gated communities
• Commercial entrances
• Industrial facilities
• Locations without utility power
• Off-grid security applications
Specifications
Model: 9024-381
Operator Type: DC Slide Gate Operator
Input Voltage: 24VDC
Motor: 1/2 HP Quadra Drive DC Motor
Maximum Gate Length: 40 ft.
Maximum Gate Weight: 1,000 lbs.
Gate Speed: Approximately 1 ft. per second
Power Source: 24VDC Battery System
Solar Compatible: Yes
Solar Ready: Yes
Gear Reduction: Heavy-Duty 30:1 Oil-Bath Gearbox
Auto Close Timer: Adjustable 1–30 Seconds
Operating Classes: Class I, II, III, IV
Compliance: UL 325 and UL 991
Certification: ETL Listed
Dimensions: 16.75"W x 28"H x 19"D
Shipping Weight: Approximately 130–150 lbs.
What's Included
• DoorKing 9024-381 Slide Gate Operator
• Integrated Electronic Control Board
• DC Power Management System
• #40 Roller Chain
• Mounting Hardware
• Installation Documentation
Why Buy From GatePoint Solutions?
GatePoint Solutions provides genuine DoorKing gate operators backed by manufacturer warranty coverage, expert technical support, and fast nationwide shipping. Our team can help configure complete solar gate systems including solar panels, batteries, charge controllers, safety devices, access controls, and accessories to ensure reliable operation in even the most remote locations.
