Description

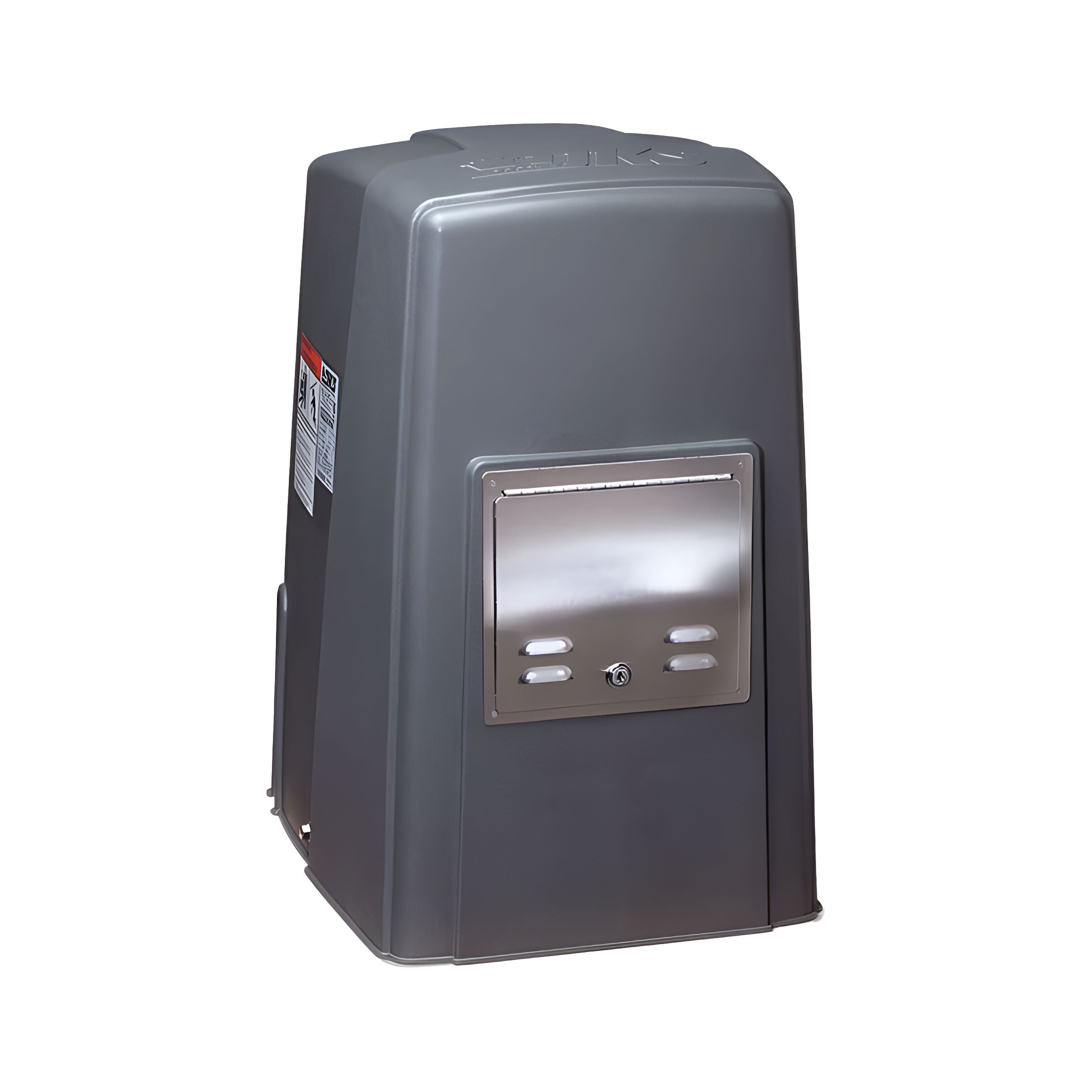

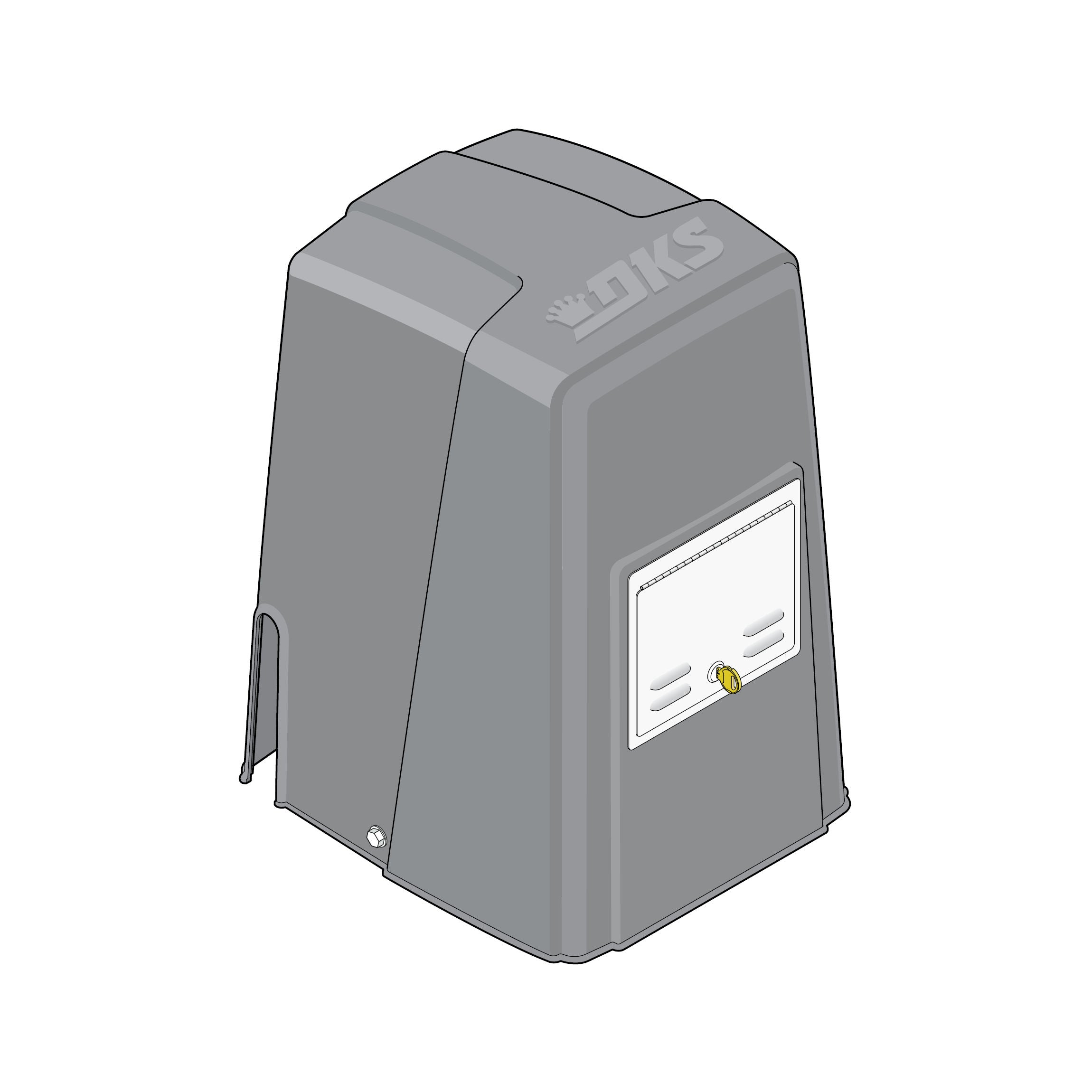

The DoorKing 9024-380 is a powerful DC slide gate operator engineered for residential, commercial, and light industrial applications where reliable operation and battery backup protection are essential. Featuring a 1/2 HP Quadra Drive DC motor, integrated battery backup system, and support for optional solar charging, this operator delivers dependable performance even during utility power outages.
Designed for gates up to 40 feet in length and 1,000 pounds, the 9024-380 combines the efficiency of DC technology with DoorKing’s proven heavy-duty gearbox design. The result is smooth, quiet operation, low power consumption, and uninterrupted access control for gated communities, commercial properties, farms, ranches, and remote installations.
Performance & Application
Built around DoorKing’s advanced Quadra Drive DC motor system, the 9024-380 provides continuous operation while AC power is available and automatically switches to battery backup operation during power failures. The included dual 7.2Ah batteries help maintain security and access when utility power is interrupted, while optional larger battery systems and solar charging packages can significantly extend operating cycles.

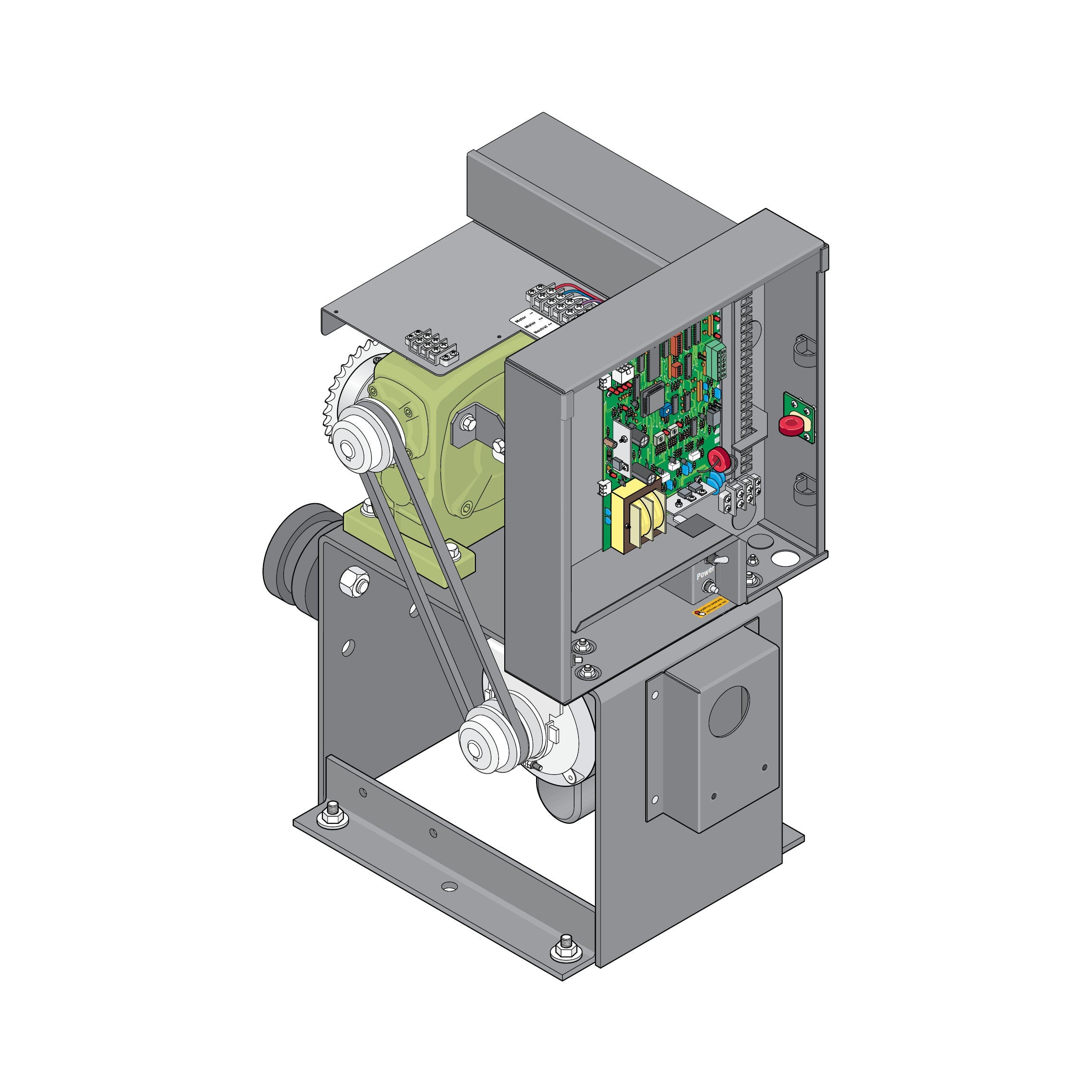

The operator utilizes a heavy-duty 30:1 oil-bath gearbox, corrosion-resistant steel frame, adjustable chain-driven limit controls, and intelligent microprocessor controls to provide years of dependable service. Advanced features including anti-tailgating functionality, adjustable auto-close timing, selectable loop inputs, battery protection circuitry, and Gate Tracker™ reporting capabilities make the 9024-380 an excellent solution for both residential and commercial gate automation.
With support for Class I, II, III, and IV applications, the 9024-380 is suitable for everything from residential estates and gated neighborhoods to apartment complexes, commercial facilities, storage properties, and controlled-access entrances.
Key Features
• 115VAC powered DC slide gate operator
• Powerful 1/2 HP Quadra Drive DC motor
• Integrated battery backup system
• Includes two 7.2Ah backup batteries
• Supports gates up to 40 feet long
• Supports gates up to 1,000 lbs.
• Heavy-duty 30:1 oil-bath gearbox
• Approximate gate speed of 1 ft. per second
• Automatic operation during power outages
• Optional solar charging capability
• Anti-tailgating functionality
• Adjustable auto-close timer (1–30 seconds)
• Adjustable chain-driven limit nuts
• Selectable loop/reverse input functions
• DC power shut-off switch
• Battery protection circuitry
• Gate Tracker™ reporting output
• Plug-in loop detector compatibility
• Corrosion-resistant steel frame construction
• ETL Listed
• UL 325 and UL 991 compliant
Ideal Applications
• Residential driveway gates
• Gated communities
• HOA entrances
• Apartment complexes
• Commercial facilities
• Industrial properties
• Farms and ranches
• Storage facilities
• Remote gate locations
• Applications requiring battery backup protection
Specifications
Model: 9024-380
Operator Type: DC Slide Gate Operator
Input Voltage: 115VAC
Motor: 1/2 HP Quadra Drive DC Motor
Maximum Gate Length: 40 ft.
Maximum Gate Weight: 1,000 lbs.
Gate Speed: Approximately 1 ft. per second
Battery Backup: Included
Battery Configuration: (2) 7.2Ah Batteries
Gear Reduction: Heavy-Duty 30:1 Oil-Bath Gearbox
Auto Close Timer: Adjustable 1–30 Seconds
Operating Classes: Class I, II, III, IV
Compliance: UL 325 and UL 991
Certification: ETL Listed
Dimensions: 16.75"W x 28"H x 19"D
Shipping Weight: Approximately 130–150 lbs.
What's Included
• DoorKing 9024-380 Slide Gate Operator
• Integrated Electronic Control Board
• (2) 7.2Ah Backup Batteries
• #40 Roller Chain
• Mounting Hardware
• Built-In Battery Management System
• Installation Documentation
