Description

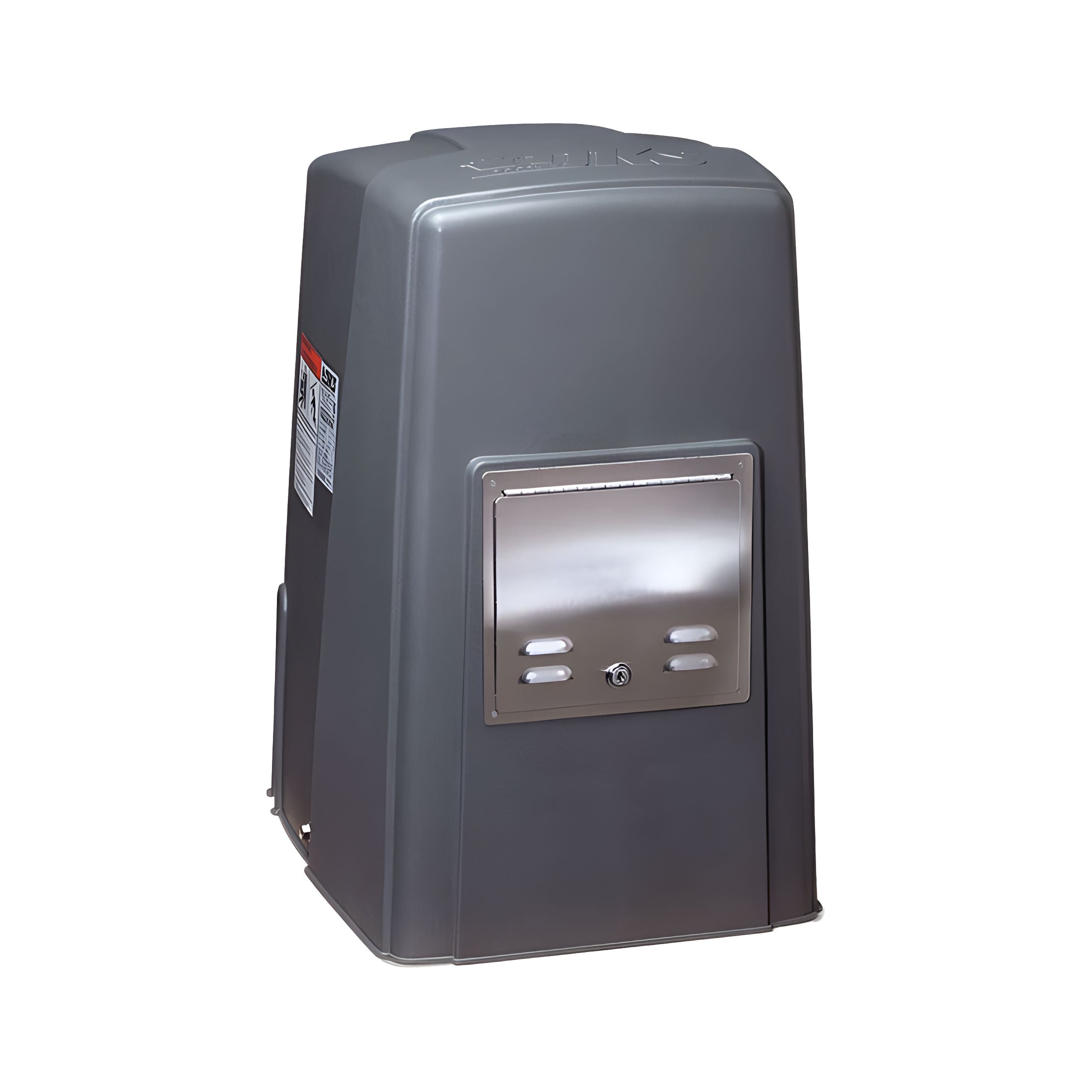

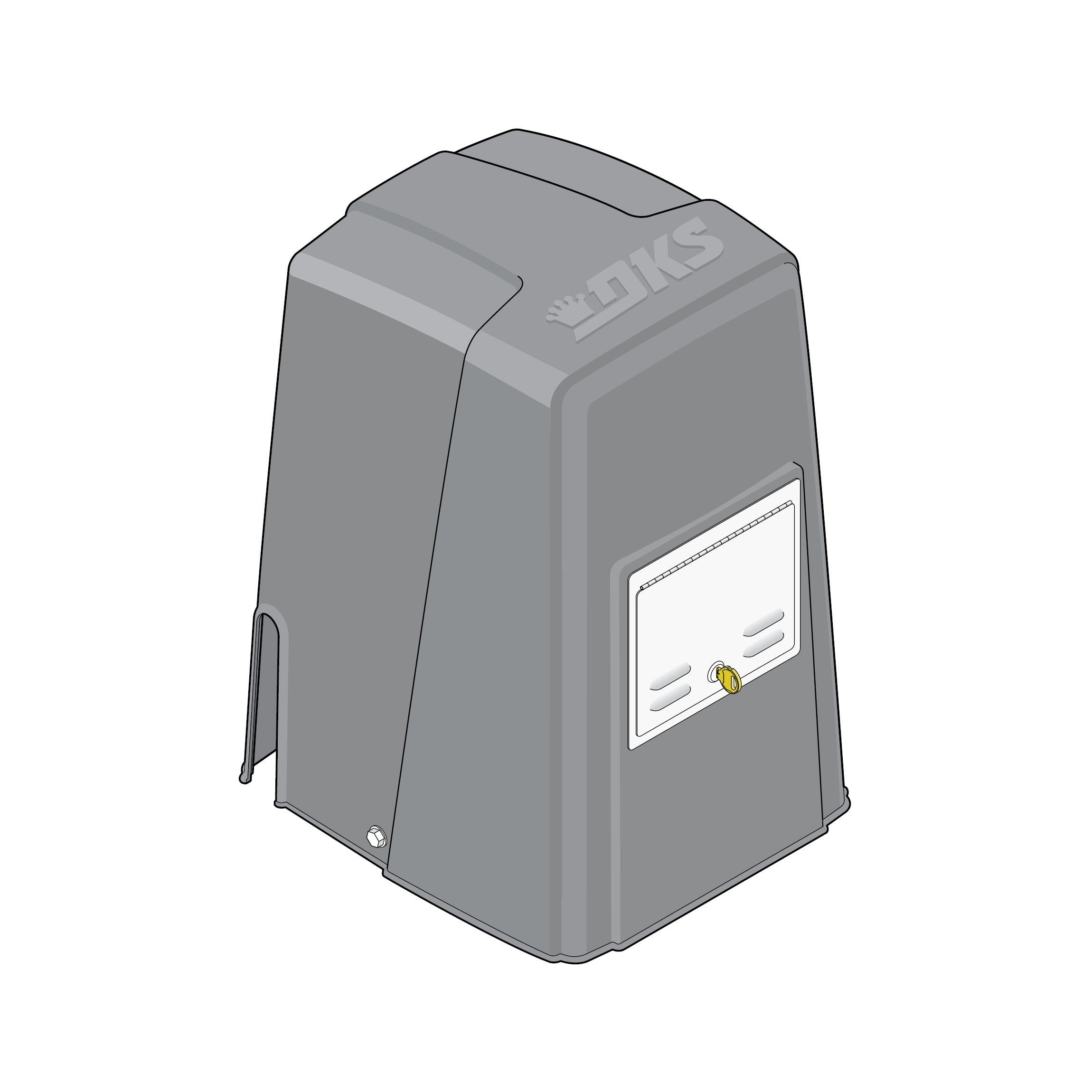

The DoorKing 9000-386 is a slave slide gate operator designed for dual-gate and bi-parting installations requiring the increased capacity and performance of the DoorKing 9000 Series 1 HP platform. Intended for use with a compatible DoorKing 9000 Series master operator, the 9000-386 provides synchronized operation for wide commercial and industrial entrances where bi-parting gate systems improve traffic flow and operational efficiency.
Powered by a continuous-duty 1 HP AC motor and utilizing the same heavy-duty belt-driven 30:1 oil-bath gearbox reduction system as the master operator, the 9000-386 delivers smooth, dependable gate movement while supporting slide gates up to 35 feet in length and weighing up to 1,500 pounds. The rugged industrial-grade design ensures reliable performance in demanding environments.

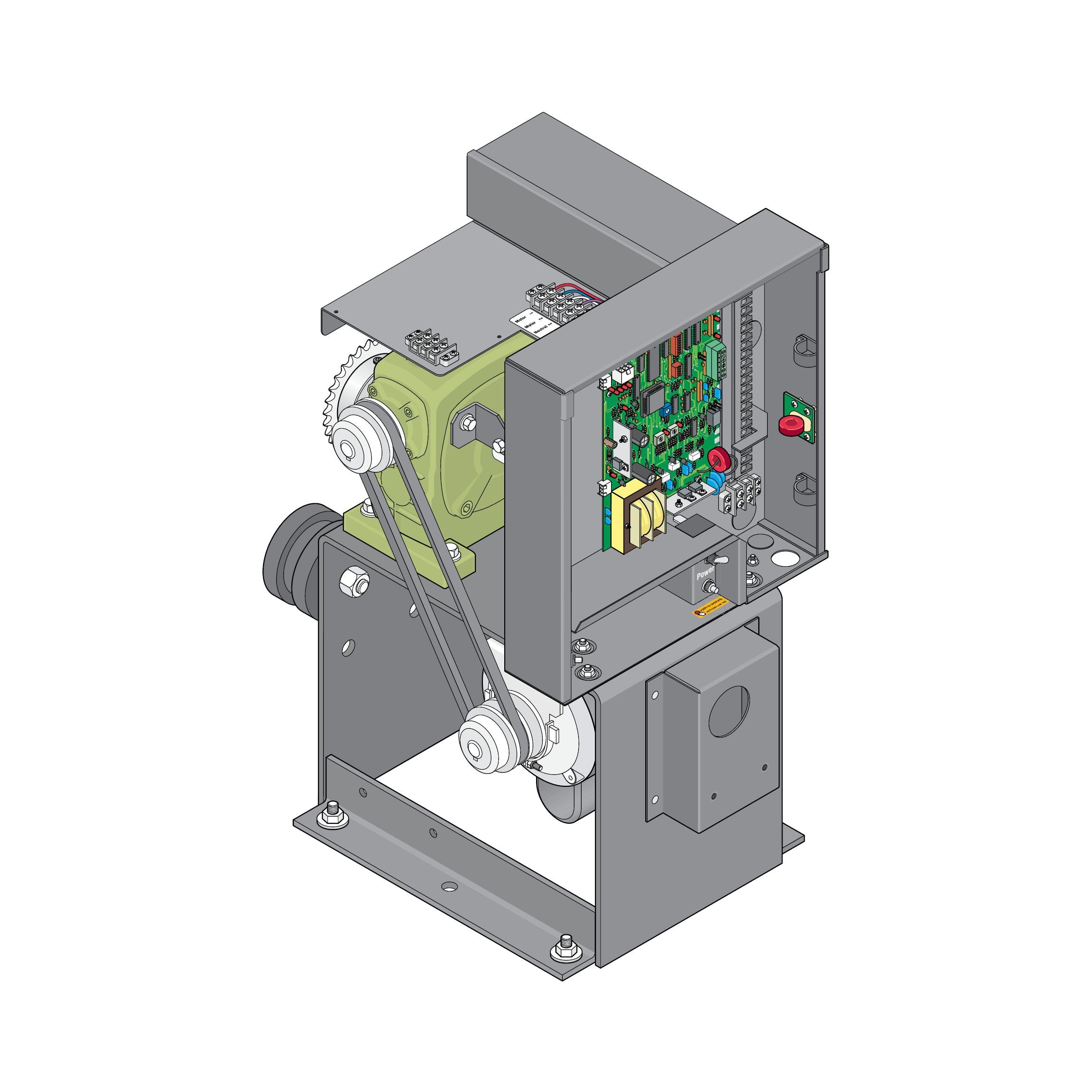

The operator features a corrosion-protected steel frame, precision direct-drive limit system, industrial enclosure, and front-mounted T-handle manual release for convenient operation and servicing. When paired with a compatible DoorKing master operator, the 9000-386 provides seamless synchronized movement for bi-parting gate systems serving commercial, industrial, transportation, and high-security applications.
Built for continuous-duty operation and long-term reliability, the 9000-386 is ETL listed and compliant with UL 325 and UL 991 standards for Class I, II, III, and IV applications when installed with approved monitored entrapment protection devices.
Key Features
• Designed for dual-gate and bi-parting gate applications
• Compatible with DoorKing 9000 Series master operators
• Continuous-duty 1 HP AC motor
• Supports slide gates up to 35 feet long
• Rated for gates weighing up to 1,500 lbs.
• Heavy-duty belt-driven 30:1 oil-bath gearbox reduction
• Quiet and smooth gate operation
• Direct-drive limit nuts for precise gate positioning
• Front-mounted T-handle manual release
• Corrosion-protected steel frame construction
• Industrial-grade drivetrain
• UL 325 and UL 991 compliant
• ETL Listed
Ideal Applications
• Bi-parting commercial gates
• Industrial facilities
• Manufacturing plants
• Distribution centers
• Transportation facilities
• High-security access points
• Self-storage facilities
• Commercial properties
• Large dual-gate systems
Specifications
Model: 9000-386
Product Type: Commercial & Industrial Slide Gate Operator Slave Unit
Motor: 1 HP Continuous-Duty AC Motor
Maximum Gate Length: 35 ft.
Maximum Gate Weight: 1,500 lbs.
Gate Speed: Approximately 1 ft. per second
Input Voltage: 115VAC, 208VAC, 230VAC, 460VAC
Drive System: Belt Driven
Gear Reduction: 30:1 Oil-Bath Gearbox
Manual Release: Front-Mounted T-Handle Release
Chain Included: 20 ft. #40 Roller Chain
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 18.375 in. W × 31.675 in. H × 23.25 in. D
Shipping Weight: Approximately 145–170 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9000-386 Slave Gate Operator
• Integrated Slave Control Components
• 20 ft. #40 Roller Chain
• Chain Brackets and Hardware
• Built-In Manual Release System
• Installation Documentation
