Description

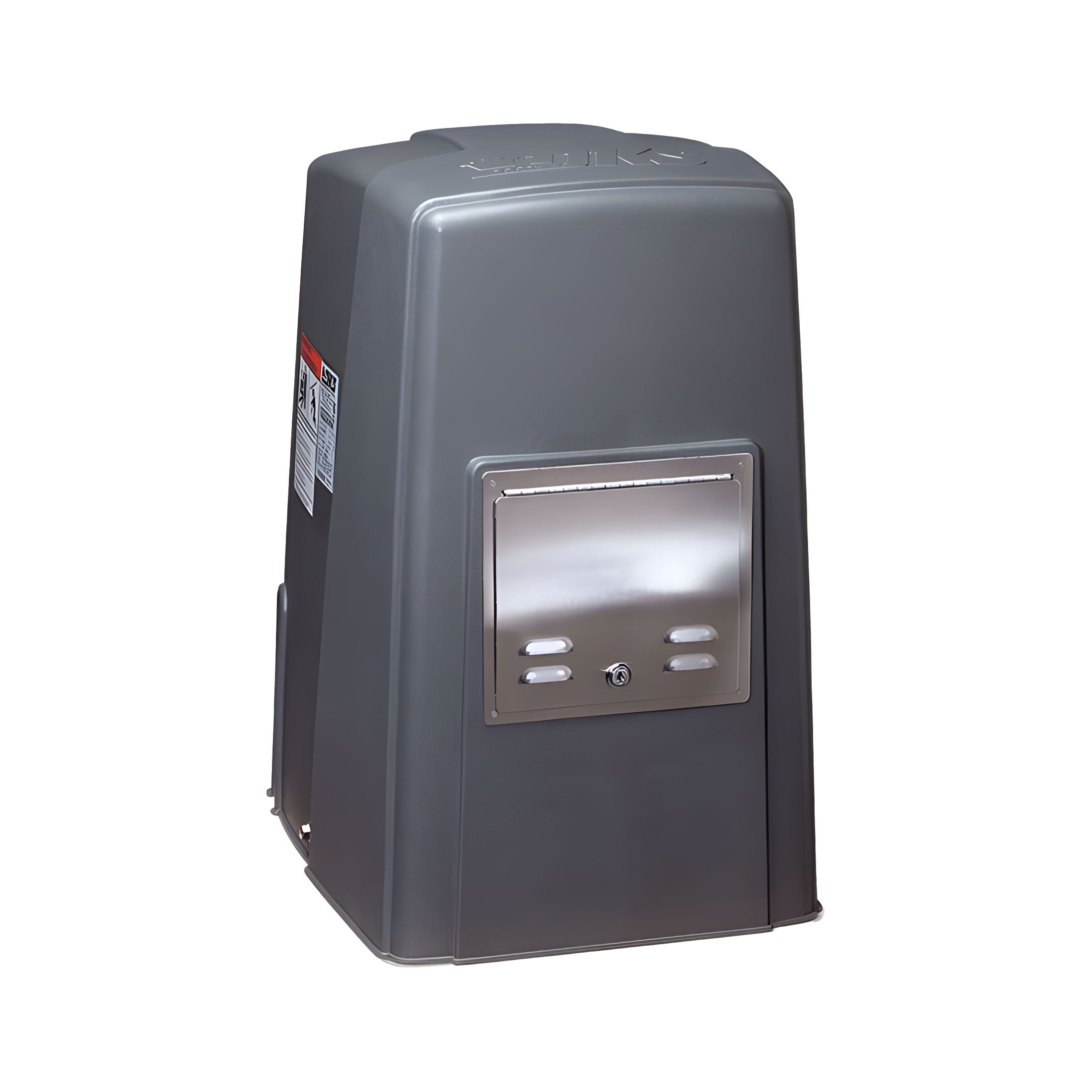

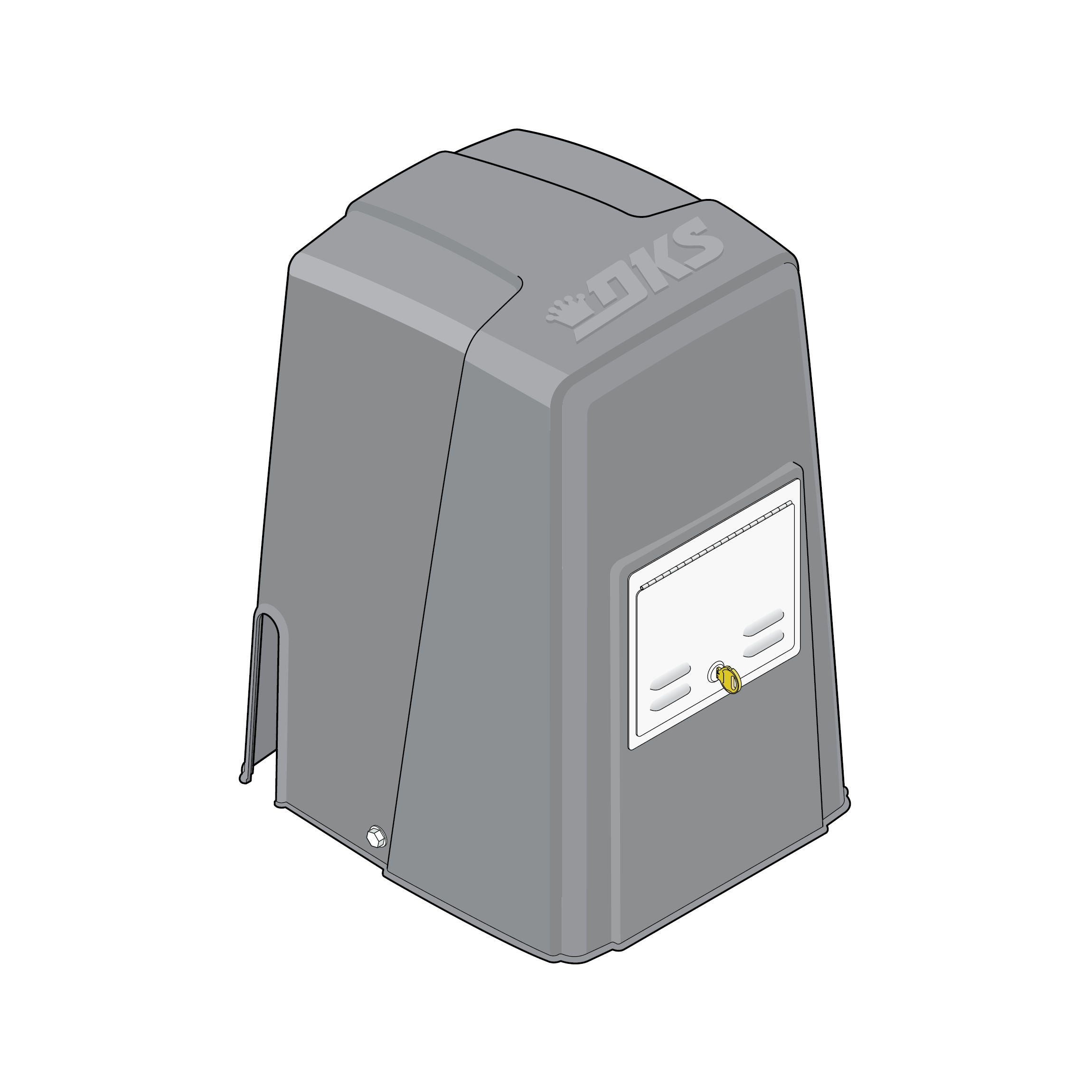

The DoorKing 9000-385 is a heavy-duty commercial and industrial slide gate operator engineered for demanding high-cycle access control applications requiring increased gate capacity and continuous-duty performance. Designed for industrial facilities, distribution centers, transportation sites, commercial properties, self-storage facilities, and high-security entrances, the 9000-385 delivers powerful, reliable gate automation for larger and heavier slide gates.

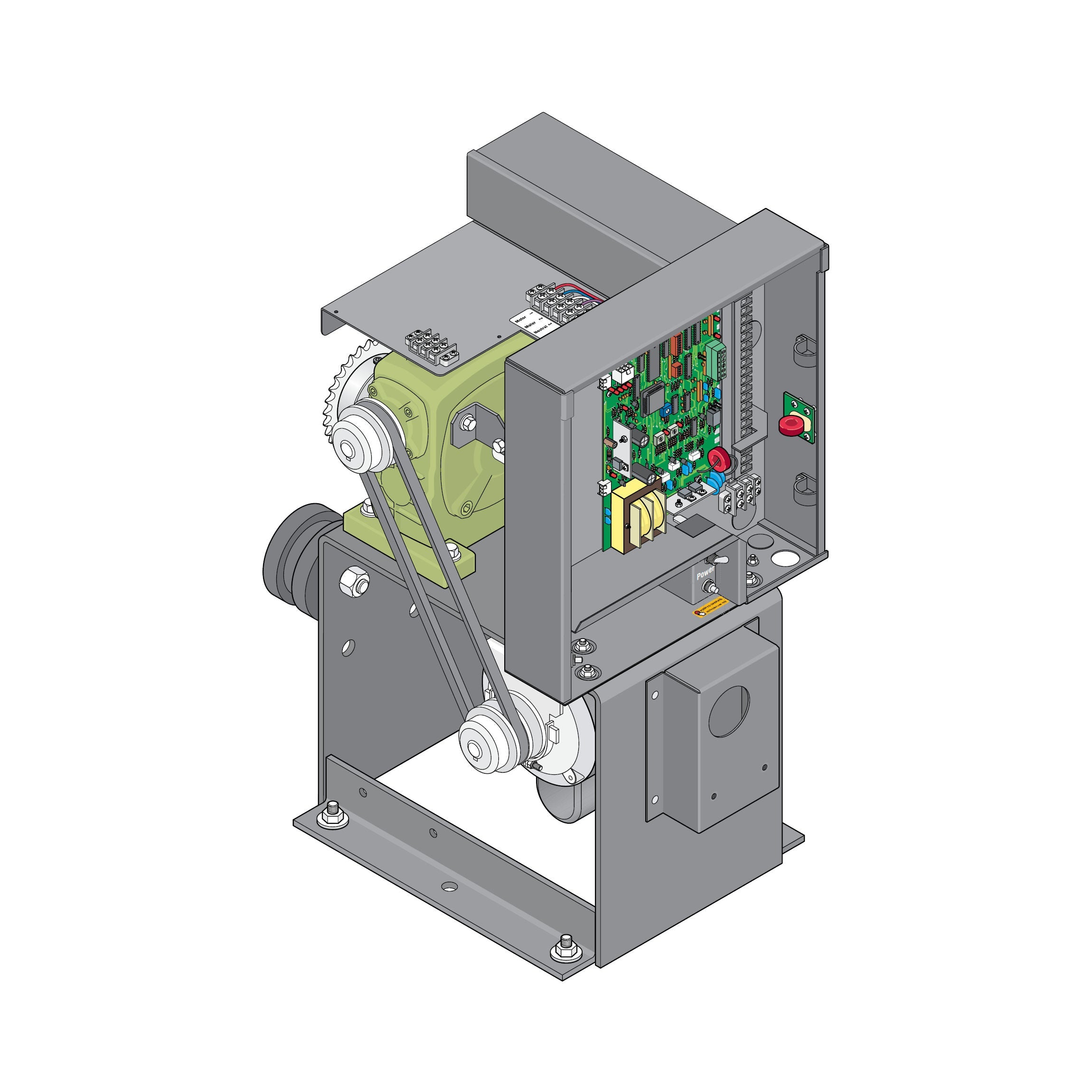

Powered by a continuous-duty 1 HP AC motor and a heavy-duty belt-driven 30:1 oil-bath gearbox reduction system, the 9000-385 provides smooth, quiet gate operation while supporting slide gates up to 35 feet in length and weighing up to 1,500 pounds. The industrial-grade drivetrain is designed to withstand demanding daily operation while minimizing wear and maintenance requirements.
The advanced microprocessor control board provides extensive programming flexibility including adjustable auto-close timing, anti-tailgating functionality, adjustable partial-open operation, selectable loop and reverse inputs, and Gate Tracker™ reporting output for integration with compatible DoorKing access control systems. Plug-in loop detector compatibility and accessory power outlets simplify installation and future system expansion.
Built for long-term durability, the 9000-385 features a corrosion-protected steel frame, precision direct-drive limit system, industrial enclosure, and front-mounted T-handle manual release. The operator is ETL listed and compliant with UL 325 and UL 991 standards for Class I, II, III, and IV applications when installed with approved monitored entrapment protection devices.
Key Features
• Continuous-duty 1 HP AC motor
• Supports slide gates up to 35 feet long
• Rated for gates weighing up to 1,500 lbs.
• Heavy-duty belt-driven 30:1 oil-bath gearbox reduction
• Quiet and smooth gate operation
• Adjustable partial-open feature for traffic management
• Anti-tailgating functionality enhances security
• Gate Tracker™ reporting output
• Selectable stop/reverse loop functionality
• Adjustable auto-close timer from 1–30 seconds
• Direct-drive limit nuts provide precise gate positioning
• Front-mounted T-handle manual release
• Plug-in loop detector compatibility
• Two 115VAC accessory convenience outlets
• Bi-parting gate interface capability
• Corrosion-protected steel frame construction
• UL 325 and UL 991 compliant
• ETL Listed
Ideal Applications
• Industrial facilities
• Manufacturing plants
• Distribution centers
• Transportation facilities
• Commercial properties
• Self-storage facilities
• Parking facilities
• High-security access points
• Large slide gate systems
• High-cycle commercial entrances
Specifications
Model: 9000-385
Product Type: Commercial & Industrial Slide Gate Operator
Motor: 1 HP Continuous-Duty AC Motor
Maximum Gate Length: 35 ft.
Maximum Gate Weight: 1,500 lbs.
Gate Speed: Approximately 1 ft. per second
Input Voltage: 115VAC, 208VAC, 230VAC, 460VAC
Drive System: Belt Driven
Gear Reduction: 30:1 Oil-Bath Gearbox
Auto-Close Timer: Adjustable 1–30 Seconds
Gate Tracker™ Output: Yes
Partial Open Feature: Yes
Anti-Tailgating Feature: Yes
Loop Detector Compatible: Yes
Accessory Power: Two 115VAC Convenience Outlets
Manual Release: Front-Mounted T-Handle Release
Chain Included: 20 ft. #40 Roller Chain
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 18.375 in. W × 31.675 in. H × 23.25 in. D
Shipping Weight: Approximately 145–170 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9000-385 Slide Gate Operator
• Integrated Control Board
• 20 ft. #40 Roller Chain
• Chain Brackets and Hardware
• Built-In Manual Release System
• Installation Documentation
