Description

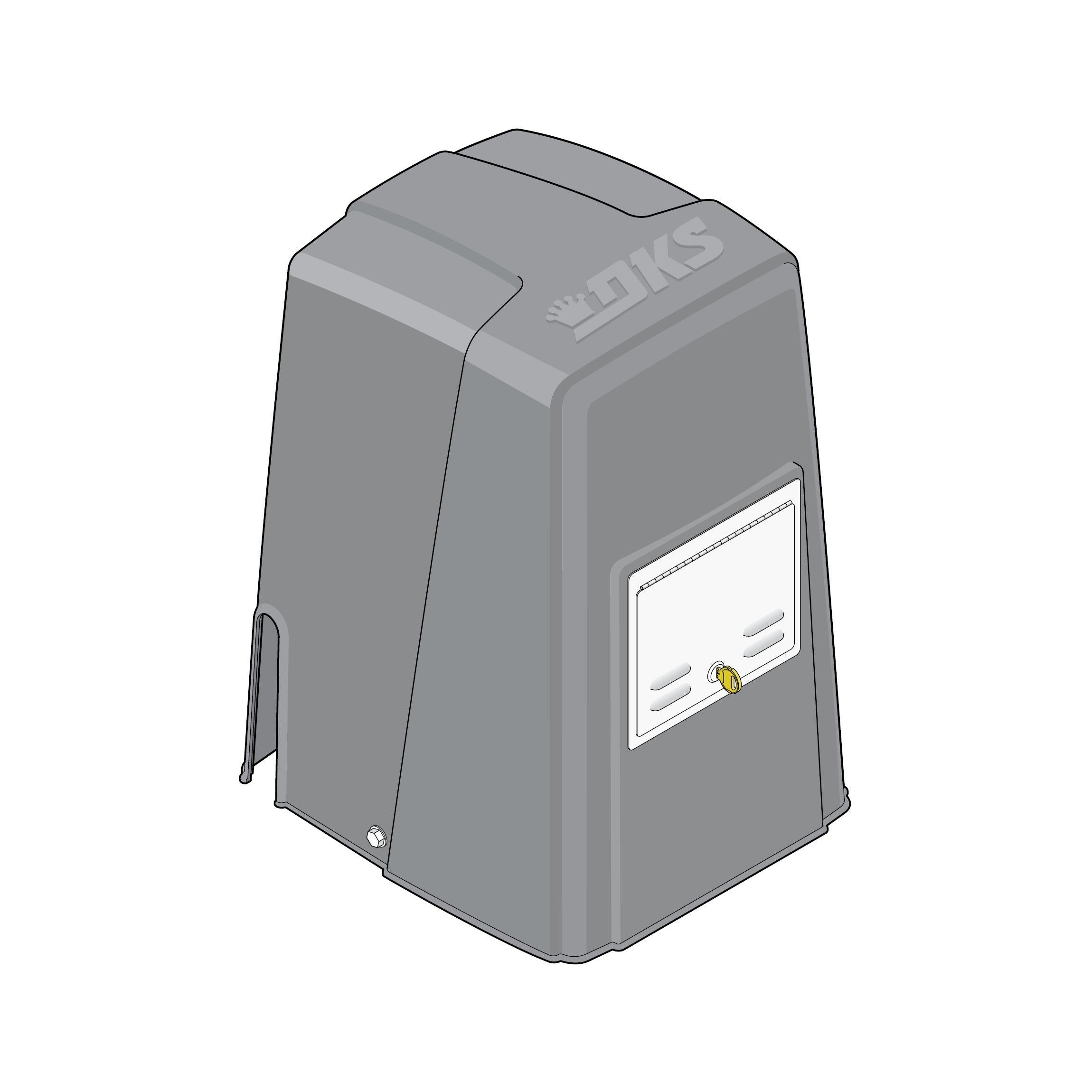

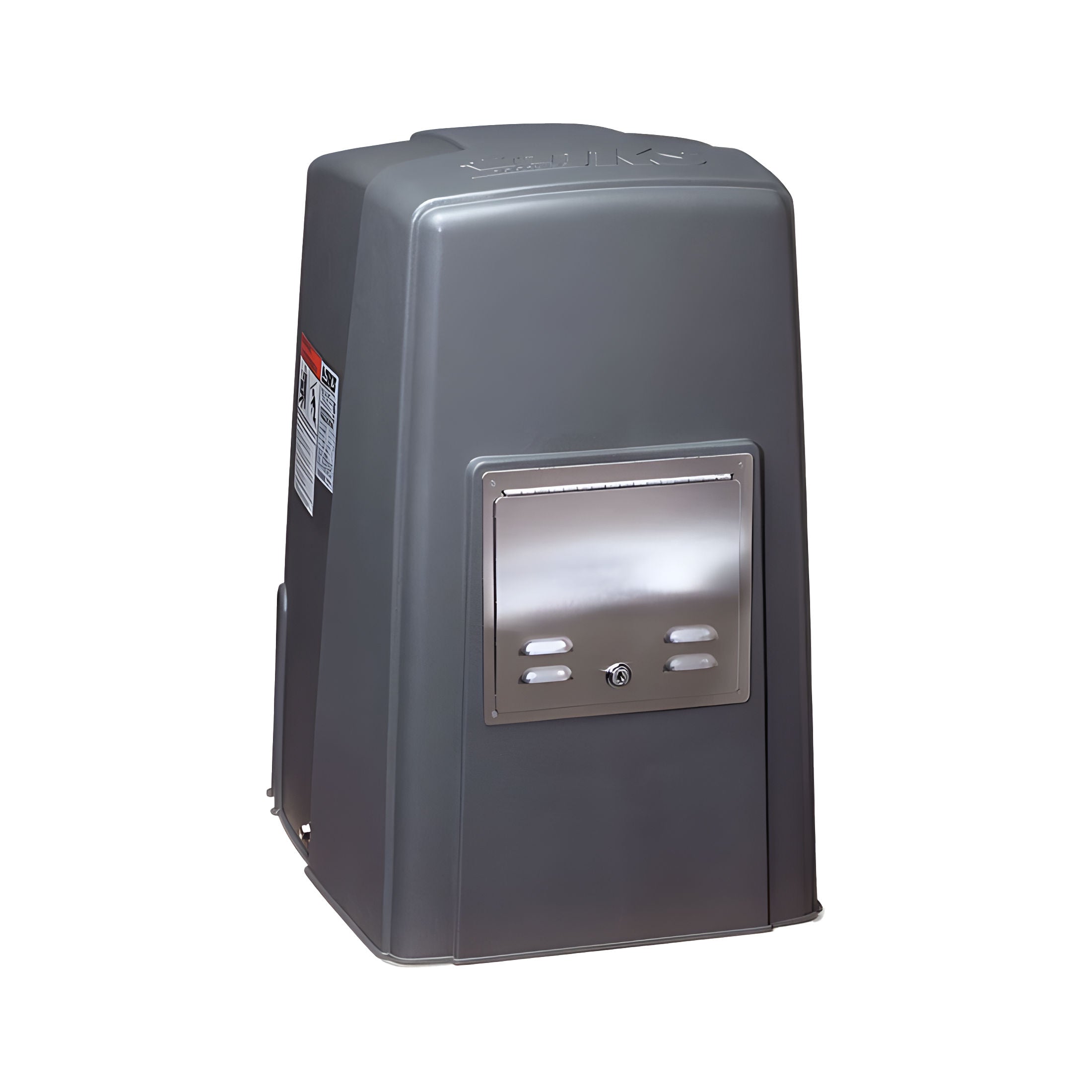

The DoorKing 9000-381 is a slave slide gate operator designed specifically for dual-gate and bi-parting gate installations utilizing the DoorKing 9000 Series platform. Engineered to operate alongside a compatible 9000 Series master operator, the 9000-381 provides synchronized gate movement for wide commercial, industrial, and high-security entrances where bi-parting gate operation is required.

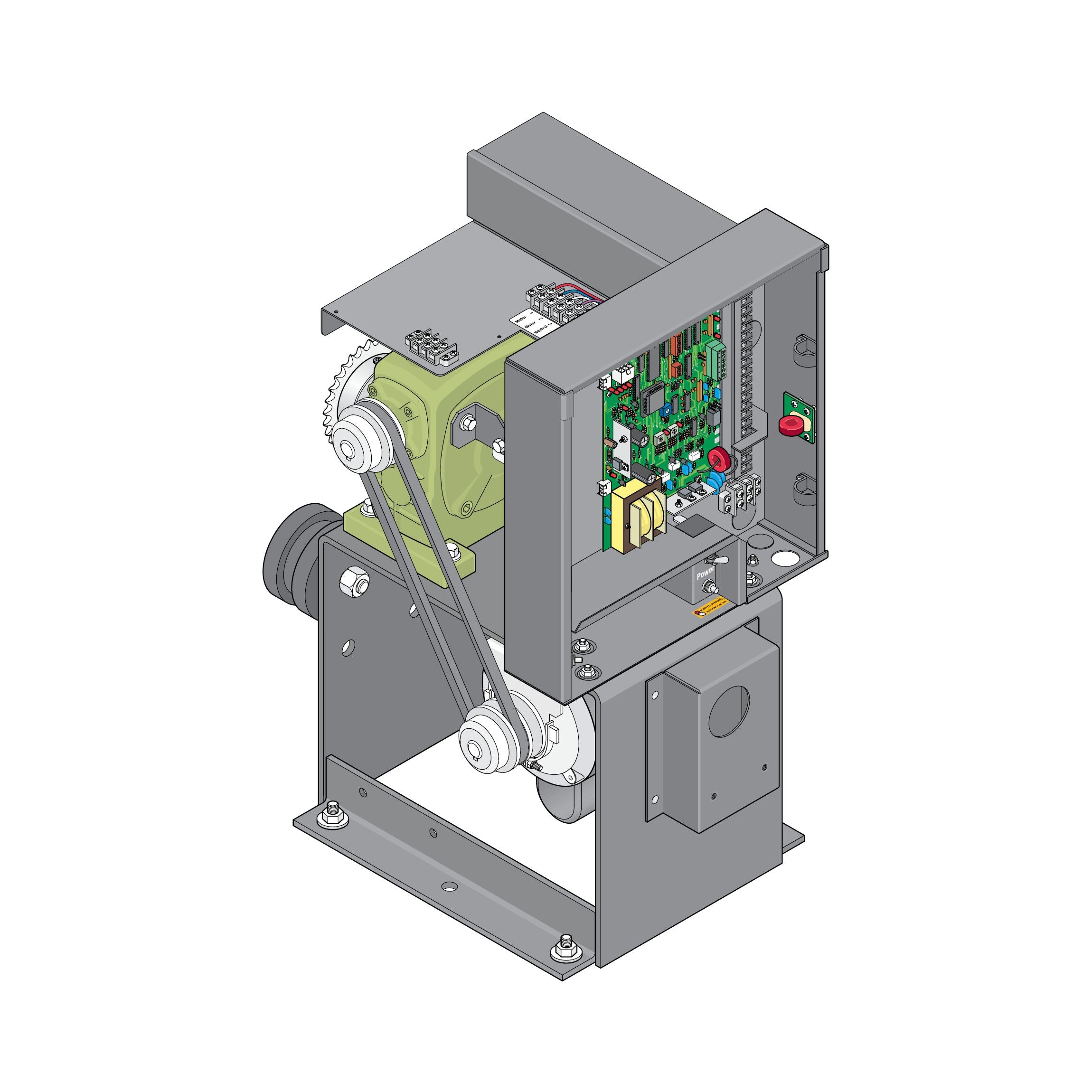

Powered by a continuous-duty 1/2 HP AC motor and utilizing the same heavy-duty belt-driven 30:1 oil-bath gearbox reduction system found in the master operator, the 9000-381 delivers smooth, reliable gate operation while maintaining synchronized movement with the primary operator. The unit supports slide gates up to 35 feet in length and weighing up to 1,000 pounds.
Designed for demanding commercial and industrial environments, the 9000-381 features a corrosion-protected steel frame, direct-drive limit system, industrial-grade drivetrain, and a front-mounted T-handle manual release. The rugged design provides dependable long-term performance for distribution centers, industrial facilities, transportation sites, commercial properties, and high-traffic access control applications.
When paired with a compatible DoorKing 9000 Series master operator, the 9000-381 provides seamless bi-parting gate operation while maintaining the safety, reliability, and performance standards expected from DoorKing commercial gate automation equipment.
Key Features
• Designed for dual-gate and bi-parting gate applications
• Compatible with DoorKing 9000 Series master operators
• Continuous-duty 1/2 HP AC motor
• Supports slide gates up to 35 feet long
• Rated for gates weighing up to 1,000 lbs.
• Heavy-duty belt-driven 30:1 oil-bath gearbox reduction
• Quiet and smooth gate operation
• Direct-drive limit nuts for precise gate positioning
• Front-mounted T-handle manual release
• Corrosion-protected steel frame construction
• Industrial-grade drivetrain
• UL 325 and UL 991 compliant
• ETL Listed
Ideal Applications
• Bi-parting commercial gates
• Industrial facilities
• Manufacturing plants
• Distribution centers
• Transportation facilities
• High-security access points
• Self-storage facilities
• Commercial properties
• Wide entrance gate systems
Specifications
Model: 9000-381
Product Type: Commercial & Industrial Slide Gate Operator Slave Unit
Motor: 1/2 HP Continuous-Duty AC Motor
Maximum Gate Length: 35 ft.
Maximum Gate Weight: 1,000 lbs.
Gate Speed: Approximately 1 ft. per second
Input Voltage: 115VAC, 208VAC, 230VAC, 460VAC
Drive System: Belt Driven
Gear Reduction: 30:1 Oil-Bath Gearbox
Manual Release: Front-Mounted T-Handle Release
Chain Included: 20 ft. #40 Roller Chain
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 18.375 in. W × 31.675 in. H × 23.25 in. D
Shipping Weight: Approximately 145–170 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9000-381 Slave Gate Operator
• Integrated Slave Control Components
• 20 ft. #40 Roller Chain
• Chain Brackets and Hardware
• Built-In Manual Release System
• Installation Documentation
