Description
The DoorKing 9000-380 is a high-performance commercial and industrial slide gate operator engineered for demanding vehicular access control applications requiring continuous-duty operation, advanced safety features, and reliable long-term performance. Designed for industrial facilities, distribution centers, commercial properties, self-storage facilities, transportation sites, and gated communities, the 9000-380 delivers powerful operation in a compact, durable package.

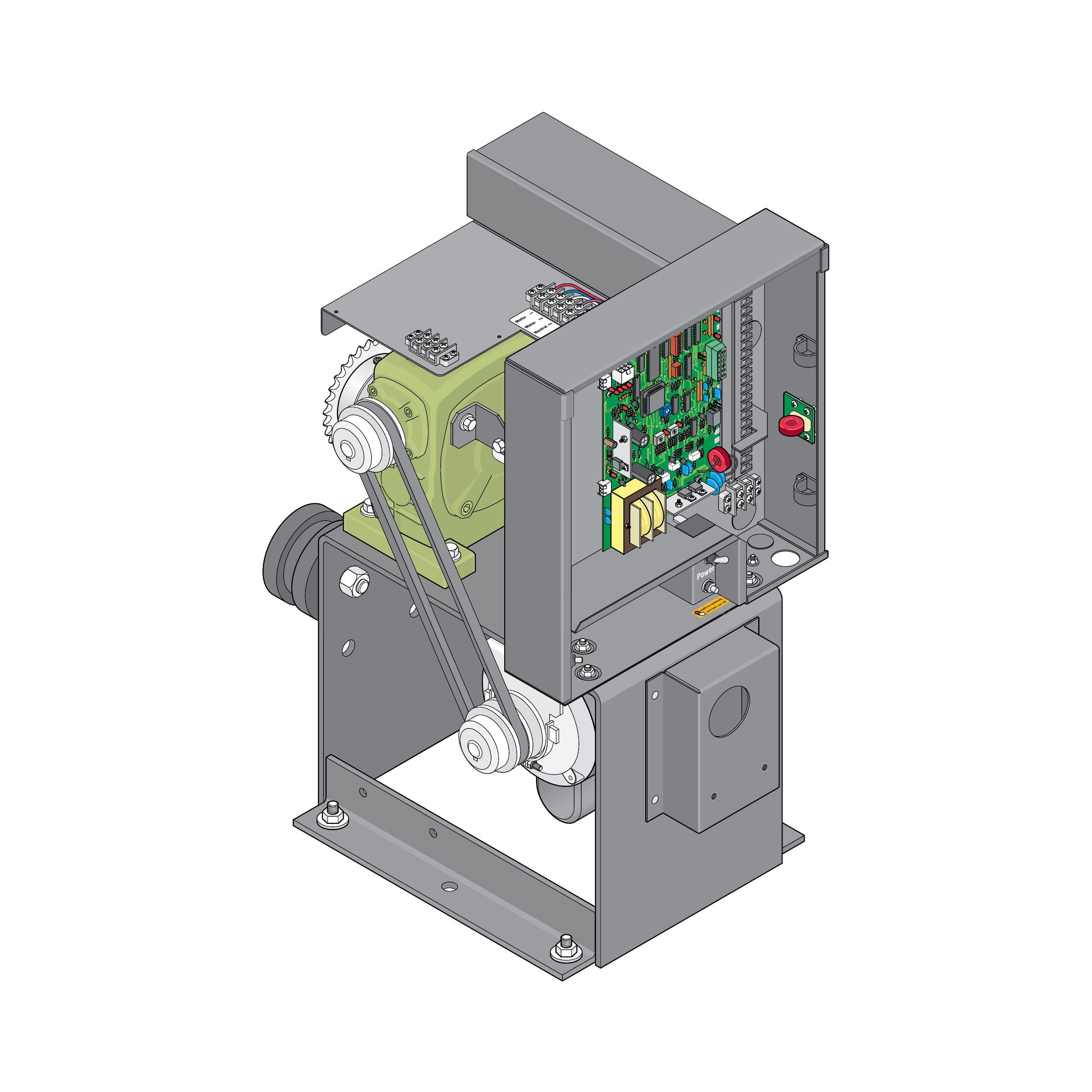

Powered by a continuous-duty 1/2 HP AC motor and a heavy-duty belt-driven 30:1 oil-bath gearbox reduction system, the 9000-380 provides smooth and exceptionally quiet gate movement while minimizing wear on mechanical components. The operator is capable of automating slide gates up to 35 feet in length and weighing up to 1,000 pounds, making it ideal for a wide range of commercial and industrial gate automation projects.
The advanced microprocessor control board provides extensive programming flexibility, including adjustable auto-close timing, anti-tailgating functionality, selectable loop and reverse inputs, adjustable partial-open operation, and Gate Tracker™ reporting output for integration with compatible DoorKing access control systems. A convenient front-mounted T-handle release provides simple manual operation during maintenance or power outages while automatically reconnecting the operator when normal operation resumes.
Designed for high-cycle applications, the 9000-380 features a corrosion-protected steel frame, precision direct-drive limit system, built-in accessory power outlets, plug-in loop detector compatibility, and a rugged industrial-grade drivetrain. The operator is ETL listed and compliant with UL 325 and UL 991 standards for Class I, II, III, and IV gate operator installations when used with approved monitored entrapment protection devices.
Key Features
• Continuous-duty 1/2 HP AC motor
• Supports slide gates up to 35 feet long
• Rated for gates weighing up to 1,000 lbs.
• Heavy-duty belt-driven 30:1 oil-bath gearbox reduction
• Quiet and smooth gate operation
• Adjustable partial-open feature for vehicle traffic management
• Anti-tailgating functionality enhances perimeter security
• Gate Tracker™ reporting output for DoorKing access systems
• Selectable stop/reverse loop input functionality
• Adjustable auto-close timer from 1–30 seconds
• Direct-drive limit nuts provide precise gate positioning
• Front-mounted T-handle manual release
• Plug-in loop detector compatibility
• Two 115VAC accessory convenience outlets
• Bi-parting gate interface capability
• Corrosion-protected steel frame construction
• UL 325 and UL 991 compliant
• ETL Listed
Ideal Applications
• Industrial facilities
• Manufacturing plants
• Distribution centers
• Commercial properties
• Self-storage facilities
• Gated communities
• Transportation facilities
• Parking facilities
• High-security access points
• High-cycle vehicular entrances
Specifications
Model: 9000-380
Product Type: Commercial & Industrial Slide Gate Operator
Motor: 1/2 HP Continuous-Duty AC Motor
Maximum Gate Length: 35 ft.
Maximum Gate Weight: 1,000 lbs.
Gate Speed: Approximately 1 ft. per second
Input Voltage: 115VAC, 208VAC, 230VAC, 460VAC
Drive System: Belt Driven
Gear Reduction: 30:1 Oil-Bath Gearbox
Auto-Close Timer: Adjustable 1–30 Seconds
Gate Tracker™ Output: Yes
Partial Open Feature: Yes
Anti-Tailgating Feature: Yes
Loop Detector Compatible: Yes
Accessory Power: Two 115VAC Convenience Outlets
Manual Release: Front-Mounted T-Handle Release
Chain Included: 20 ft. #40 Roller Chain
UL Usage Classification: Class I, II, III, IV
Compliance: UL 325 and UL 991
Listing: ETL Listed
Operating Temperature: 10°F to 140°F (-12°C to 62°C)
Dimensions: 18.375 in. W × 31.675 in. H × 23.25 in. D
Shipping Weight: Approximately 145–170 lbs.
Manufacturer: DoorKing
What's Included
• DoorKing 9000-380 Slide Gate Operator
• Integrated Control Board
• 20 ft. #40 Roller Chain
• Chain Brackets and Hardware
• Built-In Manual Release System
• Installation Documentation
