Description

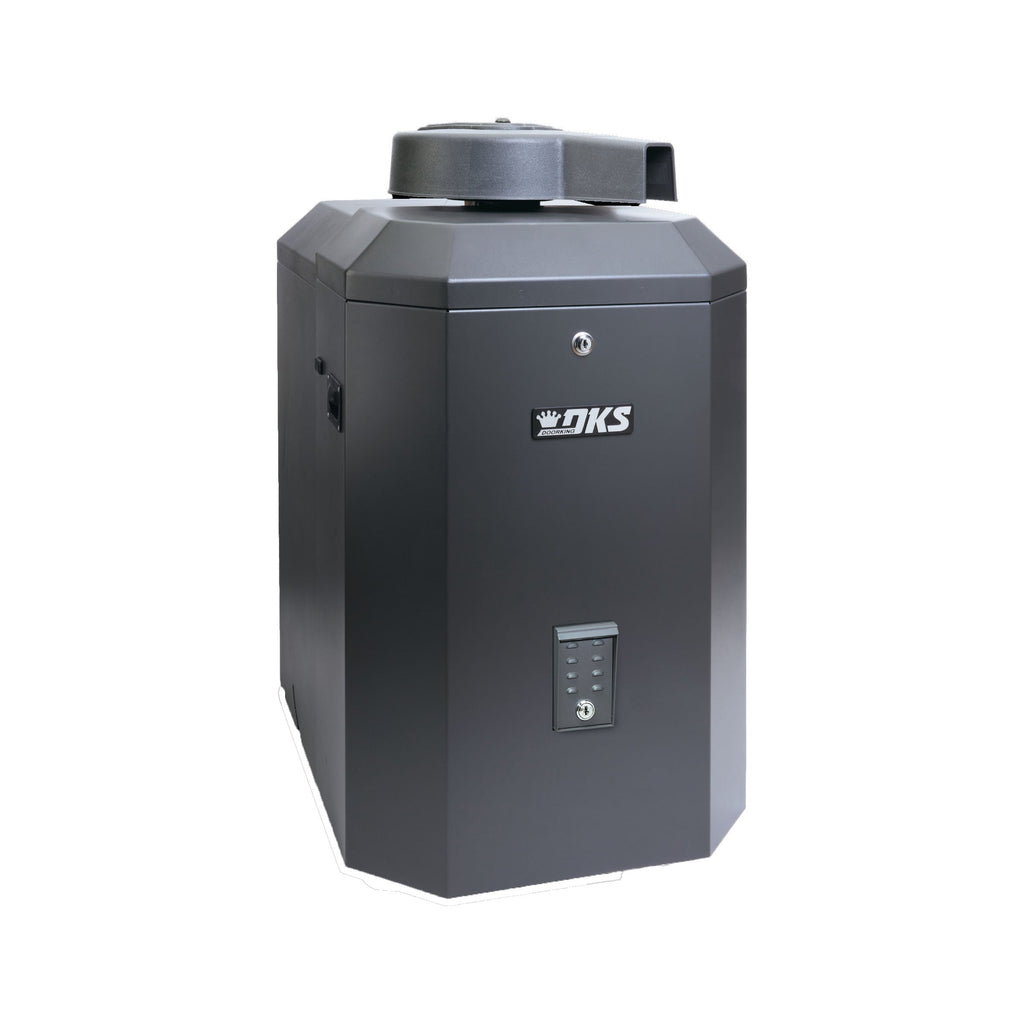

The DoorKing 6550-380 Swing Gate Operator is a rugged, high-performance access control solution designed for demanding commercial and industrial gates. Built to handle heavy traffic and secure perimeter access, it delivers fast operation, reliable safety features, and minimal maintenance.
- Heavy-Duty Steel Frame: Corrosion-resistant construction that stands up to harsh environments and continuous use.

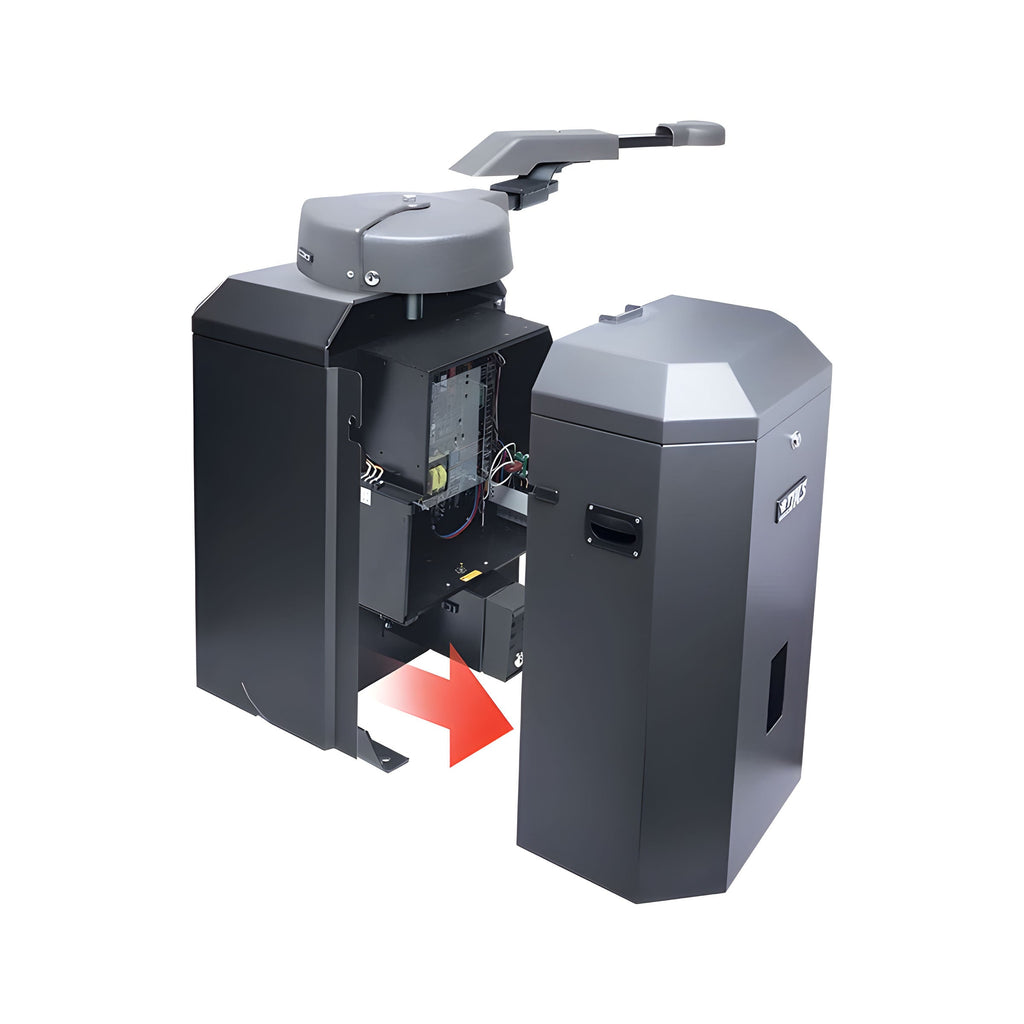

- Split Case Design: Facilitates easy internal maintenance without removing the gate arm, reducing downtime.
- Impact Protection: Breakaway hub absorbs impact forces to protect the gearbox and extend service life.
- High-Performance Operation: Opens 90° in 12–14 seconds, delivering fast, smooth access for high-traffic locations.
- Dual-Gate Expandability: Integrates with the 6550-384 Secondary Operator to create a synchronized bi-parting gate system.
- Electronic Magnetic Limits: Eliminates traditional mechanical limits for precise, reliable position control and easy adjustments.
- Safety and Compliance: UL 325 and ASTM F2200 compliant; supports monitored Type B1 (non-contact) and Type B2 (contact) entrapment protection devices.
- All-Weather Performance: Operates reliably from 10°F to 115°F; optional heater kit for cold climates.
- Unit Specs: Motor: 1 HP continuous-duty AC; Power Input: 115 VAC, 9.7A; Optional high-voltage kit for 208–575 VAC; Gate capacity: up to 25 ft long and 2,000 lbs; Cycle speed: 90° opening in 12–14 seconds; Operating range: 10°F–115°F; Requires concrete pad; Safety: monitored safety photoeye required.
- Installation & Safety Requirements: Requires a secure concrete pad for mounting; includes safety features like alarm reset, auto-close timer (1–23 seconds), and magnetic lock power options.
Designed for busy commercial properties, industrial facilities, and secured campuses, the 6550-380 minimizes maintenance while maximizing reliability and throughput. Its heavy-duty build, advanced safety measures, and compatibility with a synchronized bi-parting setup make it a future-proof choice for high-security perimeter control. Whether you’re upgrading an existing gate or deploying a new perimeter system, this operator delivers precise, dependable performance year after year. Optional heater kit ensures dependable operation in cold environments, keeping gates moving when it matters most.
