Description

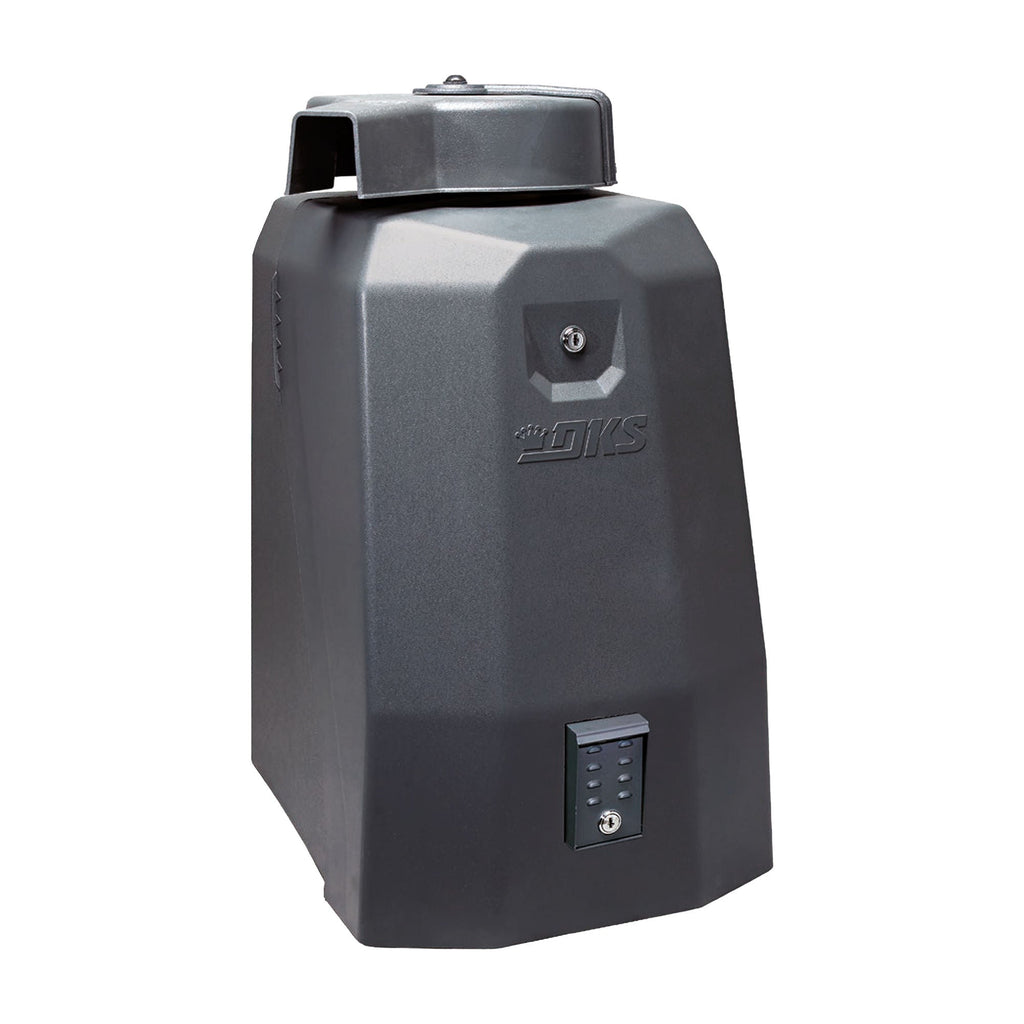

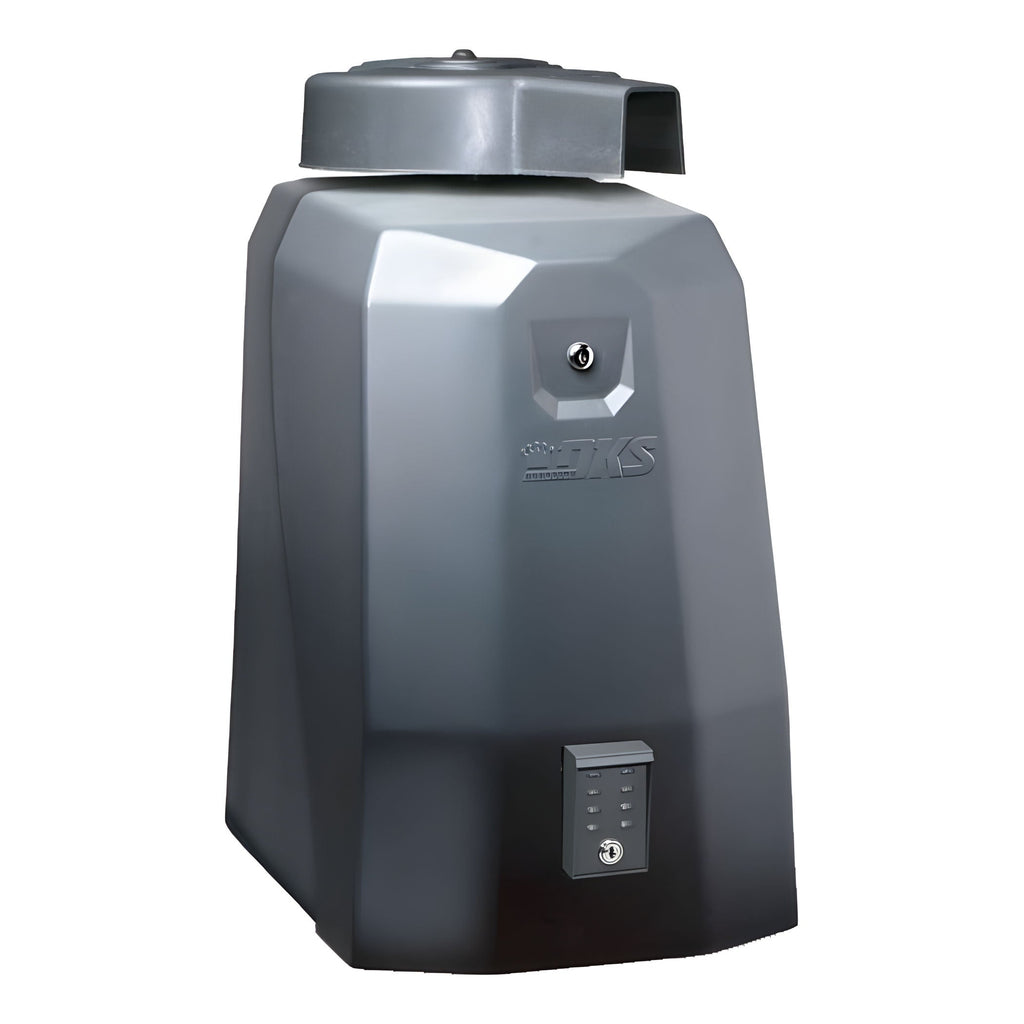

The Doorking 6524-381 is a solar-powered swing gate operator designed for secure, off-grid installations. Built for residential, commercial, industrial, and restricted-access sites, it delivers reliable gate automation without trenching or utility power.
- Power Input: 24 VDC @ 8A (solar only)
- Motor: 1/2 HP Quadra Drive DC for smooth, controlled motion
- Gate Length Capacity: Up to 16 ft
- Gate Weight Capacity: Up to 800 lbs
- Cycle Capacity: 150+ cycles with Doorking Solar Kit (2000-070)
- Gate Speed: Opens 90° in approximately 12–14 seconds
- Control Board: 4100-018 Rev A or later
- Safety Compliance: Requires UL 325 Type B1/B2 monitored device (not included)
- Operating Temperature: 10°F to 115°F (-12°C to 46°C)
- Compatibility: Works with DKS monitoring systems 1833, 1835, 1837, 1838 via Tracker Expansion Board 2358
- Gate Tracker Output: Integrates with Tracker Expansion Board for real-time status and control
- Dual Gate Ready: Supports bi-parting gates when paired with a second 6524-381 and interconnect cable

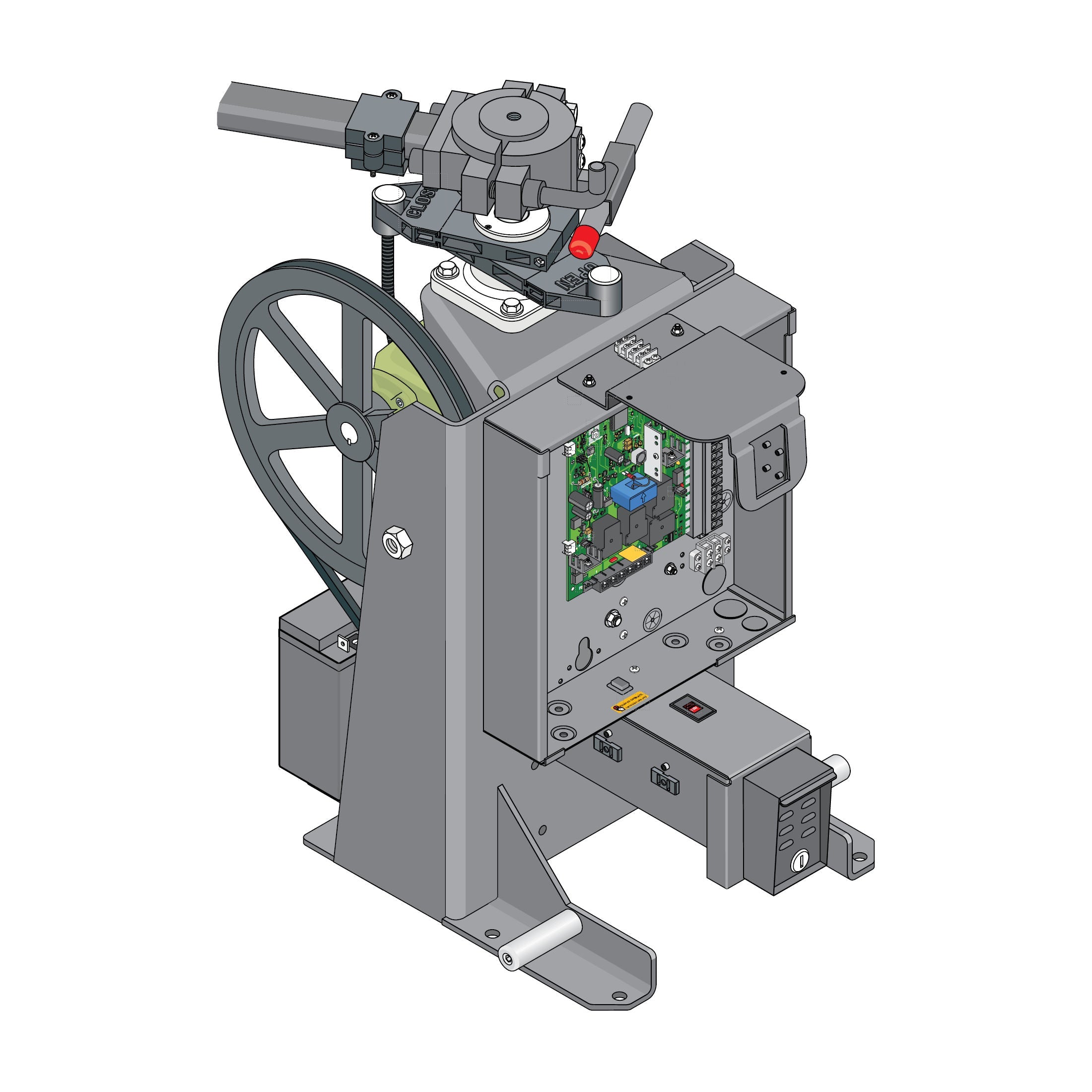

- Split Housing: Enables easier access and service
- Batteries & Solar Panel: Batteries and solar panel not included; compatible with Doorking Solar Kit (P/N: 2000-070)
The 6524-381 delivers dependable solar-only operation for secure perimeter control, especially where grid power is unavailable. Its 1/2 HP motor provides smooth, reliable movement, and its design supports dual-gate configurations for larger entryways or campuses. For complete, code-compliant installation, pair it with monitored safety devices and the Doorking Solar Kit (P/N 2000-070), which includes two 18 Ah batteries and a 10-watt 24V panel. With Gate Tracker integration and rugged, split housing, this unit is a scalable solution built to perform in remote environments across a wide operating range. UL 325 Class I–IV compatibility ensures it meets contemporary safety standards once all required components are installed.
