Description

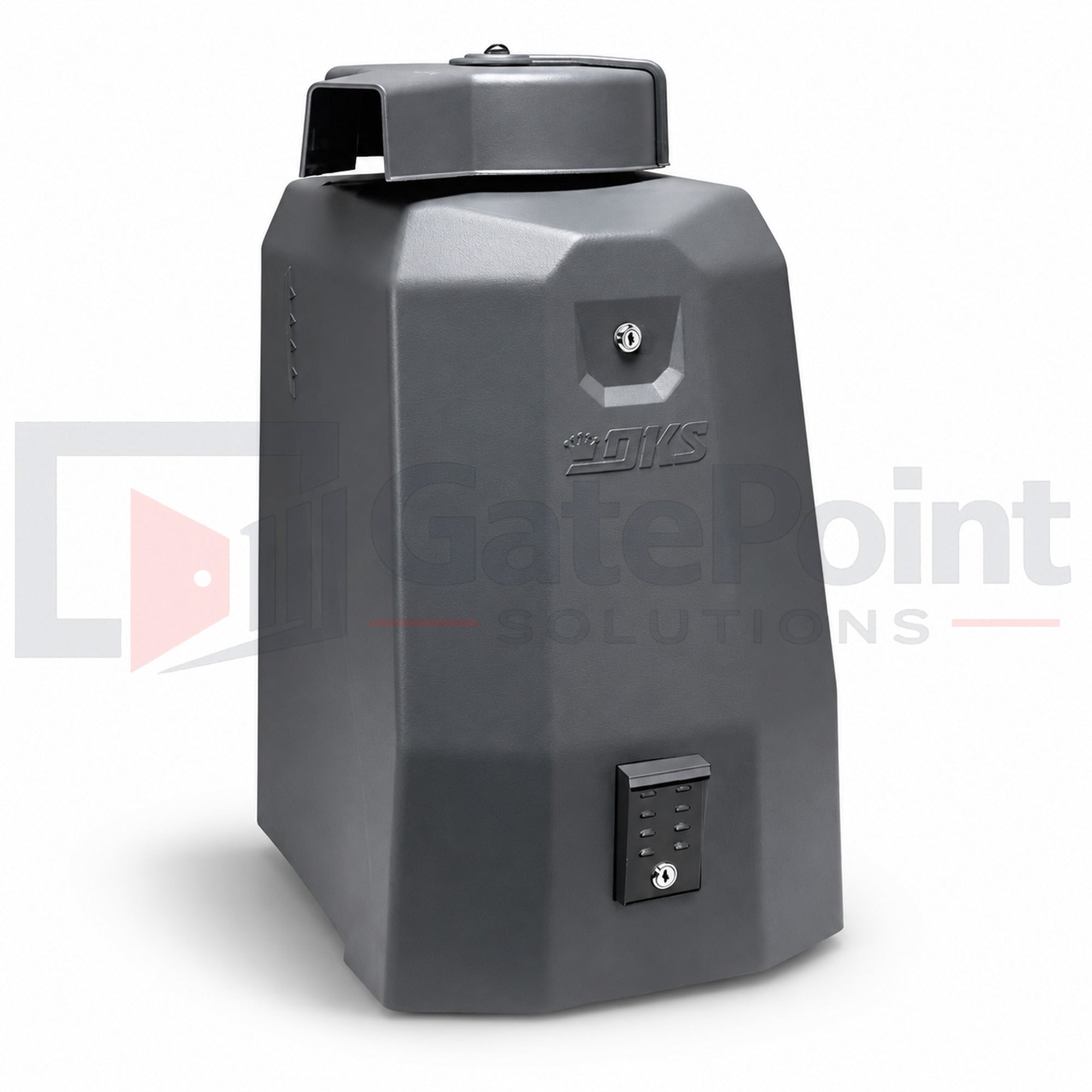

The DoorKing 6524-380 is an AC-powered swing gate operator featuring built-in battery backup to keep your gate operating during power outages. Designed for residential, commercial, and light industrial applications, the 6524-380 combines a 1/2 HP Quadra Drive™ DC motor with 115/230 VAC input power, delivering reliable, quiet operation and dependable performance for high-cycle gate systems.
The operator is capable of automating swing gates up to 16 feet in length and 800 pounds. Its quiet belt-drive reduction system, heavy-duty steel frame, split housing for simplified maintenance, electronic magnetic limits, and breakaway hub provide long-lasting durability while reducing service time. During utility power outages, the built-in batteries automatically keep the operator running without interruption. Optional larger batteries can significantly increase backup cycle capacity.
The 6524-380 integrates with DoorKing telephone entry systems, keypads, card readers, RF transmitters, loop detectors, and monitored safety devices to create a complete access control solution. The advanced microprocessor controller provides soft start/soft stop operation, programmable functions, Gate Tracker™ reporting capability, and optional solar compatibility when equipped with the appropriate DoorKing solar kit. When installed with monitored entrapment protection devices, the operator complies with UL 325 safety requirements.
Key Features
- Genuine DoorKing 6524-380 primary swing gate operator
- 115/230 VAC input power
- Built-in battery backup
- 1/2 HP Quadra Drive™ DC motor
- Quiet belt-drive reduction system
- Supports gates up to 16 ft. long
- Supports gates up to 800 lbs.
- Electronic magnetic limits
- Soft start and soft stop operation
- Heavy-duty steel frame
- Split housing for simplified maintenance
- Optional solar kit available
- Compatible with DoorKing access control systems
- UL 325 compliant with monitored safety devices
Ideal Applications
- Residential estates
- Gated communities
- Commercial properties
- Apartment complexes
- Farms and ranches
- Self-storage facilities
- Light industrial sites
- HOA entrances
- Private roads
- Applications requiring battery backup
Specifications
- Manufacturer: DoorKing
- Model: 6524-380
- Operator Type: Primary Swing Gate Operator
- Input Power: 115/230 VAC
- Motor: 1/2 HP Quadra Drive™ DC
- Drive System: Belt Drive
- Battery Backup: Standard
- Maximum Gate Length: 16 ft.
- Maximum Gate Weight: 800 lbs.
- Application Classes: UL Class I, II, III & IV
- Optional Solar: Yes (DoorKing Solar Kit)
