Description

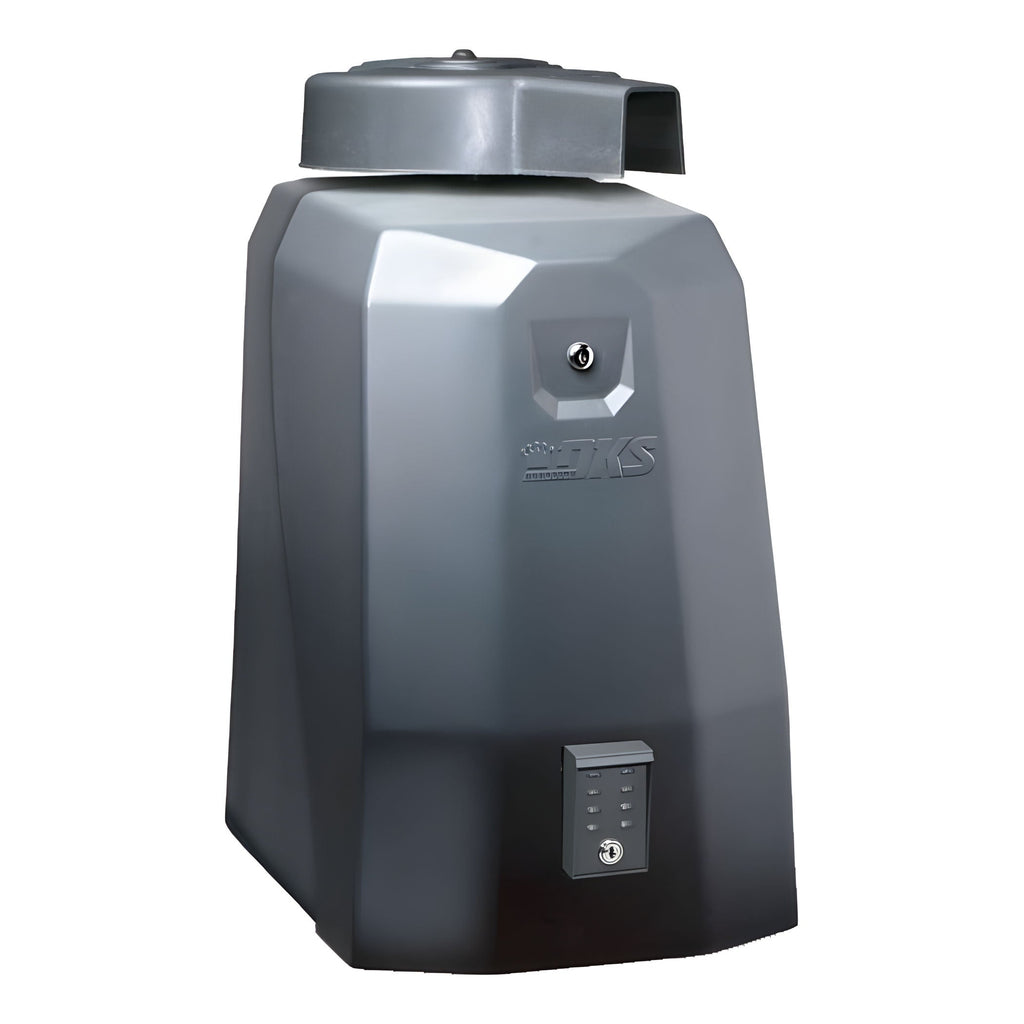

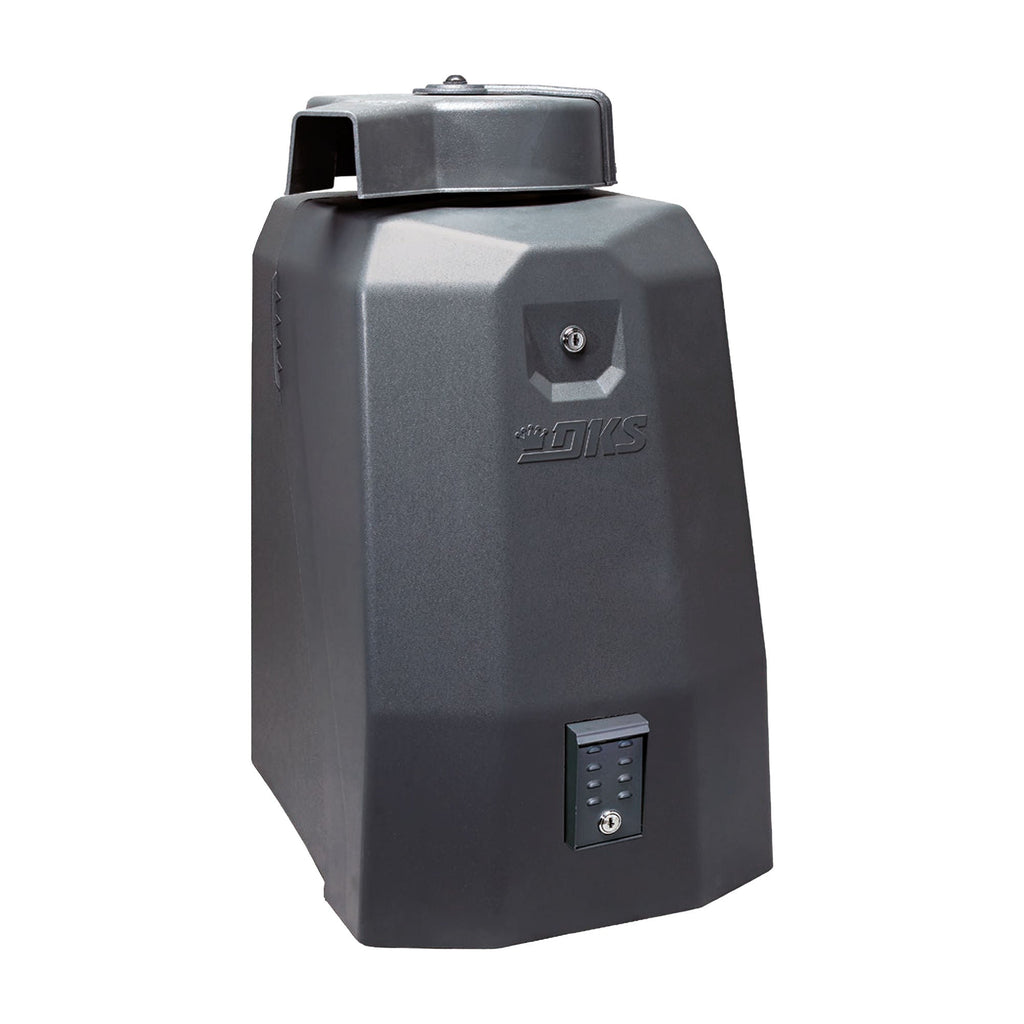

The Doorking 6524-380 Swing Gate Operator is a premium, AC-powered solution designed for commercial and industrial sites that require secure, reliable gate access. With built-in battery backup and Gate Tracker integration, it delivers controlled access and continuous operation even during power interruptions.
- Dual-voltage input: 115/230 VAC switch-selectable for flexible installation across different sites.
- Powerful motor: 1/2 HP Quadra Drive DC motor delivers consistent opening and smooth operation for gates up to 16 ft and 800 lbs.
- Battery backup included: Two 12V 7.2 Ah SLA batteries provide approximately 40 cycles on a full charge.
- Optional extended backup: Upgrade to two 18 Ah packs for up to ~150 cycles of runtime.
- Gate Tracker output: Real-time communication with DKS access control systems (1833, 1835, 1837, 1838) via Tracker Board 2358.

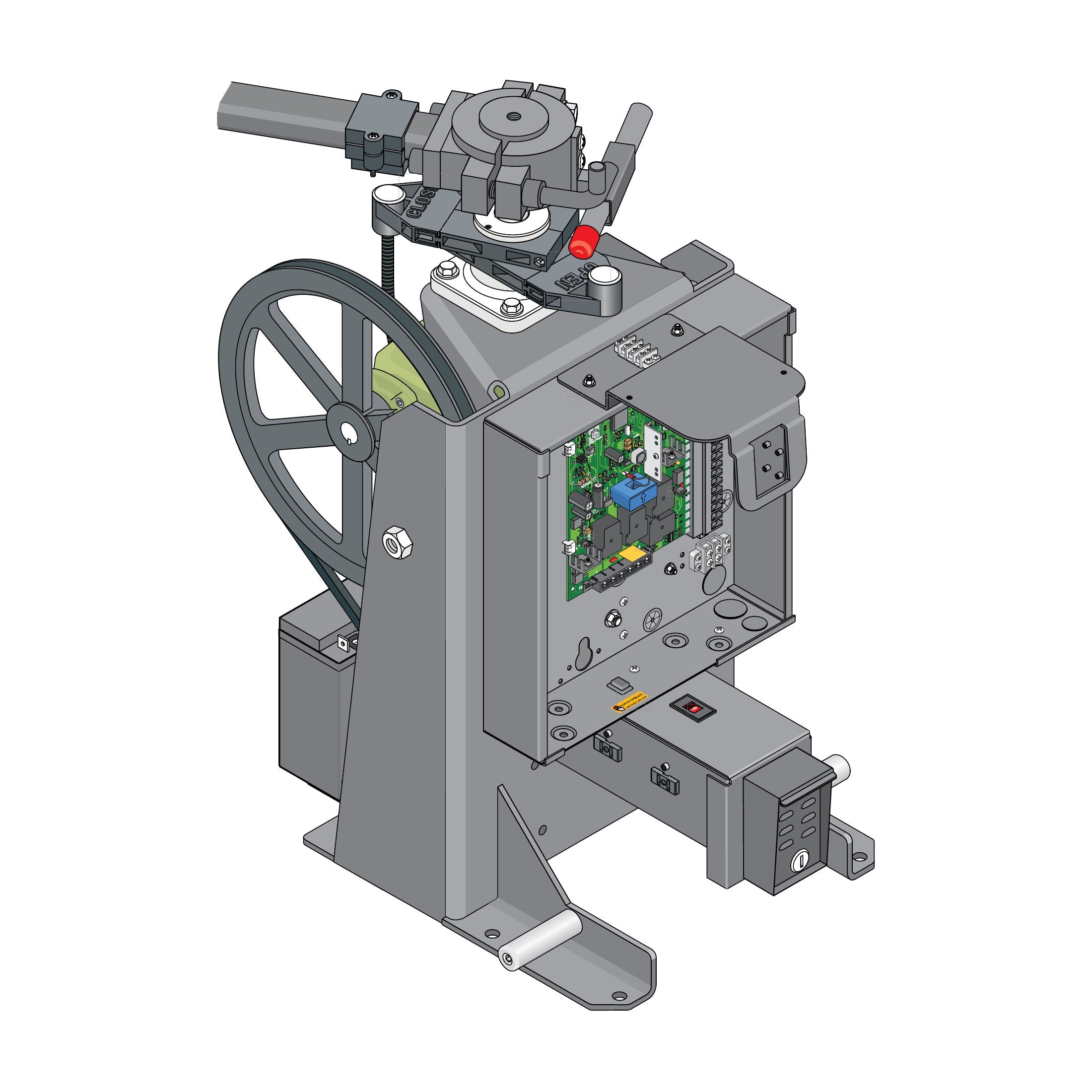

- Split housing design: Internal access without removing the arm simplifies installation and service.
- Magnetic limit switches: Reduces mechanical wear and failure points for longer life.
- Slow-start/slow-stop: Gentle acceleration and deceleration to minimize impact and extend gate longevity.
- UL 325 compliant: Ensures safe operation; requires at least one monitored photo eye or reversing edge (sold separately).
- Safety device compatibility: Compatible with Doorking 8080-057, EMX IRB-MON, and Miller Edge monitored sensors.
- High-capacity gate support: Suitable for up to 16 ft in length and 800 lbs in weight.
- Operating temperature: Designed to function from 10°F to 115°F (-12°C to 46°C).
- Opening speed: Typically 12–14 seconds for a full 90° sweep.
- UL Class: I, II, III, IV compliant hardware class.
- Entrapment protection: Requires monitored B1/B2 devices (sold separately) for operation.
Unit Specs
- Model: 6524-380
- Motor: 1/2 HP Quadra Drive DC
- Power Input: 115 VAC @ 1.8 A or 230 VAC @ 0.9 A
- Max Gate Length: 16 ft (4.87 m)
- Max Gate Weight: 800 lbs (363 kg)
- Opening Speed: 12–14 seconds (90° arc)
- Battery Backup (Included): Approx. 40 cycles (2× 7.2 Ah)
- Battery Backup (Optional): Up to 150 cycles (2× 18 Ah)
- Operating Temperature: 10°F to 115°F (-12°C to 46°C)
- Communication Output: Gate Tracker™
- Entrapment Protection: Monitored B1/B2 devices required (sold separately)
- UL Class: I, II, III, IV
- Split Housing: Split housing allows internal access without removing the arm
The Doorking 6524-380 is built for environments where secure, compliant, and continuous gate operation is essential. With battery backup, optional extended runtime, and Gate Tracker monitoring, it delivers reliable performance even during power outages, while providing centralized visibility through compatible access control systems. The slow-start/slow-stop motion reduces wear on heavier gates, and UL 325 compliance paired with tested safety devices minimizes risk in high-traffic facilities. This operator is ideal for commercial properties, multi-tenant campuses, and industrial sites where uptime and safety matter most.
