Description

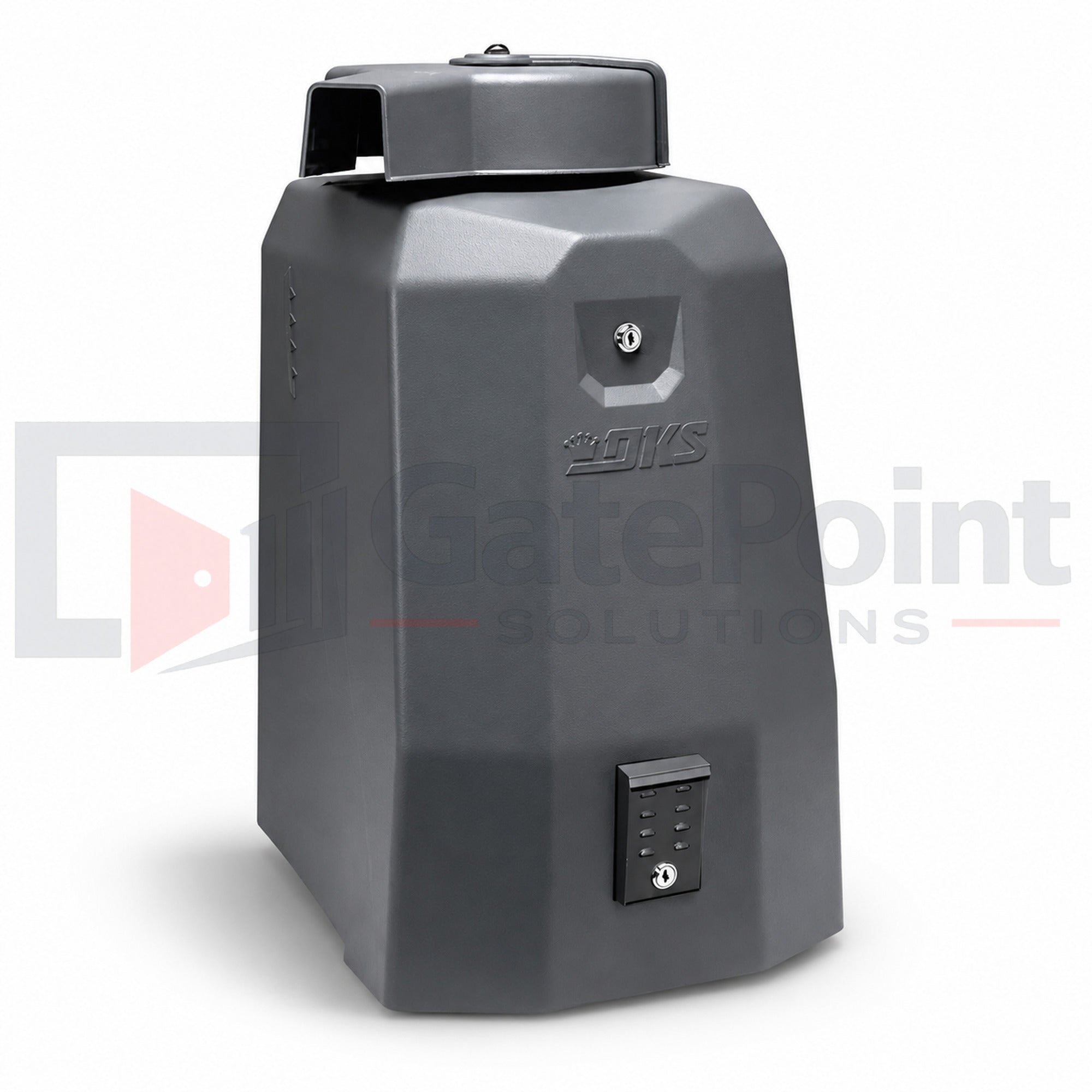

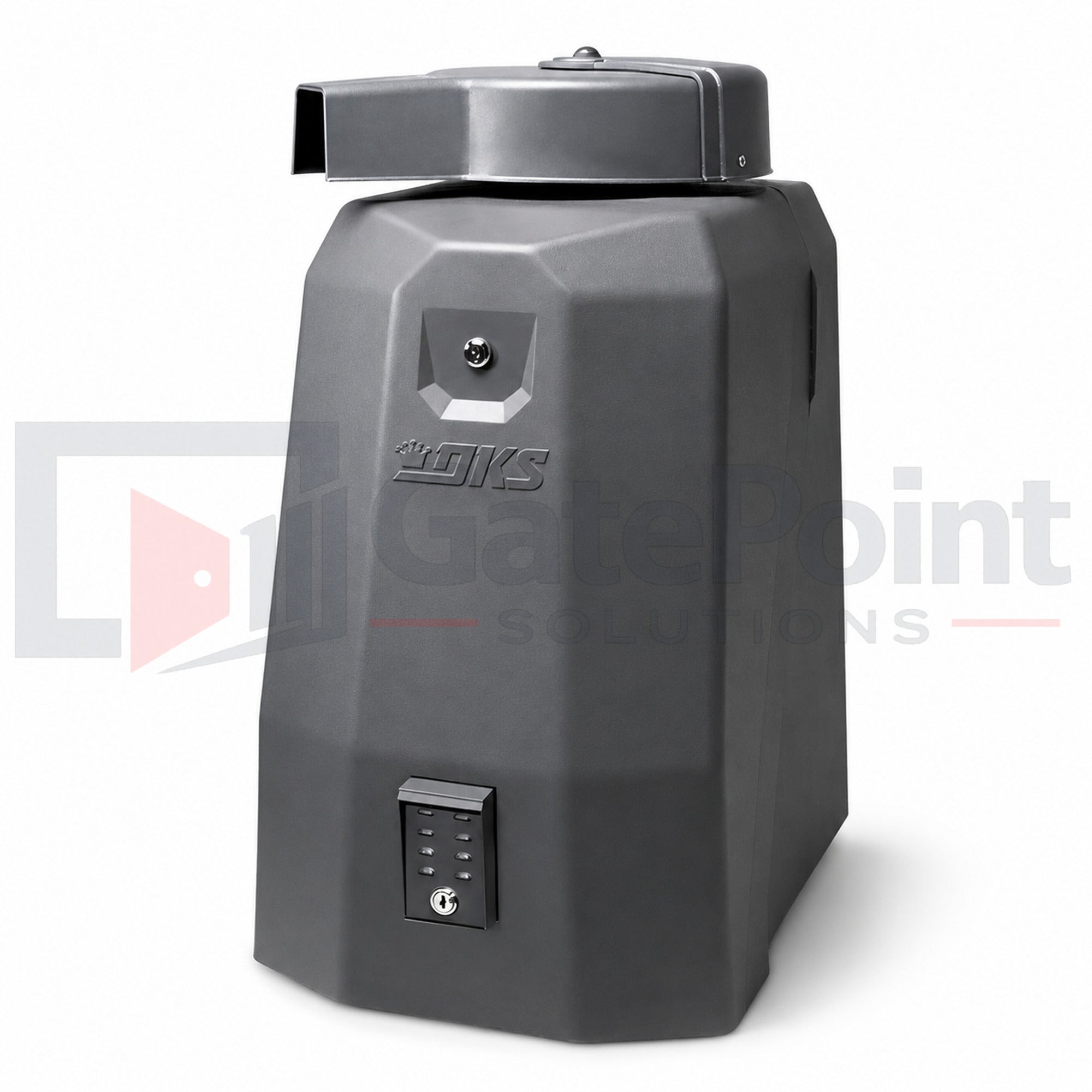

The DoorKing 6500-384 is a premium commercial and industrial swing gate operator designed for applications that demand quiet operation, dependable performance, and long-term reliability. As the primary operator in the DoorKing 6500 Series, it combines a 1 HP continuous-duty AC motor with DoorKing's advanced belt-drive reduction system, delivering smooth, consistent gate movement while minimizing noise and maintenance.
Designed for commercial properties, industrial facilities, apartment communities, and high-cycle vehicular entrances, the 6500-384 is capable of operating swing gates up to 22 feet in length and 800 pounds. The split polyurethane housing allows easy access for installation and servicing, while the heavy-duty steel frame, electronic magnetic limits, and unique breakaway hub provide exceptional durability in demanding environments.
The DoorKing 6500-384 integrates seamlessly with DoorKing telephone entry systems, keypads, card readers, RF transmitters, loop detectors, and monitored safety devices to create a complete access control solution. Features including mechanical slow-start/slow-stop operation, Gate Tracker™ reporting capability, and plug-in loop detector ports make the 6500 Series a preferred choice for professional gate installers. When installed with the required monitored entrapment protection devices, the operator complies with UL 325 and UL 991 safety standards.
Key Features
- Genuine DoorKing 6500-384 primary operator
- Quiet belt-drive reduction system
- 1 HP continuous-duty AC motor
- Primary operator for DoorKing 6500 Series dual gate systems
- Supports gates up to 22 ft. long
- Supports gates up to 800 lbs.
- Opens 90° in approximately 12–14 seconds
- Heavy-duty corrosion-resistant steel frame
- Split polyurethane housing for easier service and maintenance
- Electronic magnetic limits with no mechanical limit switches
- Breakaway hub helps protect the gearbox if the gate is struck
- Mechanical slow-start and slow-stop operation
- Compatible with DoorKing access control systems
- Supports keypads, telephone entry systems, card readers, RF transmitters, loop detectors, photo eyes, and monitored safety devices
- UL 325 and UL 991 compliant when installed with the required monitored safety devices
Ideal Applications
The DoorKing 6500-384 is ideal for:
- Commercial properties
- Industrial facilities
- Distribution centers
- Manufacturing plants
- Apartment communities
- Gated communities
- Self-storage facilities
- Government facilities
- Business parks
- High-cycle vehicular entrances
Specifications
- Manufacturer: DoorKing
- Model: 6500-384
- Operator Type: Primary Swing Gate Operator
- Motor: 1 HP Continuous-Duty AC
- Drive System: Belt Drive
- Maximum Gate Length: 22 ft.
- Maximum Gate Weight: 800 lbs.
- Opening Speed: Approximately 12–14 seconds to 90°
- Power: 115 VAC (208V, 230V & 460V available with step-down transformer)
- Application Classes: UL Class I, II, III & IV
- Mounting: Concrete Pad Installation
