Description
The Doorking 6400 Single Gate Operator Kit delivers discreet, in-ground automation for residential swing gates. Designed for gates up to 8 feet long and 300 pounds, it combines a low-profile installation with dependable power and safety features for secure, convenient access.

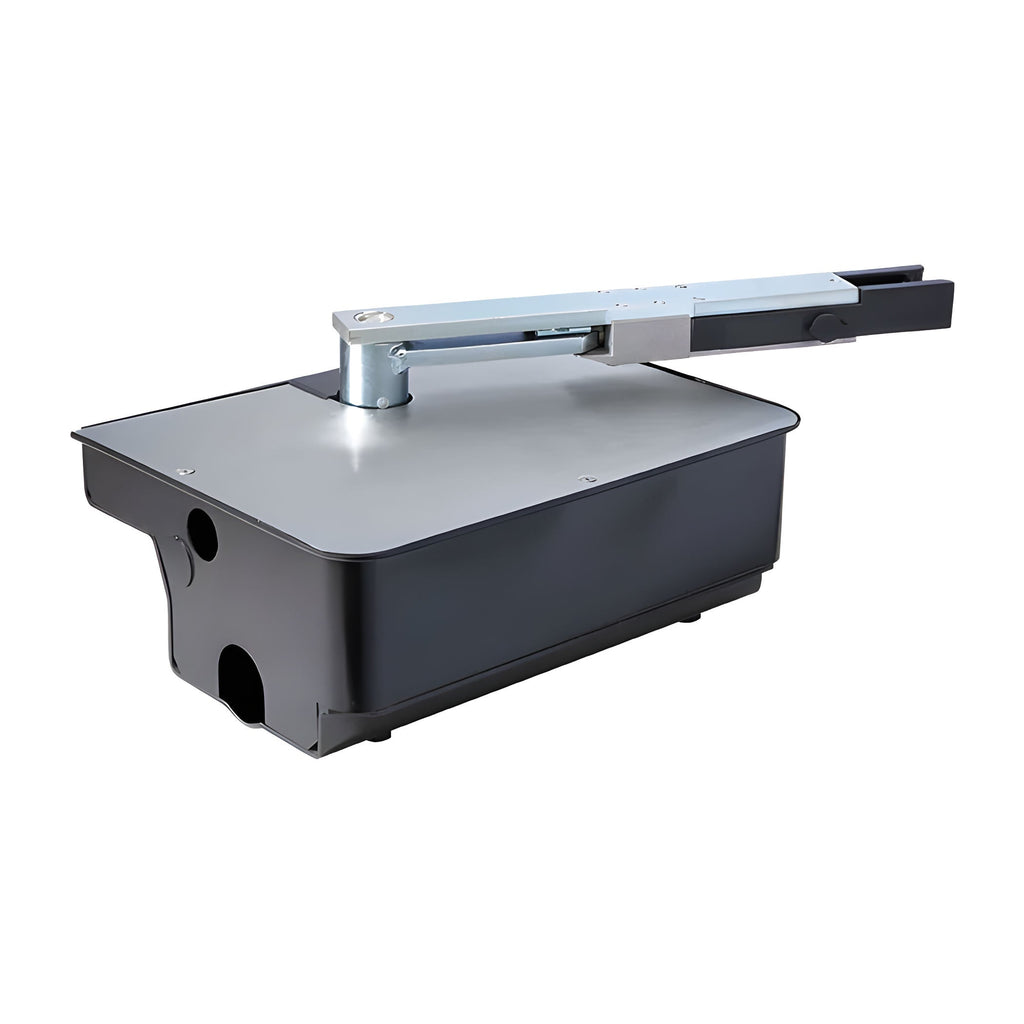

- In-Ground, Low-Profile Installation: Actuator sits below grade to keep the gate operator virtually invisible and preserve curb appeal.
- Soft Start/Stop: Smooth acceleration and deceleration reduce mechanical wear and extend the life of the gate system.
- AC Power with Battery Backup: 115 V AC operation with an integrated charger and two 3.5Ah backup batteries for reliable function during outages.
- Keyed Manual Release: Lockable fail-secure override provides secure manual operation when needed.
- Photocell Included: UL 325 entrapment protection ensures safer operation by preventing gate closure on obstructions.
- Corrosion-Resistant Construction: Die-cast aluminum drive and galvanized steel foundation box built for outdoor durability.
- Max Gate Capacity: Supports residential swing gates up to 8 ft in length and 300 lb in weight.
- Fast, Controlled Opening: Opens to 90° in about 15 seconds with smooth, controlled motion.
- Weather-Resistant Enclosure: Control box rated NEMA 4X / IP54 for reliable performance in varying conditions.

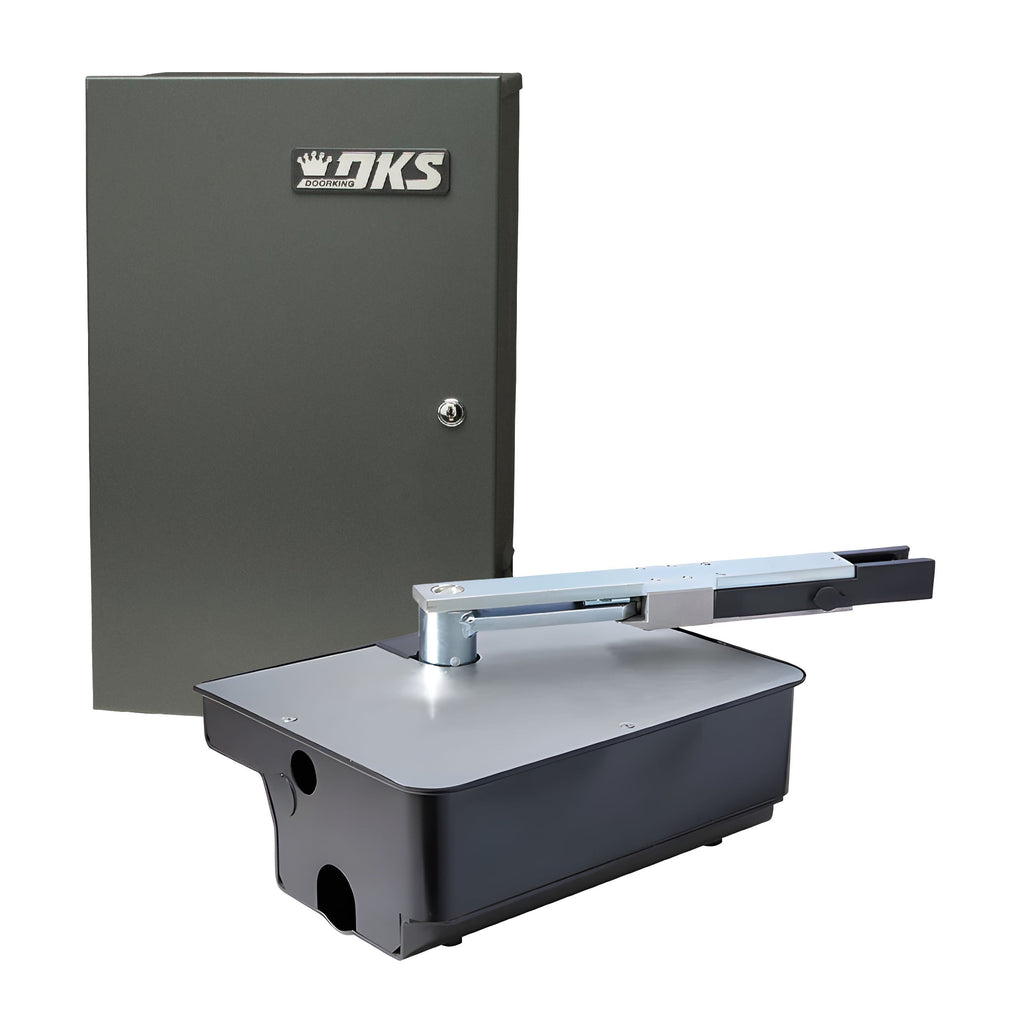

- Kit Includes: 1 Doorking 6400 In-Ground Swing Gate Actuator, 1 standard 115V AC control box with built-in charger, 2 x 12V 3.5Ah backup batteries, photocell, manual release mechanism, and mounting hardware.
- Unit Specs: Model: 6400 Single Kit – 115V AC; Mounting Type: In-Ground; Max Gate Length: 8 ft; Max Gate Weight: 300 lbs; Power Type: AC with battery backup; Input Power: 115 VAC; Motor Type: Continuous duty 24VDC; Opening Speed: 90° in approx. 15 seconds; Max Opening Angle: 90°; Operating Temperature: 32°F to 115°F; Protection Rating: NEMA 4X / IP54 (control box); Actuator Weight: 80 lbs; Control Box Size: 12.5"W x 16.5"H x 4.25"D; Kit Includes: as listed above.
The Doorking 6400 is engineered to deliver secure access without sacrificing aesthetics. Its inverter-grade components, battery backup, and UL 325-compliant safety features make it a practical, long-term solution for homeowners who want reliable gate automation that blends seamlessly with their property. The combination of durable materials, low-profile installation, and continuous-duty motor provides a dependable entry solution that minimizes visible hardware while maximizing security and convenience.
