Description
The Doorking 6100 Dual Swing Gate Opener Package delivers seamless, synchronized automation for dual swing gates, perfect for residential driveways, commercial entrances, and industrial access points. Featuring two synchronized units (6100-380 primary and 6100-381 secondary), it ensures both gates move in unison for reliable, hands-free access.
- Complete Dual Gate Automation: Includes the 6100-380 primary opener and the 6100-381 secondary opener to drive synchronized operation. The primary controls the microprocessor and coordinates with the secondary for precisely coordinated gate movement.
- High-Performance Capacity: Each opener supports gates up to 14 ft long and 500 lb, delivering fast, smooth operation with a 90° swing in 12 seconds—designed for high-traffic entrances.
- Safety and Compliance: ANSI/UL 325 compliant with built-in mechanical and electronic reverse systems to stop or reverse on obstacle detection. Tamper protection adds security, and a monitored photoeye is required for activation and safety compliance (sold separately).
- Discreet, Bottom-Mounted Design: Bottom-mounted arms provide a sleek, unobtrusive profile that integrates quietly into any environment without sacrificing functionality.
- Durable Construction: Galvanized steel frames offer excellent corrosion resistance, delivering long-lasting outdoor performance in residential, commercial, and industrial settings.

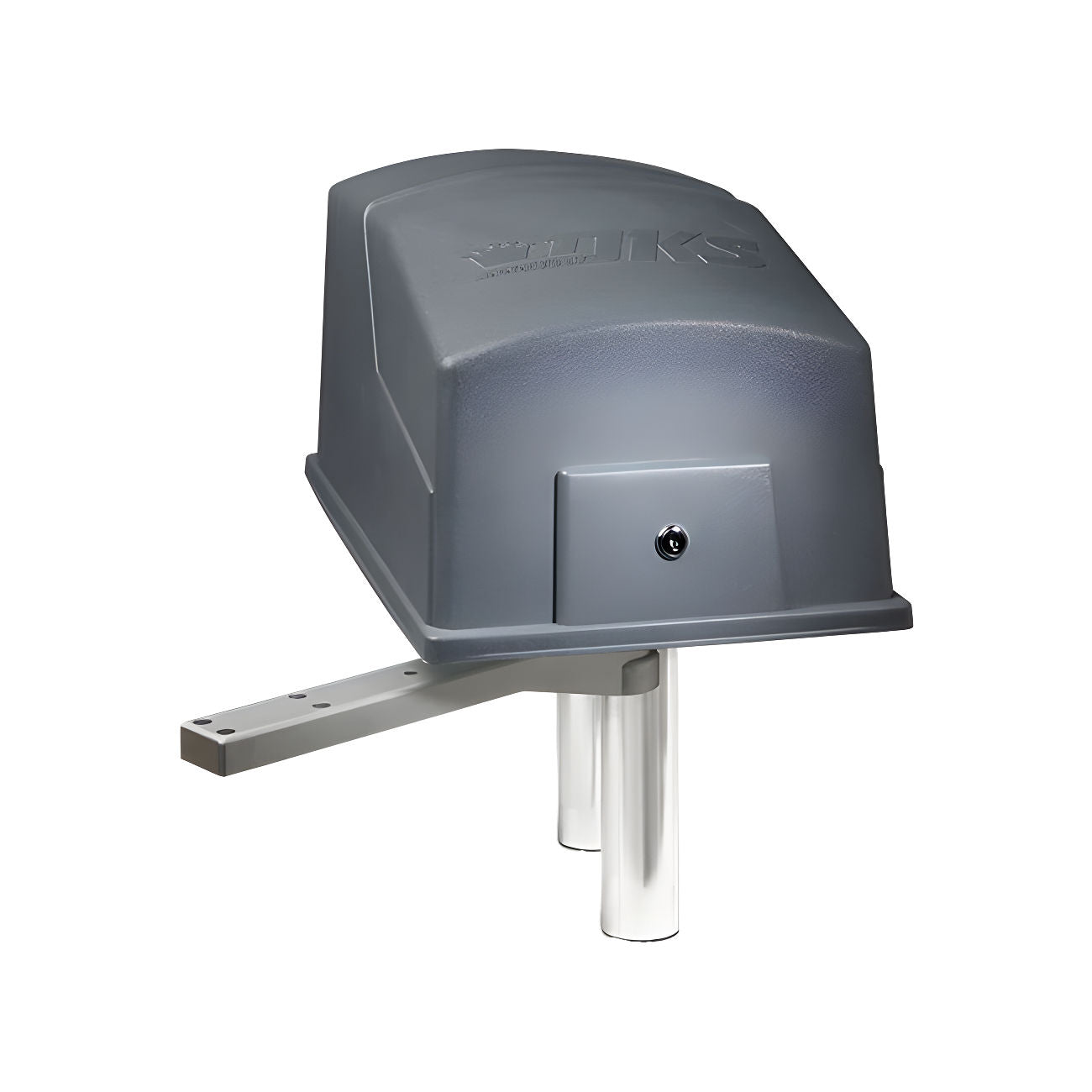

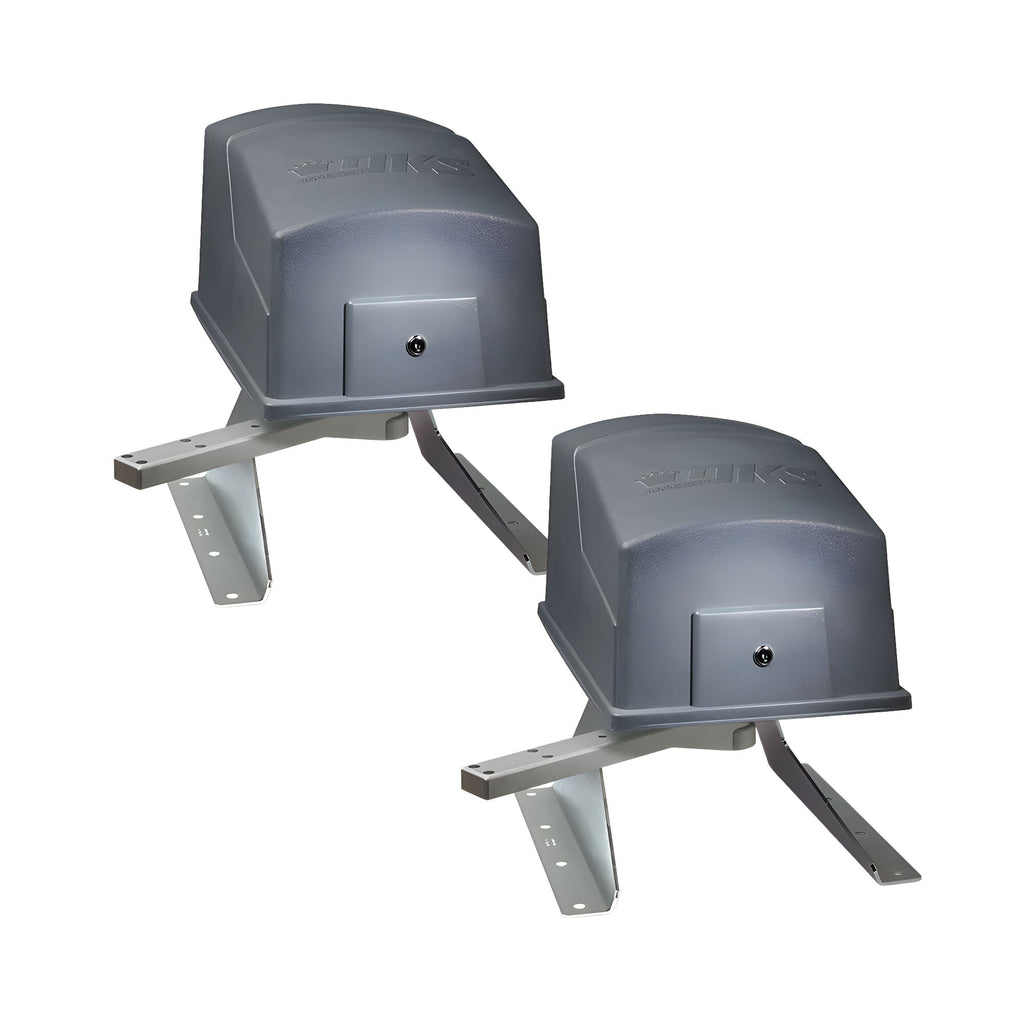

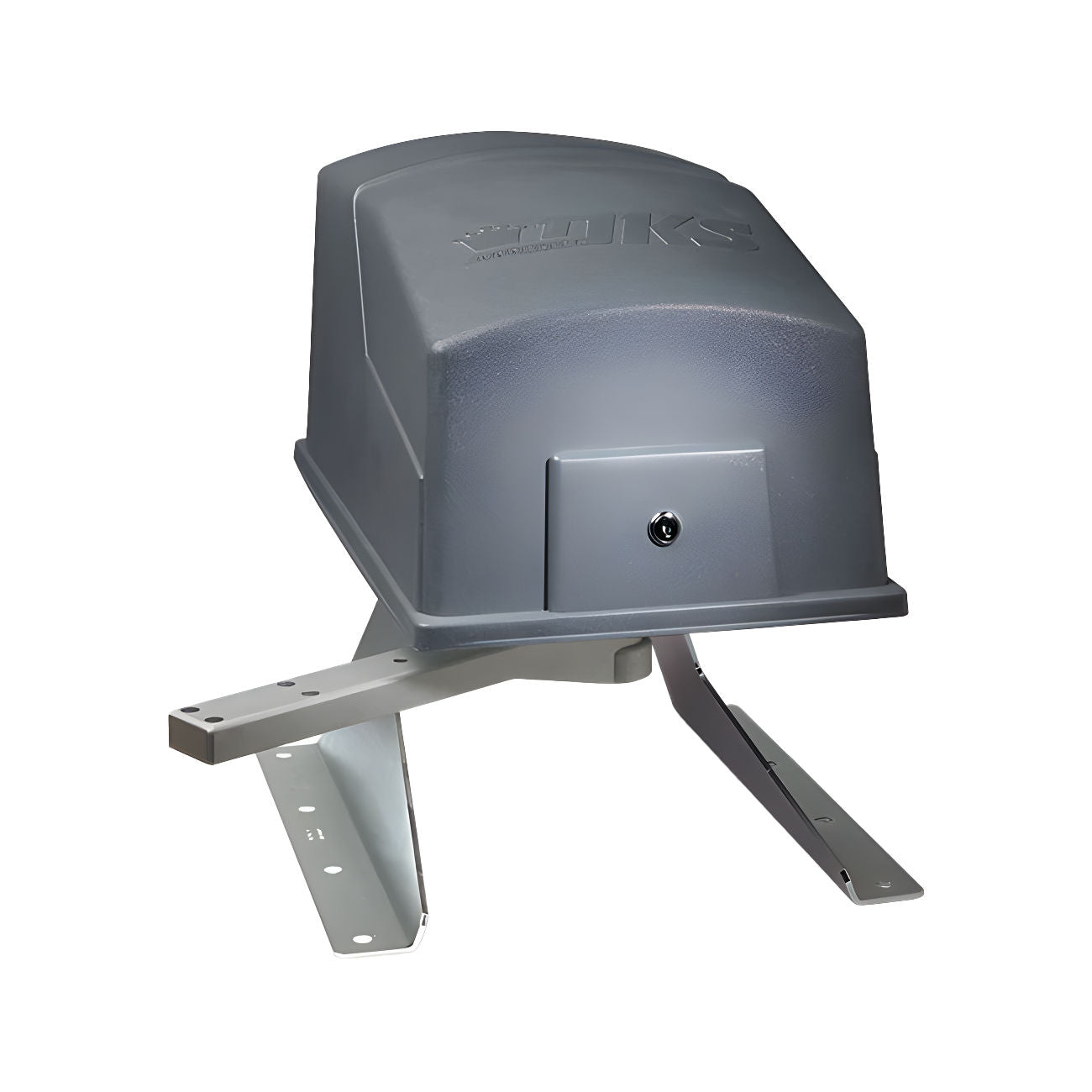

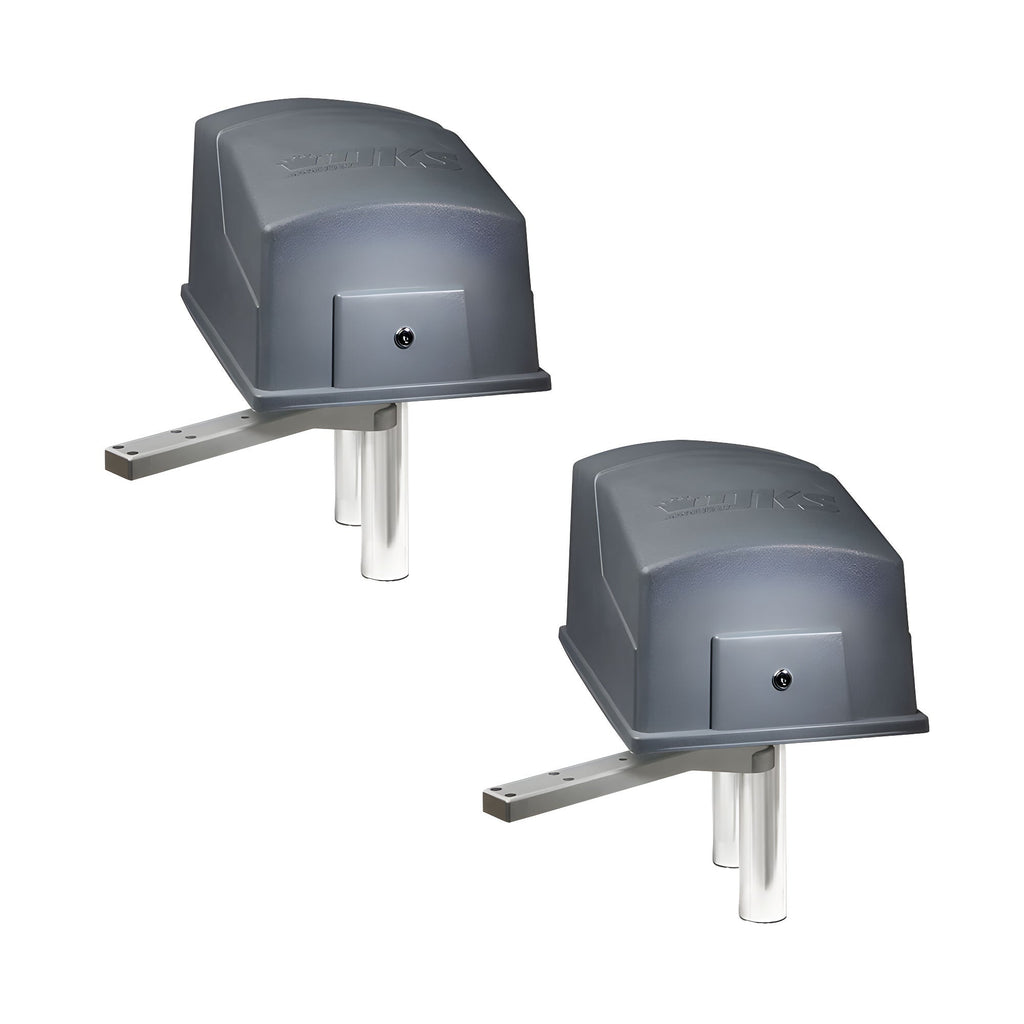

- Easy Installation and Integration: The 6100-380 primary unit coordinates both openers via its microprocessor control board. Requires two mounting kits (pad mount or post mount; sold separately). A photoeye (sold separately) is needed to meet safety regulations.
- Unit Specs: Max Gate Length – 14 ft (4.3 m) per gate; Max Gate Weight – 500 lb (227 kg) per gate; Motor Power – 1/2 HP (continuous duty); Power Input – 115 VAC, 60 Hz, 5.4 A; Operating Speed – 90° rotation in 12 seconds; Mounting Options – Pad mount or post mount (two required); Safety – UL 325 compliant with mechanical/electronic reverse, tamper protection; Photoeye required (sold separately); Environmental Range – 10°F to 140°F (-12°C to 62°C).
With the Doorking 6100 Dual Swing Gate Opener Package, enjoy reliable, synchronized dual-gate access that minimizes manual effort, improves traffic flow, and enhances security. Its rugged build and safety-first design make it an ideal choice for gated communities, business properties, and industrial facilities seeking a durable, low-maintenance automation solution.
