Description

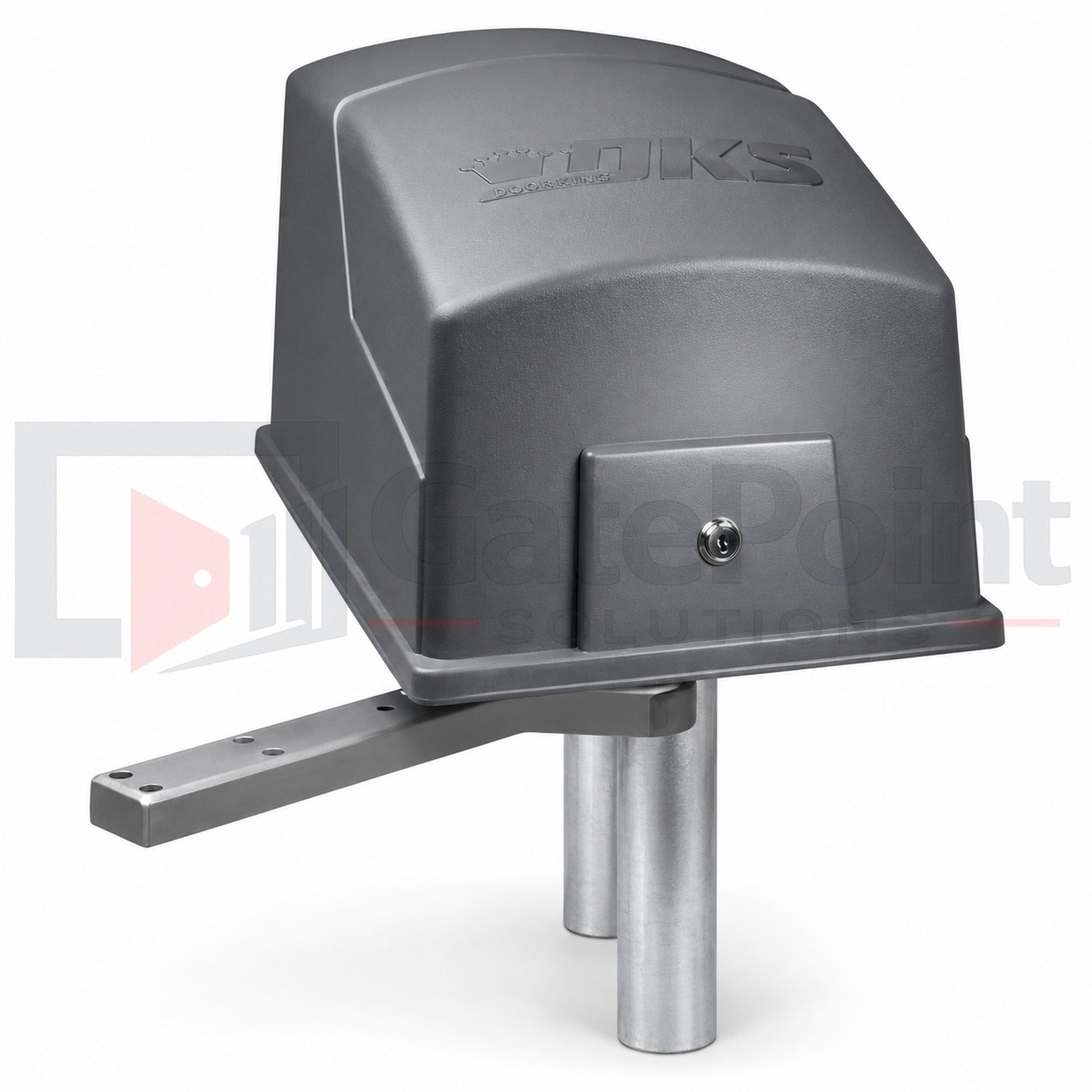

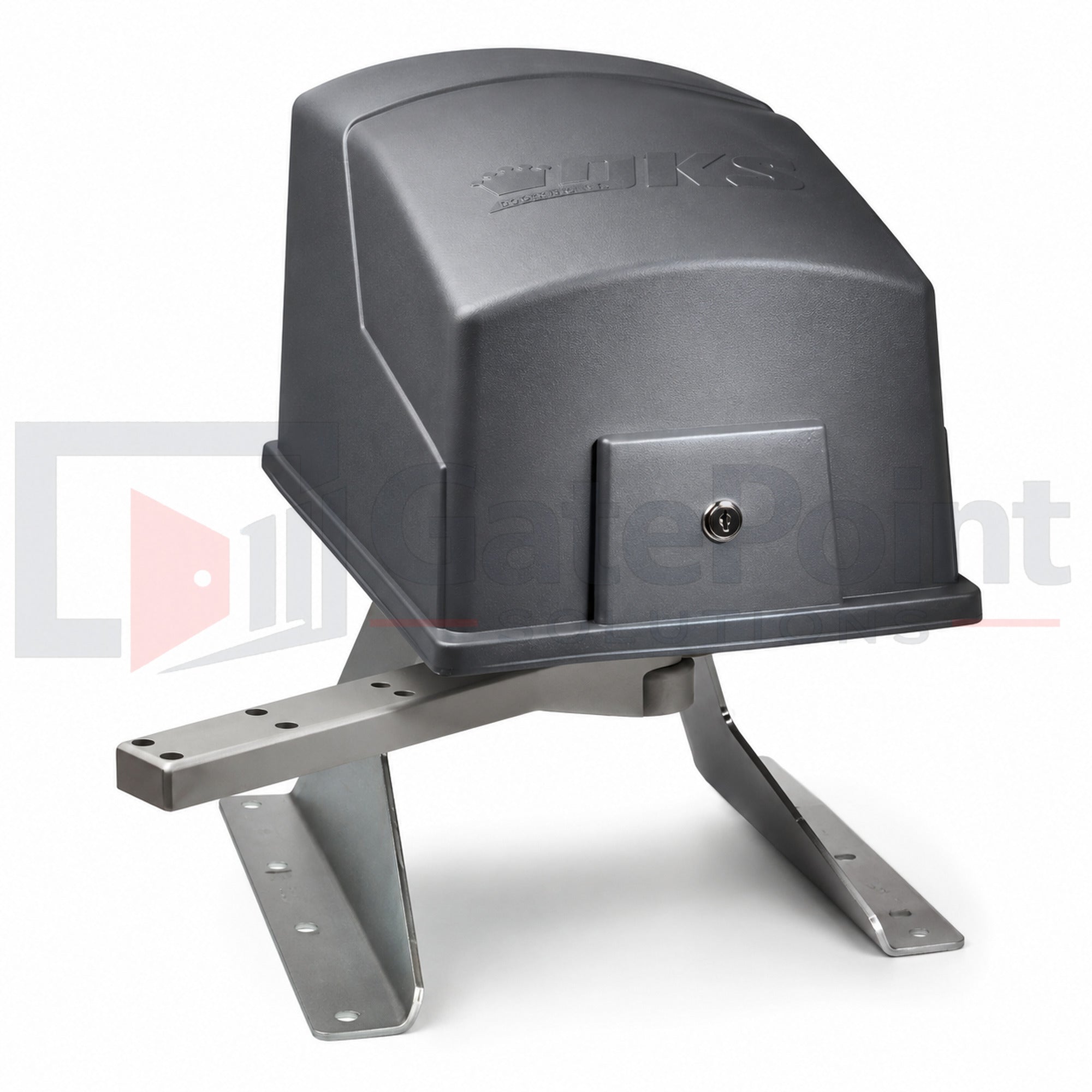

The DoorKing 6100-380 is a continuous-duty swing gate operator designed for residential communities, commercial properties, apartment complexes, and private estates that require dependable day-to-day gate automation. As the primary operator in the DoorKing 6100 Series, the 6100-380 combines proven mechanical reliability with smooth, consistent operation for demanding applications.
Powered by a 1/2 HP continuous-duty motor, the 6100-380 is engineered to automate swing gates up to 14 feet in length and 500 pounds while opening to 90° in approximately 10–12 seconds. Available in either pad-mount or post-mount configurations, it offers installation flexibility without compromising performance or serviceability.
Designed to integrate seamlessly with DoorKing access control systems, the 6100-380 supports telephone entry systems, keypads, card readers, transmitters, loop detectors, and monitored safety devices to create a complete automated entrance solution. When installed with the required monitored entrapment protection devices, the operator complies with current UL 325 safety requirements.
Key Features
- Genuine DoorKing 6100-380 swing gate operator
- Continuous-duty 1/2 HP AC motor
- Primary operator for DoorKing 6100 Series systems
- 115 VAC operation
- For swing gates up to 14 ft. long
- Supports gates up to 500 lbs.
- Opens approximately 90° in 10–12 seconds
- Available for pad-mount or post-mount installation
- Compatible with DoorKing access control products
- Supports monitored photo eyes, edge sensors, loop detectors, remotes, keypads, and telephone entry systems
- UL 325 compliant when installed with the required monitored safety devices
Ideal Applications
The DoorKing 6100-380 is well suited for:
- Gated communities
- Apartment and condominium entrances
- Private residences
- Commercial facilities
- Office parks
- Farms and ranches
- Churches
- Schools
- Business properties
Specifications
- Manufacturer: DoorKing
- Model: 6100-380
- Operator Type: Primary Swing Gate Operator
- Motor: 1/2 HP Continuous-Duty
- Power: 115 VAC
- Maximum Gate Length: 14 ft.
- Maximum Gate Weight: 500 lbs.
- Opening Speed: Approximately 10–12 seconds to 90°
- Application Class: UL Class I & II
- Mounting: Pad Mount or Post Mount
