Description

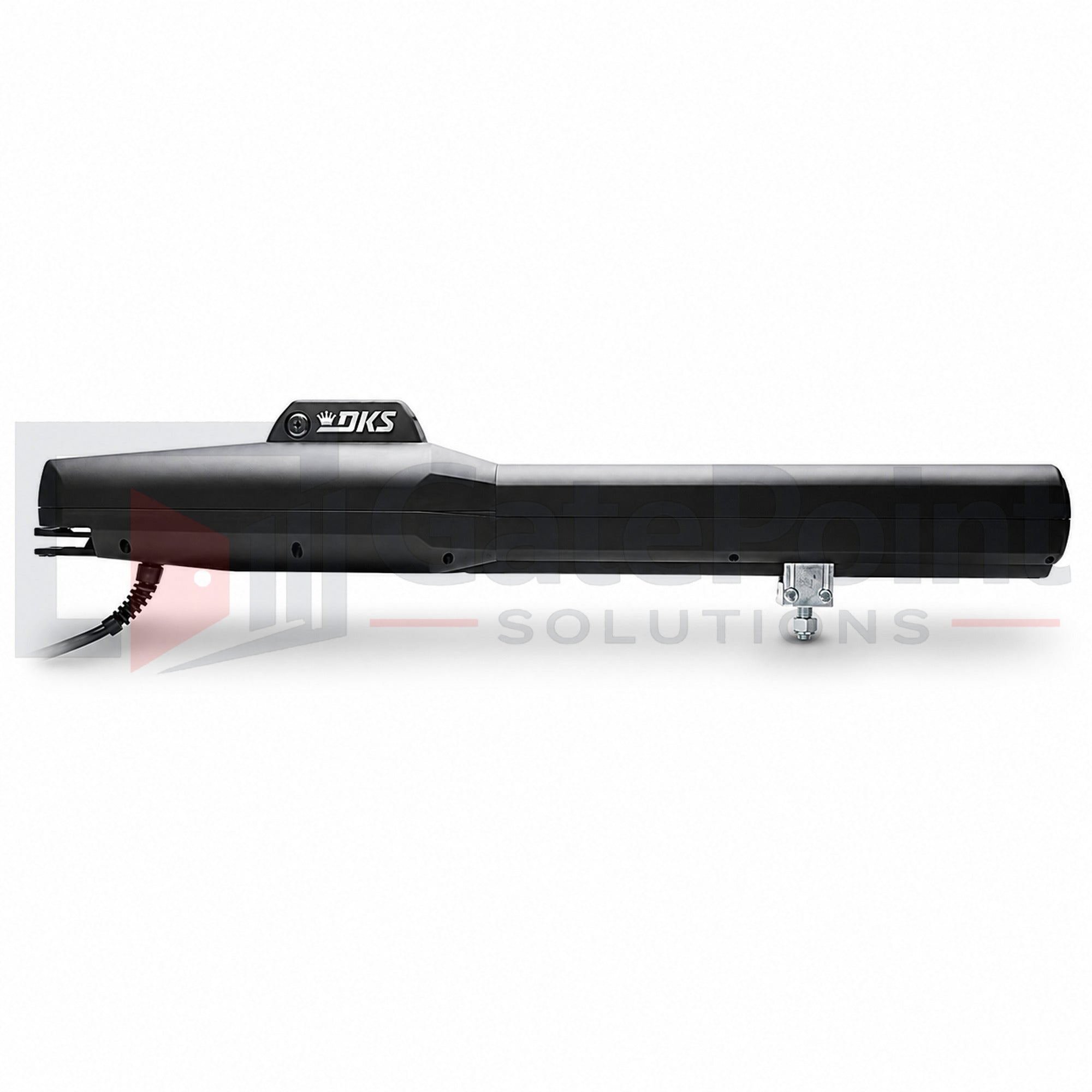

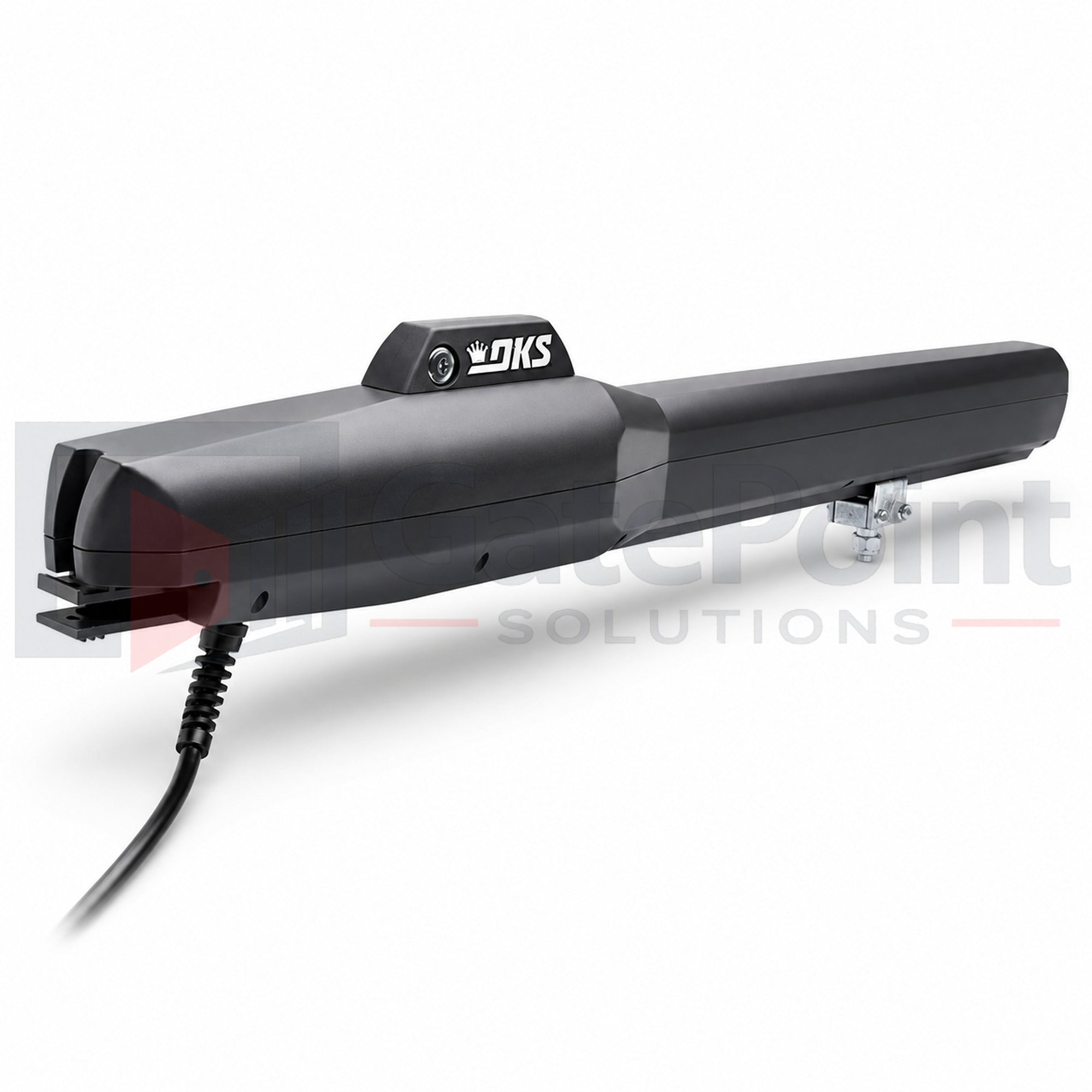

The DoorKing 6006-380 is a premium 24VDC electromechanical swing gate actuator arm designed for residential and light commercial vehicular gate systems. Engineered for smooth, quiet performance and long-term reliability, the 6006 mounts directly to the gate and gate post, eliminating the need for concrete operator pads while providing a clean, professional installation.

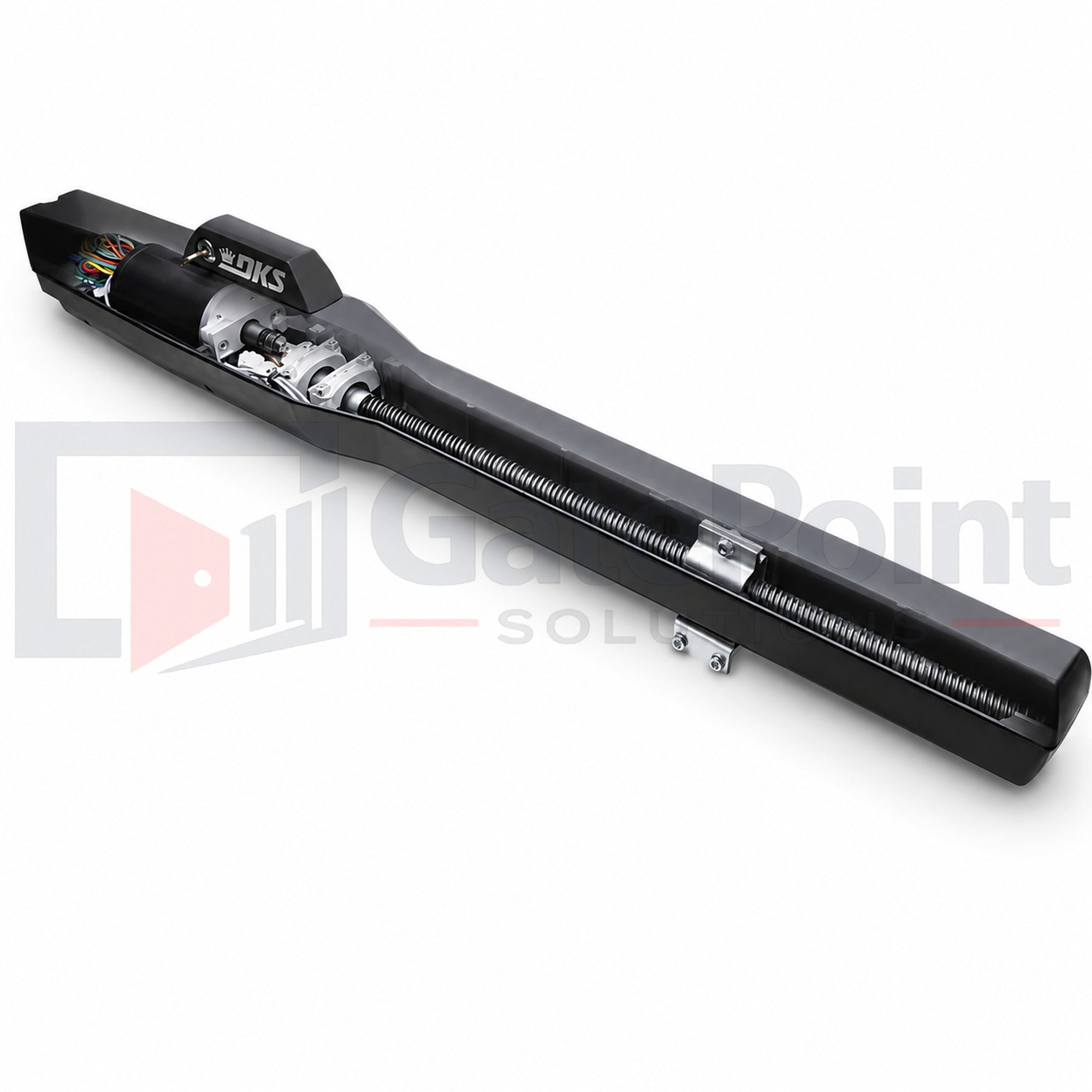

Powered by a continuous-duty 24VDC motor with fully enclosed screw-drive technology, the 6006-380 delivers dependable operation while protecting internal components from dirt, moisture, and debris. Adjustable magnetic limit switches provide precise control over gate travel, while the keyed manual release allows secure operation during power outages.
Compatible with DoorKing AC-powered or solar-powered control boxes, the 6006 actuator is ideal for new installations and system upgrades where quiet operation, low maintenance, and dependable performance are essential.
Key Features
- 24VDC continuous-duty electromechanical actuator
- Compatible with residential and light commercial swing gates
- Supports gates up to:
- 18 ft. / 600 lbs.
- 16 ft. / 800 lbs.
- 8 ft. / 1,600 lbs.
- Quiet screw-drive operation
- Fully enclosed drive system for reduced maintenance
- Adjustable magnetic limit switches

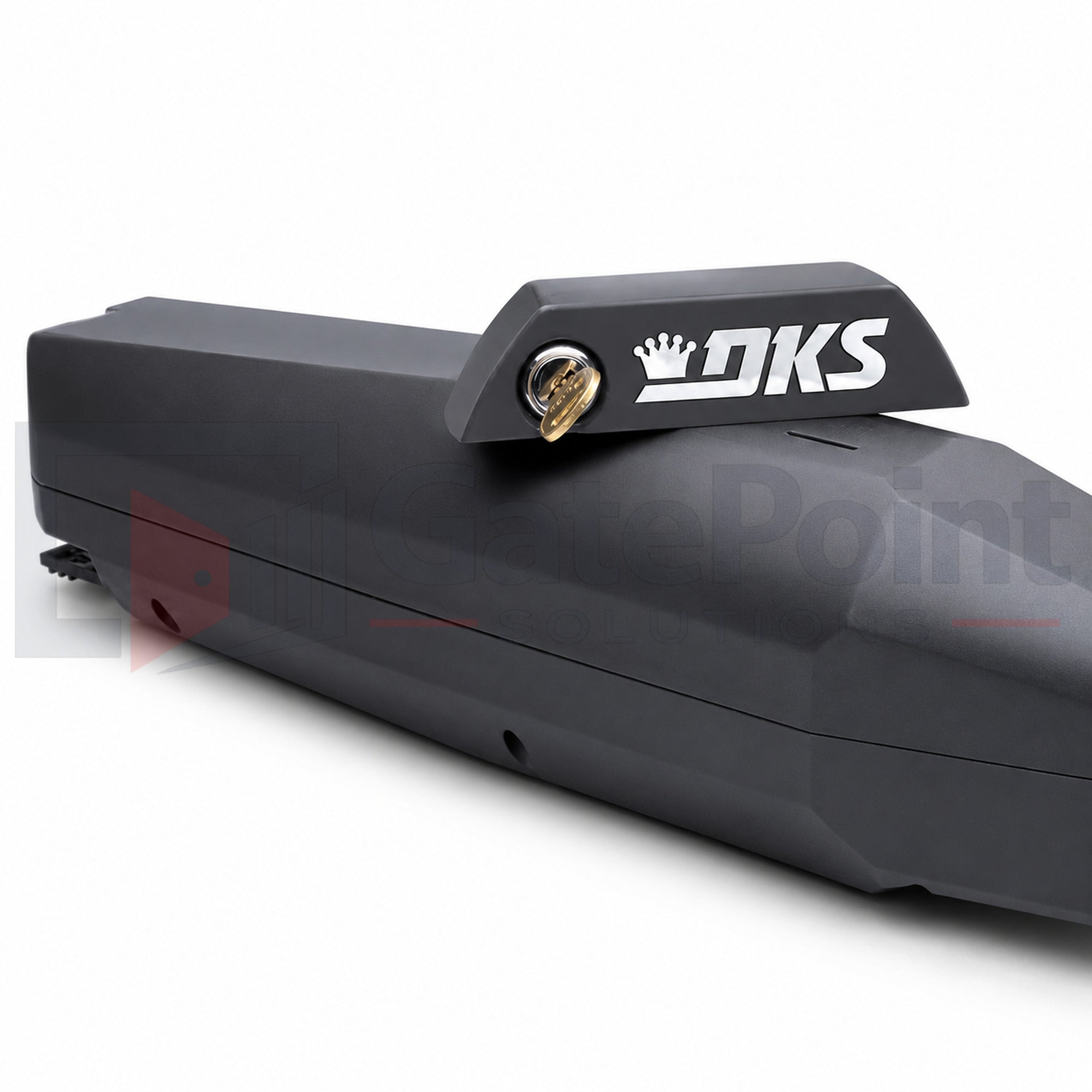

- Built-in keyed manual release
- Weather-resistant aluminum housing
- IP54 protection rating
- Maximum gate opening of 110°
- Left or right-hand installation
- Compatible with AC or solar-powered DoorKing control boxes
- Supports battery backup operation when used with compatible control systems
- ETL Listed and UL 325 compliant when installed with required monitored safety devices
Ideal Applications
The DoorKing 6006-380 is an excellent solution for:
- Residential driveway gates
- Estate entrances
- Gated communities
- Farms and ranches
- Small commercial properties
- Apartment entrances
- HOA access gates
Specifications
- Model: 6006-380
- Manufacturer: DoorKing
- Voltage: 24 VDC
- Drive Type: Electromechanical screw drive
- Duty Cycle: Continuous Duty
- Maximum Gate Opening: 110°
- Speed: Approximately 90° in 18–20 seconds
- Actuator Length: 40 in.
- Housing: Powder-coated aluminum
- Protection Rating: IP54
- Maximum Gate Capacity:
- 18 ft. / 600 lbs.
- 16 ft. / 800 lbs.
- 8 ft. / 1,600 lbs.
