Description

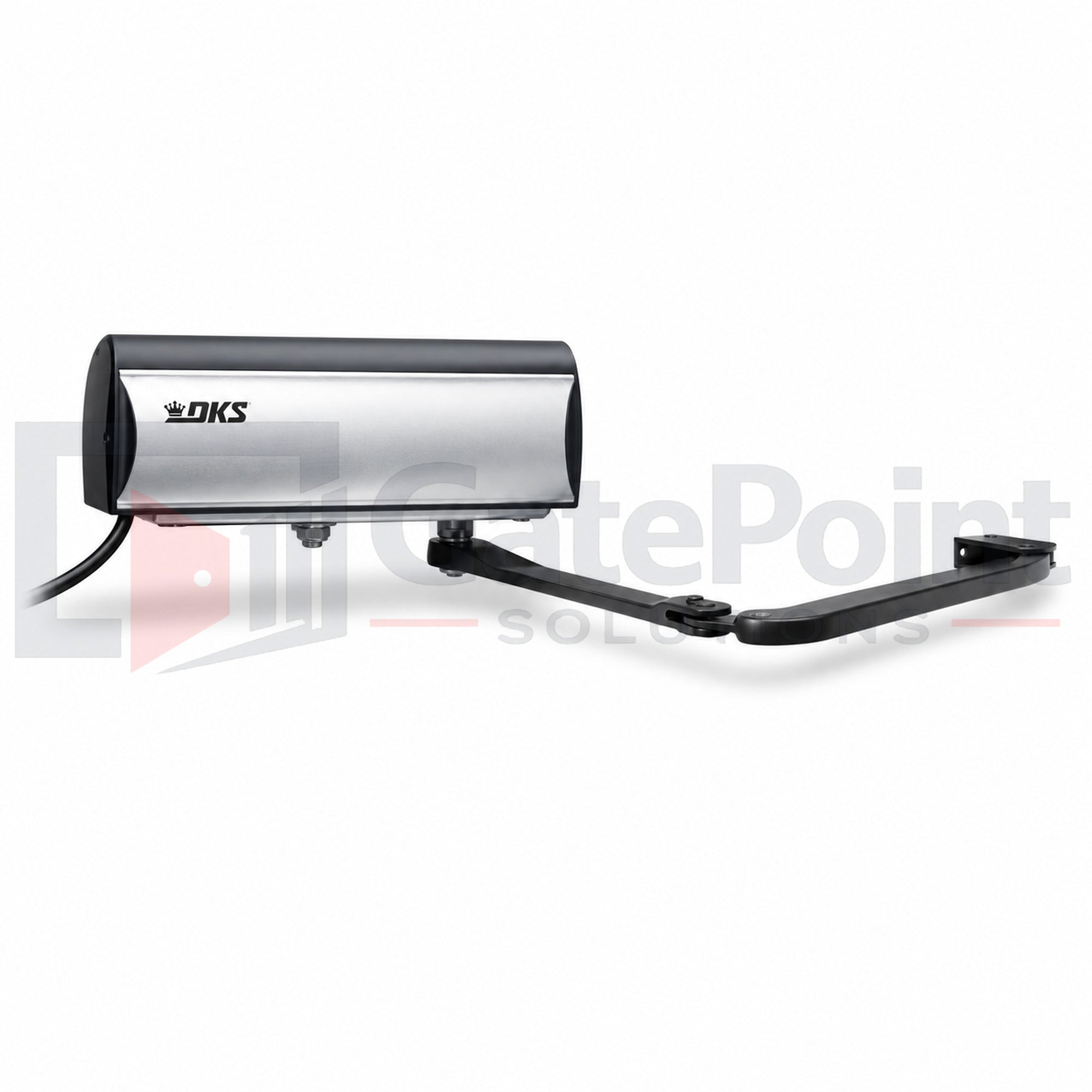

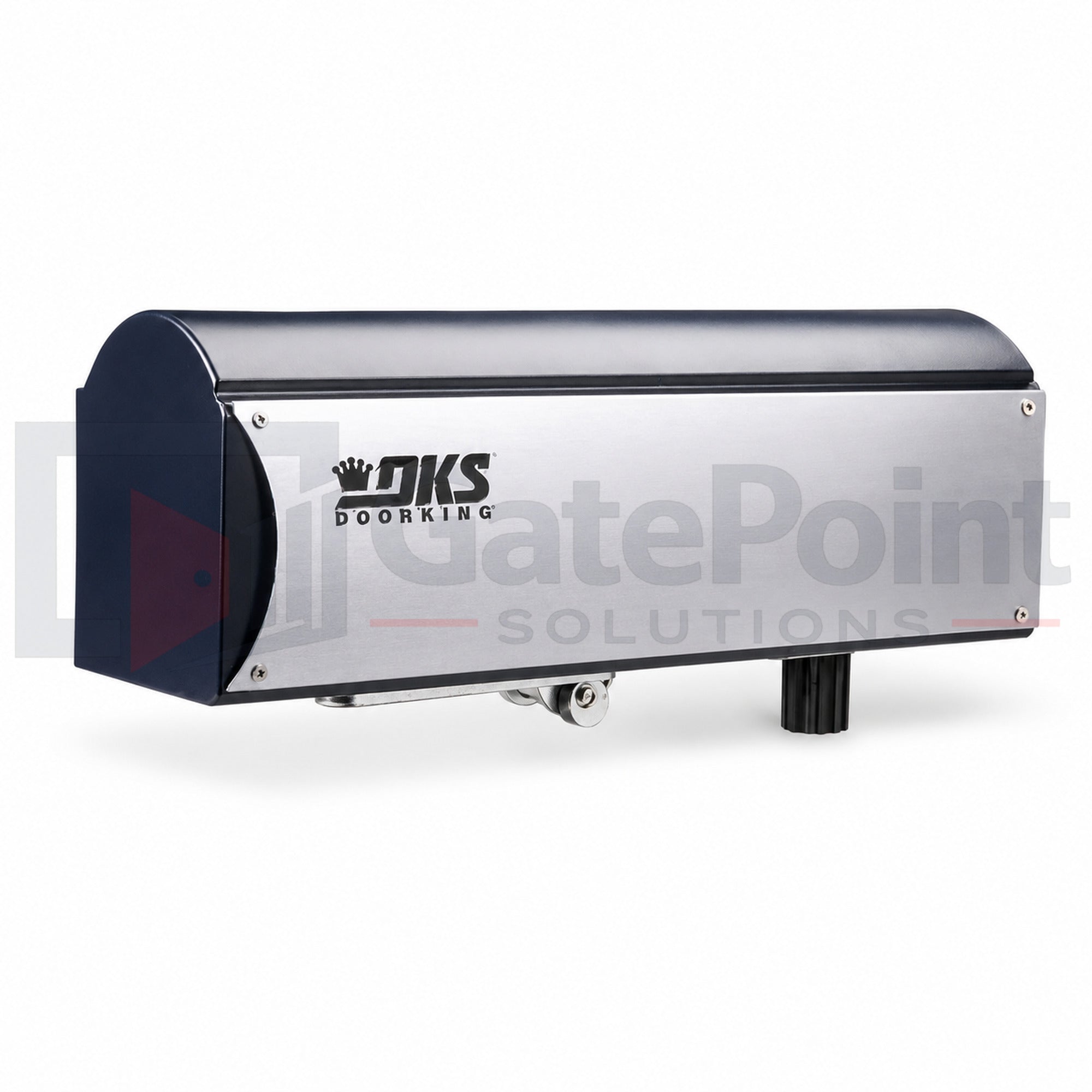

The DoorKing 6004-380 is a premium 24VDC column mount swing gate operator engineered specifically for residential and light commercial gates installed on large masonry, brick, stone, or decorative columns where traditional gate operators are difficult to mount. Its compact design mounts directly to the column, eliminating the need for concrete pads or extensive site modifications while maintaining a clean, professional appearance.
Powered by a reliable 24VDC continuous-duty motor, the 6004-380 delivers smooth Soft Start/Soft Stop operation while reducing stress on the gate and hardware. The enclosed screw-drive mechanism requires minimal maintenance and provides dependable long-term performance without the hydraulic leaks or complex servicing associated with hydraulic operators.
The operator includes integrated battery backup, allowing the gate to continue operating during power outages. It is also compatible with DoorKing's optional solar control box, making it an excellent choice for locations where AC power is unavailable or costly to install.
Designed to meet current UL 325 safety standards, the 6004-380 integrates seamlessly with monitored safety devices and a wide range of DoorKing access control equipment for secure and reliable automated entry.
Key Features
- Genuine DoorKing 6004-380 column mount swing gate operator
- Specifically designed for large columns and decorative entryways
- 24VDC continuous-duty motor
- Compact direct-column mounting design
- Built-in battery backup for uninterrupted operation
- Optional solar power capability
- Soft Start / Soft Stop technology
- Fully enclosed screw-drive mechanism
- Adjustable magnetic limit switches
- Integrated battery charger
- Supports dual gate overlap operation
- Compatible with monitored UL 325 safety devices
- Weather-resistant aluminum housing
- Quiet, smooth operation
Ideal Applications
- Residential estates
- Luxury homes
- Gated communities
- Decorative column entrances
- HOA entrances
- Ranch and farm properties
- Light commercial facilities
Specifications
- Manufacturer: DoorKing
- Model: 6004-380
- Product Type: Column Mount Swing Gate Operator
- Motor: 24VDC Continuous Duty
- Maximum Gate Length: 8 ft.
- Maximum Gate Weight: 500 lbs.
- Opening Speed: Approximately 90° in 18 seconds
- Mounting Style: Direct Column Mount
- Drive Type: Enclosed Screw Drive
- Battery Backup: Included
- Solar Compatible: Yes
- UL 325 Compliant: Yes
What's Included
- DoorKing 6004-380 Column Mount Swing Gate Operator
- 24VDC Motor Assembly
- Mounting Hardware
- Battery Backup System
- Installation Documentation
Control box, remotes, photo eyes, transmitters, keypads, solar panels, and additional accessories may be sold separately depending on system configuration.
