Description

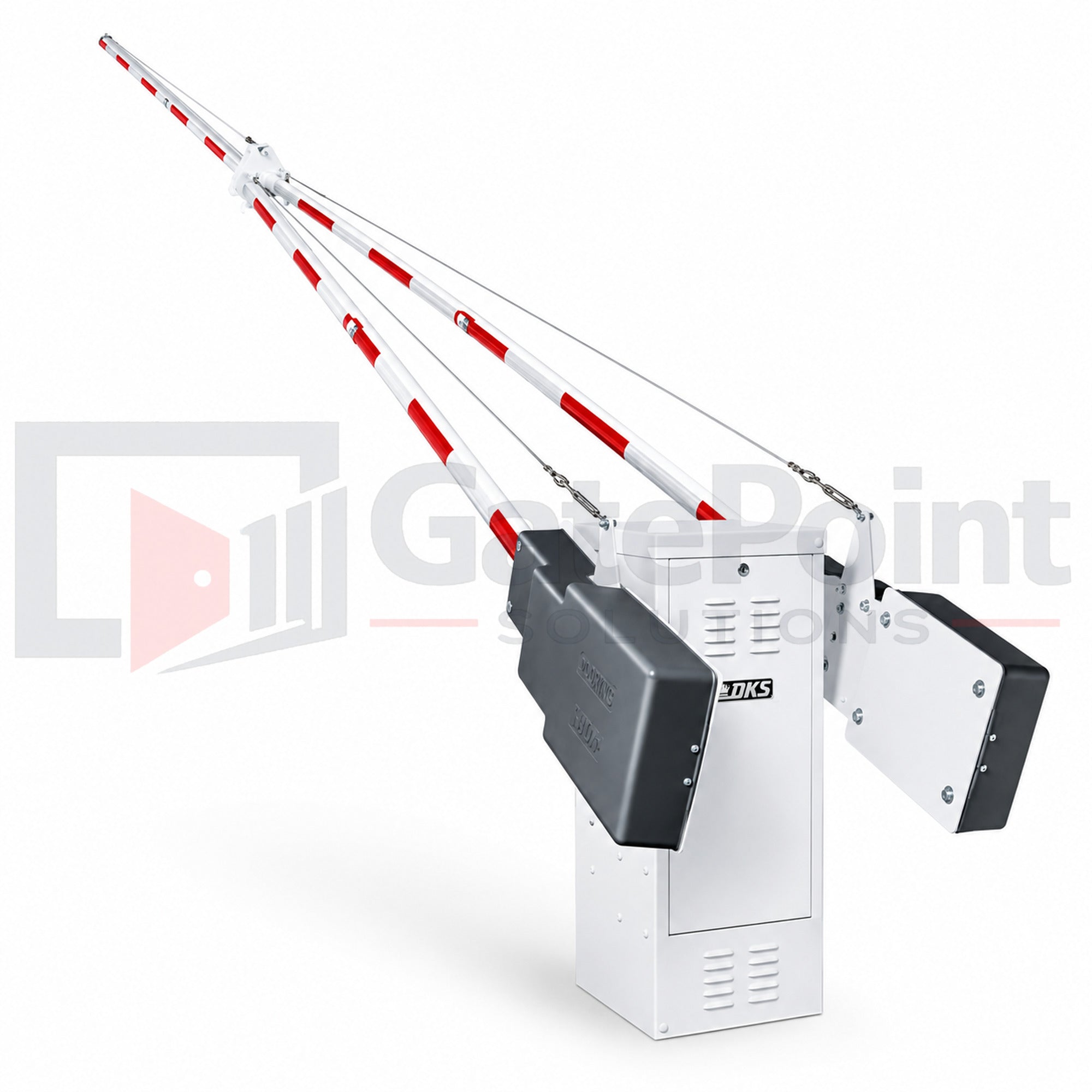

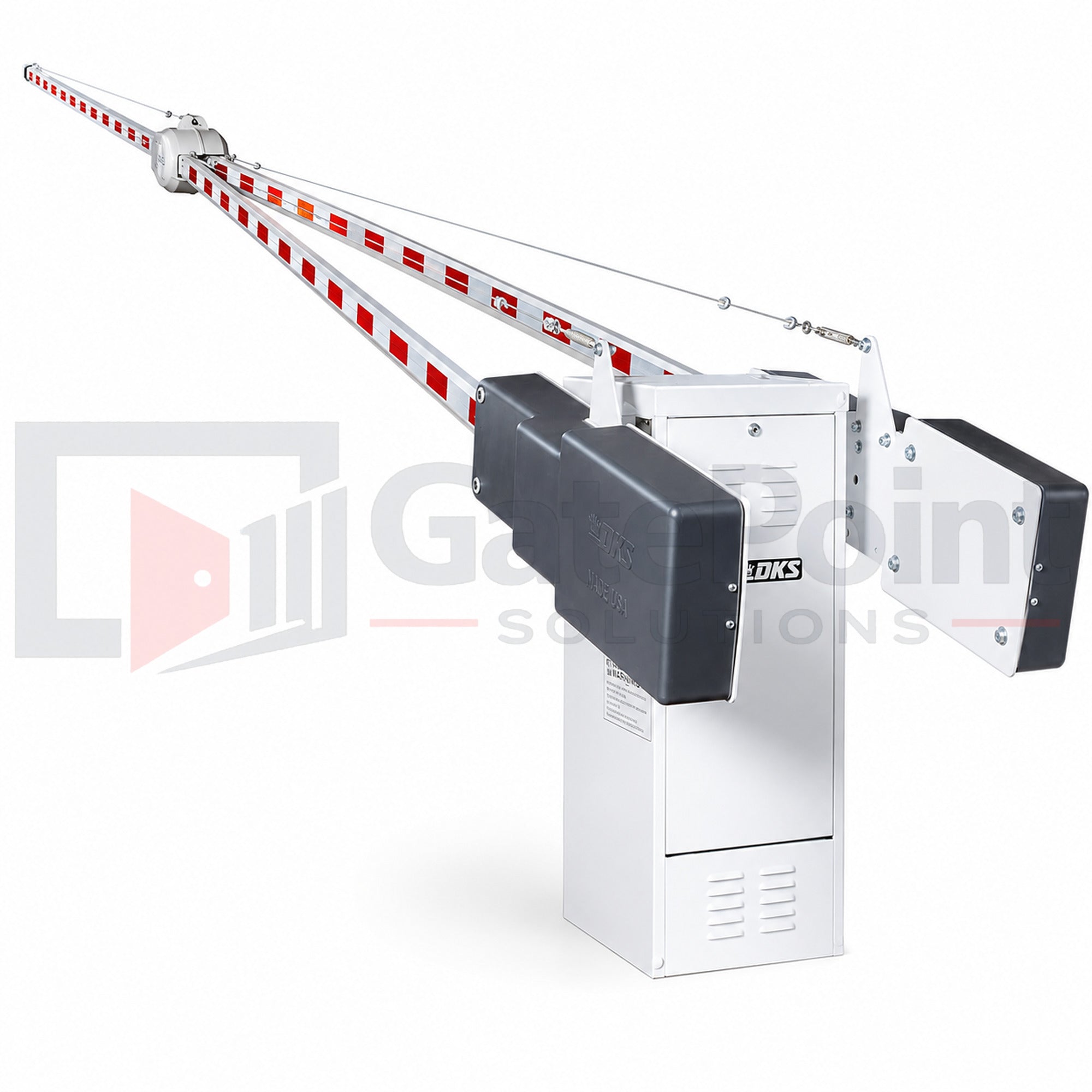

The DoorKing 1602-090 Barrier Arm Operator is engineered for wide-lane vehicular traffic control in commercial and industrial applications such as loading docks, warehouses, transportation facilities, and secured industrial sites. Designed for traffic lanes up to 27 feet wide, the 1602 combines rugged construction, smooth harmonic arm linkage operation, and dependable continuous-duty performance for demanding access control environments.
Featuring a powerful 1 HP continuous-duty motor and a heavy-duty oil-bath gearbox, the 1602 delivers controlled 90° arm rotation in approximately 5.5 seconds. Its versatile mounting design allows installation on either the left or right side of the roadway, while optional DC convenience open functionality provides automatic gate opening during AC power loss.
Features
- Heavy-duty traffic control barrier arm operator
- Designed for wide traffic lanes up to 27 ft.
- 1 HP continuous-duty motor
- Smooth harmonic arm linkage operation
- 90° arm rotation in approximately 5.5 seconds
- Left- or right-hand mounting capability
- Rugged commercial and industrial-grade construction
- Compatible with multiple barrier arm configurations
- Oil-bath gearbox for long-term durability
- Available DC convenience open option for power outages
Barrier Arm Compatibility
- Aluminum Round Wishbone Arms
- Aluminum Octagonal Wishbone Arms
- Aluminum Octagonal Single Arms
- Wood Barrier Arms
- LED / Reverse Edge Light Kits for Octagonal Arms
Advanced Control Features
- Magnetic limit controls
- Ports for plug-in loop detectors
- Automatic sequencing inputs for slide and swing gate operators
- Up input memory buffer
- Down memory option
- Multiple up command functionality
- Gate Tracker reporting output
- Programming switches
- Built-in power On/Off switch
Safety & Compliance
- UL 325 and UL 991 compliant
- ETL Listed
- Class III and IV application rated
- Compatible with monitored entrapment protection devices
- Optional DKS Pedestrian Protection System compatibility
Mechanical
- Heavy-duty 60:1 oil-bath gearbox
- Continuous-duty operation
- Two integrated convenience outlets
- Smooth and accurate harmonic arm linkage movement
- Designed for low-use commercial and industrial applications
Specifications
- Motor: 1 HP Continuous-Duty
- Voltage: 115V Standard
- Gearbox: 60:1 Oil-Bath Reduction System
- Opening Time: Approximately 5.5 Seconds
- Maximum Lane Width: 27 Ft.
- Operator Dimensions: 15.25" W x 39.75" H x 15.75" D
- Application Class: Class III & IV
Optional Accessories
- LED / Reverse Edge Arm Kits
- Plug-In Loop Detectors
- DC Convenience Open Package
- Heater Kit
- Fan Kit
- Surge Suppressors
- Manual Crank Kit (Factory Installed)
Ideal Applications
- Industrial Facilities
- Loading Dock Entrances
- Truck Yards
- Commercial Vehicle Access Lanes
- Distribution Centers
- Secured Traffic Control Points
Note: Barrier arm, hardware kit, safety devices, and loop detectors sold separately unless otherwise specified.
