Description

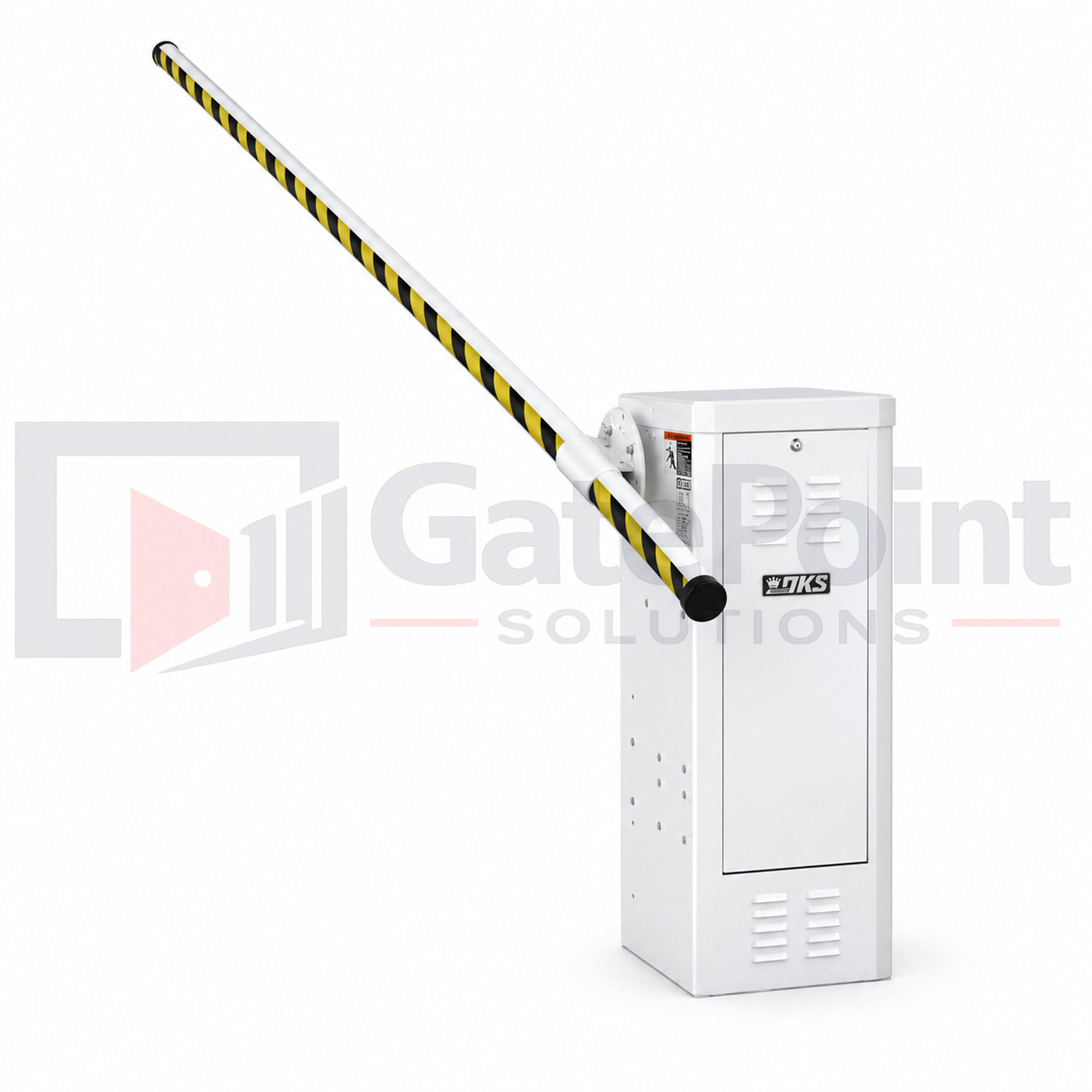

The DoorKing 1601-381 DC Battery Backup Barrier Arm Operator is designed for high-usage single-lane vehicular traffic control in commercial, industrial, apartment, and gated community applications. Featuring a fast 2.5-second opening cycle, rugged steel construction, and integrated battery backup capability, the 1601-381 delivers dependable access control performance even during power outages.
Engineered for continuous-duty operation, the 1601-381 supports barrier arms up to 14 ft. and is ideal for demanding traffic environments requiring reliable high-cycle operation. Its oil-bath gearbox, advanced electronic controls, and versatile mounting design provide smooth, long-lasting performance for parking control and secured entry applications.
Features
- High-usage single-lane barrier arm operator
- Integrated DC battery backup capability
- Fast 90° arm rotation in approximately 2.5 seconds
- Heavy-duty continuous-duty motor
- Rugged G90 galvanized steel housing
- Left- or right-hand mounting configuration
- Smooth gearbox operation with extended service life
- Class II, III, and IV application rated
- Compatible with multiple DoorKing access control systems
- Available in white or gun metal gray finish
Advanced Control Features
- Magnetic electronic limit controls
- Adjustable auto-close timer
- Up input memory buffer
- Down memory option
- Multiple up command functionality
- Ports for plug-in loop detectors
- P.A.M.S. sequencing compatibility with slide and swing gate operators
- Gate Tracker™ reporting output compatibility
Safety & Security
- UL 325 and UL 991 compliant
- ETL Listed
- Fail-secure mechanical release system
- Compatible with monitored entrapment protection devices
- Optional DKS Pedestrian Protection System compatibility
- Optional breakaway hardware kit minimizes damage from vehicle impacts
Mechanical
- 40:1 oil-bath gearbox reduction system
- Continuous-duty operation
- 360° gearbox rotation before direction change for reduced wear
- Two integrated convenience outlets
- Supports multiple arm configurations and accessories
Specifications
- Voltage: 115V Standard
- Arm Rotation: 90° in approximately 2.5 seconds
- Maximum Arm Length: 14 Ft.
- Housing: G90 Galvanized Steel
- Operating Temperature: 10°F to 140°F (-12°C to 62°C)
- Dimensions: 15.25" W x 39.5" H x 14.75" D
- Shipping Weight: Approximately 140–160 lbs.
Compatible Arm Options
- Aluminum Octagonal Arms
- Round Aluminum Arms
- Plastic Arms
- Wood Arms
- Folding Arms
- Breakaway Arms
- Lighted LED Arms
Ideal Applications
- Commercial Parking Facilities
- Industrial Traffic Control
- Apartment Complexes
- Gated Communities
- Secured Access Lanes
- High-Traffic Entry & Exit Points
Note: Hardware kit, barrier arm, loop detectors, and safety devices sold separately unless otherwise specified.
