Description

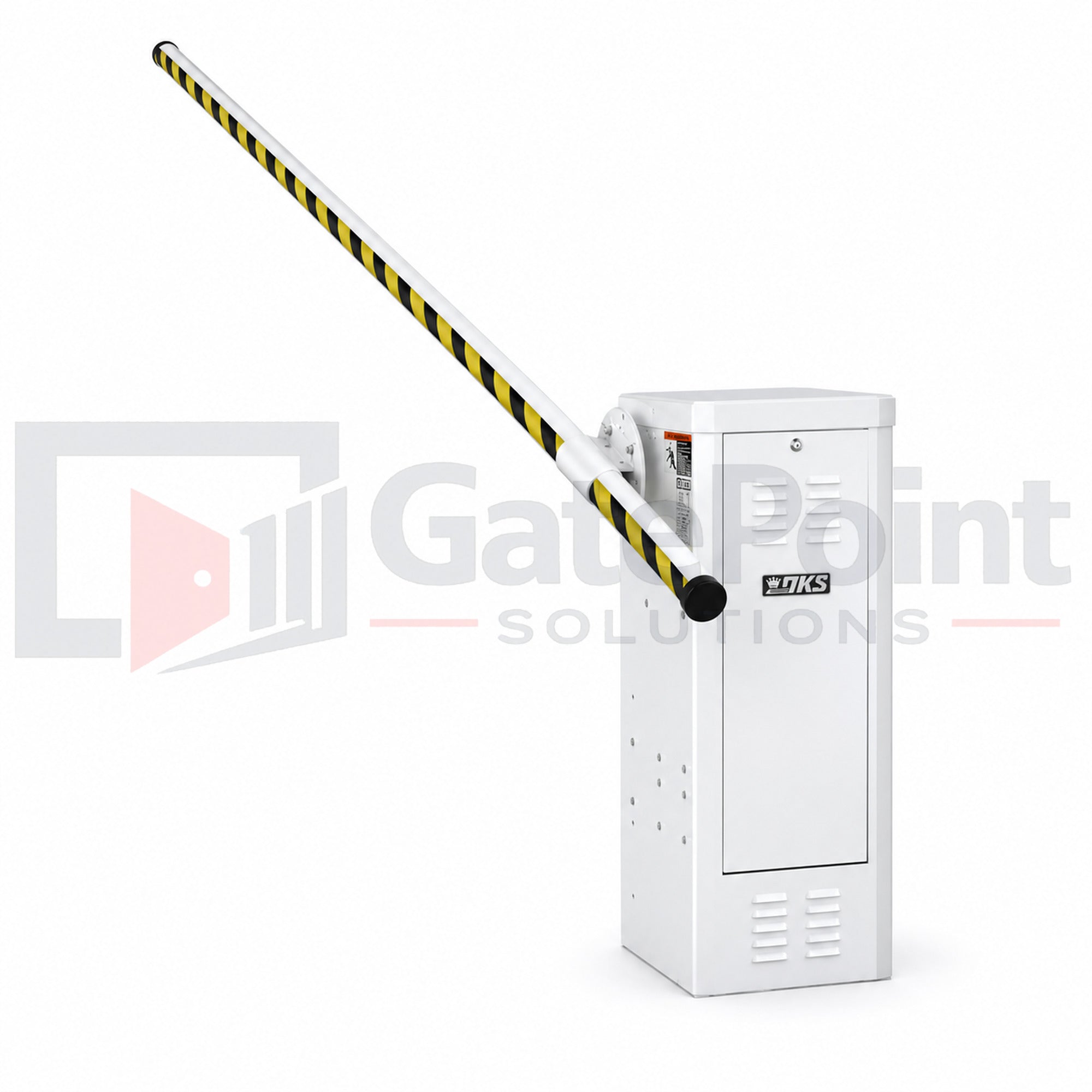

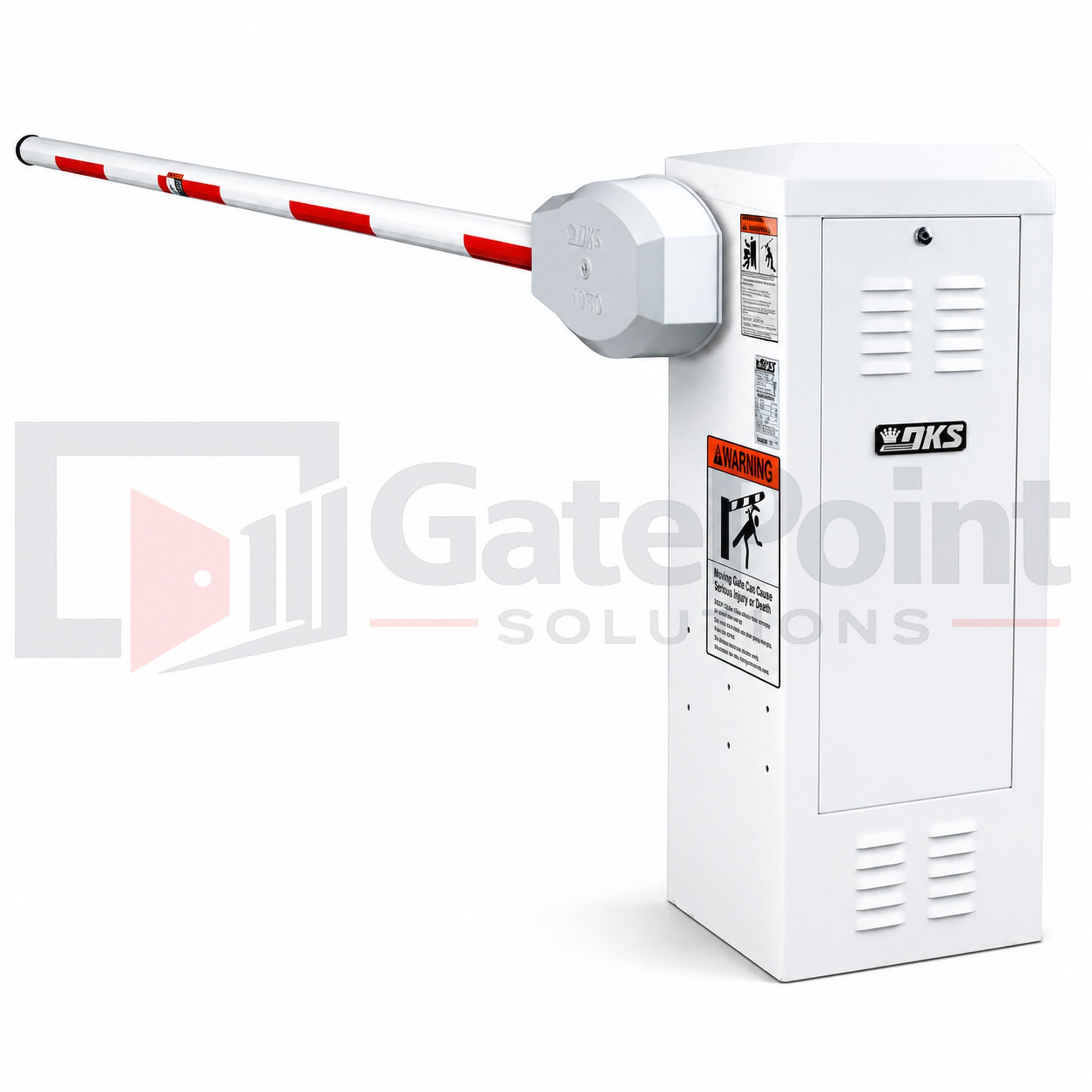

The DoorKing 1601-380 Barrier Arm Operator is engineered for high-usage single-lane vehicular traffic control in commercial, industrial, gated community, and apartment complex applications. Featuring a fast 2.5-second opening time, rugged galvanized steel construction, and versatile mounting options, the 1601 delivers reliable performance in demanding traffic environments.
Designed for Class II, III, and IV applications, the 1601 supports barrier arms up to 14 ft. and can be mounted on either the left or right-hand side of the roadway. Its continuous-duty motor, oil-bath gear reduction system, and advanced electronic controls provide smooth, dependable operation for high-cycle parking and access control applications.
Features
- High-usage single-lane barrier gate operator
- Fast 90° arm rotation in approximately 2.5 seconds
- 1/2 HP continuous-duty motor
- Heavy-duty 40:1 oil-bath gearbox
- G90 galvanized steel housing for corrosion resistance
- Left- or right-hand mounting capability
- Smooth operation with 360° gearbox rotation before motor reversal
- Magnetic electronic limit controls
- Auto-close timer adjustable from 3.5 to 59 seconds
- Built-in power on/off switch
- Multiple programmable operating functions
- Two integrated convenience outlets
- ETL Listed and compliant with UL 325 & UL 991 standards
Advanced Control Features
- Up input memory buffer
- Down memory option
- Multiple up commands
- Port for plug-in open detector
- Port for plug-in reverse detector
- P.A.M.S. sequencing compatibility with slide and swing gate operators
- Gate Tracker™ reporting output for compatible DoorKing access systems
Safety & Security
- Fail-secure mechanical release method
- Compatible with DKS Pedestrian Protection System
- Supports monitored entrapment protection devices
- Optional breakaway arm kit minimizes damage from vehicle impact
Optional Accessories
- Aluminum octagonal lighted barrier arms
- Breakaway hardware kits
- Folding arm kits
- Two-piece aluminum arm kits
- Thermostatically controlled heater kit
- Battery-powered convenience open option
Specifications
- Motor: 1/2 HP Continuous-Duty
- Voltage: 115V Standard
- Gear Reduction: 40:1 Oil-Bath Gearbox
- Opening Speed: Approximately 2.5 Seconds
- Maximum Arm Length: 14 Ft.
- Housing: G90 Galvanized Steel
- Operating Temperature: 10°F to 140°F (-12°C to 62°C)
- Dimensions: 15.25" W x 39.5" H x 14.75" D
- Shipping Weight: Approximately 140–160 lbs.
Recommended Applications
- Commercial Parking Facilities
- Industrial Traffic Control
- Apartment Complexes
- Gated Communities
- Private Access Roads
- Controlled Entry & Exit Lanes
Note: Barrier arm, arm hardware kit, loop detectors, and safety devices sold separately unless otherwise specified.
