Description

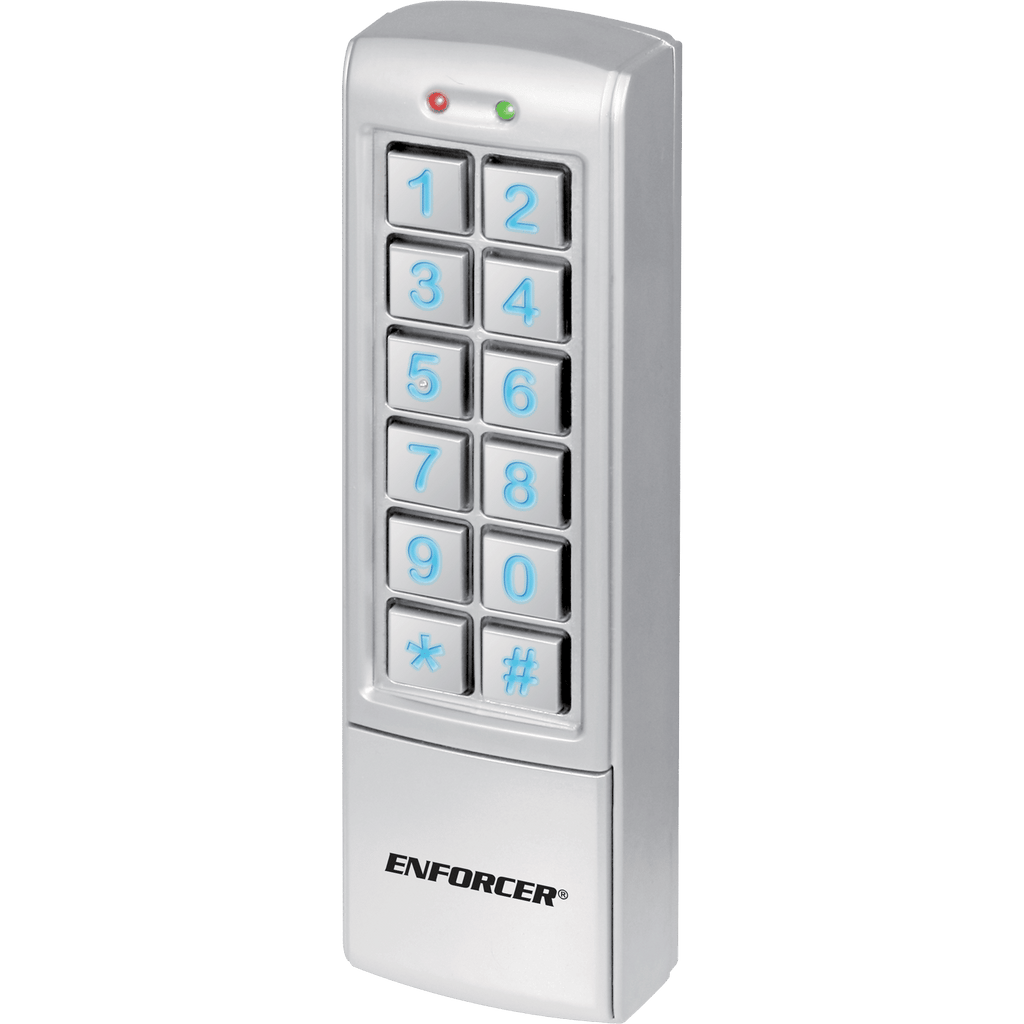

Digital Access Keypads, Mullion-Style, Weatherproof is a robust, mullion-mounted access control keypad designed for high-traffic entrances. Ideal for offices, multi-tenant buildings, and outdoor entryways, it delivers expansive user capacity and flexible wiring in a weatherproof package.
- Form factor: Mullion‑style housing designed for standard door frames and exterior installations
- Power & Operation: 12–24 VAC/VDC operation for versatile wiring options
- User Capacity: Supports up to 1,010 user codes for scalable access management
- Relay Configuration: 2 Form C relays, each rated 1A at 30VDC for door strike or auxiliary control
- Programmable Outputs: Output #2 can be programmed for a doorbell or other signaling needs
- Access & Exit: 2 egress inputs to allow secure exit without code entry
- Backlit Keys: Illuminated keypad for clear operation in low light
- Security & Anti-Tailgating: Door sensor input supports anti-tailgating and enhanced monitoring
- Programming: All features programmable directly from the keypad—no external programmer required
- Memory & Reliability: EEPROM memory protects programmed information during power loss
- Tamper Protection: Optical tamper detection adds reassurance against tampering
- Durability & Weatherproofing: IP65 weatherproof rating with epoxy-sealed circuitry in a rugged aluminum housing
- Unit specs: 12–24 VAC/VDC; 1,010 user codes; 2 Form C relays (1A @ 30VDC); timed output 1–99 seconds or toggle; Output #2 for doorbell; 2 egress inputs; backlit keys; door sensor input; EEPROM; optical tamper; IP65; epoxy-sealed aluminum housing; mullion-style
This keypad is designed to simplify entry management while standing up to outdoor conditions. Use it to replace traditional keys, streamline code-based access for staff and contractors, and coordinate door control with doorbell signaling and anti-tailgating measures. Its keypad-based programming reduces installation time and maintenance effort, making it a practical, scalable solution for modern access control needs.
