Description

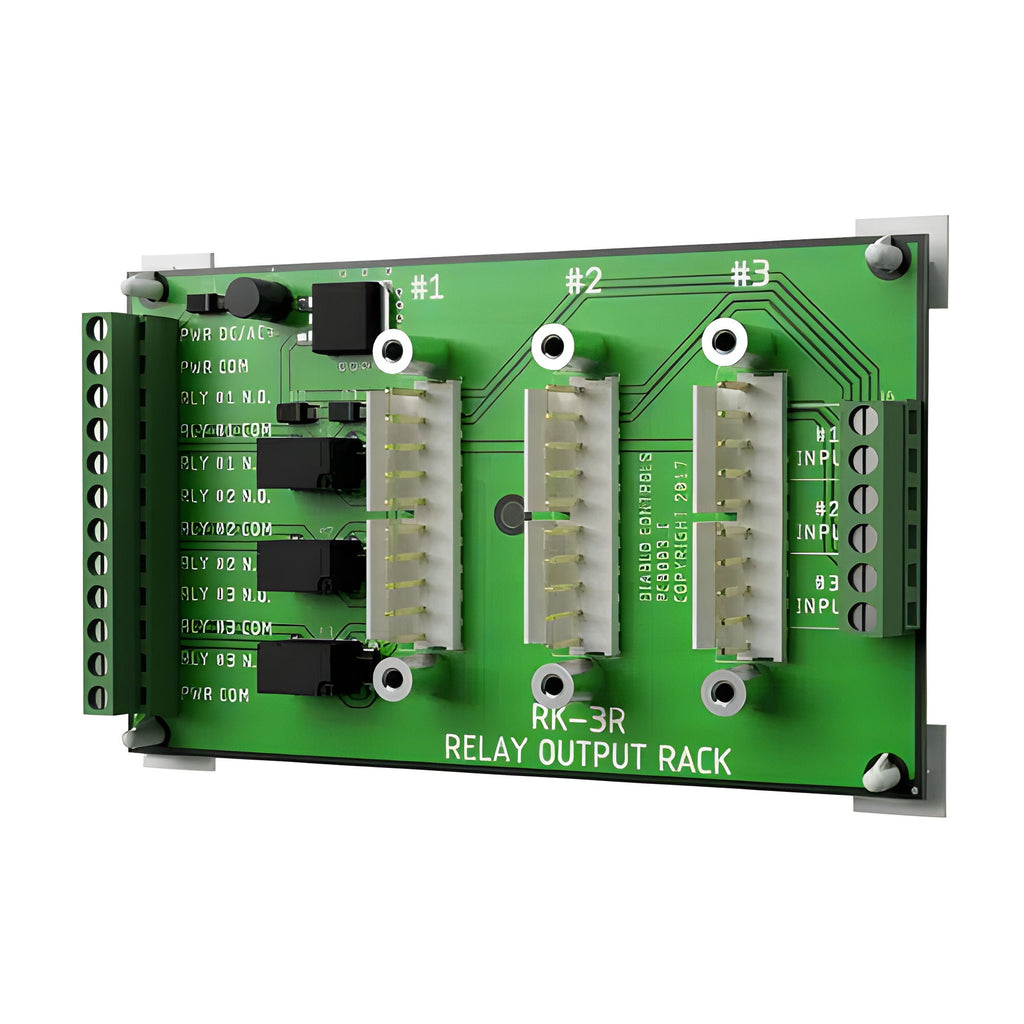

The Diablo RK-3R Loop Rack with Built-In Relay is a compact, three-detector integration hub designed for control systems that use plug-in vehicle detectors. It’s ideal for tight spaces and system upgrades, offering reliable relay outputs and broad detector compatibility.
- Triple Detector Capacity: Accommodates up to three plug-in vehicle detectors, maximizing space and functionality in a single, slim enclosure.
- Built-In Relay Outputs: Each detector slot includes a single SPDT (Form C) relay output with Normally Open, Normally Closed, and Common connections for versatile control tasks.
- Wide Compatibility: Supports Diablo Controls models DSP-13, DSP-40, DSP-50, DSP-55, and AVI-40 for seamless integration into existing systems.
- Compact Design: Measures 5.00” (H) x 3.00” (W) x 0.736” (D), ideal for installations with limited cabinet space.
- Easy Installation: Includes four self-adhesive mounts and terminal strips for straightforward wiring to power, loops, and relay outputs.
- Wide Voltage Range: Operates efficiently from 10.5 to 30 volts AC or DC, accommodating multiple power sources on site.
- Rugged Temperature Range: Designed to perform from -35°F to 165°F (-37°C to 74°C), ensuring reliable operation in diverse environments.
- Output Capability: Relay outputs rated up to 3 A at 125 V, providing robust signaling for gates, alarms, and interlock functions.
- Dimensions & Wiring: 5.00" (H) x 3.00" (W) x 0.736" (D) with dedicated terminal strips for power inputs, loop connections, and relay outputs.
The RK-3R is a practical, scalable solution for integrating multiple plug-in vehicle detectors into control systems that require reliable relay signaling. Its compatibility with a range of Diablo Controls detectors allows you to adapt to evolving layouts without replacing your entire rack. The compact form factor, easy wiring, and durable construction make it suitable for new installations and upgrades in parking facilities, access control points, and traffic-management setups, where reliable detector integration and clear relay outputs are essential.
