Description

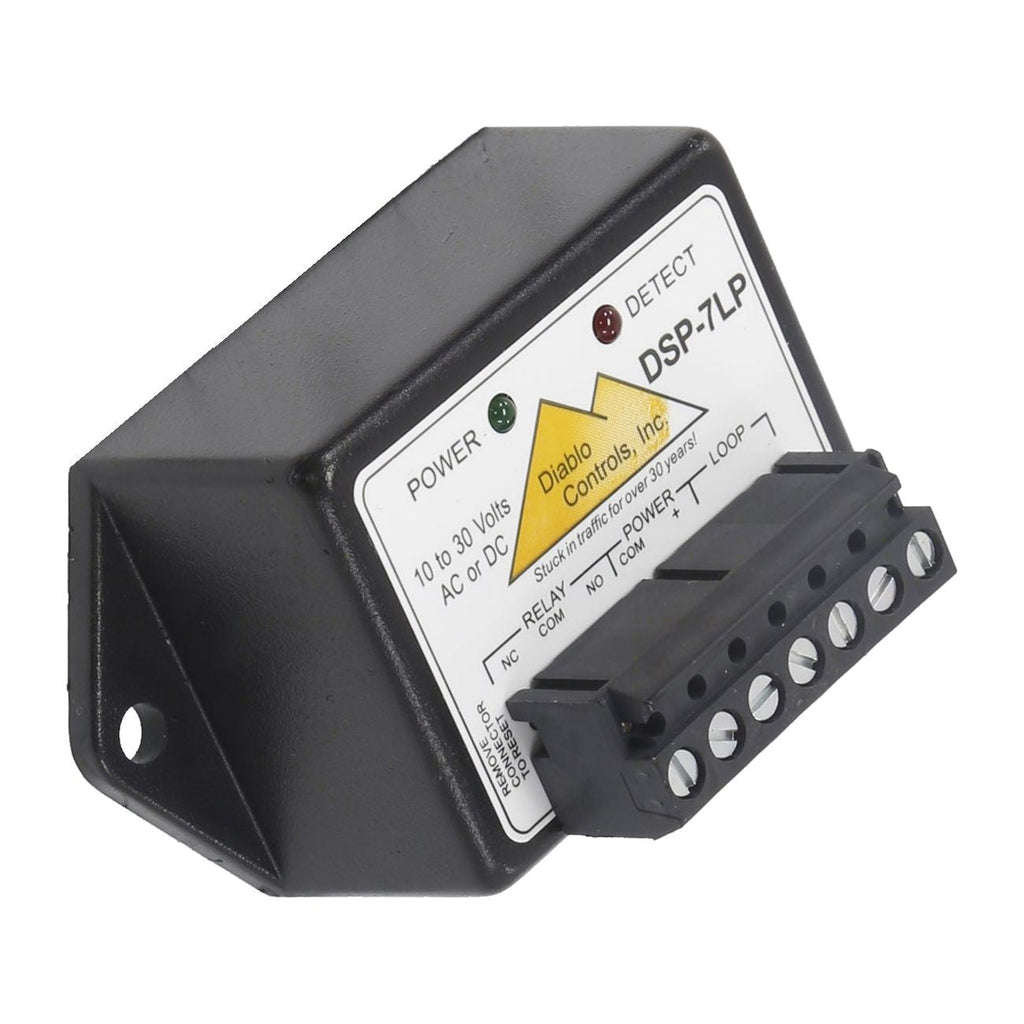

The Diablo DSP-7LP Low Power Vehicle Loop Detector is a compact, plug-and-play sensor for access control and traffic management, ideal for solar-powered sites and space-constrained installations. It detects vehicles reliably while drawing minimal power and includes fail-safe operation to keep gates open during loop faults.
- Power and Voltage: Operating voltage 10–30 V AC/DC with a minimal 1 mA current draw when idle, making it suitable for battery or solar-powered systems.
- Loop Inductance Range: Supports 20 µH to 1500 µH, enabling versatile loop sizes and lead-in configurations.
- Fail-Safe Operation: Keeps gates open during loop circuit failures to maintain uninterrupted vehicle flow.
- Plug-and-Play Installation: Switchless and self-adapting, requiring no manual configuration for quick setup.
- Cross-Talk Prevention: Designed to operate with multiple detectors in proximity without interference or false triggers.
- Automatic Adjustment: Self-tunes to varying loop and lead-in sizes for consistent and accurate detection across environments.
- LED Indicators: Green LED for power and diagnostics; red LED confirms vehicle detection for immediate status checks.
- Relay Output: 1 A at 125 VAC maximum, suitable for driving control relays or gate mechanisms.
- Compact, Durable Design: Dimensions 1.52" H x 2.90" W x 1.56" D, housed in a high-temperature, impact-resistant enclosure for harsh environments.
- Temperature Range: Operates from -35°F to 165°F (-37°C to 74°C), ensuring reliable performance across climates.
- Connector: Removable 7-pin terminal block with standard pin assignments for straightforward wiring.
- Enclosure Material: Made from durable high-temperature, impact-resistant plastic built to withstand demanding outdoor or roadside conditions.
The DSP-7LP offers a practical balance of innovation and reliability for vehicle detection in modern access control systems. Its ultra-low power consumption makes it ideal for solar-powered installations, while the fail-safe design ensures continuous traffic flow during loop issues. With automatic configuration, cross-talk resistance, and a compact, rugged enclosure, it simplifies installation and enhances the efficiency and reliability of your gating or parking solutions. This detector is well-suited for rural entrances, remote parking lots, and facilities pursuing energy-efficient, low-maintenance vehicle detection.
