Description

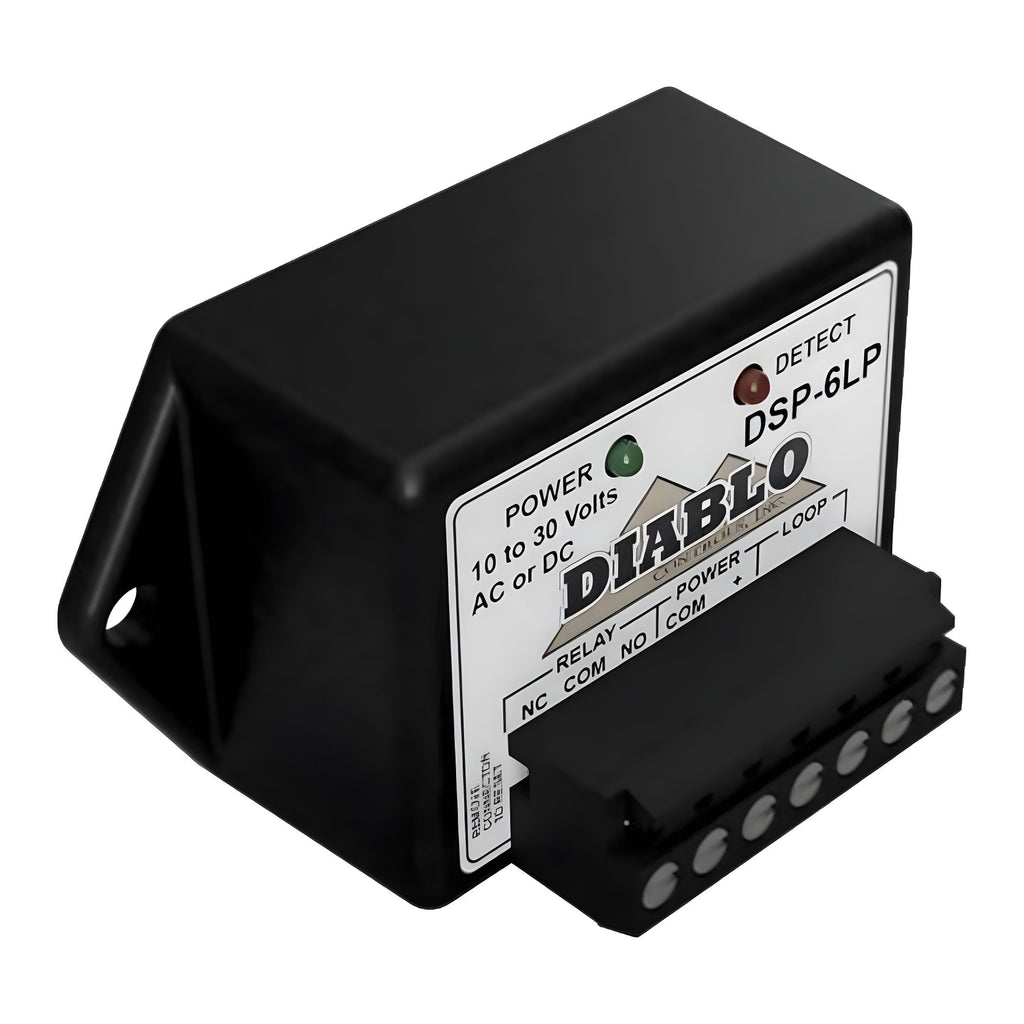

Meet the Diablo DSP-6LP Low Power Vehicle Loop Detector — a plug‑and‑play solution designed for solar‑powered gates, parking lots, and driveway access. engineered for reliability in unattended installations, it delivers secure vehicle detection with minimal power use and seamless operation in multi‑loop environments.
- Power and voltage: Operates on 10 to 30 volts AC/DC, drawing only 1 mA when idle — ideal for solar-powered systems and battery-backed installations.
- Automatic Sensitivity Adjustment: Self‑configures to loop and lead‑in sizes, eliminating manual setup and speeding up installs.
- Fail‑Secure Operation: Keeps the gate closed during a loop failure, enhancing security for high‑risk or restricted areas.
- LED Status Indicators: Green Power LED blinks to indicate operation; Red Detect LED confirms vehicle presence for immediate feedback.
- Compact, Durable Design: Impact‑resistant plastic enclosure measuring 1.52" H × 2.90" W × 1.56" D for tight spaces and rugged environments.
- Plug‑and‑Play Simplicity: No switches or settings to configure — simply connect and activate for fast deployment.
- Cross‑Talk Free Technology: Patented Non‑Interfering Vehicle Detection prevents interference with adjacent loops in multi‑loop installations.
- Loop Inductance Range: Supports 20 µH to 1500 µH (including lead‑in inductance) for a wide variety of loop configurations.
- Operating Conditions: Reliable from -35°F to 165°F (-37°C to 74°C) in harsh outdoor or indoor settings.
- Relay Output: Handles up to 1 A at 125 VAC, suitable for controlling gates, relays, or alarm circuits.
Designed for energy‑conscious applications, the DSP‑6LP is a smart choice for solar‑powered gates and unattended entry points. Its fail‑secure behavior protects perimeters, while automatic sensitivity and cross‑talk prevention deliver dependable performance in busy driveways and high‑security facilities. Whether you’re modernizing an access system or expanding a solar‑powered installation, the DSP‑6LP combines efficiency, reliability, and easy setup into a compact, durable package.
