Description

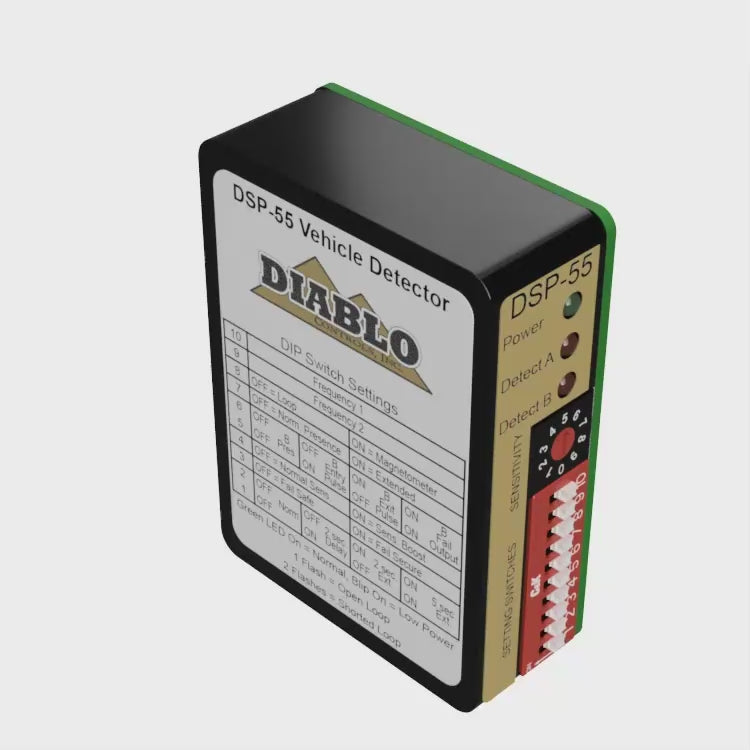

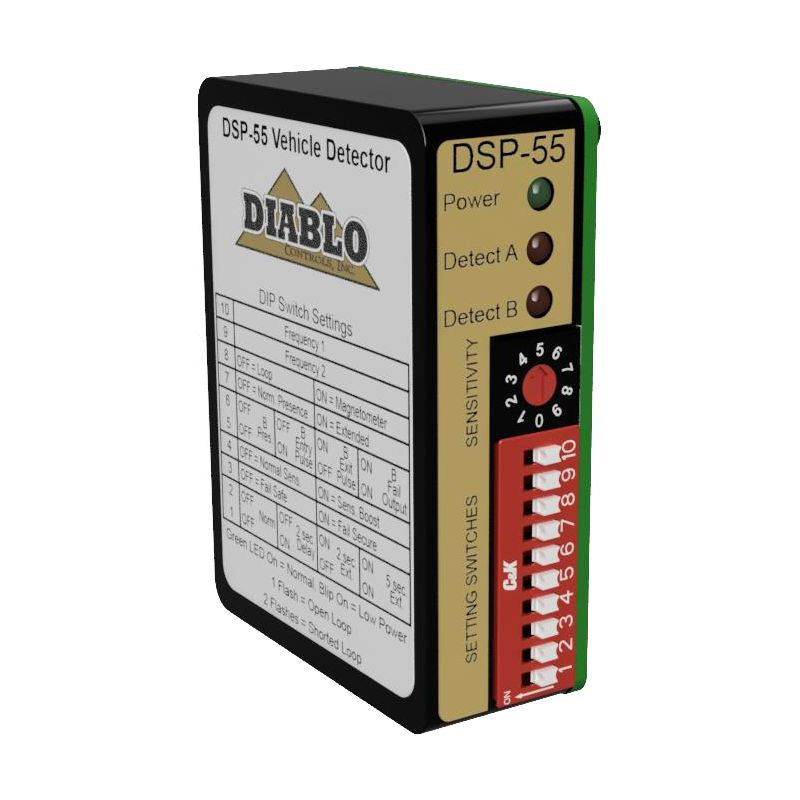

The Diablo DSP-55 Plug-In Loop Detector is a versatile vehicle detection solution designed for professional installers and energy-conscious sites. It delivers reliable presence and pulse detection by integrating with standard inductive loops and Diablo Controls' Free Exit Probes.
- Plug-In Design: Simplifies installation and ensures compatibility with control boards that support plug-in loop detectors.
- Dual Detection Options: Works with standard inductive loops for presence or pulse detection and Free Exit Probes for exit-only applications.
- Broad Compatibility: Easily integrates with most gate operators and control boards sharing a DC common connection.
- Adapter Board Options: Compatible with RK-1 and RK-3 adapter boards for setups requiring additional connectors.
- Wide Voltage Range: Operates 8 to 35 volts DC, making it ideal for solar-powered systems.
- Customizable Detection Settings: 10 sensitivity levels, 4 frequency options, and adjustable delay or extension timers.
- Fail-Safe or Fail-Secure Modes: Select the mode that fits your safety and security requirements.
- Energy-Efficient Solid-State Outputs: Three FET outputs (including inverted output) for reliable performance and reduced power consumption.

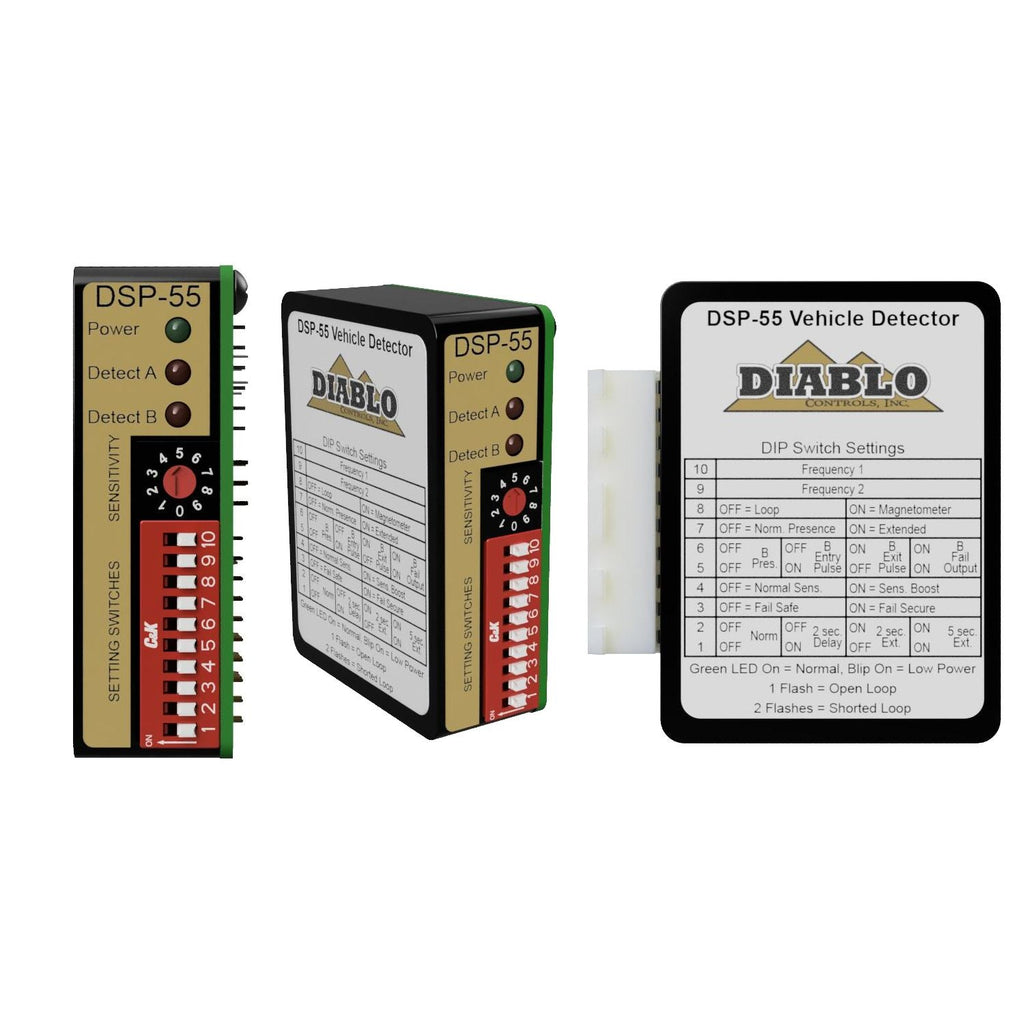

- Compact and Durable Design: Small profile fits into tight spaces and features impact-resistant plastic for long-term reliability.
- Technical Specifications Snapshot: Power Range 8–35 V DC; Current Draw 31 mA idle, 40 mA with a call; Loop Inductance 20 µH–1500 µH; Operating Temperature −35°F to 165°F (−37°C to 74°C); Outputs three solid-state outputs rated at 250 mA @ 30 V; Housing Dimensions 2.375" H x 2.240" W x 0.860" D; Detection Modes: presence/pulse via inductive loops or pulse-only via Free Exit Probes.
Designed for reliability in real-world deployments, the DSP-55 is ideal for solar-powered entrances, parking lots, and control points where space, efficiency, and compatibility matter. Its plug-in design accelerates installations, while the broad voltage range accommodates remote sites and energy-efficient setups. With selectable fail-safe or fail-secure operation and three solid-state outputs, you can tailor behavior to safety, security, and traffic requirements. This detector supports both new installations and retrofits, including integration with RK-1 and RK-3 adapter boards for expanded connector options. Whether you’re a professional installer or a DIY enthusiast, the DSP-55 delivers precise vehicle detection with minimal power draw and robust performance across temperature extremes.
