Description

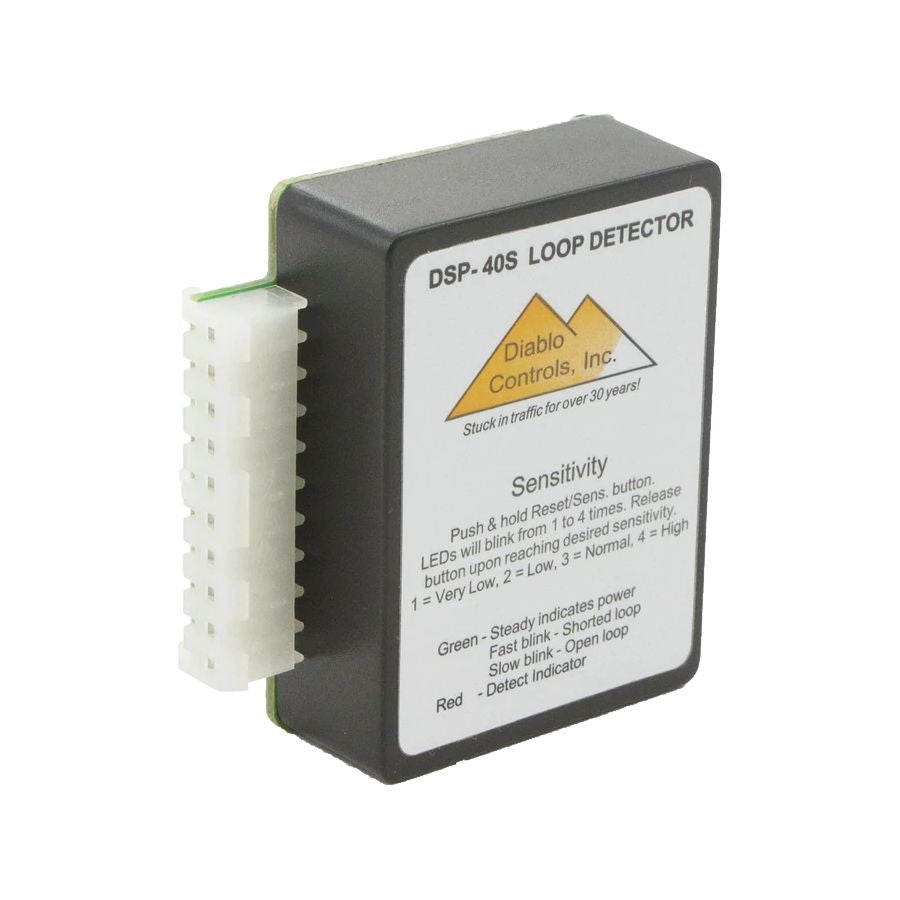

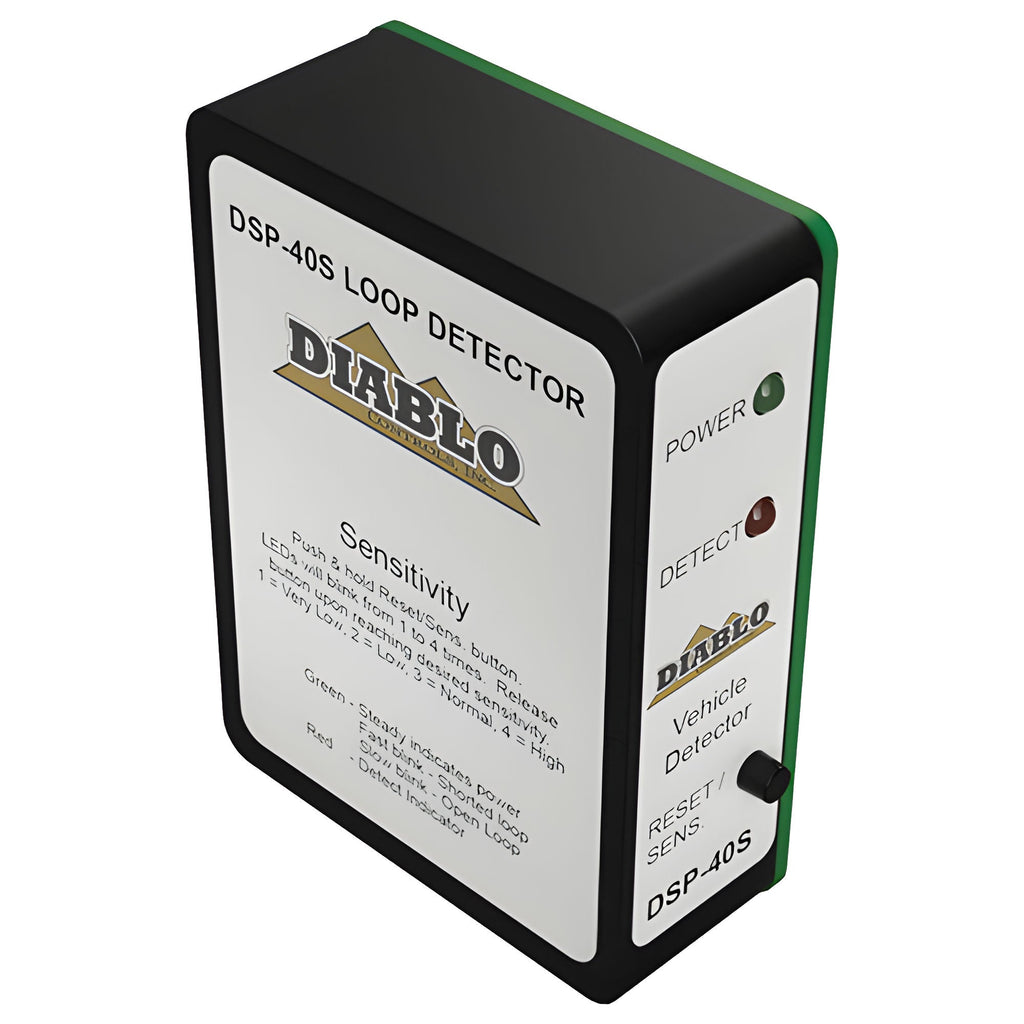

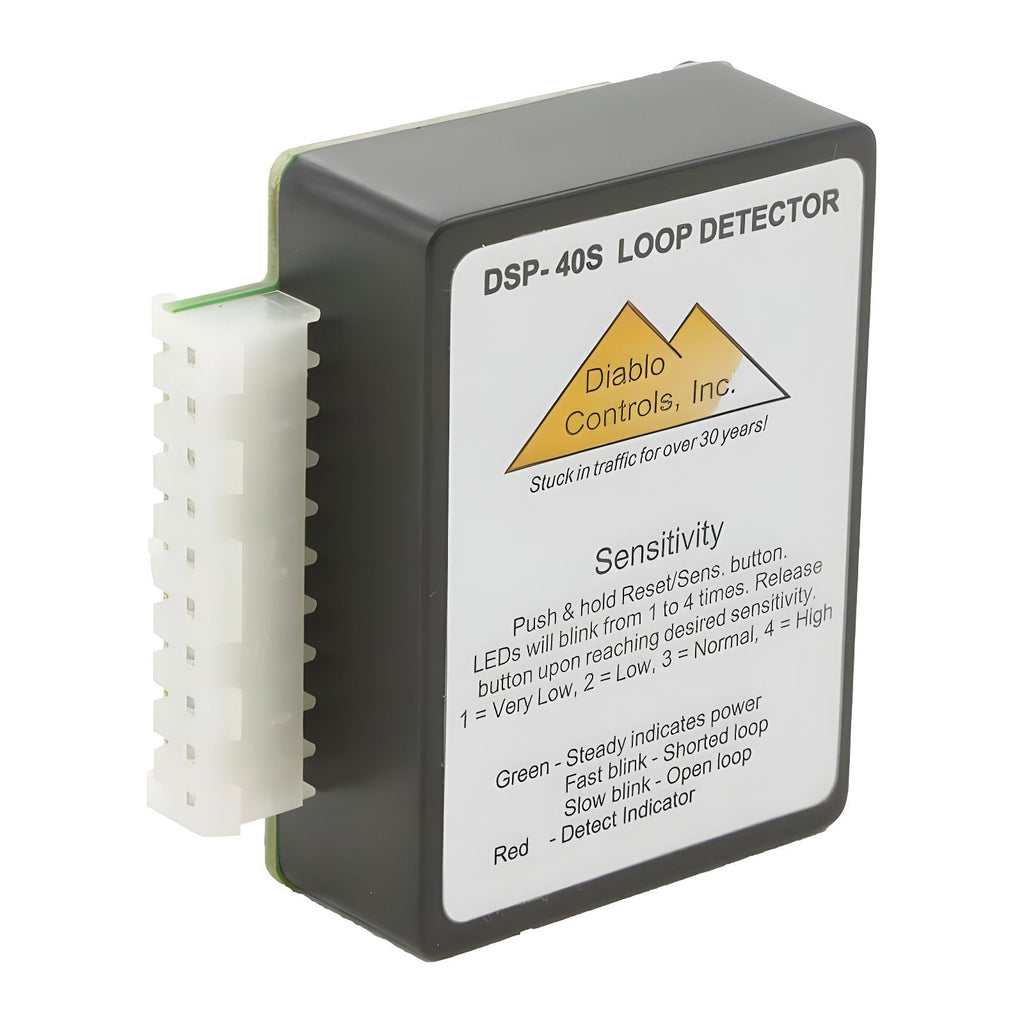

The DSP-40S Plug-N-Play Vehicle Detector from Diablo Controls is a compact, intelligent inductive loop detector designed for parking, drive-through, and access control systems. It delivers reliable vehicle detection with minimal cross-talk, making upgrades and new installations simpler and more efficient.
- Patented Non-Interfering Vehicle Detection: Advanced signal processing that minimizes cross-talk between loops, ensuring accurate vehicle detection even in dense loop configurations.
- Wide Voltage Compatibility: Operates on 8 to 35 volts DC, allowing flexible power options and easier integration with existing infrastructure.
- Adjustable Sensitivity: Four levels—Very Low, Low, Normal, High—so you can tailor detection to site-specific conditions and loop inductance.
- Fail-Safe Operation: Keeps the system functional and maintains traffic flow during loop fault conditions, enhancing safety and reliability.
- LED Status Indicators: Green Power and Red Detect LEDs provide real-time visual status for quick diagnostics and monitoring.
- Compact Design: Dimensions of 2.375" x 0.86" x 2.25" suit tight installations, with durable construction for harsh environments.
- Plug-and-Play Configuration: Pre-set sensitivity simplifies setup, reducing installation time and downtime for most sites.
- Versatile Loop Compatibility: Works with in-ground loops from 20 µH to 1500 µH (including lead-in), making it adaptable to a wide range of loop designs.
- Solid-State Output: Open-drain outputs sink up to 250 mA at 35V, providing reliable interfacing with controllers, gates, or access hardware.
- Wide Operating Temperature: Operates reliably from -35°F to 165°F (-37°C to 74°C), ideal for extreme environments and outdoor installations.
- Low Power Consumption: Draws 31 mA idle and 40 mA during a call, supporting energy-efficient deployments in large-scale systems.
The DSP-40S is the gold standard for vehicle detection in professional settings. It’s ideal for upgrading aging detectors in parking structures, optimizing entry and exit gates in parking facilities, and enhancing drive-through lanes with precise, maintenance-friendly technology. Its non-interfering detection, fail-safe operation, and plug-and-play setup translate to reduced downtime, fewer false detections, and smoother traffic flow. Backed by Diablo Controls’ expertise, the DSP-40S delivers dependable performance, straightforward installation, and long-term reliability for access control, parking, and drive-through applications.
