Description

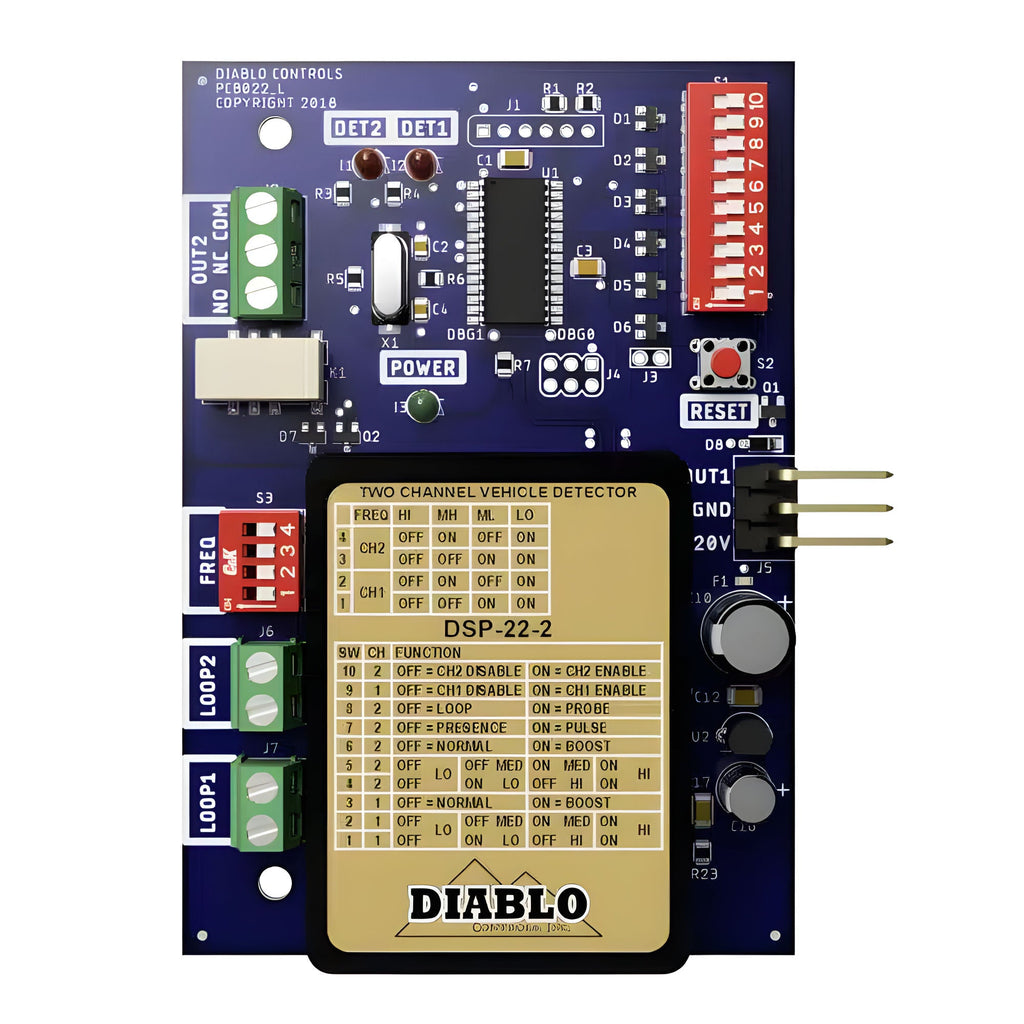

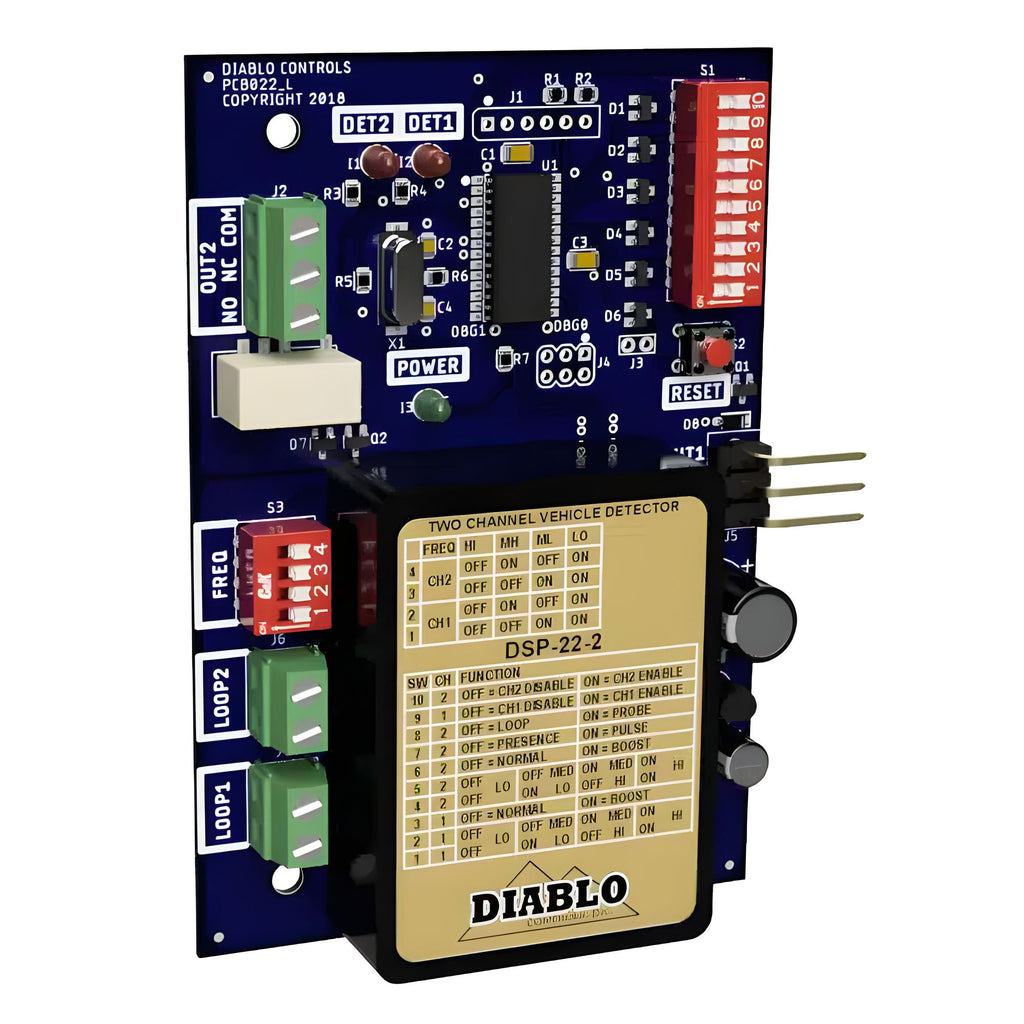

The Diablo DSP-22-2 Dual-Channel Vehicle Loop Detector for DoorKing Operators delivers precise, reliable vehicle detection tailored to DoorKing gate and access control systems. Designed for parking lots, gated communities, and industrial facilities, it combines two independent channels with advanced scanning to minimize noise and simplify loop placement.
- Dual-Channel Operation: Independently monitors two channels with advanced scanning to reduce interference and allow closer loop placement for flexible site layouts.
- Low Power Consumption: Idle current below 2 mA, making it an energy-efficient choice for larger installations and greener deployments.
- Selectable Sensitivity Levels: Four sensitivity settings plus a boost mode to reliably detect a wide range of vehicle sizes and materials, including hard-to-detect vehicles.
- Fail-Safe Design: Keeps outputs active during loop failure, ensuring gates, doors, or barriers remain operational and secure.
- Free Exit Probe Compatibility: Supports Diablo’s Free Exit Probe for quick, hands-free vehicle exits without manual intervention.
- Loop Monitoring and Fault Memory: Immediate alerts for current loop issues and a history of past faults to speed troubleshooting and minimize downtime.

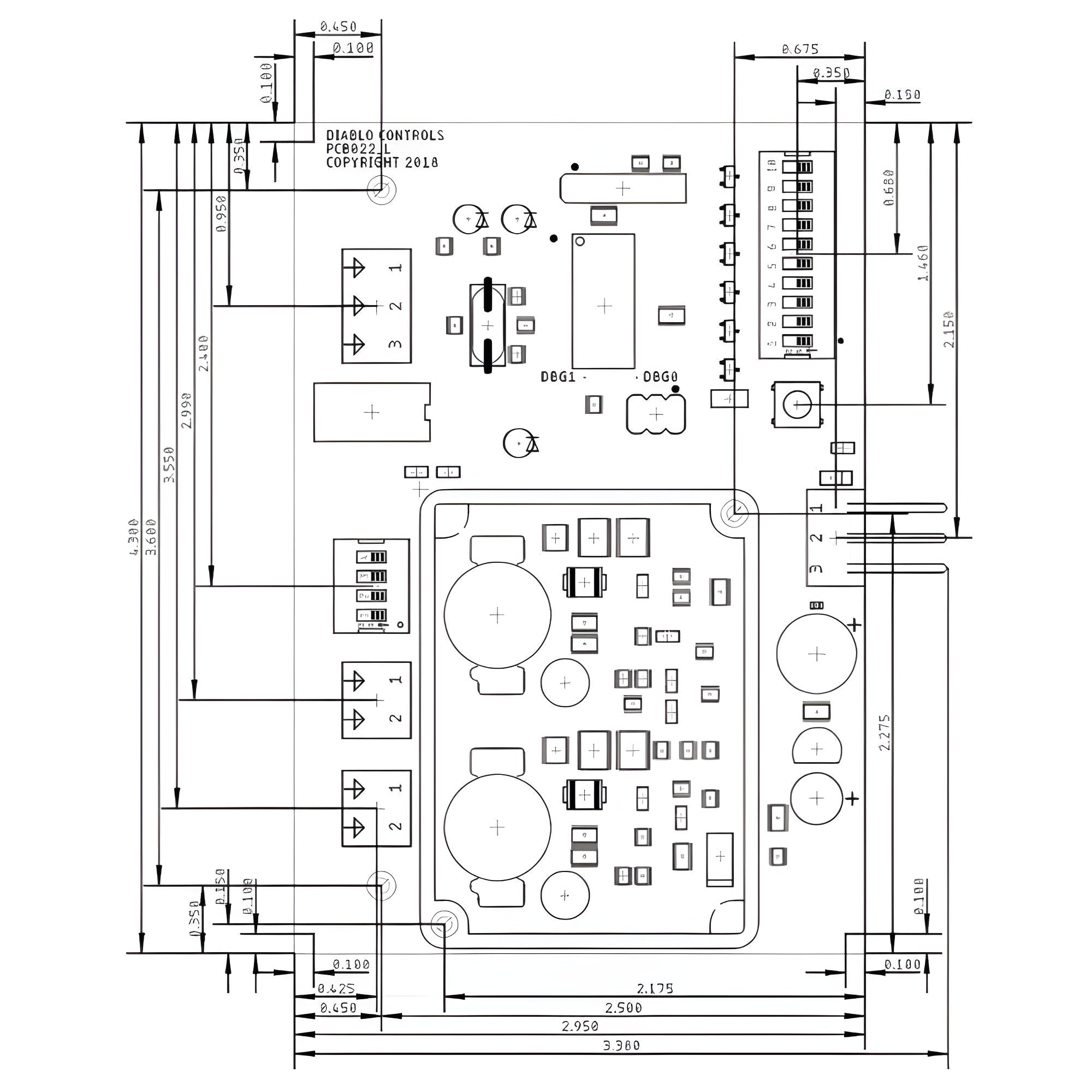

- Compact, Durable Design: Small form factor with rugged construction that integrates cleanly with DoorKing systems and tight spaces.
- Operating Voltage: 14 to 27 VDC input range for versatile power options across installations.
- Loop Inductance Range: Supports inductive loops from 20 µH to 1500 µH, including lead-in inductance, for broad compatibility.
- Operating Temperature: Reliable operation from -35°F to 165°F (-37°C to 74°C) in extreme environments.
- Output Ratings: Channel 1 offers solid-state, open-drain output up to 250 mA at 30 V; Channel 2 provides relay outputs at 30 VDC/2 A and 125 VAC/0.5 A.
- Response Time: Fast reaction with 181 ms typical and up to 314 ms worst-case for timely access control decisions.
- DoorKing Compatibility: Specifically engineered to work with DoorKing operators, ensuring seamless integration and reliable performance.
The DSP-22-2 is built to improve reliability and efficiency in modern access control installations. Its fail-safe outputs mean gates stay operable even if a loop fault occurs, while dual-channel operation reduces the risk of missed detections in busy entrances. Energy efficiency, broad loop compatibility, and integrated fault memory simplify maintenance, making it a practical choice for parking facilities, gated communities, and industrial sites that rely on DoorKing systems. With Free Exit Probe support and four sensitivity levels plus boost, you can tailor detection to your site’s traffic patterns and vehicle mix, minimizing false positives and ensuring smooth vehicle flow.
