Description
The Diablo DSP-20 Dual Channel Vehicle Loop Detector is a compact, high-precision sensor designed for multi-lane parking facilities, gates, and robust access control systems. It delivers reliable vehicle detection with dual-channel operation, directional logic options, and advanced scanning to minimize false positives in busy environments.
- Dual Channel: Dual-channel operation supports independent monitoring or directional logic modes, enabling flexible lane control and optimized traffic flow.
- Fail-safe / Fail-secure: Selectable safety settings provide enhanced reliability and security depending on your access control configuration.
- Advanced Scanning Technology: Sophisticated loop scanning reduces noise and interference for accurate vehicle detection even in challenging environments.
- Sensitivity Boost: Optimized for detecting higher-bed vehicles and unusual vehicle profiles with greater precision.
- Extended Presence: Maintains vehicle presence for up to 18 hours to ensure consistent operation during long access cycles or outages.
- Compact Design: Slim, easy-to-install enclosure fits tight spaces and simplifies retrofits in existing installations.
- Operating Voltage: 10.5V to 35V DC, 9V to 28V AC (Relay) for flexible power options in varying deployments.
- Loop Inductance: Compatible with loop inductance from 20 µH to 1500 µH, supporting a wide range of loop configurations.
- Output Ratings: 1A @ 125V (Relay) to drive standard control circuits and interface with access controllers.
- Response Time: 150ms ±25ms to deliver swift detection with reliable gating for gate and barrier systems.

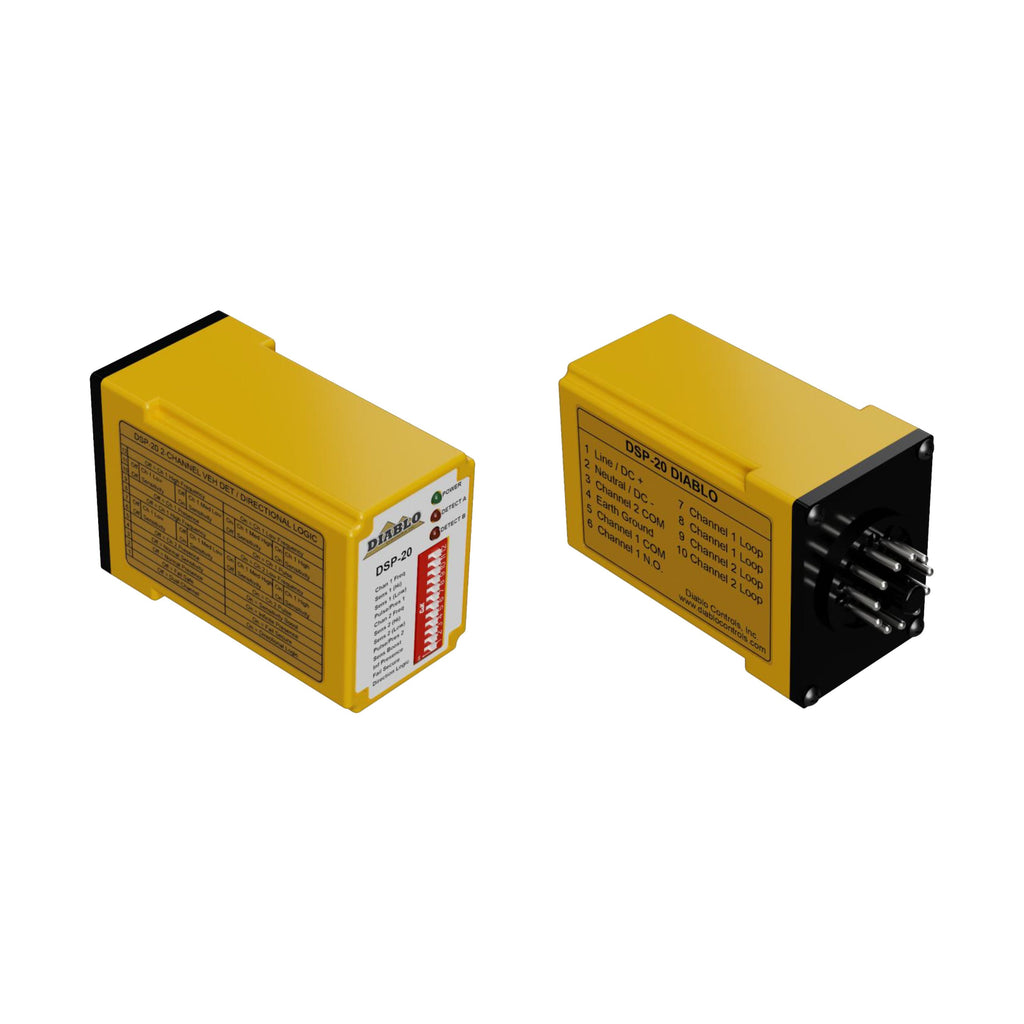

- Dimensions: 2.36” (H) x 1.75” (W) x 4.09” (D) for a space-efficient installation footprint.

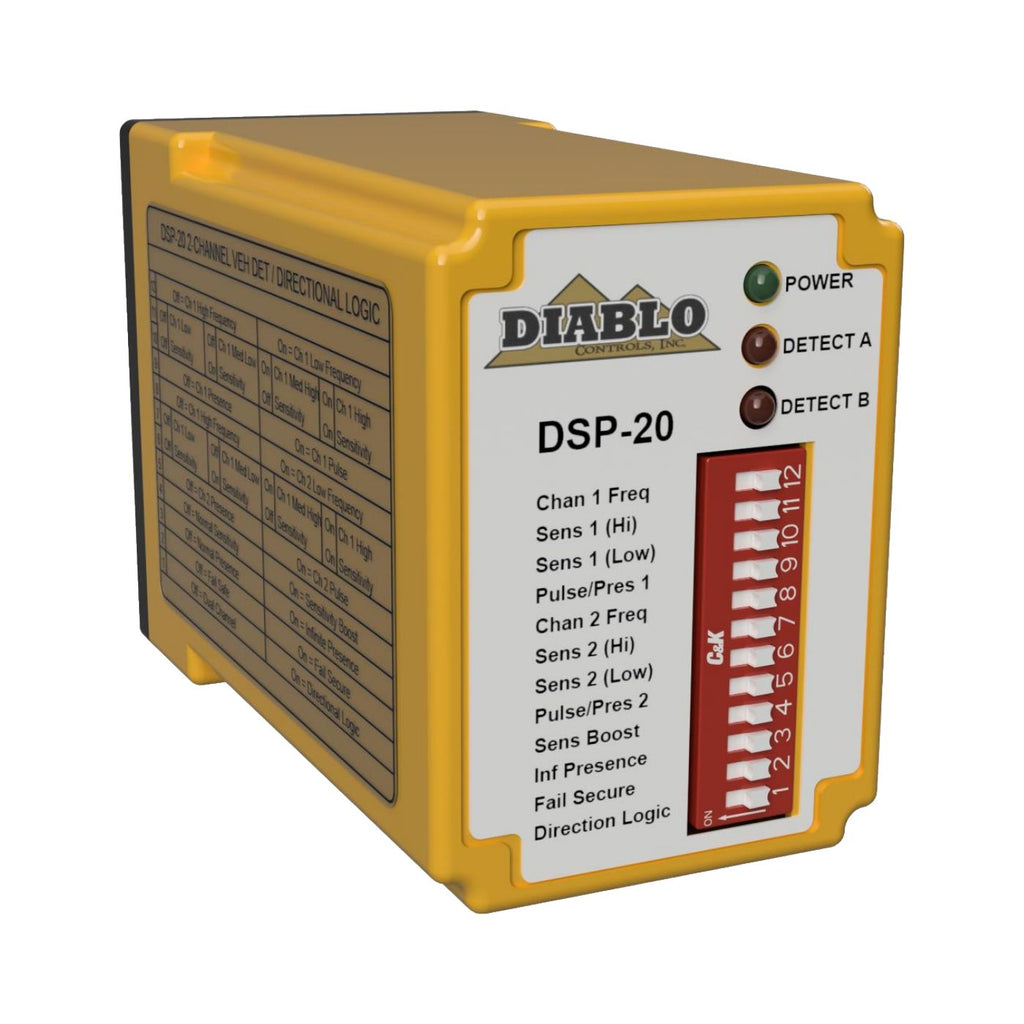

- Indicators: Green LED indicates power; red LED signals detection events or fault alerts for quick现场 status checks.
- Loop Harness: Loop harness not included, allowing you to pair with your preferred installation wiring approach.
The Diablo DSP-20 is the go-to solution for access control professionals who require precise, versatile, and energy-efficient vehicle detection. Its dual-channel design with directional logic and independent operation modes makes it ideal for multi-lane systems, parking management, and high-security applications. Advanced scanning minimizes false detections, while the sensitivity boost and extended presence features enhance reliability in dynamic environments. The compact enclosure simplifies installation in tight spaces, reducing installation time and wiring complexity. Whether you're integrating with gates, parking barriers, or security-controlled entries, the DSP-20 delivers dependable performance, durable construction, and easy integration with standard access control gear.
