Description
The Cartell CW-CON Wireless Driveway Notification System provides reliable vehicle detection with instant in-home audible alerts, allowing property owners to know immediately when a vehicle enters their driveway. Designed for residential properties, farms, ranches, private roads, and gated entrances, the CW-CON combines advanced magnetometer vehicle detection with a wireless indoor sounder for dependable notification without trenching or complicated installation.
Unlike motion sensors that can be triggered by animals, weather, or pedestrians, the CW-CON uses proven magnetometer technology to detect moving metal vehicles only. The wireless sensor puck communicates with the included indoor sounder, providing instant alerts whenever a vehicle enters the monitored area.
Installation is fast and simple, typically requiring less than one hour with no trenching, underground wiring, or external antennas. The included indoor sounder features over 25 selectable alert tones and supports multiple sensors, making it easy to monitor multiple entrances or assign unique sounds to different detection zones.
Built with a rugged IP68-rated sensor enclosure and long-life CR123A batteries, the CW-CON is engineered for dependable year-round operation in demanding outdoor environments while delivering convenient indoor notifications homeowners and property managers can rely on.
Key Features
- Wireless driveway notification system
- Advanced magnetometer vehicle detection technology
- Detects vehicles while ignoring motion, animals, and weather
- Instant indoor audible alerts
- Over 25 selectable alert sounds
- Supports multiple sensors and sounders
- No trenching or underground wiring required
- Wireless communication up to 1,000 ft line-of-sight
- Adjustable sensitivity settings
- Battery-powered sensor puck
- Rugged IP68-rated enclosure
- Quick installation in under one hour
Benefits
- Know immediately when vehicles enter your property
- Eliminates false alarms common with motion detectors
- Fast installation with minimal labor
- No expensive trenching or conduit work
- Ideal for long driveways and remote entrances
- Multiple alert tones for customized monitoring
- Long battery life reduces maintenance requirements
- Reliable operation in all weather conditions
- Expandable system for larger properties
Applications
- Residential driveways
- Ranches and farms
- Rural properties
- Private roads
- Gated communities
- Estate entrances
- Security monitoring
- Property access awareness
- Visitor notification systems

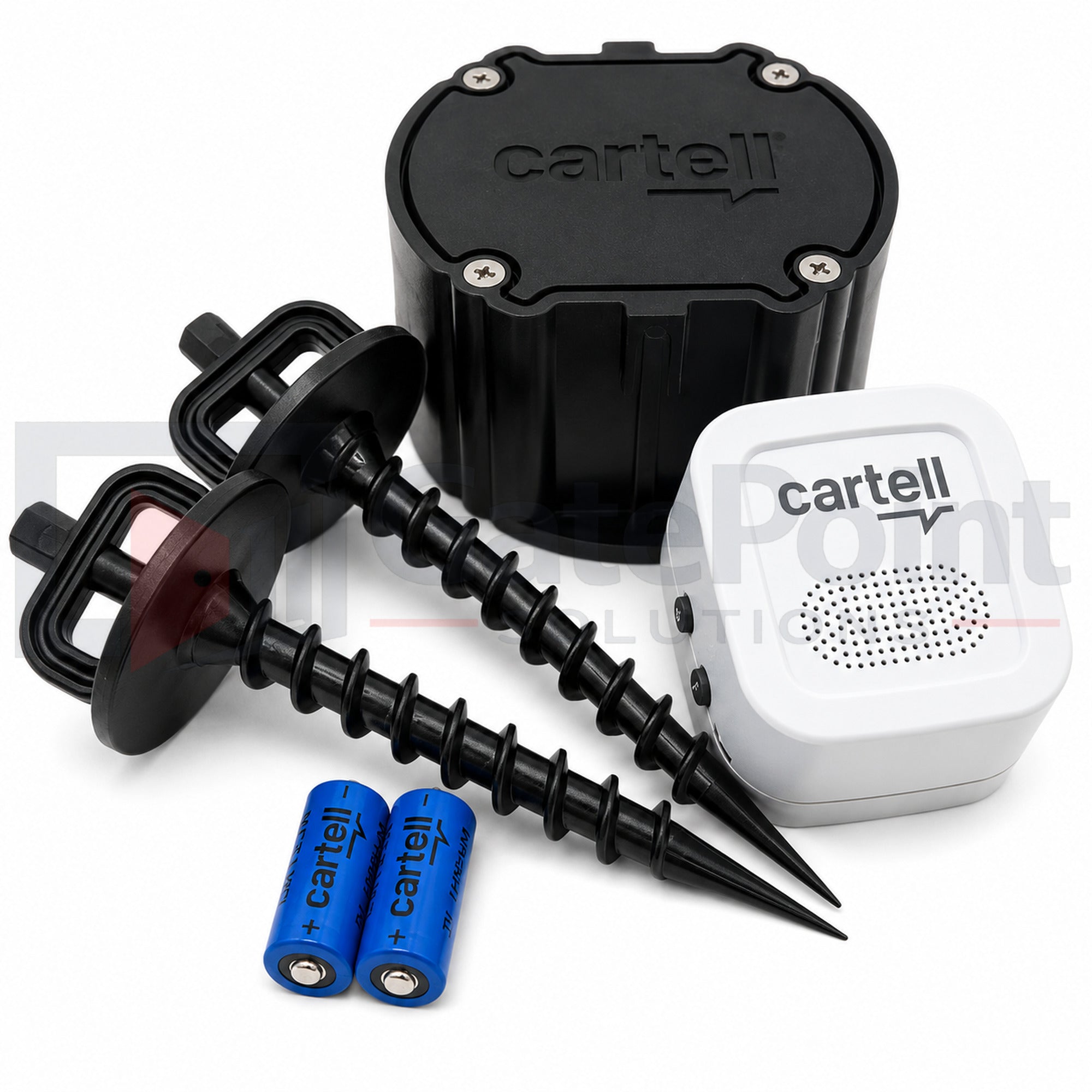

What's Included
- Wireless Sensor Puck
- Indoor Audio Sounder
- (2) Auger Mounting Screws
- (2) CR123A Batteries
- Installation Hardware
- Installation Documentation
Specifications
- Model: CW-CON
- Detection Technology: Magnetometer Vehicle Detection
- Wireless Range: Up to 1,000 ft (305 m) line-of-sight
- Sensor Power: 2 × CR123A Batteries
- Battery Life: 1–3 Years
- Sensor Standby Current: 22 µA
- Sensor Alarm Current: 130 mA
- Sounder Input Voltage: 85–230 VAC
- Sounder Current Draw: 25–80 mA
- Sensor Enclosure Rating: IP68
- Sensor Strength Rating: 9.39 Ton Force (8514 kgf)
- Operating Temperature: -13°F to 140°F (-25°C to 60°C)
- Sensor Dimensions: 4.5" Diameter × 2.5" Height
- Sounder Dimensions: 2.5" H × 2.5" W × 2.75" D
- Warranty: 3 Years
Why Choose the Cartell CW-CON?
The Cartell CW-CON delivers dependable vehicle detection and instant audio notifications in a simple wireless package. With industry-proven magnetometer technology, long-range wireless communication, and customizable alert sounds, it provides homeowners and property managers with an effective way to monitor driveway activity without the complexity of wired systems.
