Description

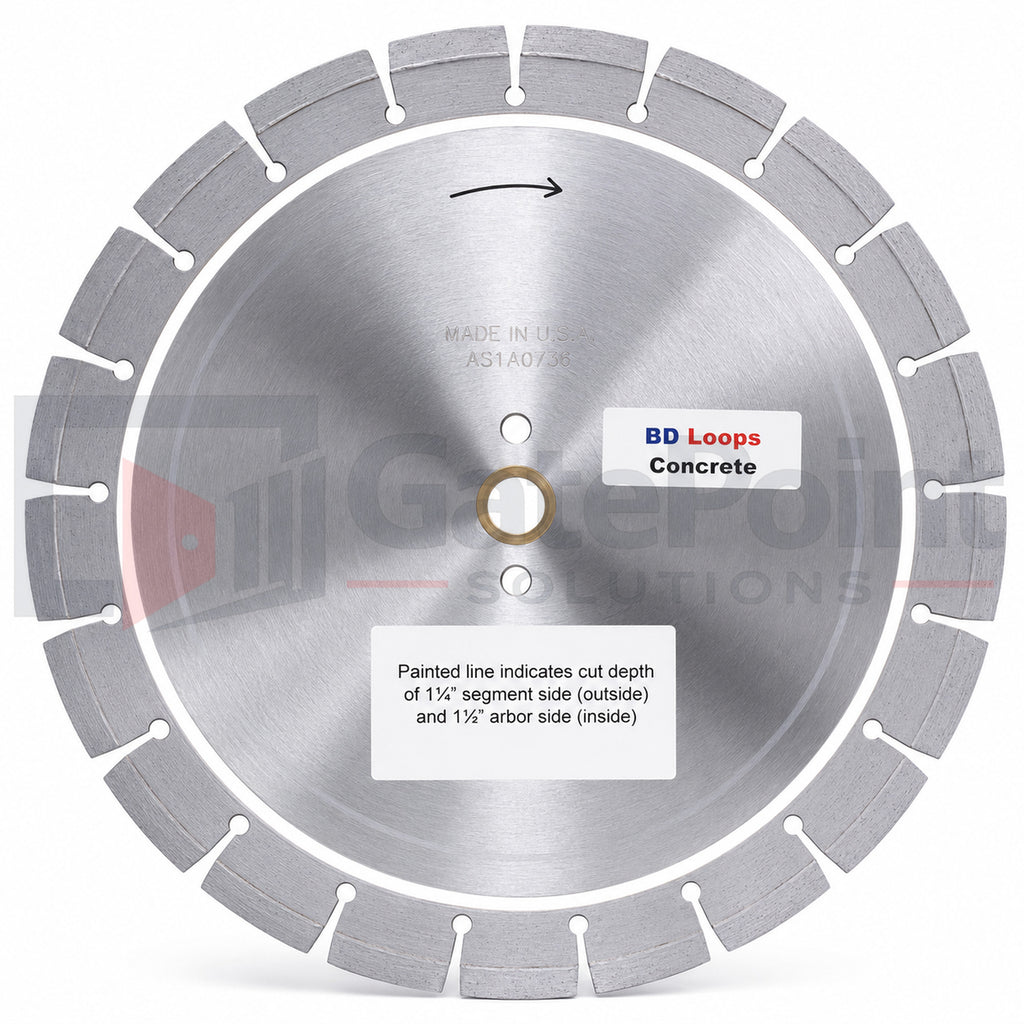

The BD Loops SB-C is a professional-grade 14-inch diamond saw blade specifically engineered for cutting 3/16" wide saw-cut slots in concrete surfaces for vehicle detection loop installations. Featuring a soft diamond bond designed exclusively for concrete applications, the SB-C delivers rapid cutting performance, exceptional blade life, and cleaner cuts when installing inductive loop systems for gates, access control, parking facilities, and traffic management applications.
Designed for professional contractors and gate automation installers, this blade provides the precision and durability needed for reliable loop installations while reducing labor time and material waste.
Key Features
- Professional 14" diamond saw blade
- Precision 3/16" (0.1875") cutting width
- Soft bond formulation optimized for concrete
- Fast cutting performance in concrete surfaces
- Extended blade life when used in concrete applications
- Wet or dry cutting capability
- Premium diamond segment construction
- Saves sealant and installation time versus 1/4" blades
- Designed specifically for vehicle loop installations
- Contractor-grade performance and durability
Applications
- Vehicle detection loop installations
- Automatic gate systems
- Commercial access control projects
- Traffic signal loop detection
- Parking lot loop installations
- Industrial perimeter security systems
- Driveway vehicle detection systems
- Concrete saw-cut groove preparation
Why Choose the SB-C Concrete Blade?
The SB-C utilizes a soft diamond bond specifically engineered for concrete cutting applications. This bond continuously exposes fresh diamonds during operation, allowing the blade to maintain aggressive cutting performance and long service life in concrete.
When used on concrete surfaces, the SB-C cuts quickly and efficiently while minimizing glazing and maintaining optimal cutting performance throughout the life of the blade.
Technical Specifications
- Part Number: SB-C
- Blade Diameter: 14"
- Blade Width: 3/16" (0.1875")
- Diamond Bond: Soft Bond
- Surface Type: Concrete
- Machine Horsepower: Up to 25 HP
- Arbor Size: 3/4" to 1" (Knockout)
- Pinhole: Yes
- Spin Direction: Marked with Arrow
Performance Benefits
- Designed specifically for concrete surfaces
- Long blade life in concrete applications
- Fast and efficient cutting action
- Consistent groove width for loop wire installation
- Reduced installation labor costs
- Cleaner cuts for professional results
- Lower sealant usage compared to wider blades
Installation Instructions
- Install blade according to the directional arrow marked on the blade.
- Verify proper arbor fit before operation.
- Wet cutting is recommended for maximum blade life.
- For deeper cuts, multiple passes may be required.
- After cutting, thoroughly clean and dry the saw-cut slot before loop installation and sealing.
Blade Selection Guide
The SB-C is the ideal choice for concrete surfaces. Its soft bond formulation allows diamonds to remain exposed and cutting efficiently in hard concrete materials, providing superior performance and longevity compared to asphalt-specific or combination blades when used in concrete applications.
Packaging Information
- Package Dimensions: 16" x 16" x 2"
- Approximate Weight: 6.5 lbs
