Description

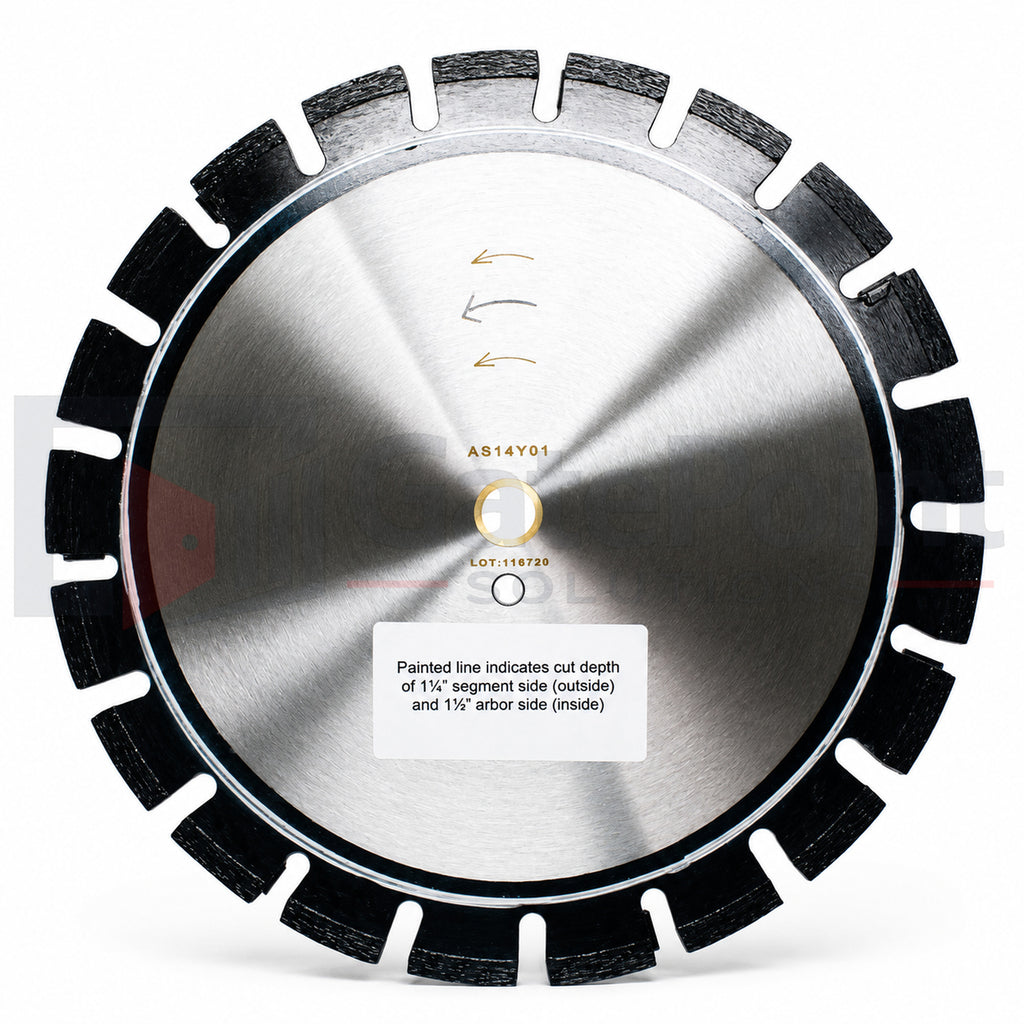

The BD Loops SB-A is a professional-grade 14-inch diamond saw blade specifically engineered for cutting 3/16" wide saw-cut slots in asphalt surfaces during vehicle detection loop installations. Featuring a hard diamond bond formulation, the SB-A is optimized to deliver maximum blade life, fast cutting performance, and consistent results in asphalt applications.
Designed for gate automation, access control, parking management, and traffic detection systems, the SB-A is the preferred choice for contractors seeking the longest blade life and highest productivity when cutting asphalt surfaces.
Key Features
- Professional 14" diamond saw blade
- Precision 3/16" (0.1875") cutting width
- Hard bond diamond formulation for asphalt
- Designed specifically for asphalt cutting applications
- Wet or dry cutting capability
- Long-lasting diamond segment construction
- Faster cutting and extended blade life in asphalt
- Reduces sealant consumption compared to 1/4" blades
- Contractor-grade performance and durability
- Ideal for vehicle detection loop installations
Applications
- Vehicle detection loop installations
- Automatic gate systems
- Access control systems
- Parking lot loop detectors
- Traffic signal loop systems
- Asphalt driveways and entrances
- Commercial parking facilities
- Security and perimeter access projects
Why Choose the SB-A Asphalt Blade?
The SB-A utilizes a hard diamond bond specifically designed for asphalt surfaces. The hard bond prevents diamond segments from shedding too quickly, resulting in superior blade life and consistent cutting performance.
When used in asphalt, the SB-A delivers maximum efficiency and longevity, making it the preferred blade for installers who primarily work on asphalt surfaces.
Technical Specifications
- Part Number: SB-A
- Blade Diameter: 14"
- Blade Width: 3/16" (0.1875")
- Diamond Bond: Hard Bond
- Surface Type: Asphalt
- Machine Horsepower: Up to 25 HP
- Arbor Size: 3/4" to 1" (Knockout)
- Pinhole: Yes
- Spin Direction: Marked with Arrow
Performance Characteristics
When Used in Asphalt
- Designed specifically for asphalt cutting
- Long blade life and fast cutting performance
- Hard bond prevents premature diamond shedding
- Excellent productivity and reduced operating costs
- Ideal for professional loop installation contractors
When Used in Concrete
- Not recommended for continuous concrete cutting
- Blade may glaze over and stop cutting efficiently
- Requires use on asphalt to re-expose cutting diamonds
- Dedicated concrete blade recommended for concrete applications
Installation Instructions
- Install blade according to the directional arrow marked on the blade.
- Verify arbor compatibility before operation.
- Wet cutting is recommended whenever possible to maximize blade life.
- Multiple passes may be used to achieve desired slot depth.
- Clean and dry saw-cut grooves before loop wire installation and sealing.
Benefits for Contractors
- Longest blade life in asphalt applications
- Faster cutting speeds
- Reduced blade replacement costs
- Consistent 3/16" groove width
- Professional installation results
- Lower overall project costs
Packaging Information
- Package Dimensions: 16" x 16" x 2"
- Approximate Weight: 6.5 lbs
Why Buy from GatePoint Solutions?
GatePoint Solutions supplies professional-grade vehicle detection, access control, and gate automation products trusted by installers nationwide. The BD Loops SB-A Asphalt Diamond Blade delivers the performance, durability, and precision required for efficient loop installations in asphalt surfaces while maximizing blade life and productivity.
