Description

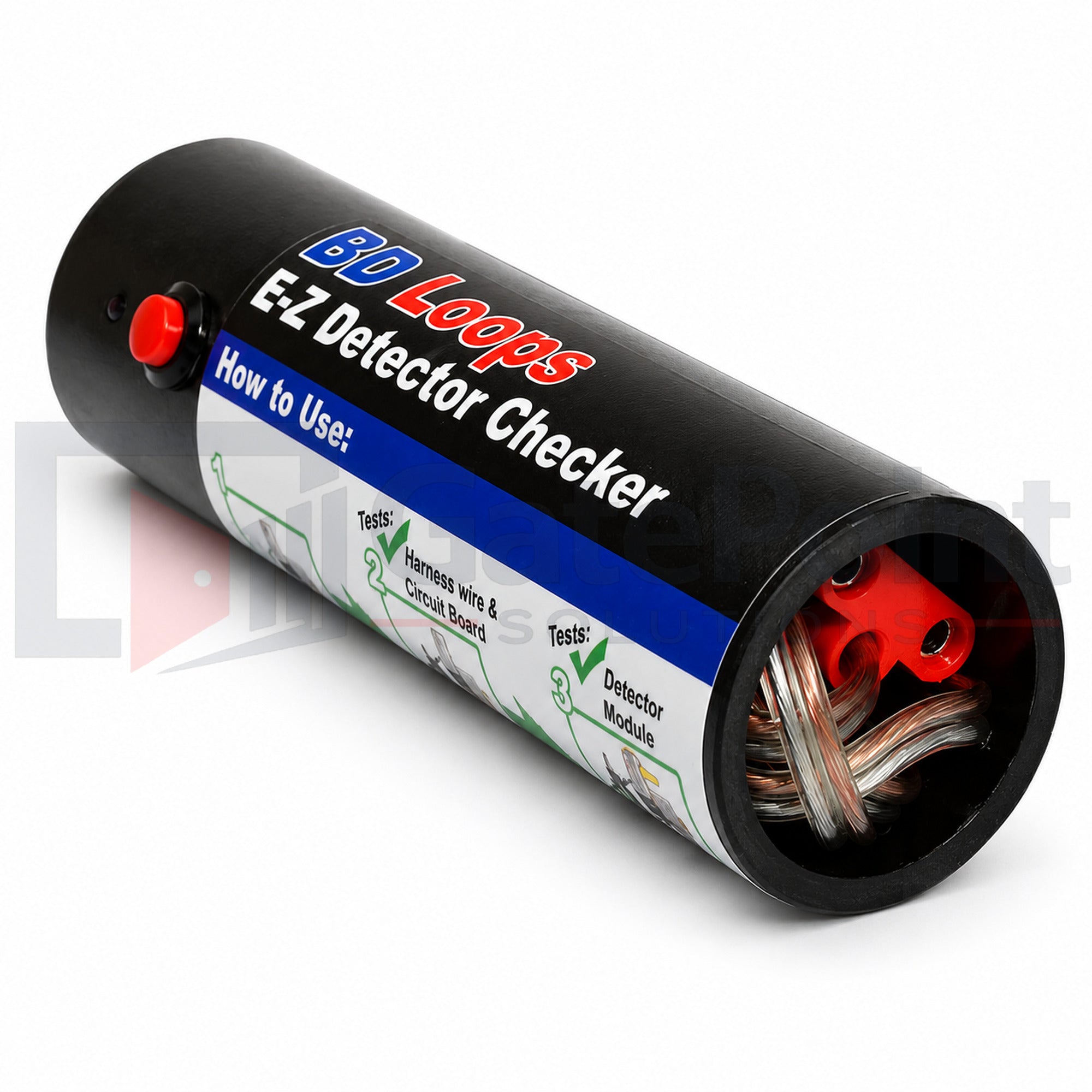

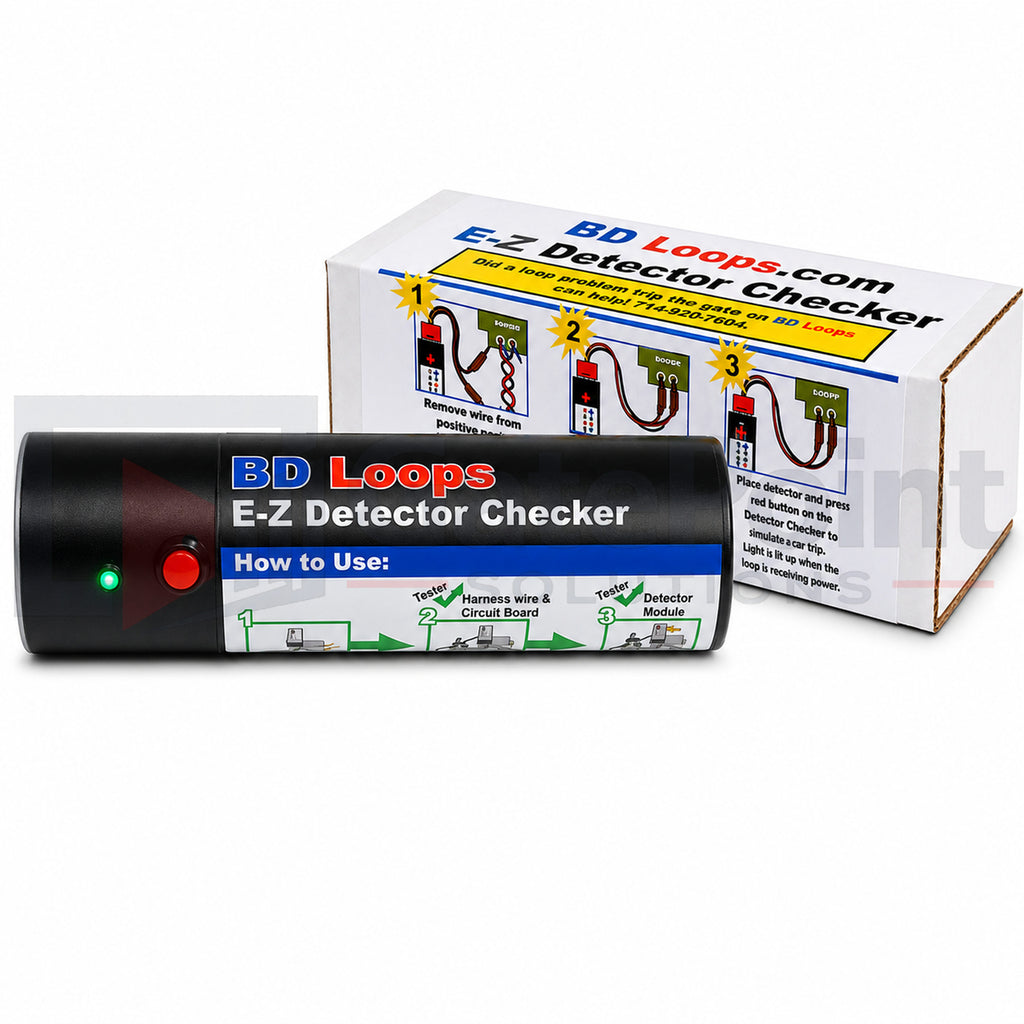

The BD Loops E-Z Detector Checker is a compact diagnostic tool designed to quickly troubleshoot vehicle detection loop systems without unnecessary digging, cutting, or loop replacement. By testing the detector module, harness wiring, and circuit board connections, the E-Z Detector Checker helps installers isolate system faults in minutes and determine whether the issue is within the loop circuit or another component.
Simple to use and powered directly by the operator, the E-Z Detector Checker is an essential troubleshooting tool for gate operators, access control systems, parking facilities, and traffic detection installations.
Key Features
- Compact handheld diagnostic tool
- Quickly tests detector modules and harness wiring
- Helps identify faulty loop system components
- No batteries required
- Powered directly from the operator
- Durable PVC housing

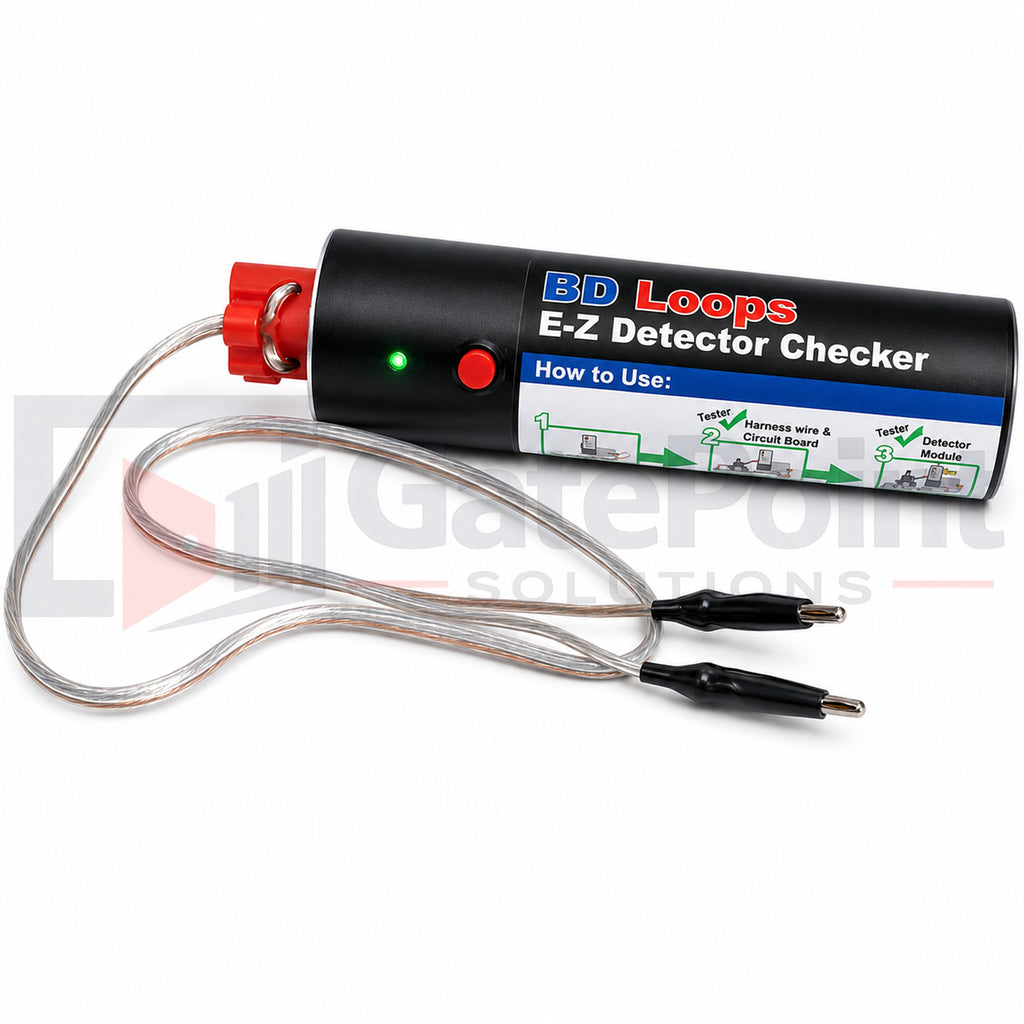

- Built-in clip lead storage
- One-button operation
- Reduces unnecessary loop replacement
- Fast field diagnostics
Applications
- Automatic gate operators
- Vehicle detection systems
- Access control installations
- Parking facilities
- Traffic control equipment
- Service and maintenance troubleshooting
- Loop detector diagnostics
How It Works
The E-Z Detector Checker is connected in place of the existing loop connection at the detector. Once connected, technicians can quickly verify whether the detector, harness wiring, or control board is functioning properly.
By eliminating these components from the troubleshooting process, installers can determine if the buried loop itself is likely the source of the problem—saving valuable time and reducing unnecessary pavement cutting or loop replacement.
Benefits
- Quickly isolate loop system faults
- Reduce troubleshooting time
- Minimize unnecessary service work
- Prevent replacing good loop wire
- Verify detector operation before extensive repairs
- Improve diagnostic accuracy in the field
Product Features
- Rugged PVC enclosure
- Clip leads conveniently store inside unit
- Powered by operator—no batteries needed
- Tests detector modules, harness wiring, and board connections
- One-button activation
- Compact and lightweight design
- Designed specifically for loop detection systems
Typical Troubleshooting Process
- Disconnect the existing loop from the detector.
- Connect the E-Z Detector Checker in place of the loop.
- Verify power using the indicator light.
- Press the activation button to simulate a vehicle detection event.
- Confirm detector and system operation.
- Eliminate detector, wiring, and control board as possible fault sources.
Specifications
- Power Source: Operator Powered
- Housing Material: Heavy-Duty PVC
- Dimensions: 8" x 2" x 2"
- Weight: Approximately 0.7 lbs.
- Application: Vehicle Detection Loop Diagnostics
Why Choose the BD Loops E-Z Detector Checker?
When troubleshooting loop systems, determining whether the problem is the detector, wiring, control board, or buried loop can be time-consuming and costly. The E-Z Detector Checker removes the guesswork by allowing technicians to quickly verify system components before replacing expensive or difficult-to-access loop installations.
Ideal for gate contractors, access control installers, parking professionals, and maintenance technicians, the E-Z Detector Checker delivers fast, accurate diagnostics that save both time and money.
Note: The E-Z Detector Checker tests components upstream from the loop and is intended as a diagnostic tool for detector circuits, wiring harnesses, and control boards. For testing loop wire insulation integrity, use a megohmmeter such as the BD Loops BD-Megger.
