Description

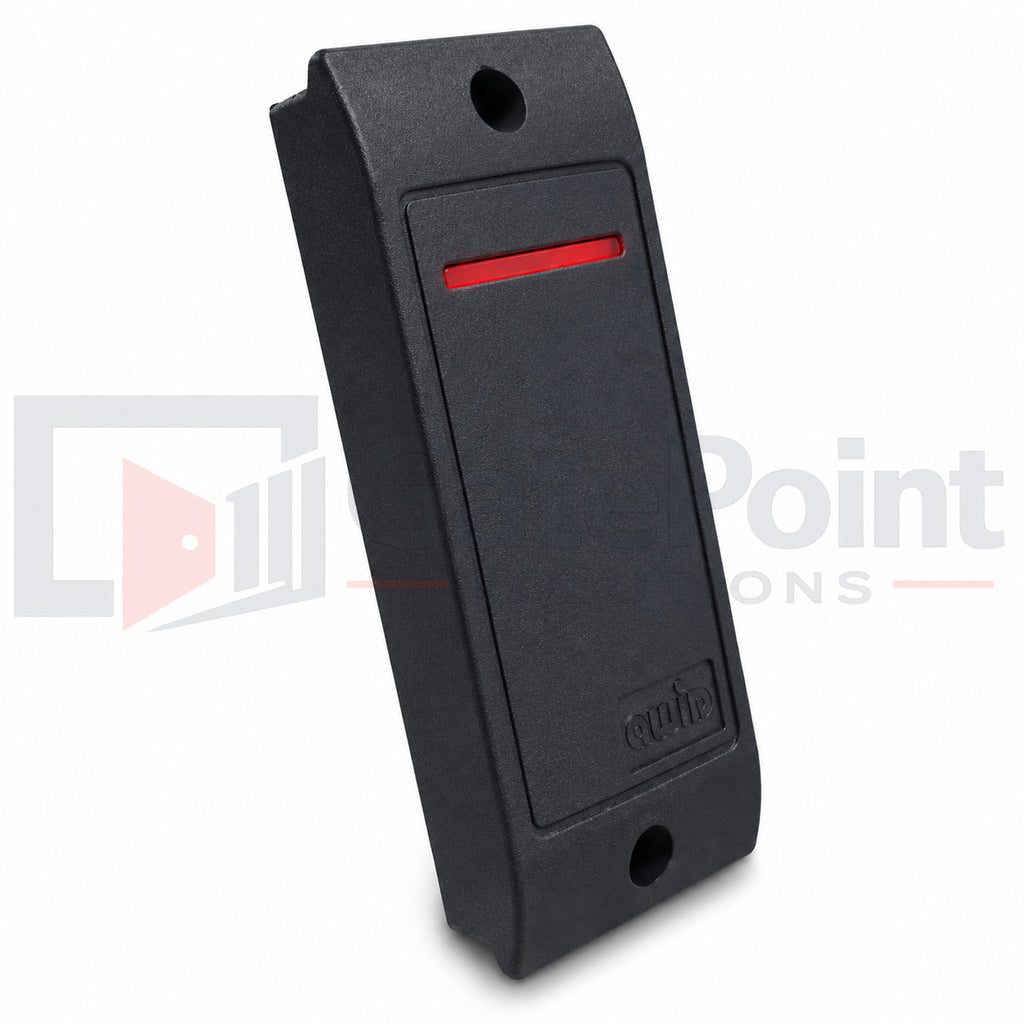

The AWID XR-100-0-0 is a compact mullion-mount UHF reader designed to provide a secure and cost-effective migration path to modern OSDP access control systems. Supporting both OSDP and Wiegand communication protocols, the XR-100 allows facilities to upgrade security infrastructure without replacing existing credentials, reducing installation costs and system downtime.
Designed for door frames, window mullions, gates, and narrow mounting locations, the XR-100 delivers reliable UHF credential reading at distances up to 1 foot. Its slim profile and durable construction make it an ideal solution for commercial buildings, secured entrances, parking facilities, and perimeter access control applications.
The XR-100 supports simultaneous OSDP, Wiegand, and RS-232 outputs, providing broad compatibility with both legacy and modern access control platforms. Enhanced OSDP security features support AES-128 encryption and FICAM-compliant environments where secure communication between reader and controller is essential.
With simple installation, audible and visual feedback indicators, and compatibility with AWID uAxcess® UHF credentials, the XR-100 offers dependable access control performance in a compact package.
Key Features
- Compact mullion-mount UHF reader
- Reads AWID uAxcess® UHF cards and tags
- Up to 1 ft read range
- Supports OSDP and Wiegand communication protocols
- Simultaneous RS-232 output
- AES-128 encrypted OSDP communications
- LED and audible user feedback indicators
- Slim design for door frames and mullions
- Indoor and outdoor installation capable
- Backward compatible with existing access control systems
Benefits
- Simplifies migration from Wiegand to OSDP systems
- Eliminates the need to replace existing credentials
- Improves security through encrypted communications
- Fast and convenient credential presentation
- Easy installation and wiring
- Compatible with a wide range of access control platforms
- Attractive low-profile design for commercial environments
- Reliable operation in demanding access control applications
Applications
- Commercial buildings
- Office entrances
- Apartment and condominium access
- Parking facilities
- Educational campuses
- Government facilities
- Healthcare facilities
- Industrial access control systems
Specifications
- Model: XR-100-0-0
- Manufacturer: AWID
- Technology: UHF RFID
- Credential Compatibility: AWID uAxcess® UHF Cards and Tags
- Read Range: Up to 1 ft (0.3 m)
- Communication Interfaces: OSDP, Wiegand, RS-232
- Operating Voltage: 5–12 VDC
- Dimensions: 4.8" x 1.9" x 0.7"
- Mounting: Door Frame, Window Mullion, or Wall Surface
- Indicators: LED and Audible Beeper
- Installation: Indoor / Outdoor
- Certifications: FCC, Industry Canada, RoHS
What's Included
- AWID XR-100 UHF Mullion Reader
- Mounting Hardware
- Installation Documentation
