Description

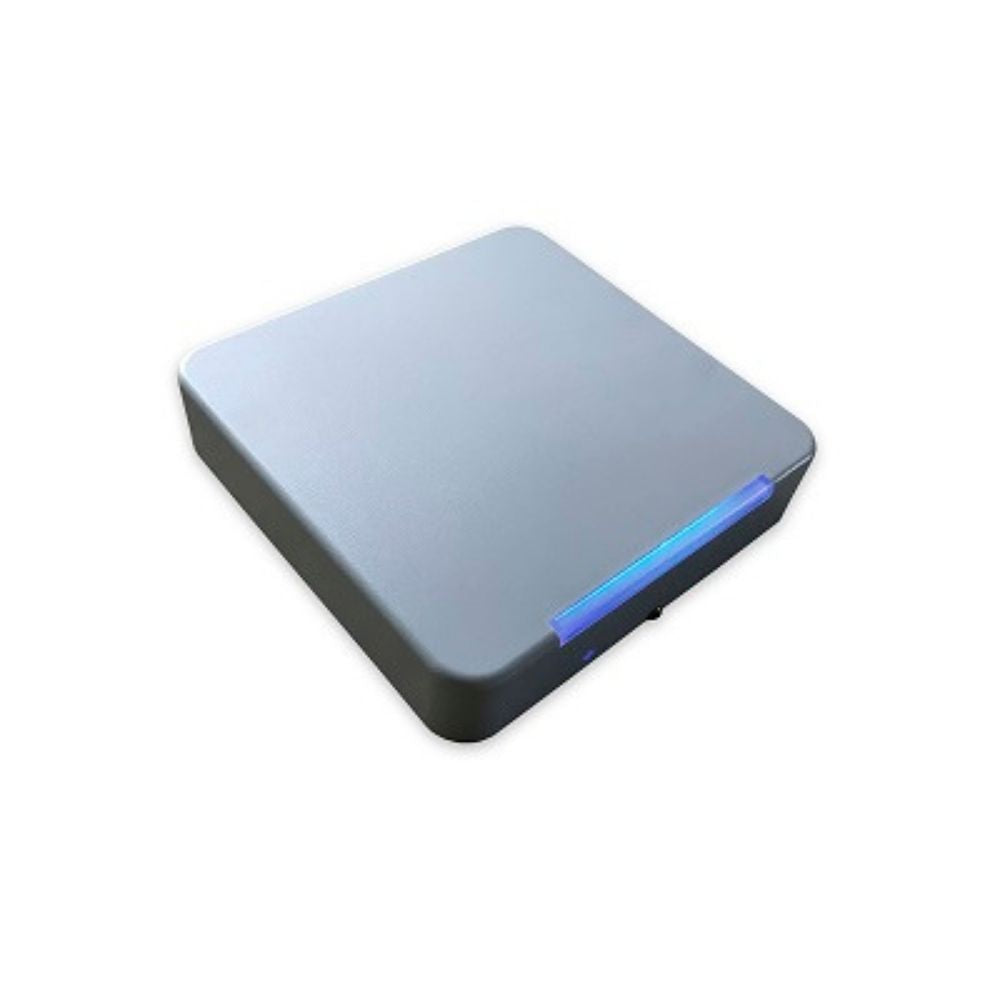

AWID’s XM-700 Gray Mid Range Reader delivers fast, secure access at doors and gates, designed for high-traffic entrances. This compact UHF reader unifies pedestrian and vehicle access using a single credential within AWID’s ecosystem for streamlined entry.
- Reading Distance: 5 to 7 feet for quick, unobtrusive entry at busy points
- Frequency & Technology: 902–928 MHz with frequency-hopping technology for reliable performance in complex environments
- Power Supply: +9 to +12 V DC, 1.0 A or more, with a regulated output for stable operation
- Interfaces: Wiegand and RS-232 support; reads standard 26- to 50-bit codes and works in parallel with multiple formats
- Credential Compatibility: Reads AWID UHF cards and tags without programming; interoperates with AWID LR-2000, LR-2200, and LR-3000 systems
- Mounting & Wiring: Easy mounting on a wall or single-gang box with a supplied metal backplate; integrated 18-inch, 10-conductor shielded cable for power and data
- Form Factor: 5.5" x 5.5" x 1.125" gray ABS enclosure—sleek, durable, and unobtrusive
- Indication: Built-in LED and audible beeper provide clear read feedback for users and security staff
- Durability & Environment: Operates from -31°F to 150°F (-35°C to 65°C) and 0–95% non-condensing humidity, suited for indoor or challenging outdoor-adjacent installations
- Unified Access Advantage: Unifies car and pedestrian access with a single credential, reducing bottlenecks at entrances and gates
- Plug-and-Play Deployment: Plug-and-play design means no programming is required, enabling rapid deployment within existing AWID ecosystems
- Ideal Applications: Corporate campuses, multifamily communities, and high-traffic facilities seeking a cohesive access control solution
The XM-700 is built for reliability in demanding environments, delivering swift, secure access without the complexity of programming. Its seamless compatibility with AWID long-range systems, clear read feedback, and robust construction help facilities maintain smooth entry flows while enforcing strong security. Ideal for campuses, residential communities, and high-traffic properties, this reader minimizes bottlenecks and supports a cohesive, scalable access control strategy.
