Description

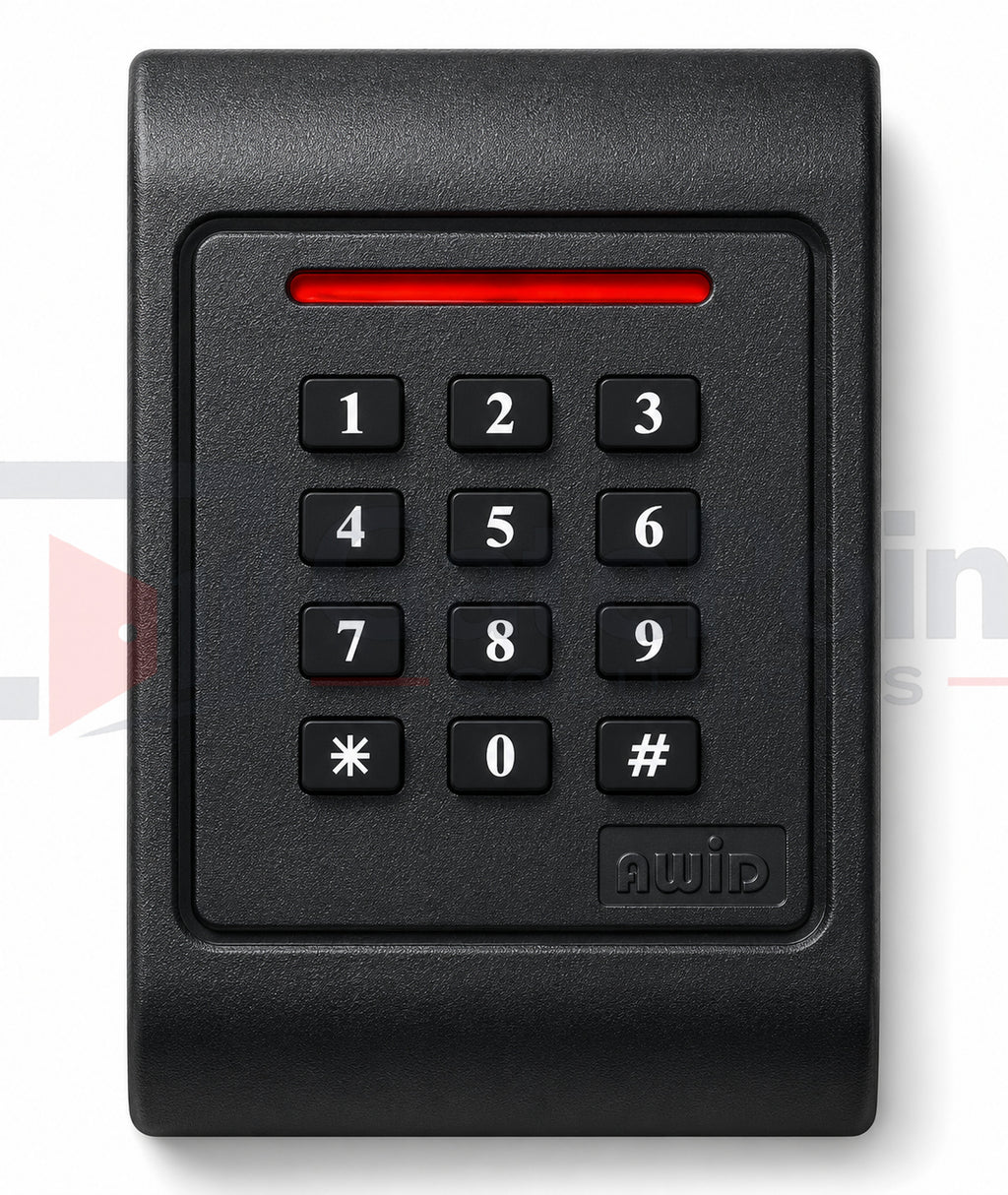

The AWID XK-3640-0-0 is a versatile UHF credential reader and keypad combination device designed to provide enhanced access control security through card, PIN, or card-plus-PIN authentication. Built to work seamlessly with AWID uAxcess UHF credentials, the XK-3640 serves as the ideal near-range companion reader for facilities utilizing long-range UHF access control systems.
Featuring an integrated 12-key PIN keypad and credential reader in a compact, attractive enclosure, the XK-3640 delivers flexible authentication options for pedestrian doors, gates, and controlled entry points. Users can gain access using a credential, a PIN code, or a combination of both depending on system programming and security requirements.
The reader supports simultaneous Wiegand and RS-232 communication interfaces, allowing easy integration with a wide range of access control platforms. Designed for both indoor and outdoor installations, the XK-3640 mounts easily to standard single-gang electrical boxes or directly to wall surfaces, making it a practical solution for commercial, industrial, residential, and institutional applications.
With visible LED indicators, audible feedback, and rugged construction, the XK-3640 provides dependable operation while delivering a professional appearance that complements modern access control installations.
Key Features
- Integrated UHF credential reader and 12-key PIN keypad
- Compatible with AWID uAxcess UHF cards and key tags
- Supports card-only, PIN-only, or card + PIN authentication
- Simultaneous Wiegand and RS-232 communication interfaces
- Indoor and outdoor rated construction
- Mounts to single-gang electrical boxes or flat wall surfaces
- Visible LED status indicators
- Audible beeper feedback
- Compact, attractive enclosure design
- Easy integration with existing access control systems
Benefits
- Enhanced security through multi-factor authentication
- Flexible credential and PIN access options
- Works with the same credentials used at vehicle gates
- Ideal for pedestrian entry points and secured doors
- Simple installation and wiring
- Reliable indoor and outdoor performance
- Immediate visual and audible user feedback
- No reader-side programming required
- Professional appearance for commercial facilities
Applications
- Commercial building entrances
- Employee access control systems
- Gated communities
- Apartment and condominium access
- Educational facilities
- Government buildings
- Industrial facilities
- Parking garage pedestrian entrances
- Warehouse and distribution centers
Specifications
- Model: XK-3640-0-0
- Manufacturer: AWID
- Product Type: UHF Credential Reader with Keypad
- Credential Technology: AWID uAxcess UHF
- Authentication Methods: Card, PIN, or Card + PIN
- Keypad: 12-Key PIN Pad
- Interfaces: Wiegand and RS-232 (Simultaneous)
- Operating Voltage: 6 to 12 VDC
- Dimensions: 4.9" H x 3.1" W x 1.0" D
- Mounting: Single-Gang Box or Wall Surface
- Environment: Indoor / Outdoor
- Indicators: LED and Audible Beeper
What's Included
- 1 × AWID XK-3640 UHF Reader with Integrated Keypad
- Installation Documentation
Ideal For
The XK-3640 is perfect for facilities that require stronger security than credential-only access, allowing organizations to combine long-range UHF vehicle access with secure pedestrian door control using card and PIN authentication.
